Week 9 - Challenge 2 - Switch Bezel Design

SWITCH BEZEL CATPART

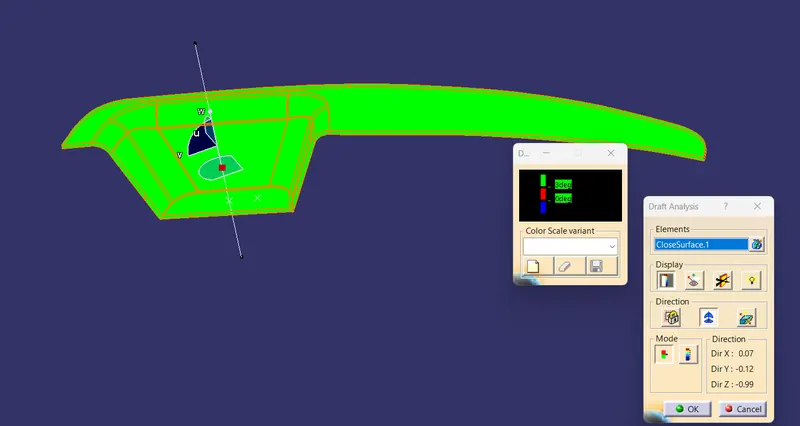

DRAFT ANALYSIS OF CLASS A:

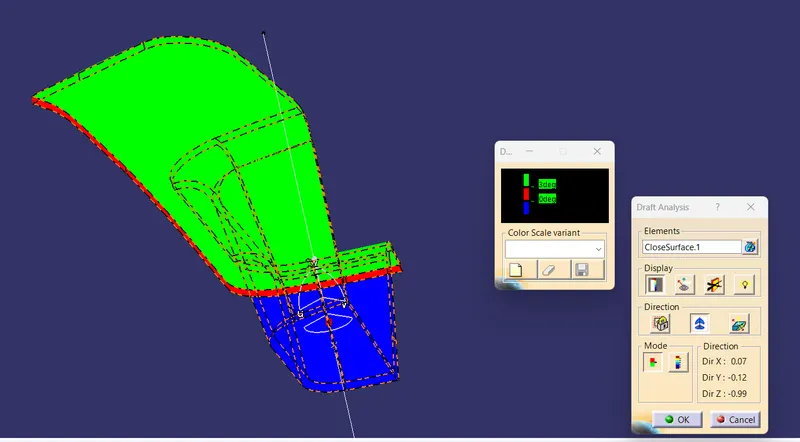

DRAFT ANALYSIS OF BODY:

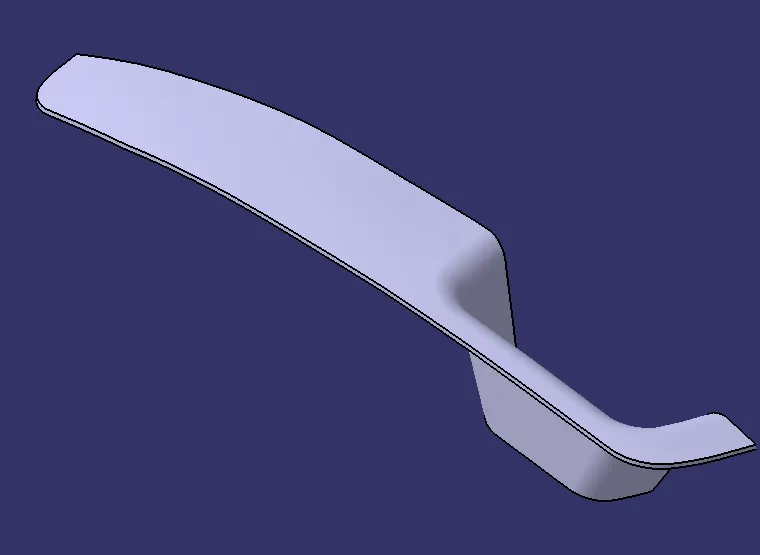

ISOMETRIC VIEW:

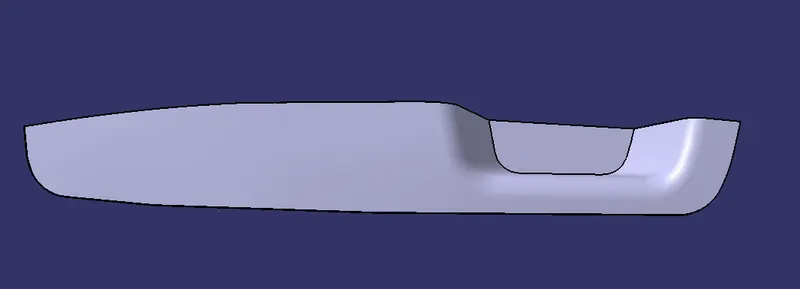

FRONT VIEW:

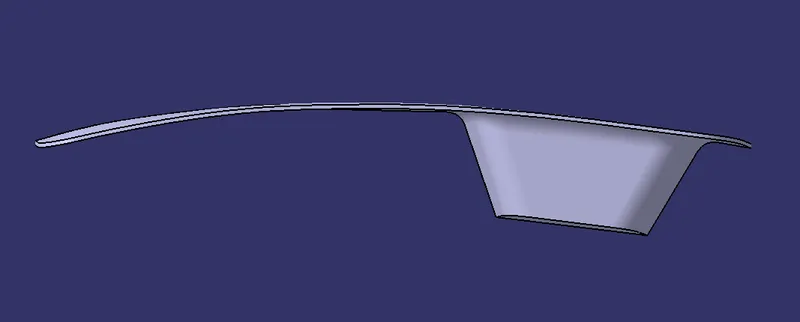

SIDE VIEW:

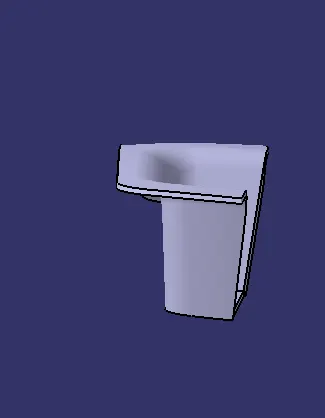

TOP VIEW:

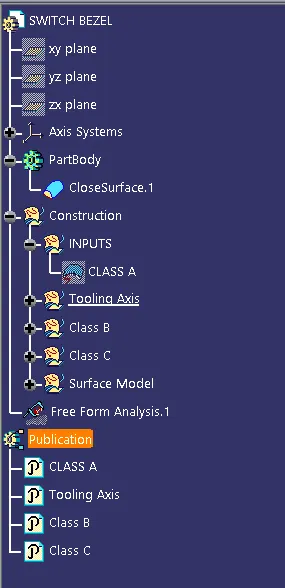

TREE (With Publications):

REPORT:

First, tooling axis is created for draft analysis. For that the flat base surface from class A is extracted and a line normal to t is created. This will be served as the tooling axis. Another method is also there, which is the intersection method where tooling axis is the line which bisectes the resultant lines from the inclined surfaces. Then draft analysis is performed.

Further, using the class A, class B and class C surfaces are created and trimmed to form a closed surface. From this using closed surface feature in the part workbench, solid body of switch bezel is created.
