Week 9 Challenge

CREATION OF CORE & CAVITY BLOCK COMPLETED IN PREVIOUS CHALLANGE ITSELF.

HERE WE START FROM CREATION OF SLIDERS FOR UNDERCUTS.

STEP:1

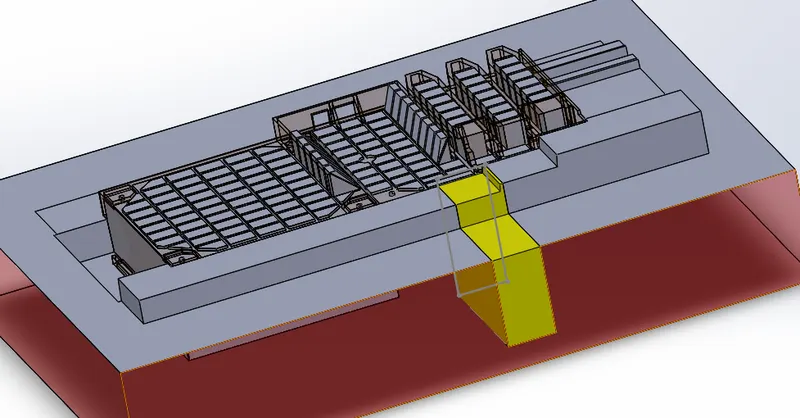

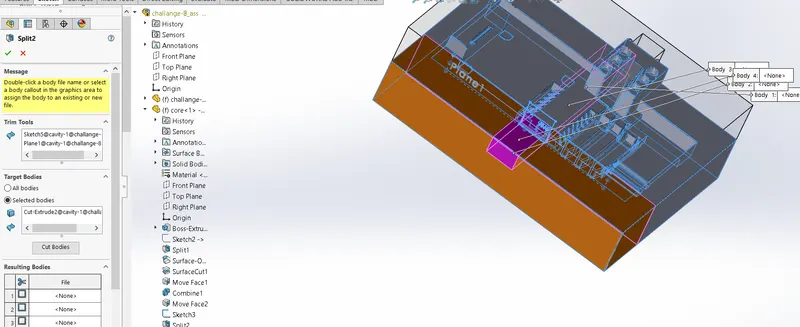

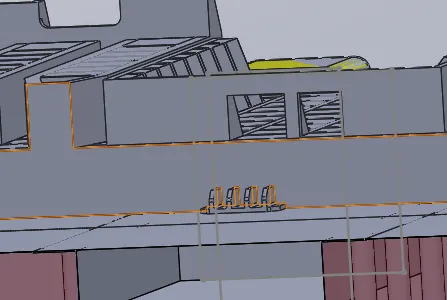

MAKE SOME SKETCH IN CORE BLOCK TO SPLIT INTO TWO BODIES

USE SPLIT COMMAND

STEP:2

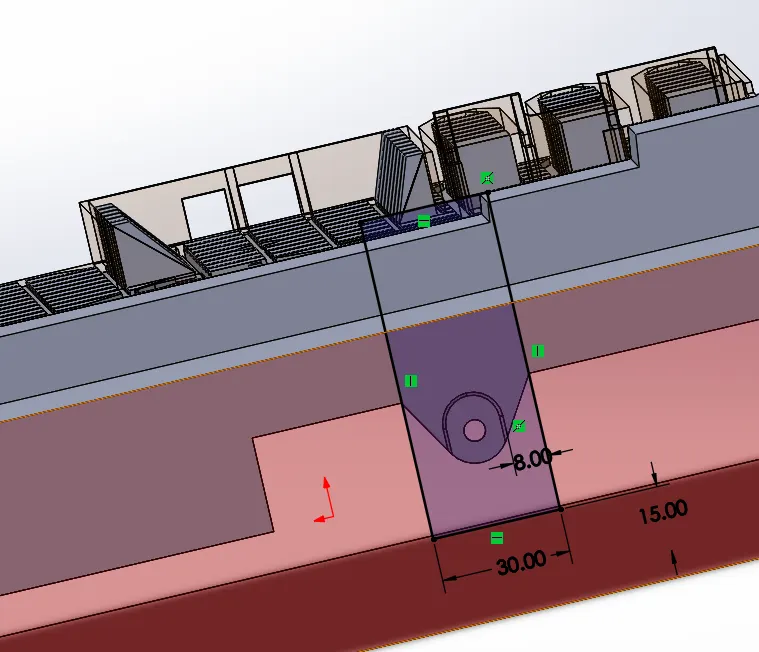

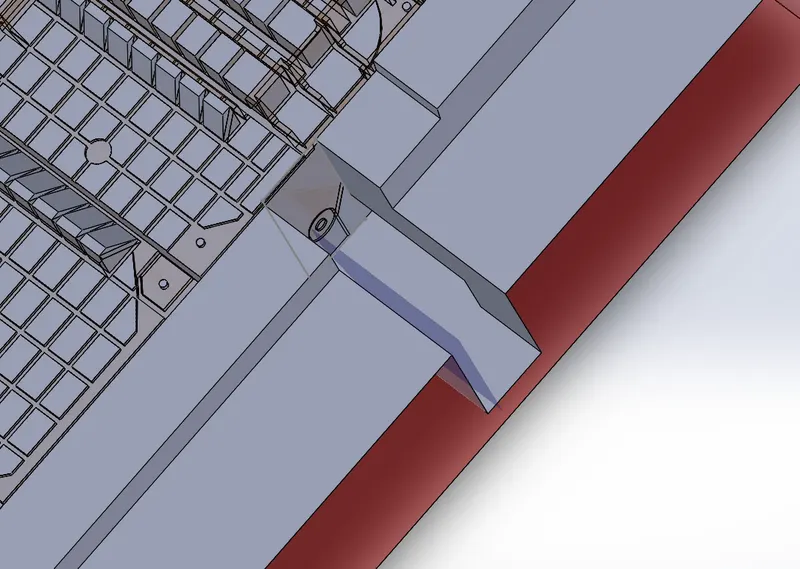

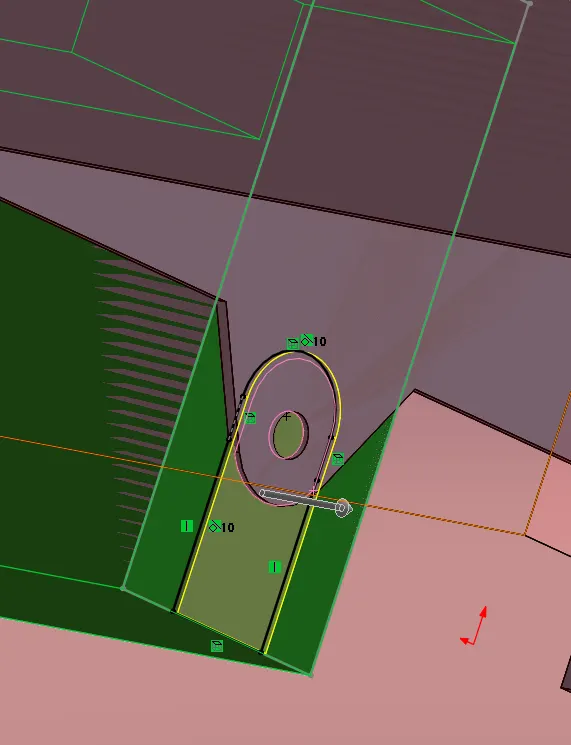

NOW USE EXTRUDE COMMAND , TO MAKE SURE HOLE PROFILE MADE IN SLIDER BODY.

STEP:3

NOW USE CHAMFER COMMAND , TO MATCH THE PROFILE OF UNDERCUTS.

STEP:4

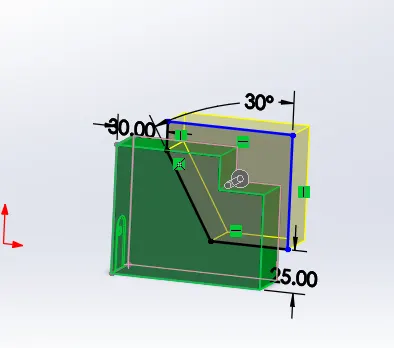

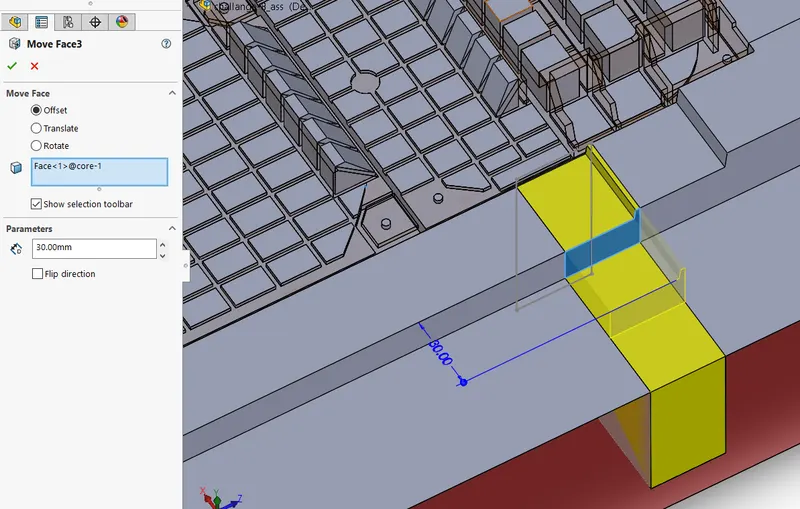

NOW THE SIZE OF THE SLIDER & MAKE EXTRUDE CUT TO HAVE WEDGE PROFILE

STEP:5

NOW MAKE COLLARS FOR SLIDERS.

STEP:6

USE COMBINE COMMAND, TO HAVE THE PROFILE OF SLIDERS IN CORE BLOCK.

STEP:7

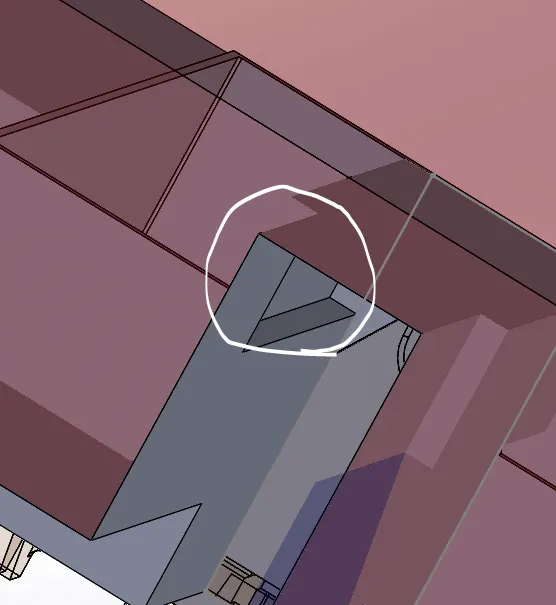

SINCE WE HAVE SOME OBSTRUCTION IN THE MOVEMENT OF SLIDER, CLEAR IT WITH EXTRUDE CUT.

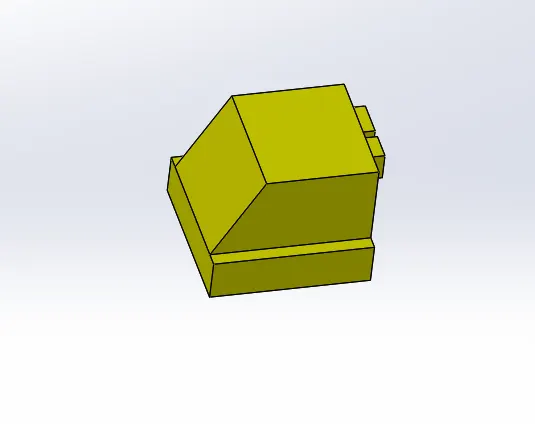

NOW SAVE THE SLIDER INTO A NEW PART.

STEP:8

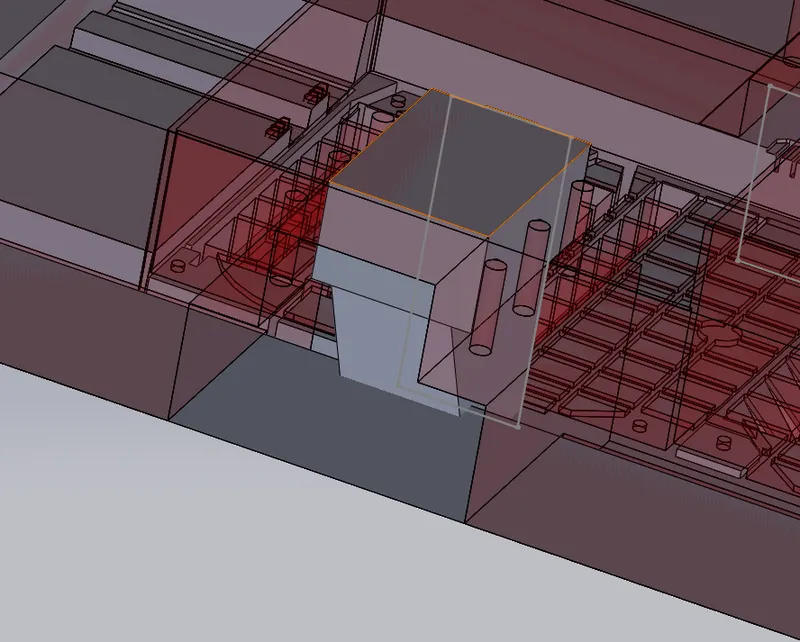

NOW OPEN THE CAVITY BLOCK & IMPORT THE SLIDER BLOCK .

STEP:9

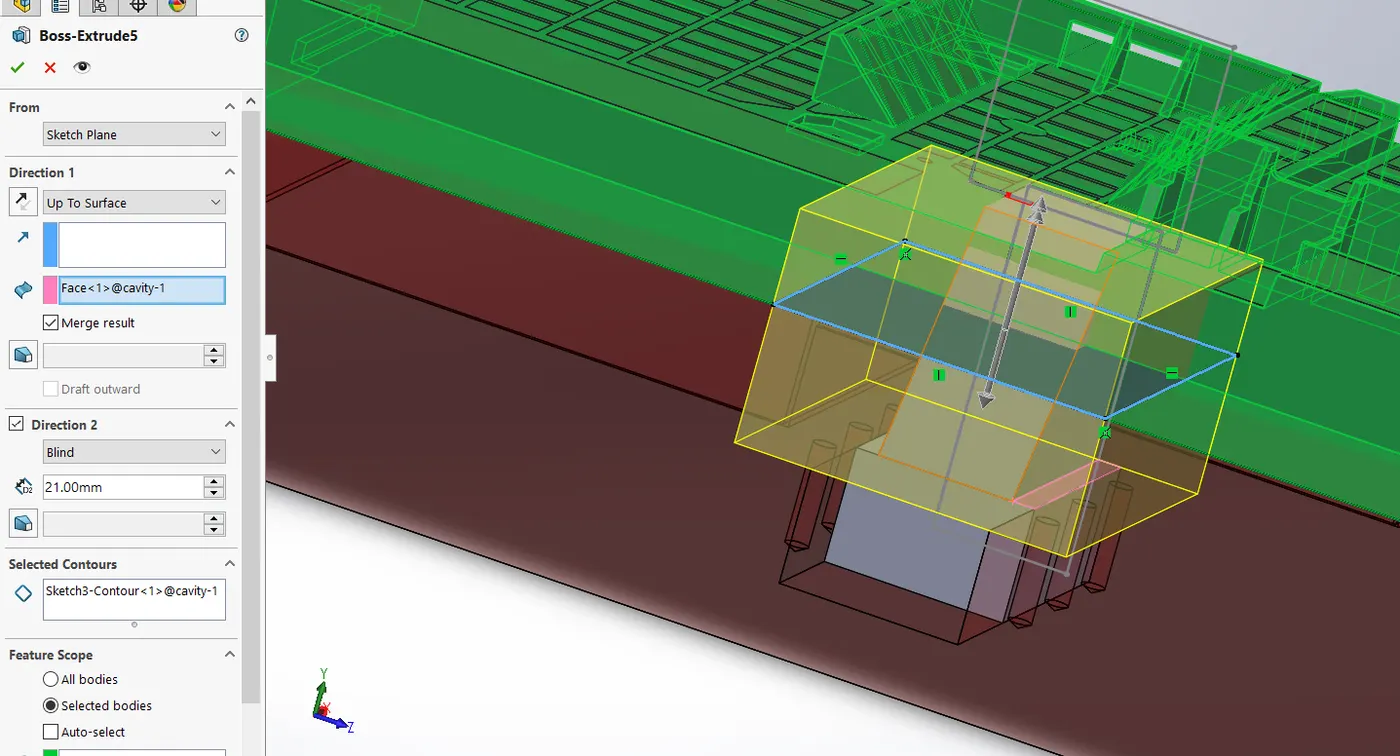

NOW EXTRUDE COMMAND TO FILL THE GAP BETWEEN CAVITY & WEDGE AREA.

STEP:10

NOW USE COMBINE COMMAND.

STEP:11

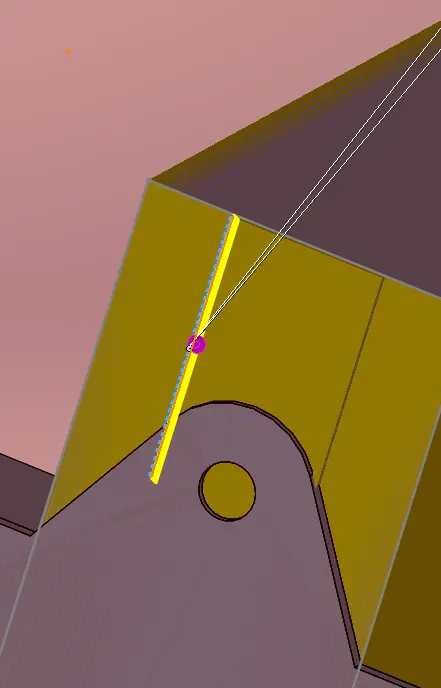

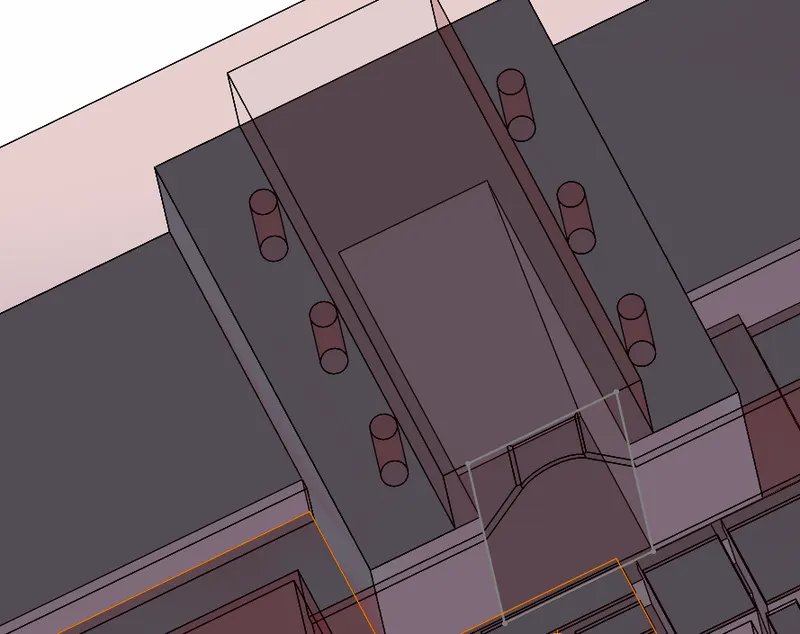

MAKE SOME FILLETS IN SLIDER PROFILE AREA IN CAVITY BLOCK & DO SAME IN SLIDER BLOCK.

STEP:13

NOW THE FIRST SLIDER IS COMPLETED, CREATE SLIDER FOR SECOND UNDERCUT.

STEP:14

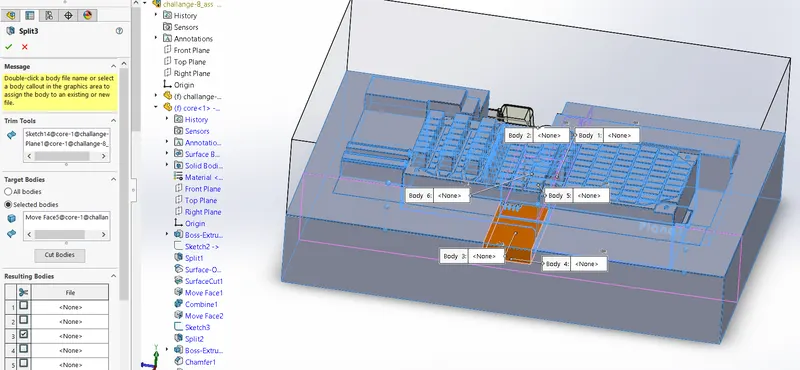

NOW CREATE PLANE & SKETCH TO COVER THE UNDERCUTS

USE SPLIT COMMAND

DO SAME THING IN CAVITY BLOCK

STEP:15

NOW USE EXTRUDE COMMAND TO FILL THE SLOT IN SLIDER BLOCK

STEP:15

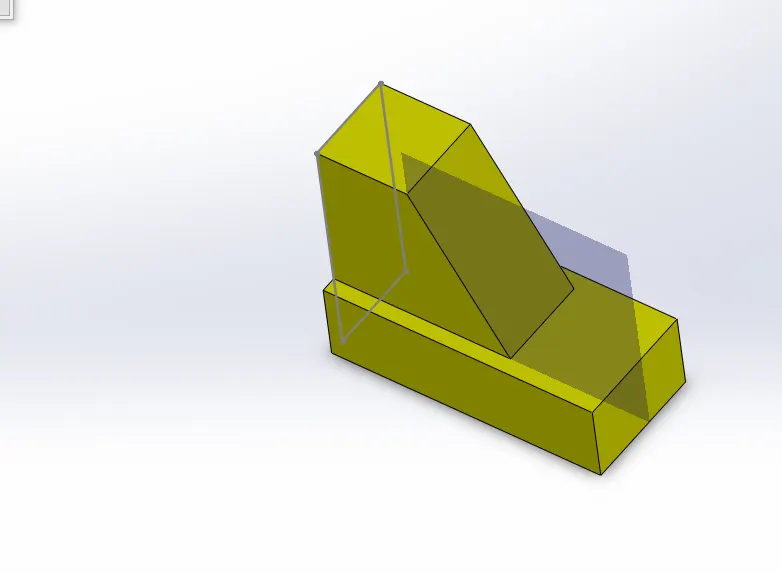

NOW COMBINE BOTH THE BLOCKS CREATED IN CORE & CAVITY BLOCK TO FORM ONE SLIDER .

STEP:16

REMAINING PROCESS ARE SIMILIAR AS THAT OF SLIDER _01

STEP:17

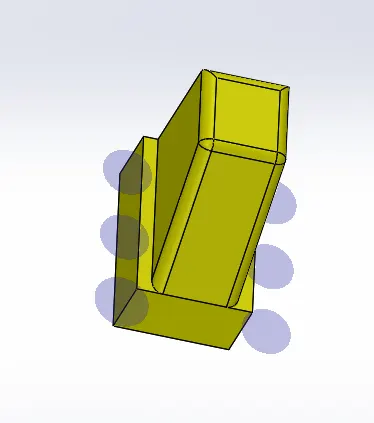

ADD WASHERS IN BOTH THE SLIDERS.
