Week 7 Challenge

STEP1:-

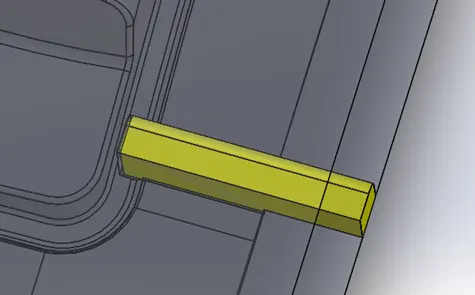

GIVEN MODEL IS HAVING UNDERCUTS, INORDER TO DEAL WITH IT SLIDERS WILL BE NEEDED.

SLIDERS WILL BE NEEDED FOR THE SLOTS ON BOTH SIDES .

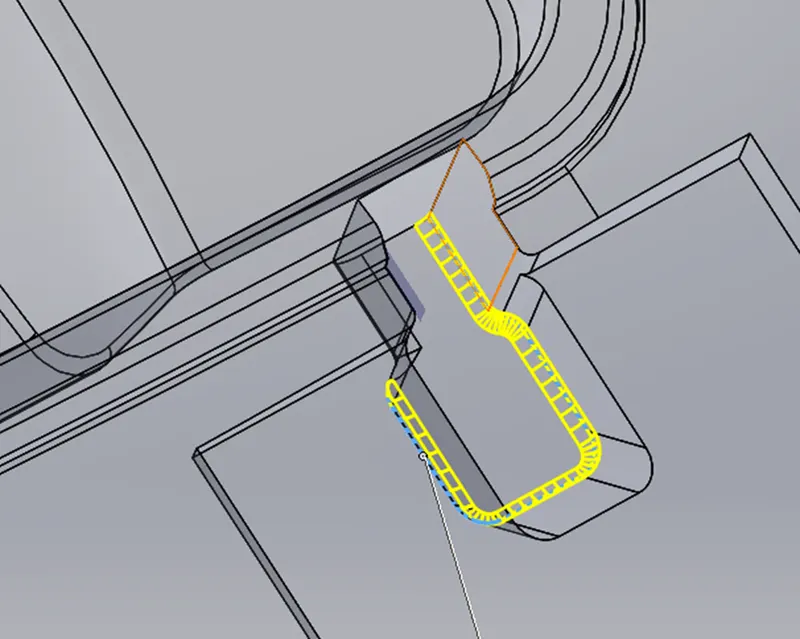

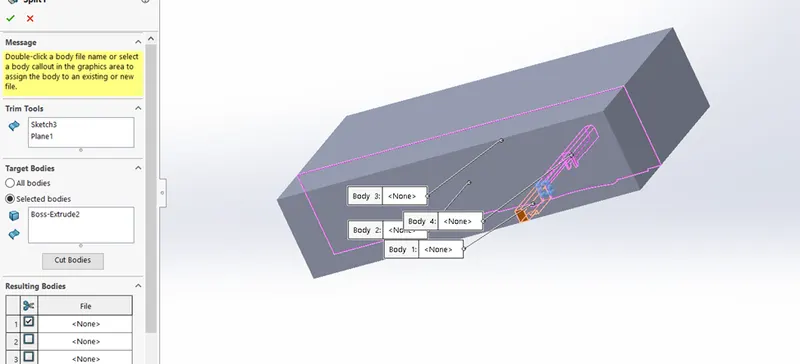

SO START WITH CAVITY BLOCK . FROM THE CAVITY BLOCK WE HAVE MAKE SLIDERS WITH USE OF SPLIT COMMAND. CREATE A PLANE ON UNDERCUT AREA.

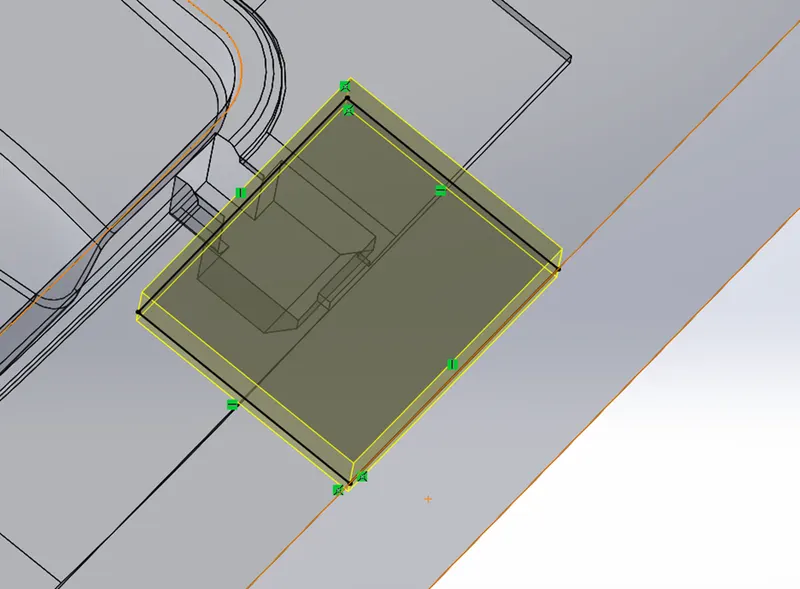

SO MAKE A SKETCH ON PLANE CREATED.

STEP2:-

NOW THERE ARE TWO SOLID BODIES.

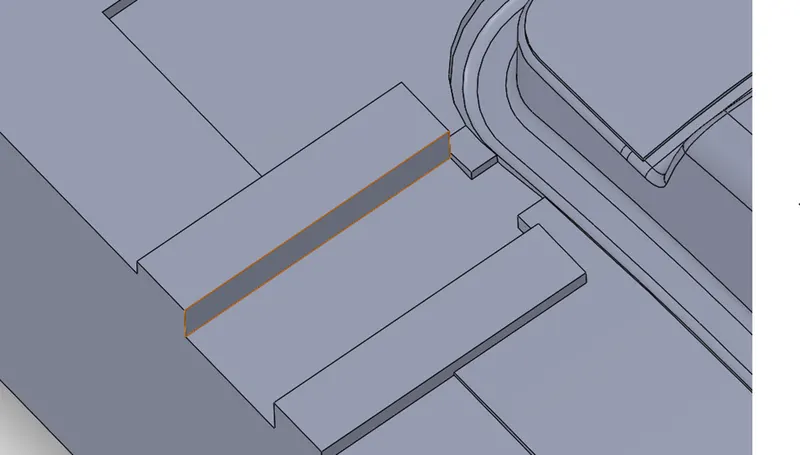

SINCE SLOT AREA IS NOT FILLED WITH SOLID, MAKE EXTRUDE .

MAKE SURE THAT THE EXTTRUDE AREA IS A PART OF SLIDER.

REMOVE UNWANTED SURFACE USING EXTRUDE CUT

STEP3:-

REDUCE SIZE OF SLUDER USING EXTRUDE CUT.

STEP4:-

MAKE SLIDER AS NEW PART BY RIGHT CLICK ON MODEL TREE INSERT INTO NEW PART OPTION.

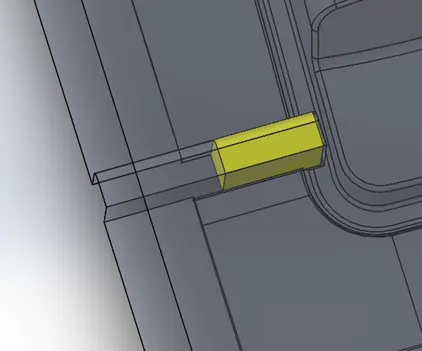

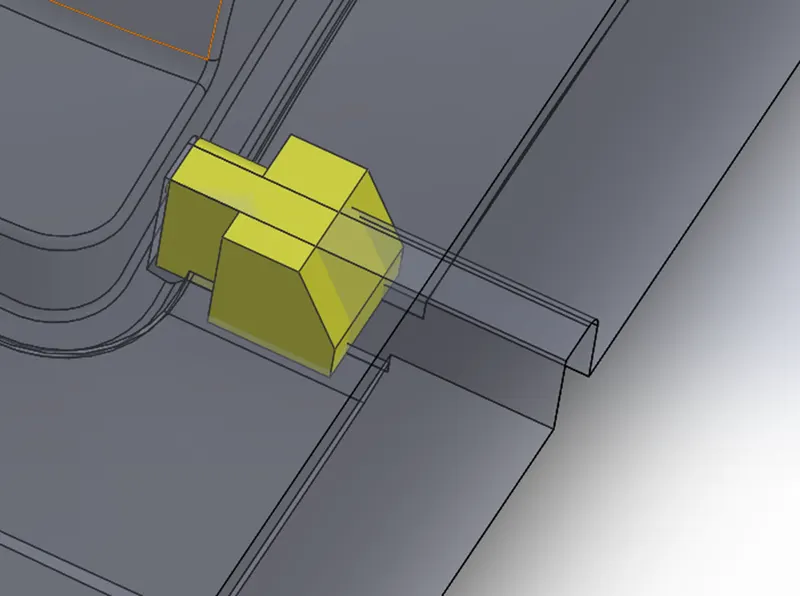

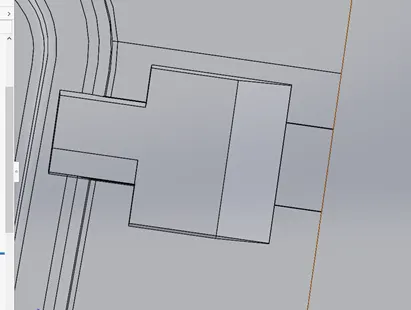

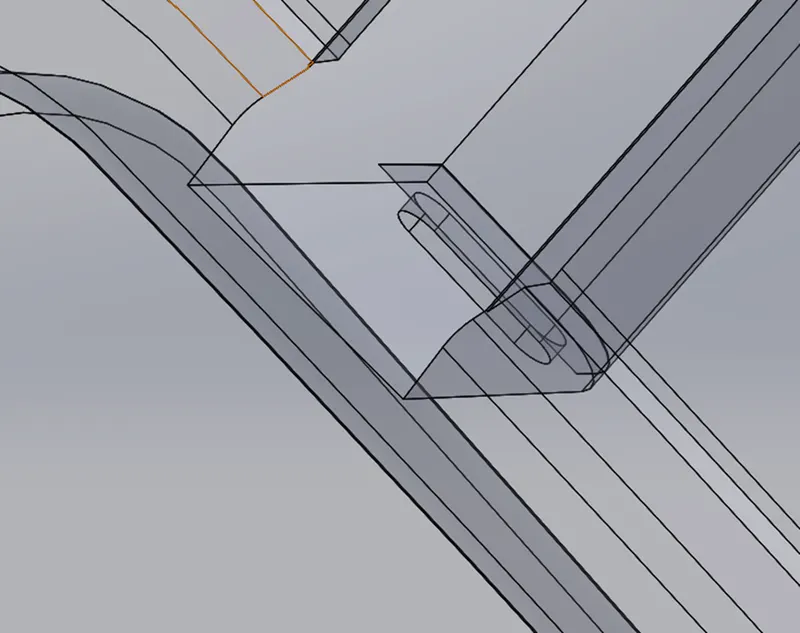

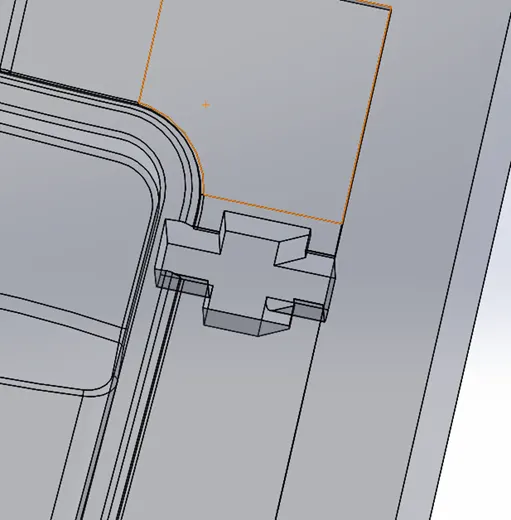

TO CREATE SLIDER BLOCK MAME SOME EXTRUDE &TO HAVE INTERLOCKING SURFACE MAKE WEDGE ON SLIDER BLOCK.

STEP5:-

Edit cavity block to match slider block

MAKE COPY OF SLIDER BY USING ‘ MOVE / COPY BODIES’ COMMAND

NOW HIDE ONE OF THE SLIDERS.

AND USE COMBINE COMMAND TO PROFILE IN CAVITY BLOCK

STEP6:-

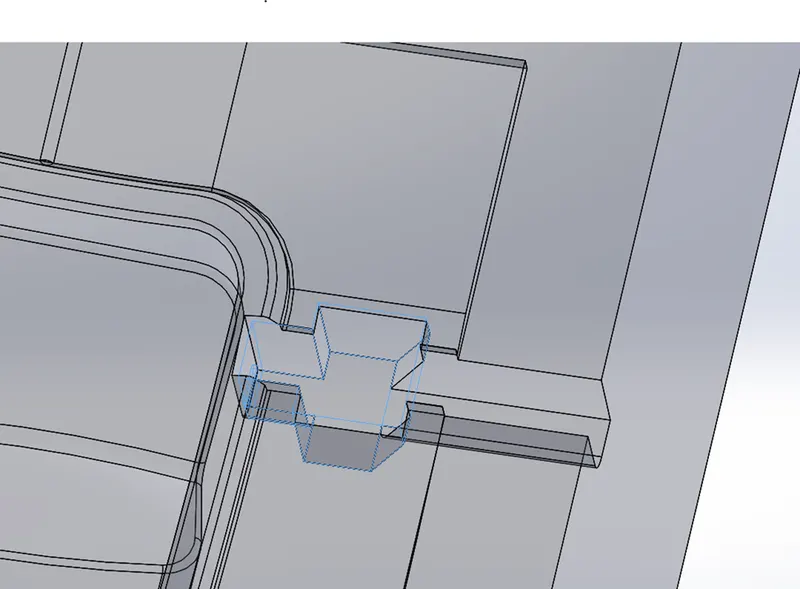

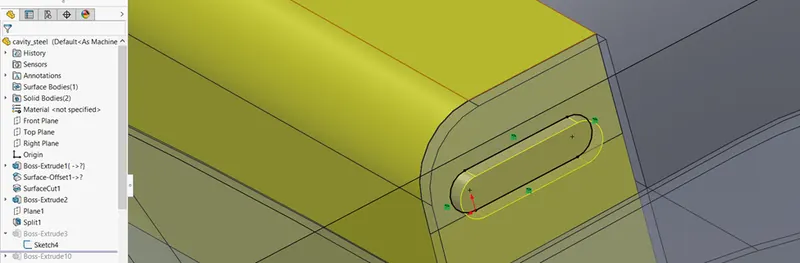

MAKE EXTRUDE ON CAVITY BLOCK TO ACCOMDATE SLIDER BODY.

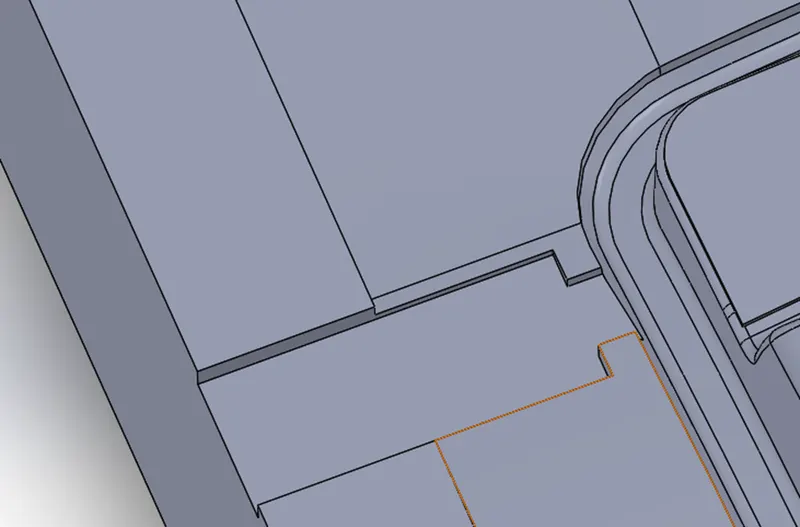

SINCE SOME GAP ARE FOUND. TO RECTIFY IT , USE MOVE FACE COMMAND.

STEP7:-

NOW DELETE THE SLIDER BODY IN CAVITY BLOCK, SINCE IT ALREADY CREATED AS AN SEPARATE PART BY USING DELETE BODY COMMNAD IN DIRECT EDITING TAB.

STEP8:-

OPEN THE CORE BLOCK

IMPORT THE SLIDER BLOCK.

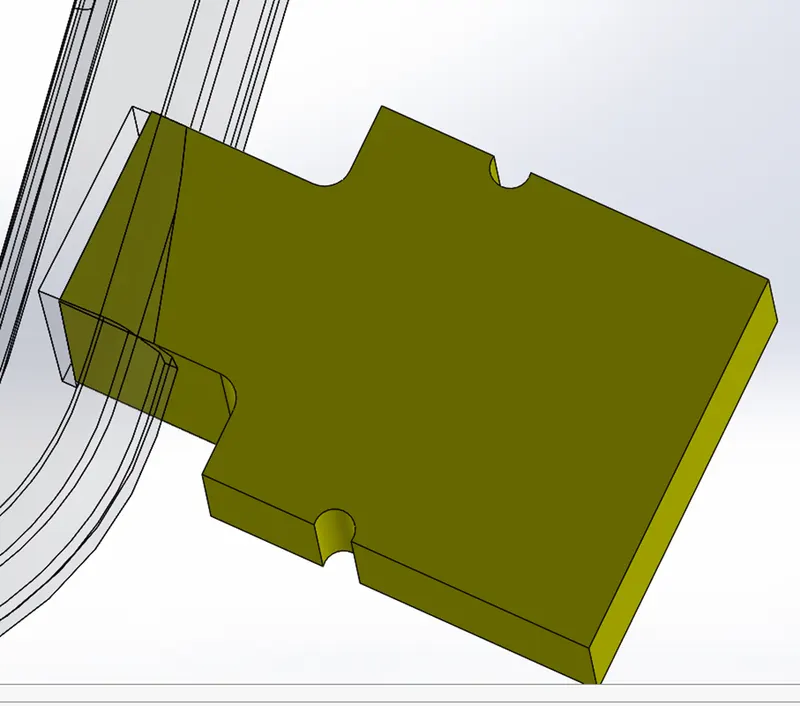

AND MAKE SLIDER PROFILE ON CORE BLOCK BY USING COMBINE COMMAND.

STEP9:-

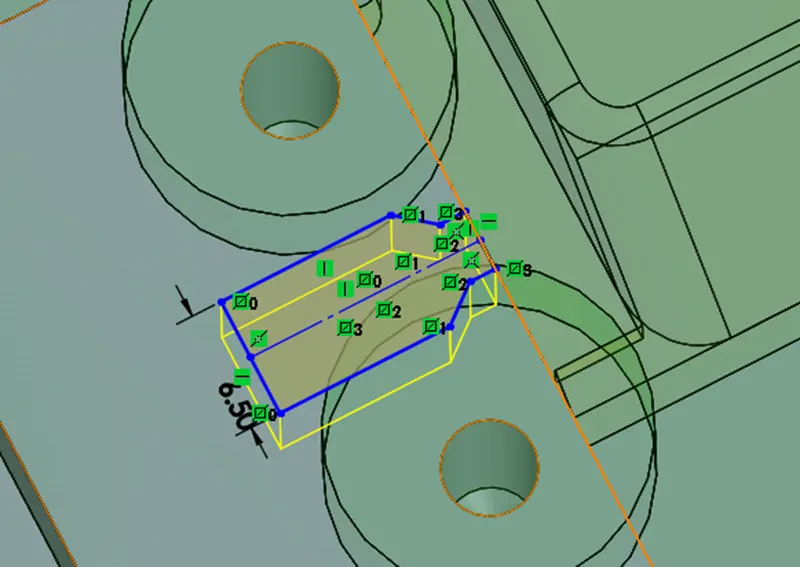

MAKE SOME CUT FOR MOVEMENT OF SLIDERS.

STEP10:-

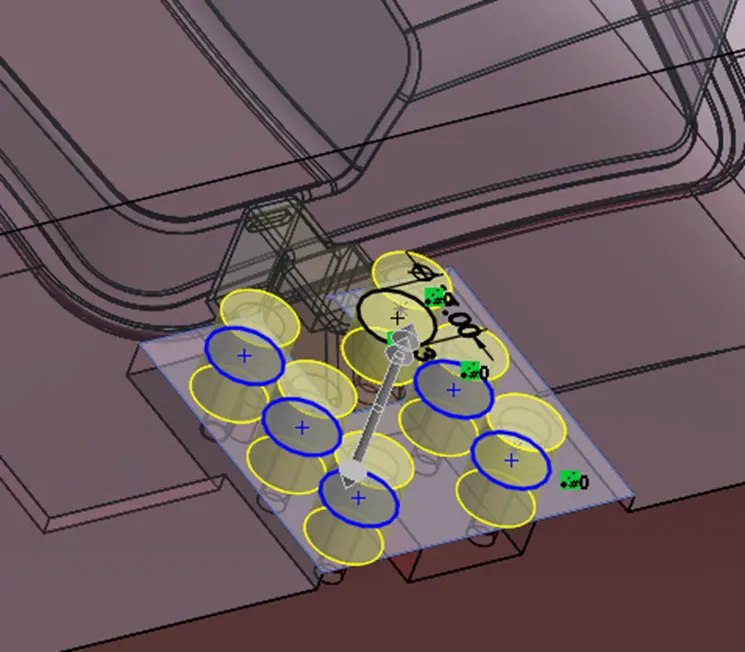

MAKE EXTRUDE ON CORE BLOCK TO ACCOMADATE WASHERS.

STEP11:-

NOW GO BACK TO THE ASSEMBLY MODEL.

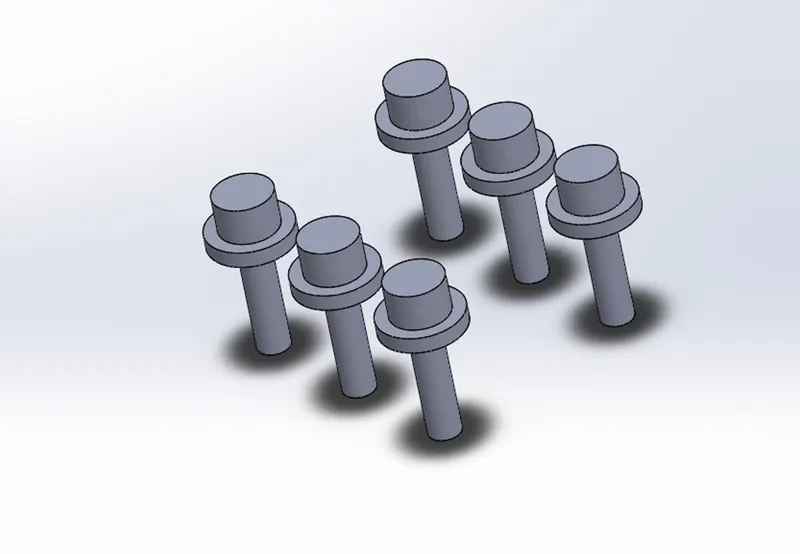

INSERT NEW PART FOR WASHERS.

MAKE WASHER MODELS IN THE NEW PAER .

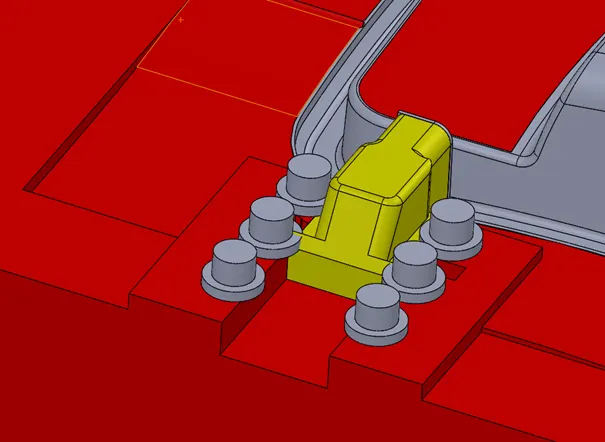

NOW MATE WITH CORE BLOCK .

STEP12:-

SINCE SOME MATERIAL ADDED IN CORE BLOCK FOR ACCOMADATE WASHERS.

SOME MATERIAL TO BE REMOVED IN CAVITY BLOCK.

STEP13:-

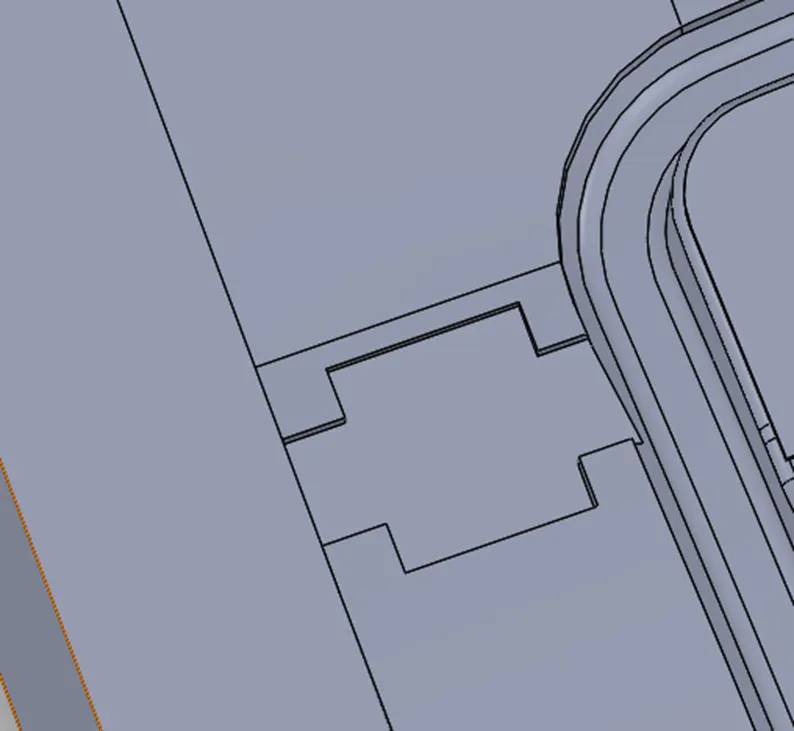

NOW MAKE SOME FILLETS ON SLIDERS AREA OF CAVITY BLOCK.

STEP14:-

DO SAME FILLETS IN SLIDER PART ALSO.

NOW OPEN CAVITY BLOCK, MAKE SLOTS FOR WASHERS.

STEP15:-

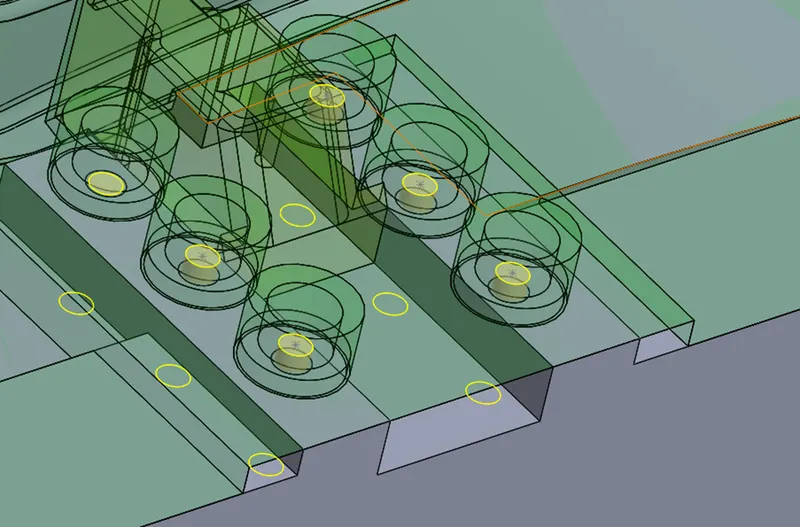

NOW OPEN CORE BLOCK , MAKE TAPPED HPLE FOR WASHERS.

STEP16:-

NOW CUTS FOR LOCKING MECHANISM IN CORE BLOCK.

STEP17:-

MAKE CUT IN SLIDER BLOCK ALSO TO HAVE LOCKING MECHSANISM.

STEP18:-

REPEAT THE SAME PROCEDURE FOR OTHER SLIDER ALSO.
