Week 9 - Challenge 2 - Switch Bezel Design

REPORT

• The tooling axis is created by the bisecting line method.The intersection of lines ,The steps involved in the tooling axis creation are detailed in the tree structure.

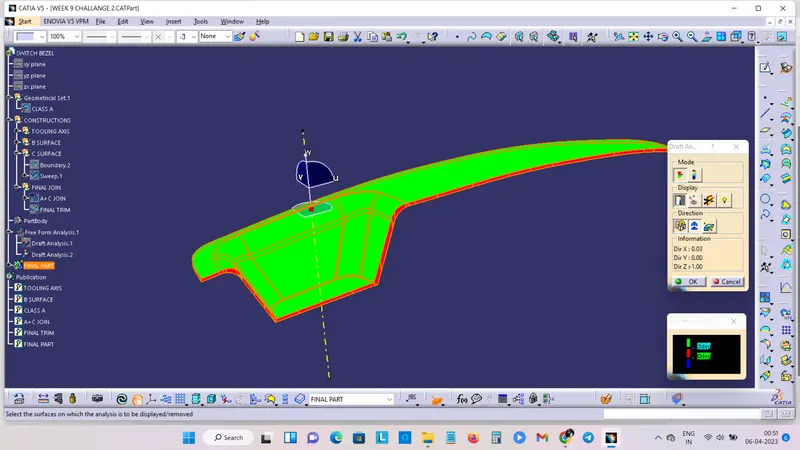

  Done the draft analysis of surface A with tooling axis and find out that surface A is clearing.

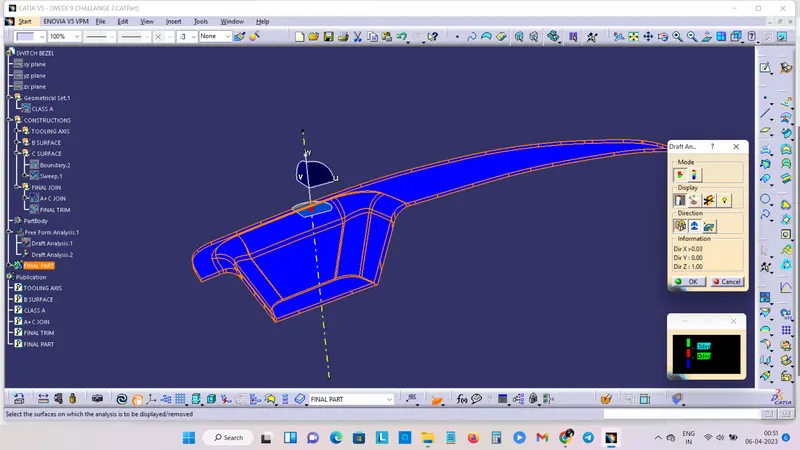

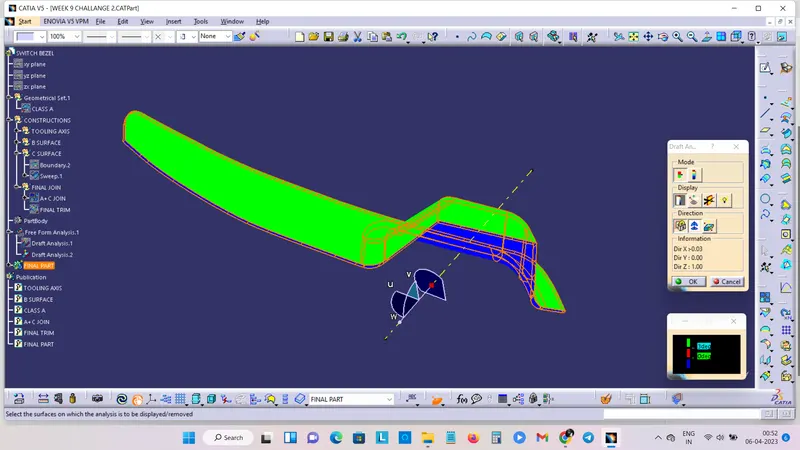

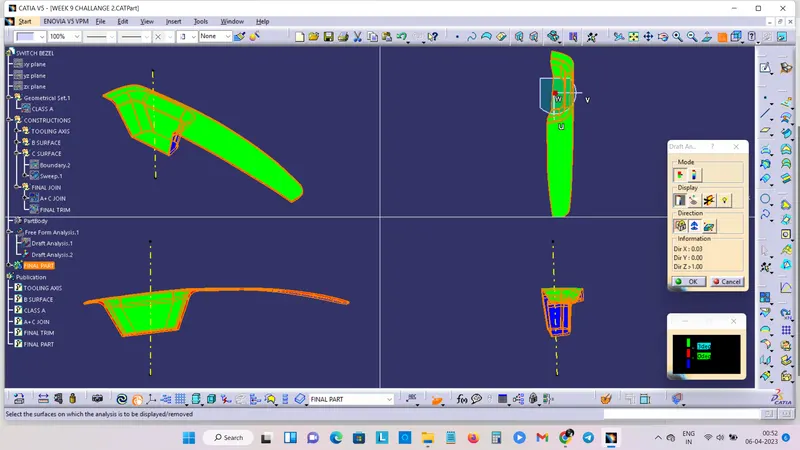

  Also done the draft analysis of final part with tooling axis and find out that final part is clearing, except some part of C surfcae which the draft angle those particular areas are nearer to the standard nominal value of 3 degree.

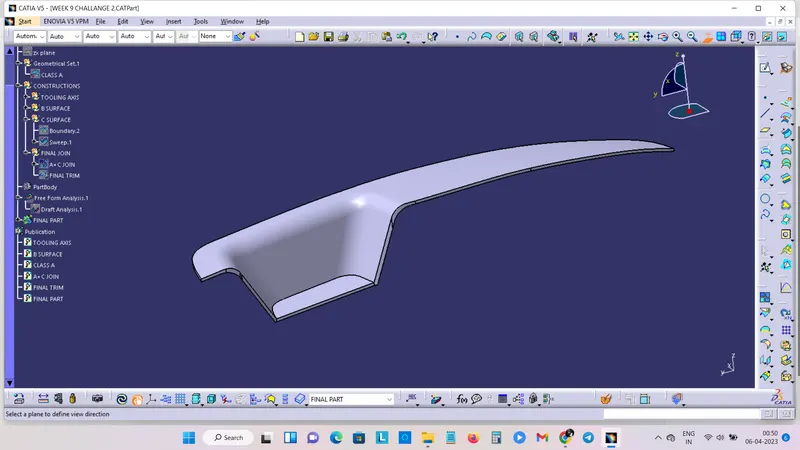

  All the surfaces and tooling axis are published for the future reference.
  Everything find OK.
