Week 7 Challenge - Assembly Workbench

REPORT

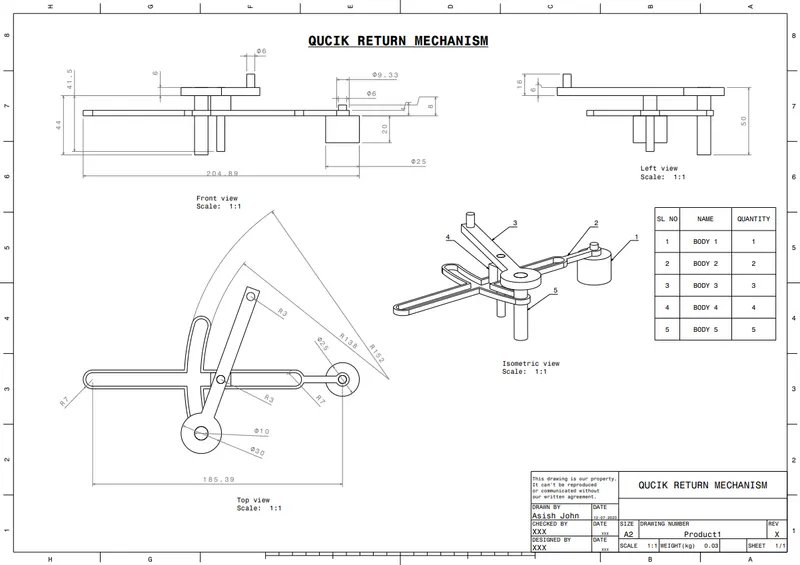

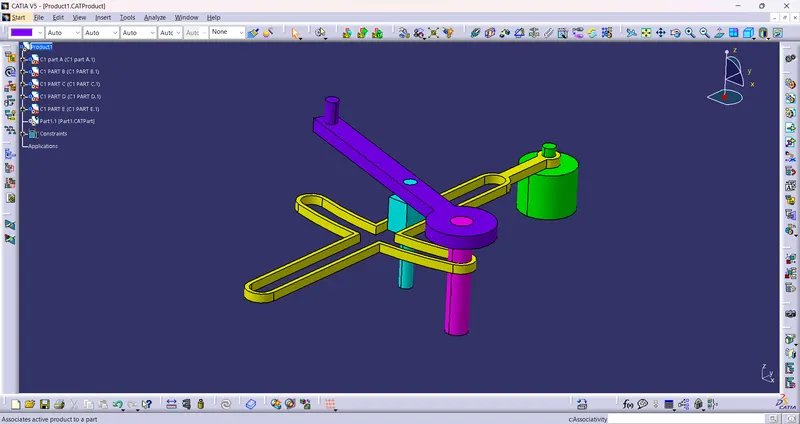

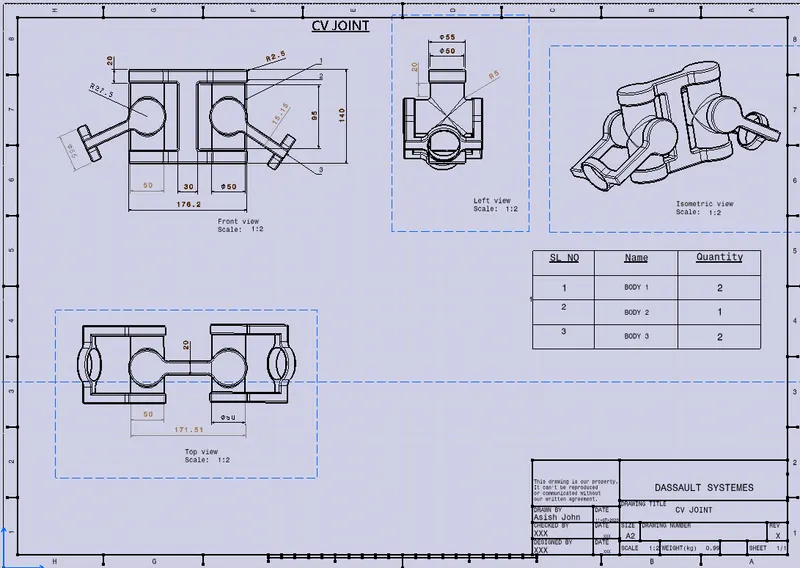

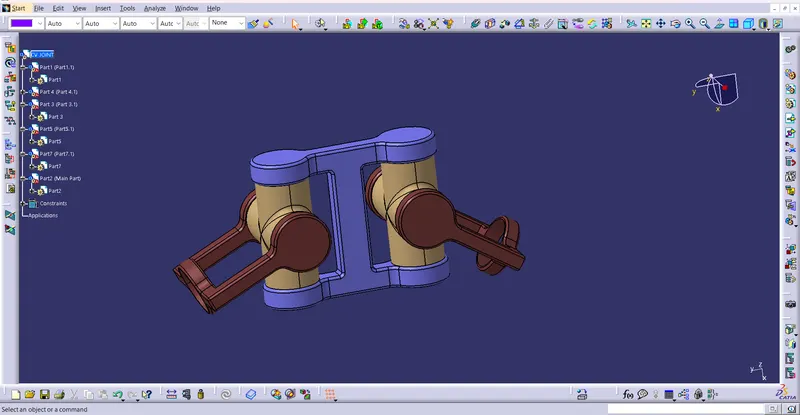

It has been succesfully done the two assembly workbench projects. One is Assembly of QUICK RETURN MECHANISM and another one is Assembly of CV Joint.Both have done by the same procedure.

Procedure: First found the assembly parts of the parent part with proper geometrical dimensions. After the geometrical analysis drew each part in the sktecher workbench and pad all those later in Part workbench. After all the drawings, created a singe file for saving all the children parts then opened new workbench for assembling all those into a single Product workbench.Copied all those childern parts to the product workbench. Then primarly Fix the main body part with a point later fixing all other children parts to the main part with respect to the referece points and lines using the coinciding and fixing tool.After that hide all those unwanted reference lines and points and save the Final product. Afterall, drew all the Parts in a drawing sheet using 2D drawing workbench.
