Week 9 - Challenge 1 - Base Bracket Design

REPORT

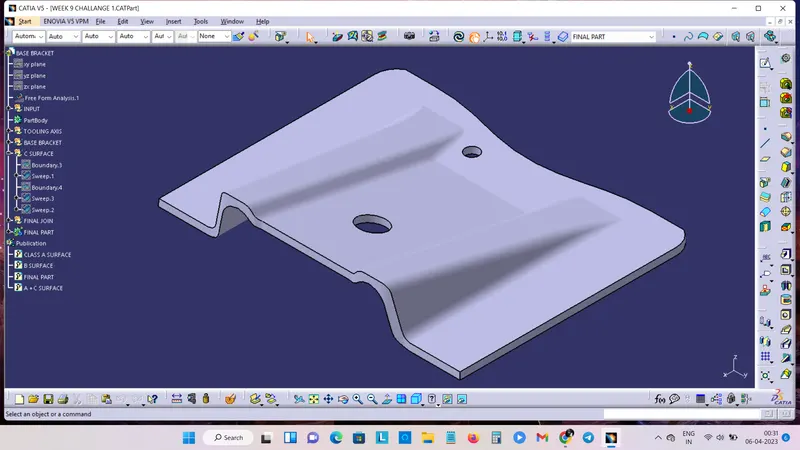

The tooling axis is created by the bisecting line method.The intersection of zx and zy planes and positioned sketches are here used for the tooling axis creation.The steps involved in the tooling axis creation are detailed in the tree structure.

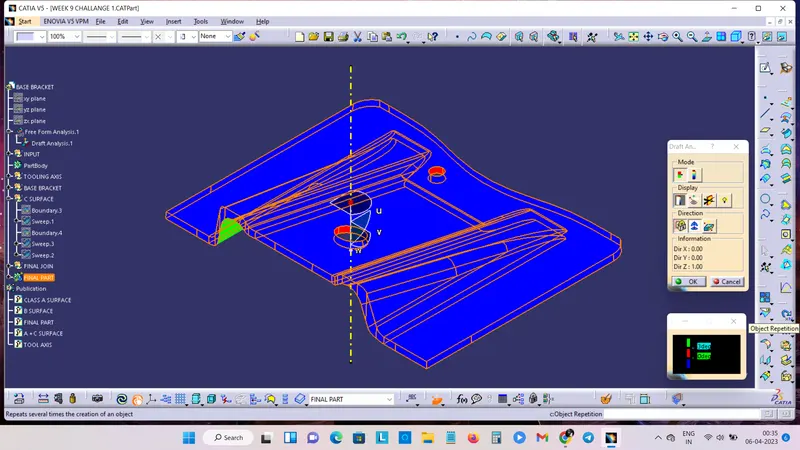

Done the draft analysis of surface A with tooling axis and find out that surface A is clearing.

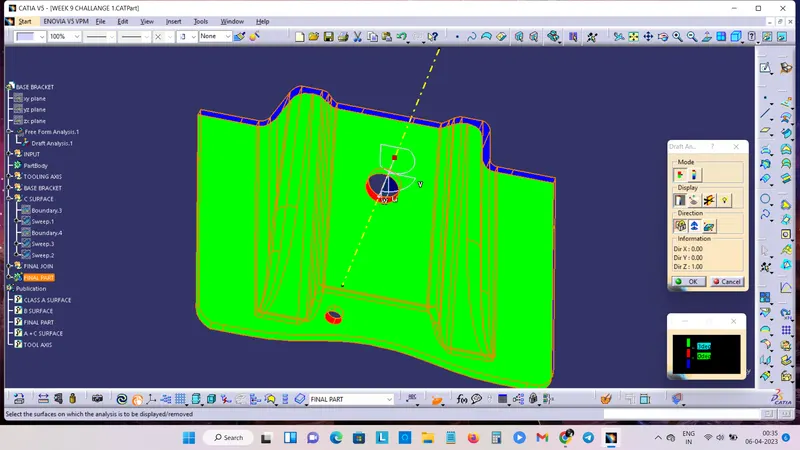

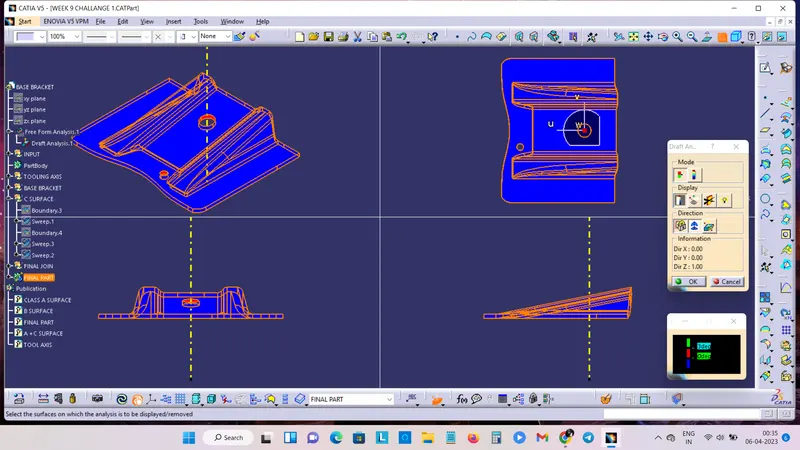

Also done the draft analysis of final part with respect to the tooling axis and find out that final part is meeting the nominal draft angle except the hole C surfaces.
All the surfaces and tooling axis are published for the future reference.
Everything find OK.
