Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

REPORT

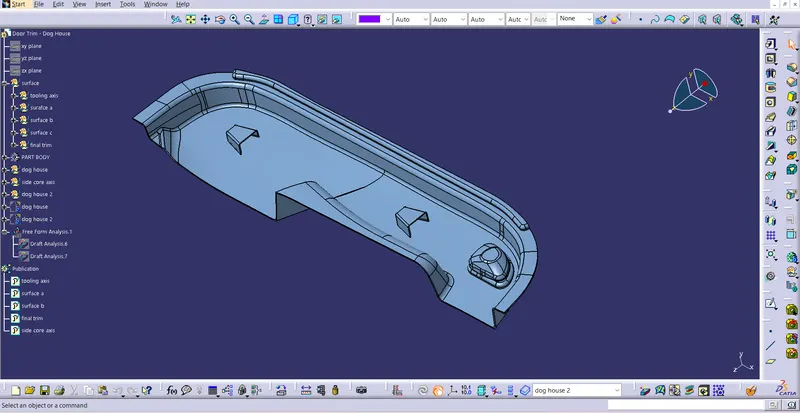

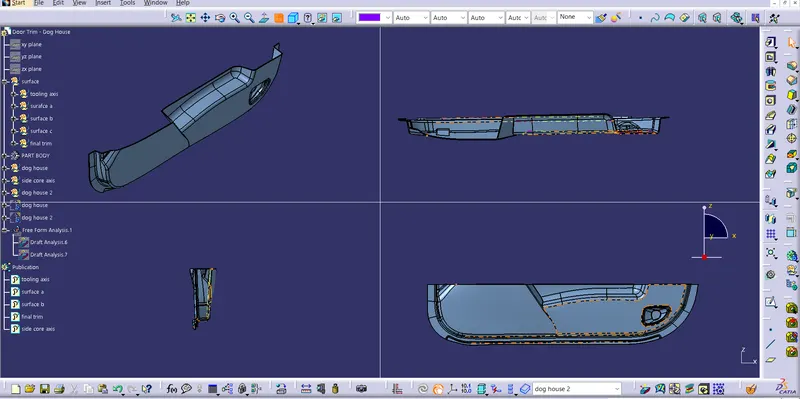

The tooling axis is selected in y direction.That is line normal to zx plane.no need to creation of tooling axis with bisecting method because from y axis itself maximum view is possible

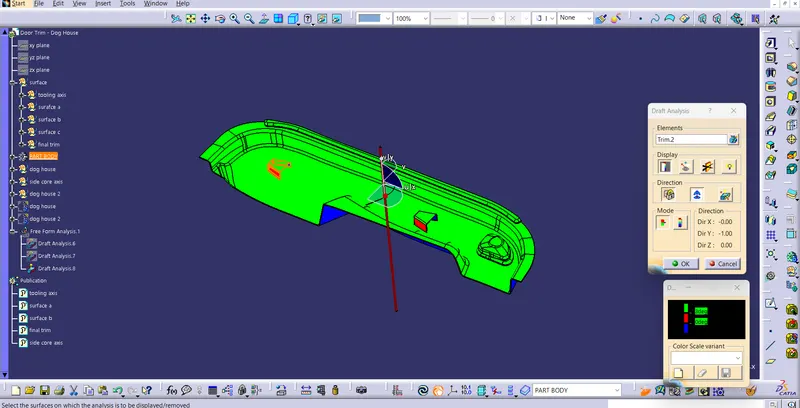

From the draft analysis of surface A ,it is clear that some regions in the surface A have angle is below 0 and 3 degree in the cavity region.

In the draft analysis of final product ,there also we can see some of the regions are below 3 degree
