Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

TOOLING AXIS

• At the first created a dummy tooling axis
• After analysing thought it will not be work better for future drafting
• So tooling axis was made by using the bisecting method by taking the two edges as my refernce

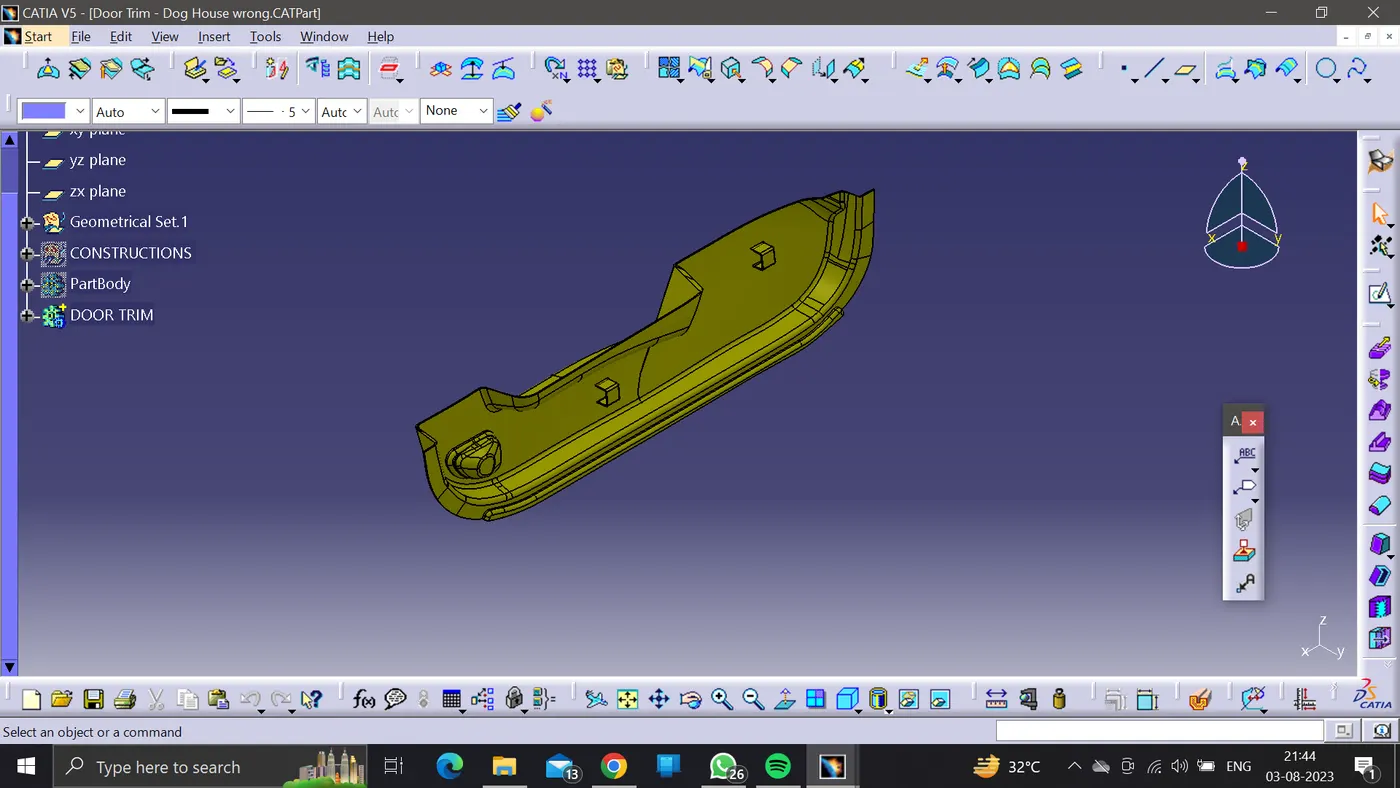

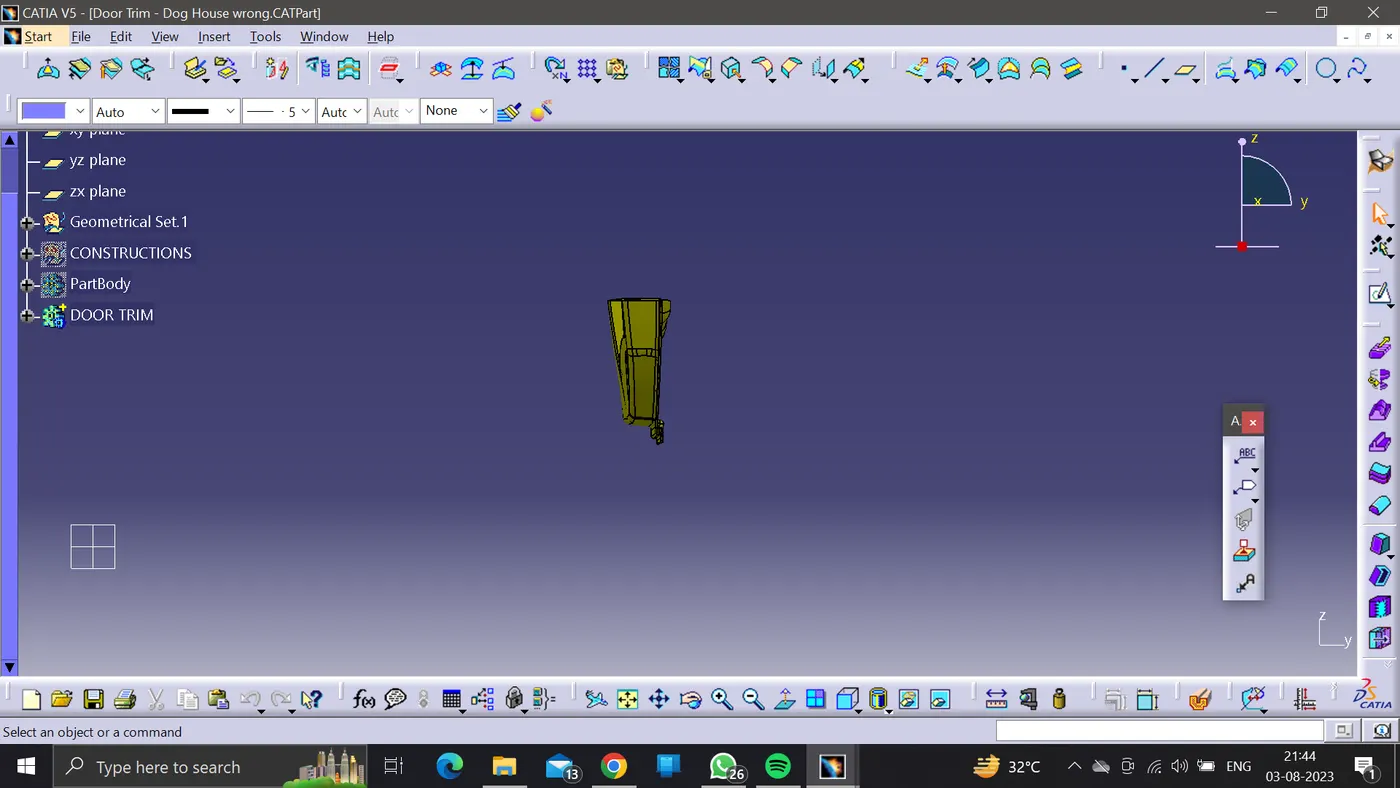

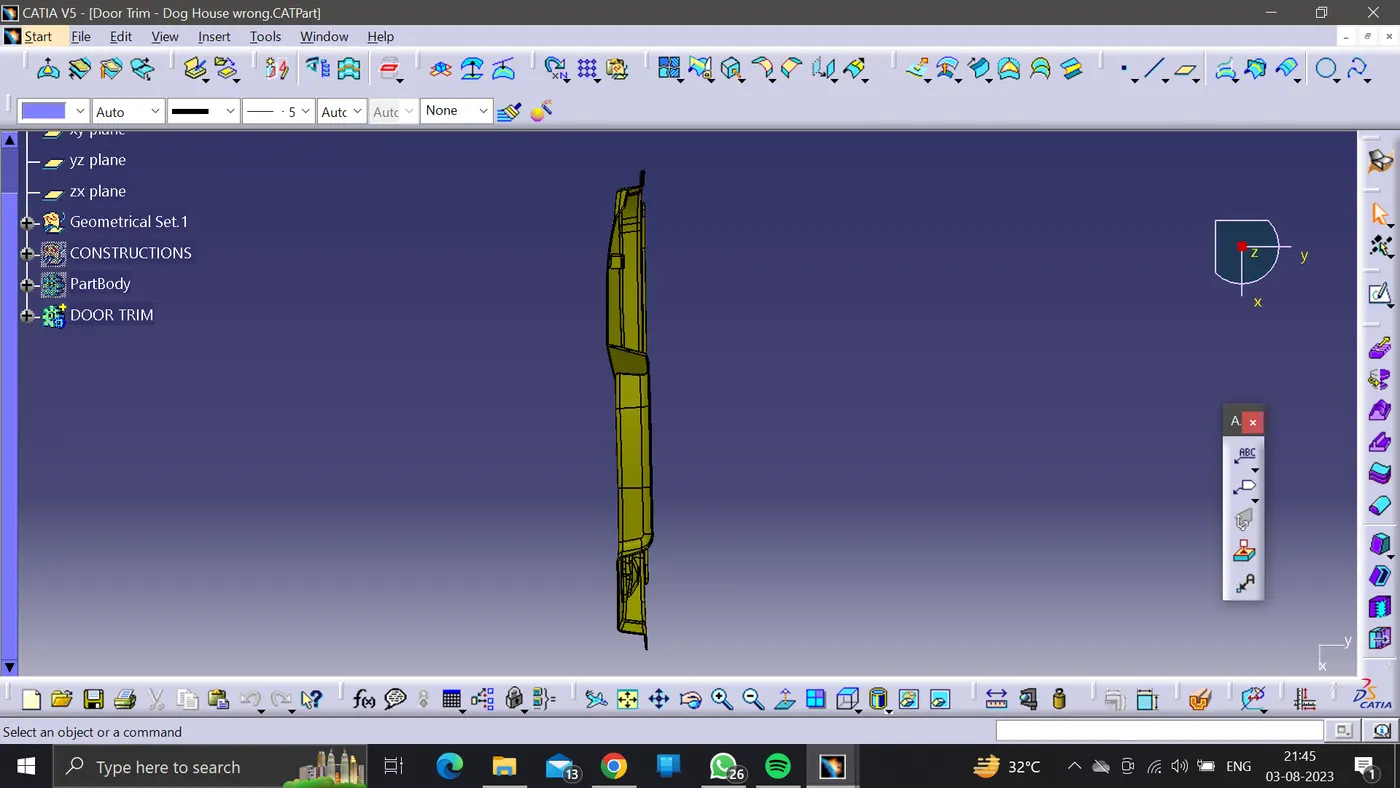

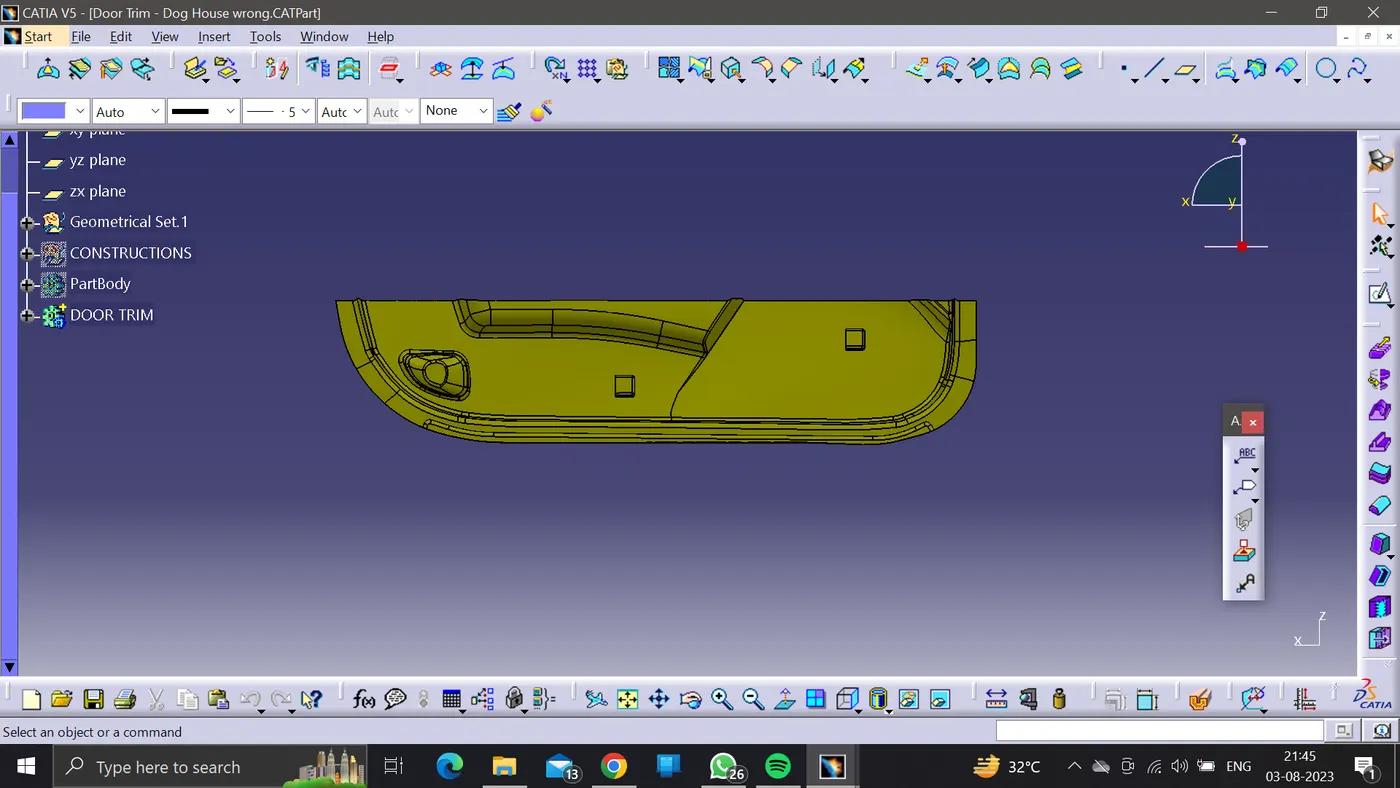

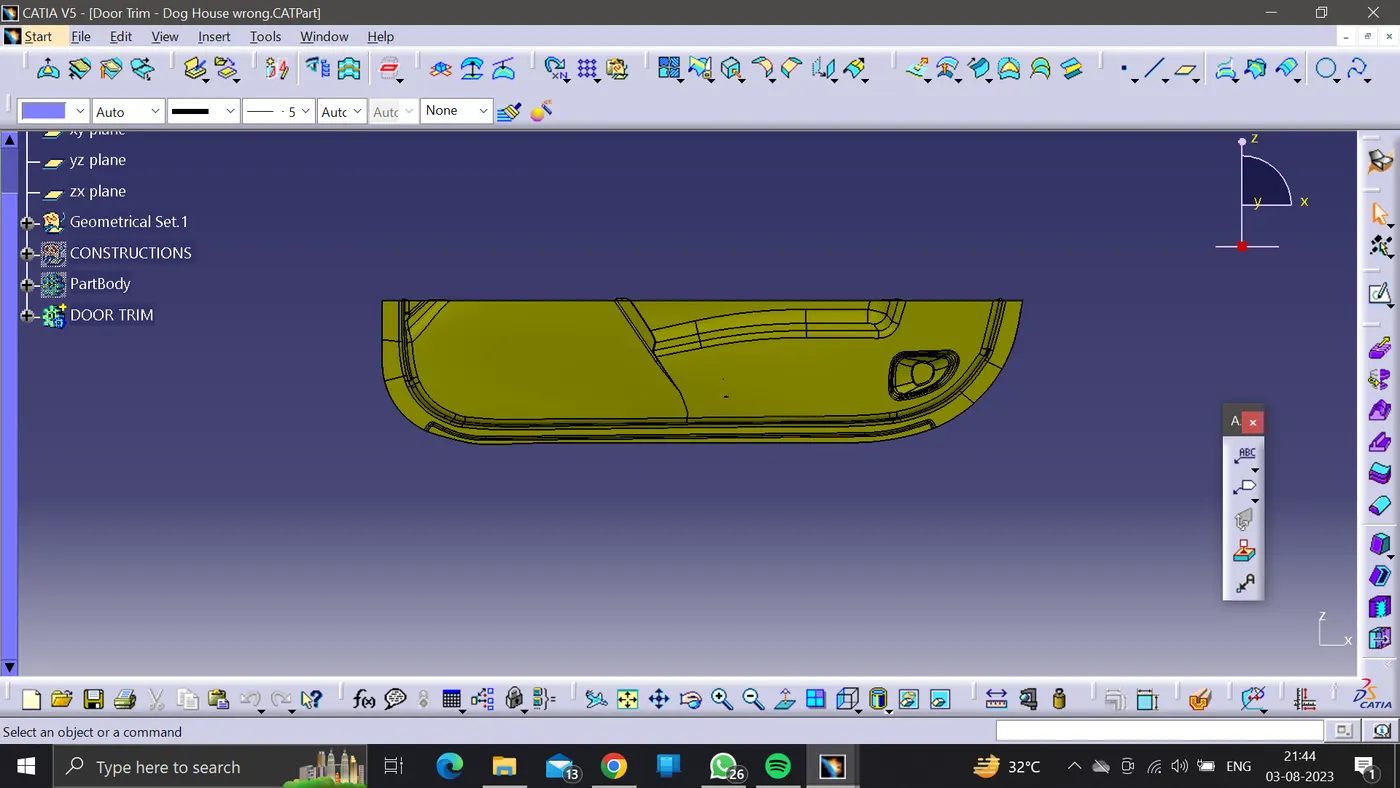

3D PART

• Clss B surface created using the offset method
• Class C surface  created using the sweep tool and joined the class A and C togather.
• The joind part body trimmed with the Bclass.

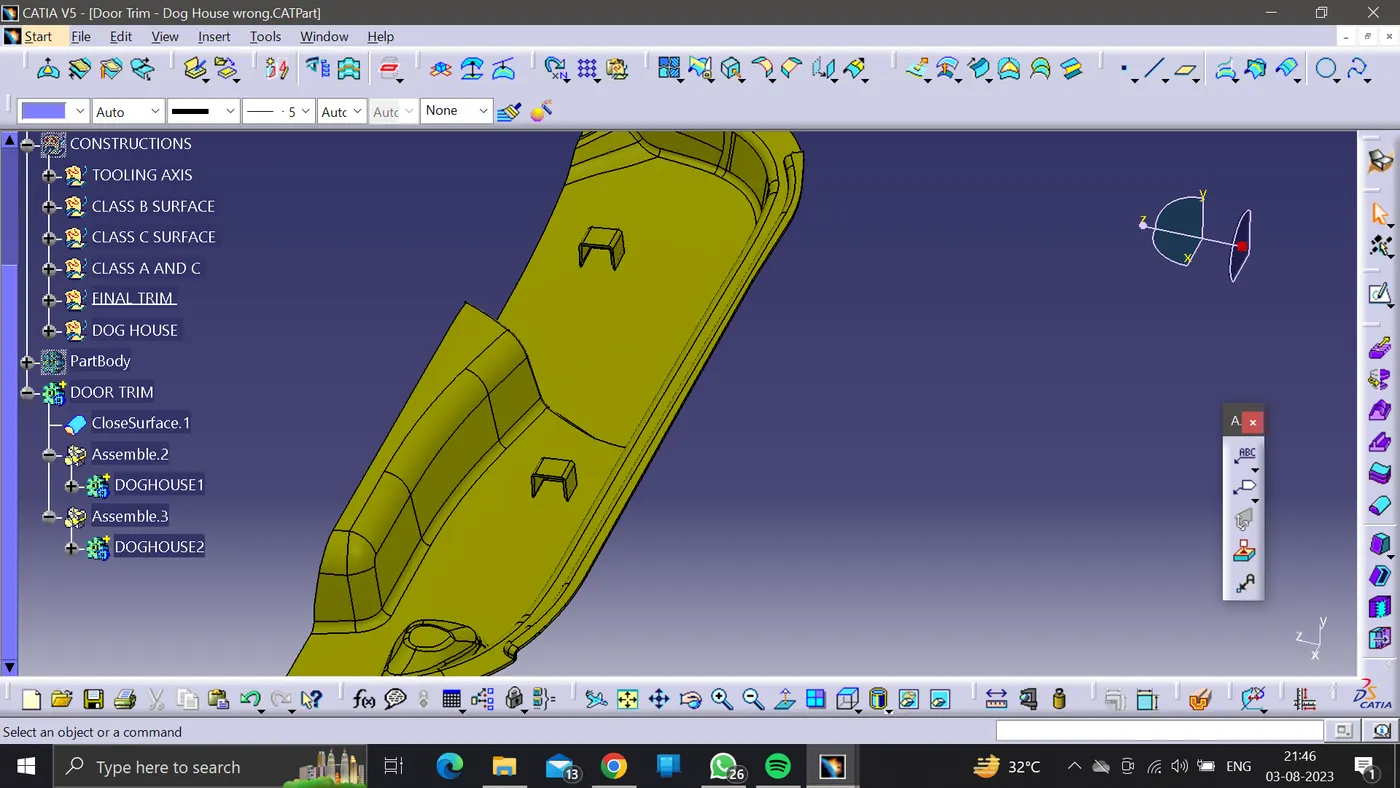

• The doghouse was made by using the sweep method and it was thickened
• Then a c portion made to avoid the sink marks while i production
• The thickness of c part should be 0.4*thickness
• And the height should be in 3-6mm
