Week 9 - Challenge 2 - Switch Bezel Design

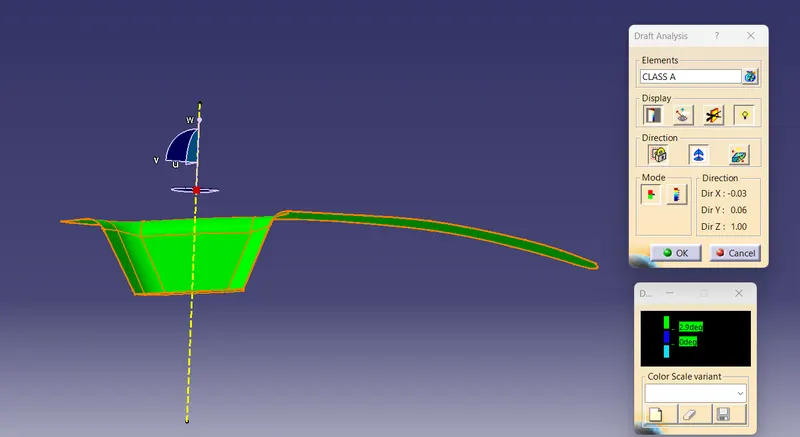

Class A Draft Analysis:-

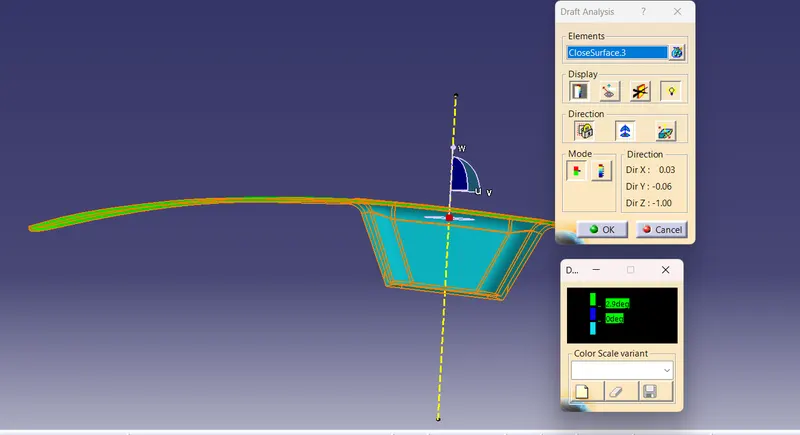

Final Plastic Component Draft Ananlysis :-

Different views of Final plastic Component Draft Analysis:-

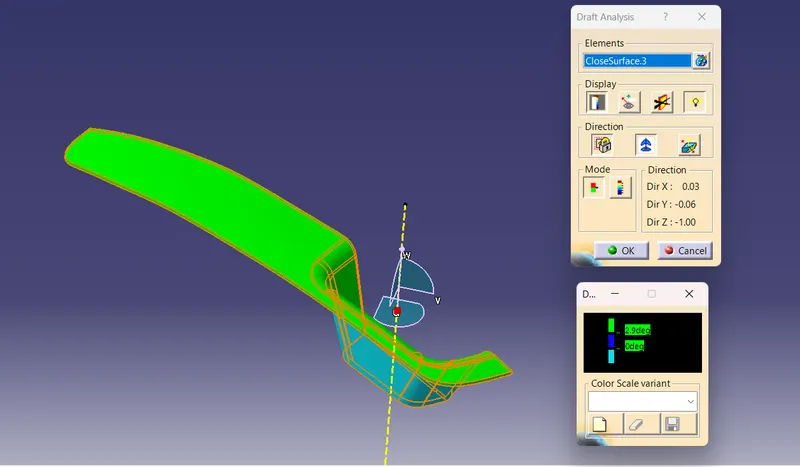

Isometric View:-

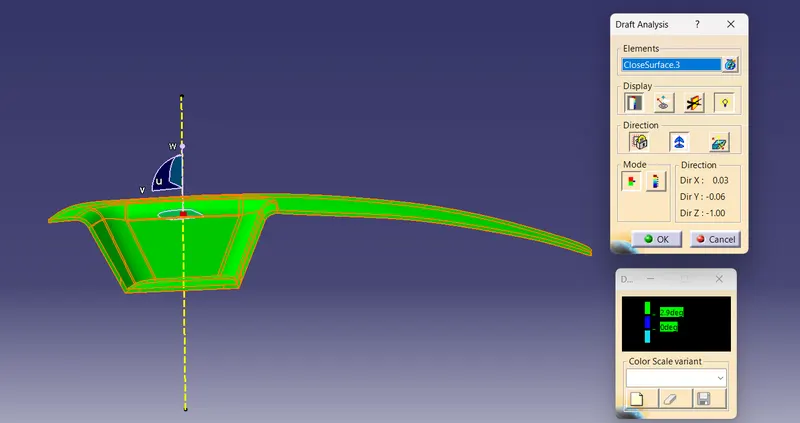

Front View:-

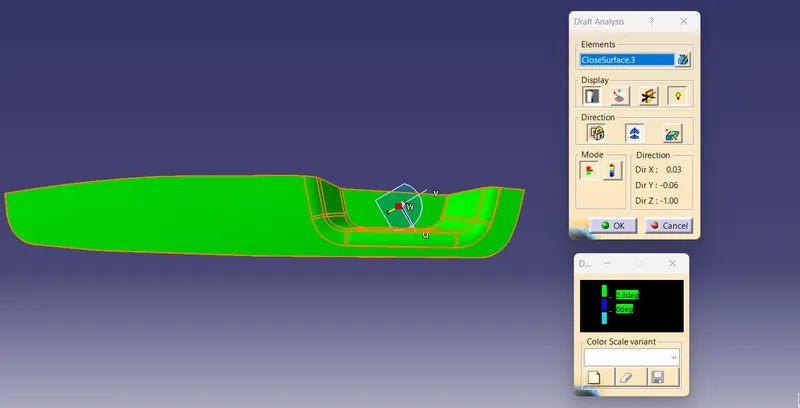

Side View:-

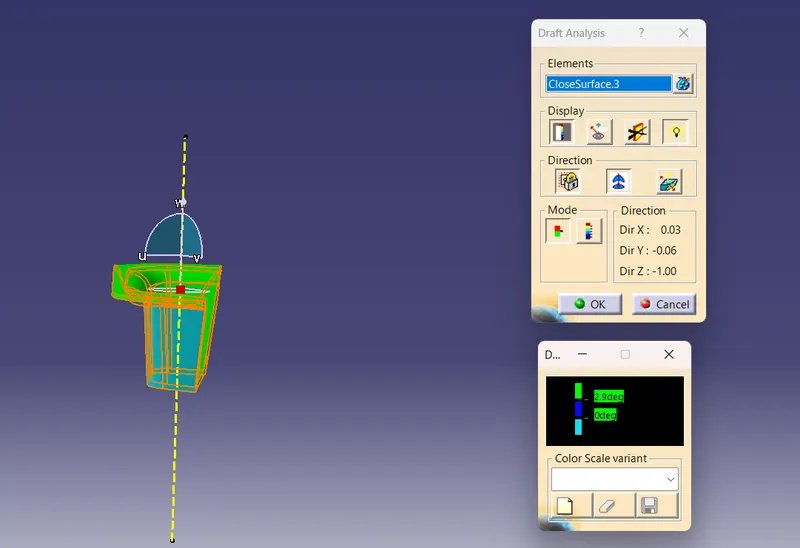

Top View:-

Report on Tooling Axis:-

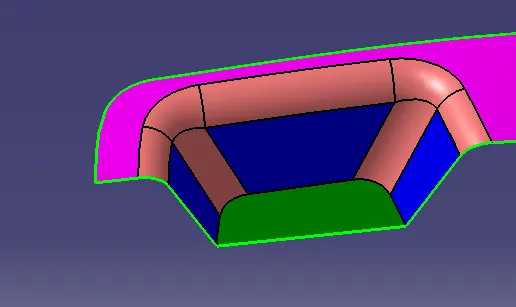

As shown in above image in that Base(Green part) I Extract and took point at surface and i given 0(Zero) it point places

center.

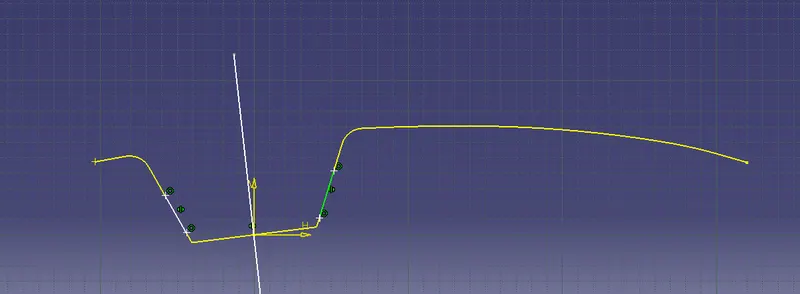

I used that point and I opened positioned sketch YZ plane as reference after that I used intersect 3D elements I got some

figure from that I drew 2 lines on that lines.Then I used Bisecting line (At Center) Command I got a line between those 2

lines (As Shown in above image).

I used anaother Positioned sketch XZ as reference I draw 2 lines on that surface I given an angle to that surface is 4 degree.

I came out of positioned sketch.Now I got 2 lines between these line I got Tooling Axis By using Bisecting command in line

toolbar.

Report on Final Report Draft Analysis:-

As I submitted from above images 2.9 is green.Between 2.9 and 0 is blue. below 0 is Negative that means Cyan.

Hence I submitted screenshots,CAT Part File above requirements I got Expected design.
