Project 1

1) In this Project By extracting zip file I able to get all values from this values I can build simulink models except engine and

vehicle dynamics are added into it pasted slx file and screenshot

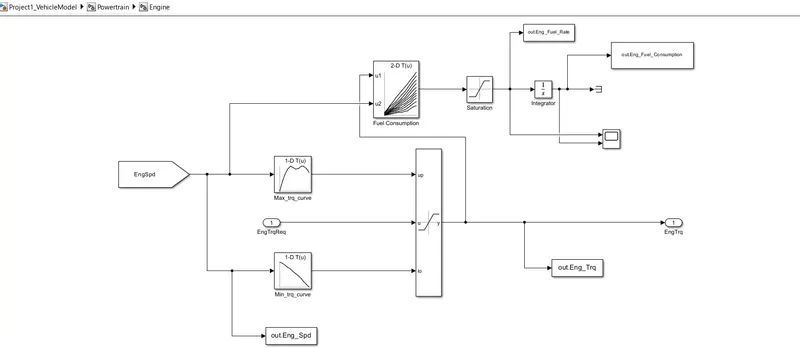

Engine Block:

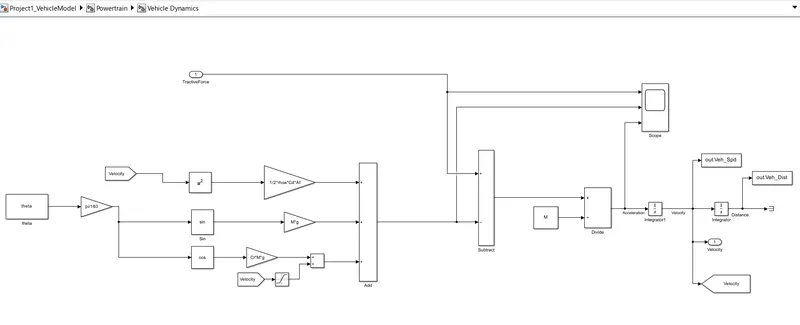

Vehicle Dynamics Block:

From these Blocks I can Plot figures

a) UDDS cycle

kmpl: 14

HWFET cycle

kmpl:16.48

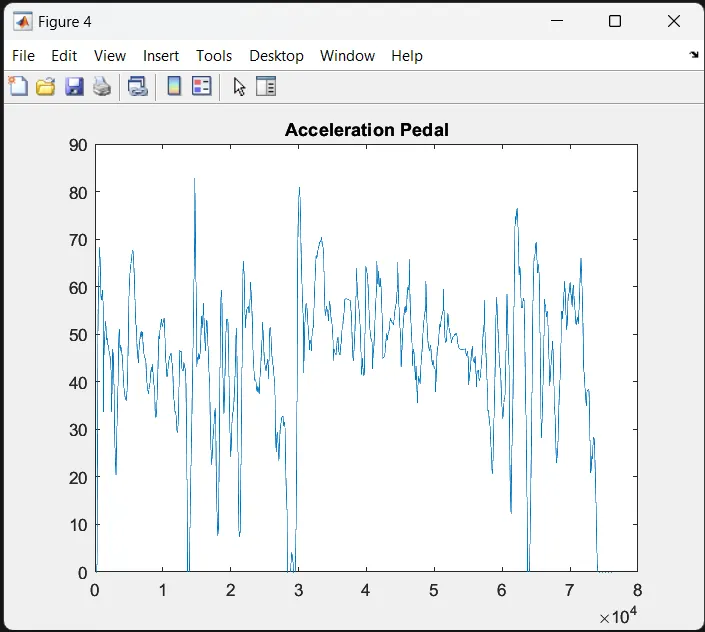

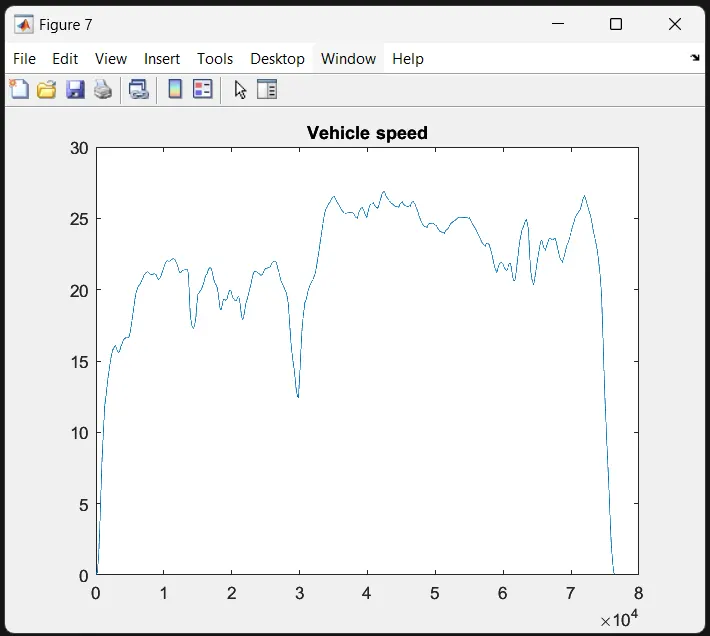

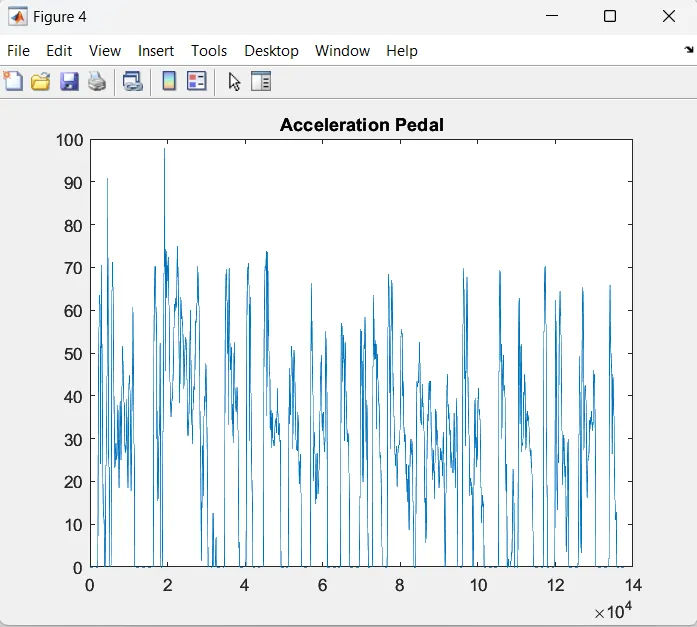

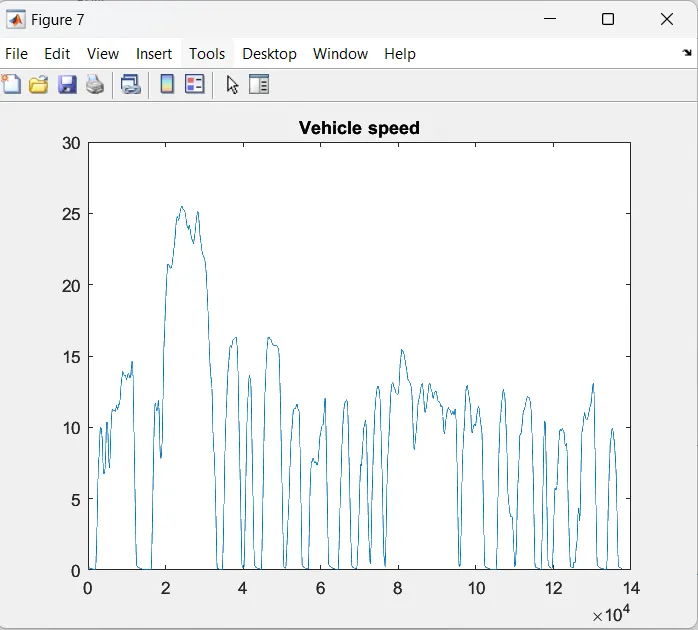

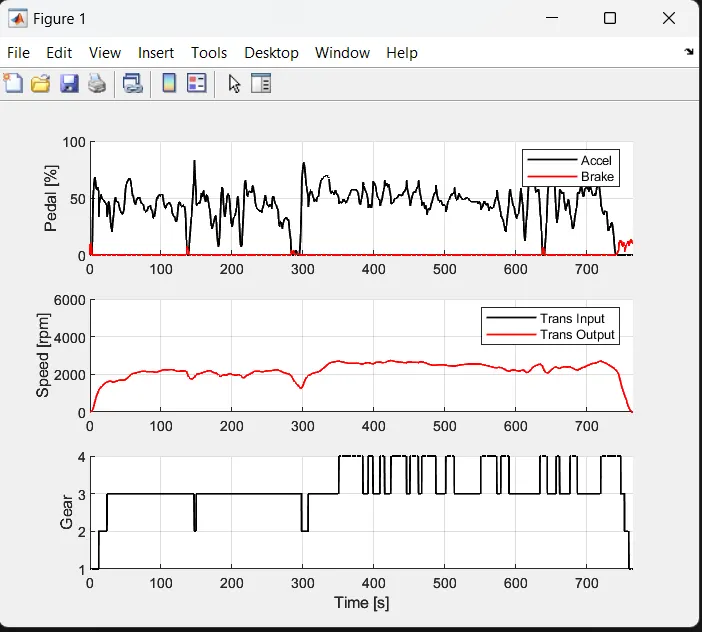

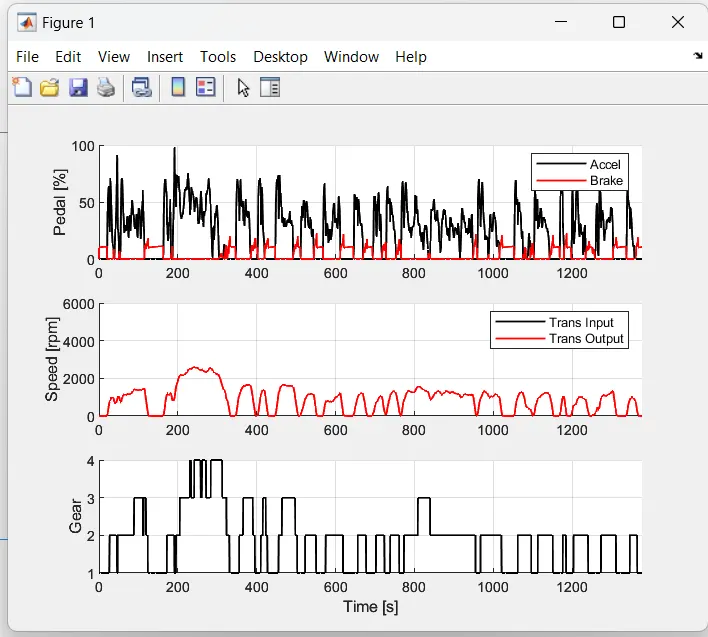

b)Plot the time trace for engine, transmission input, transmission output and wheel speed on one plot.

UDDS cycle:

HWFET cycle:

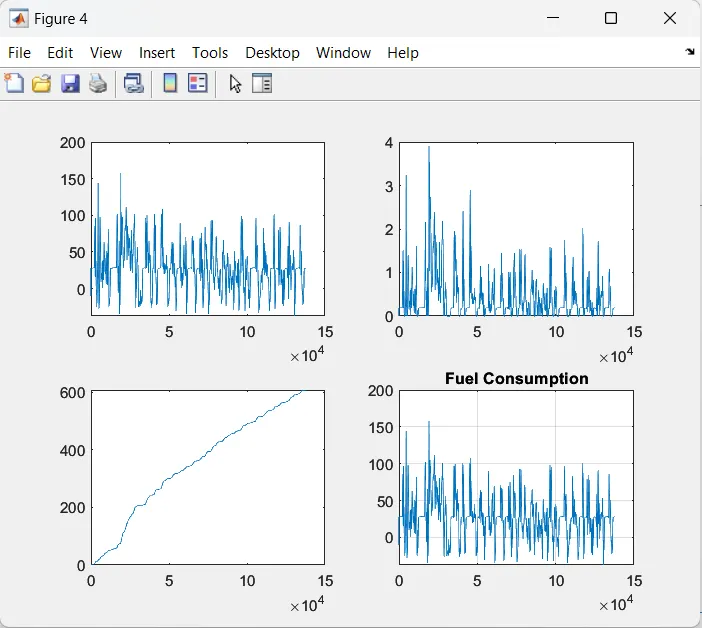

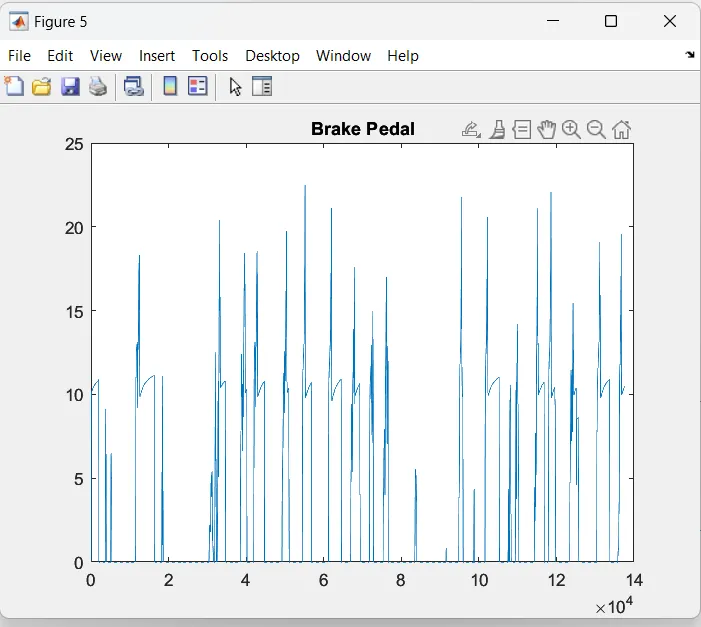

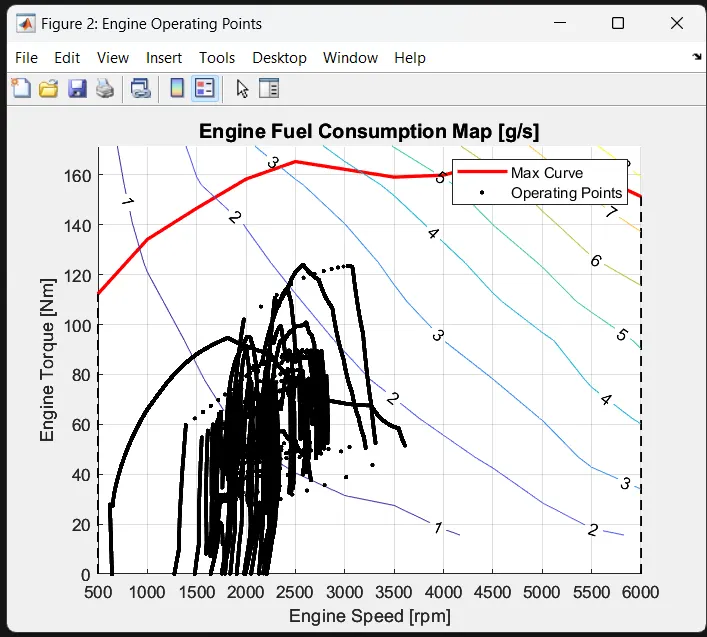

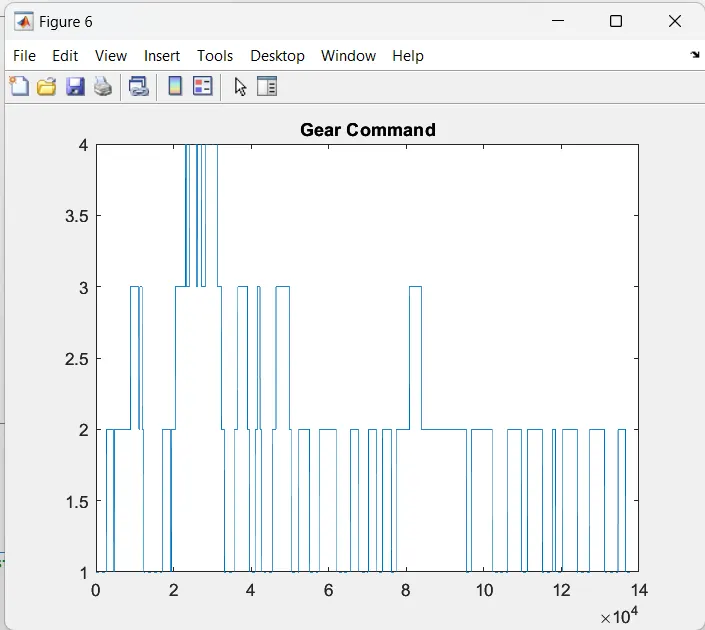

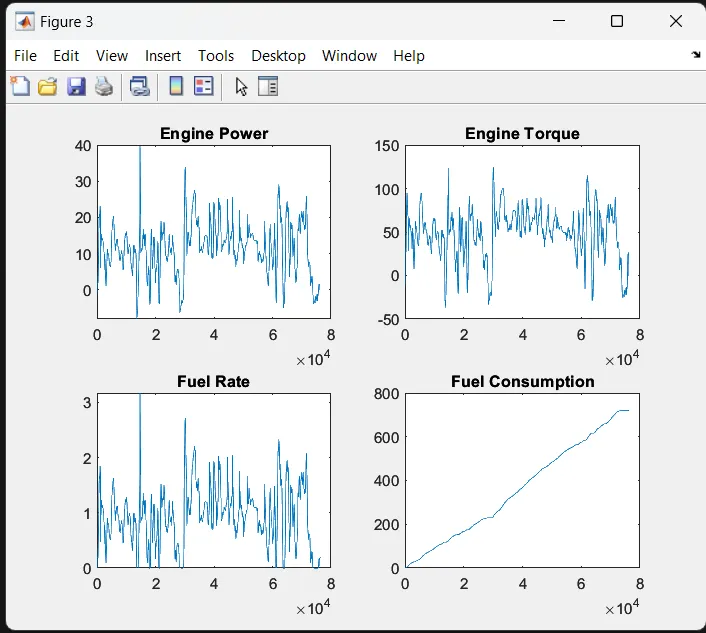

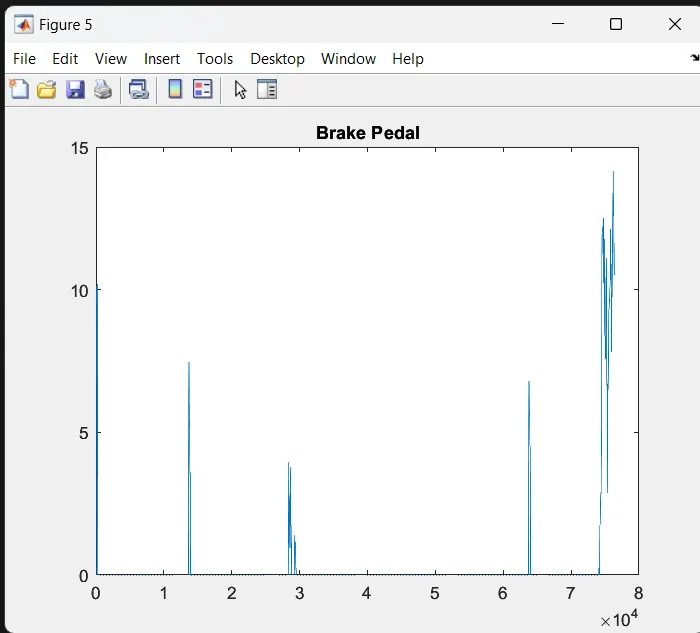

C)

UDDS Cycle:

HWFET Cycle:

HWFET Cycle:

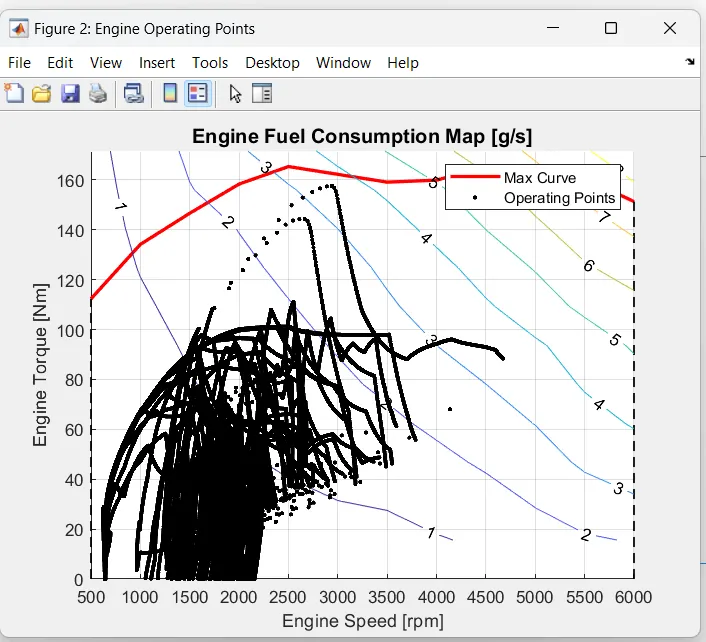

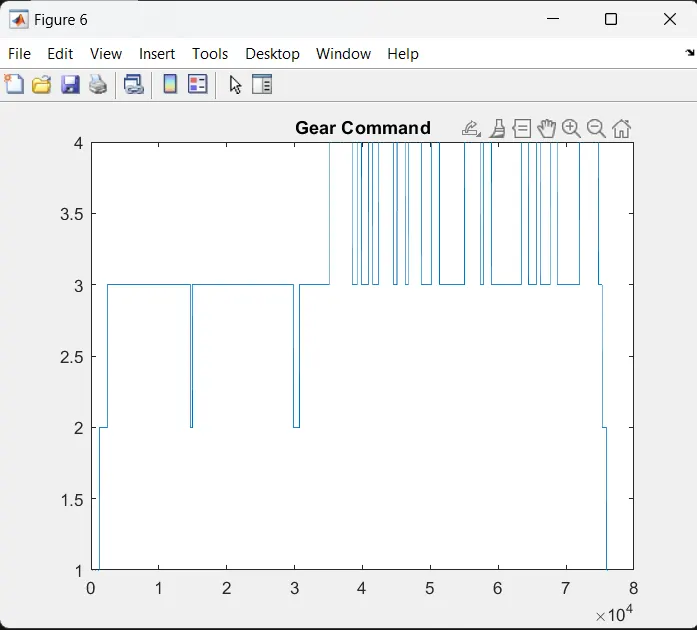

D)

UDDS Cycle:

e)

UDDS Cycle:

HWFET Cycle:
