In This Project I took world frame Block,solver configuration,mechanisam configuration by connecting these 3 to solid block,

2 revolved solid, 2 soild for piston and rod

These are in mechanical subsystem.

Providing each values in screen shot.

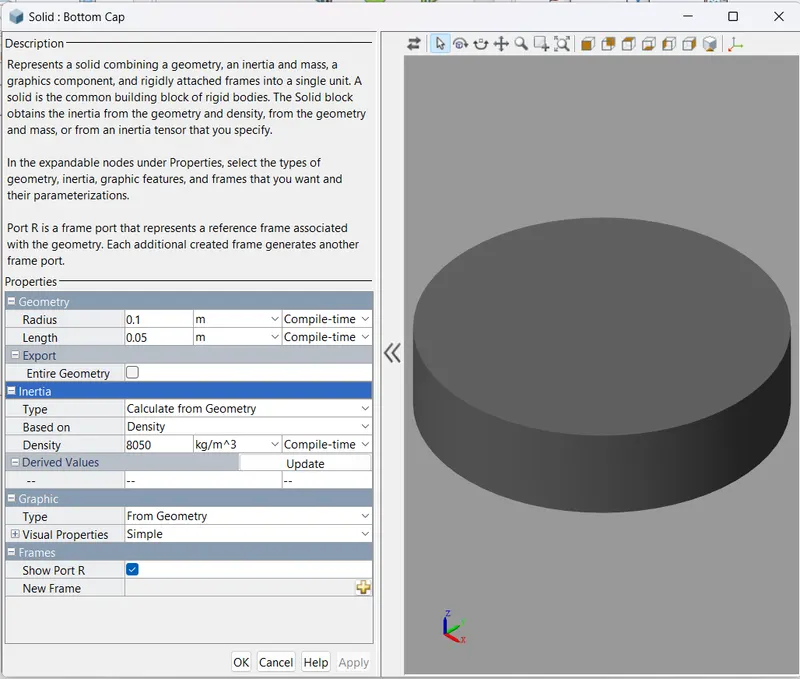

Bottom Cap:-

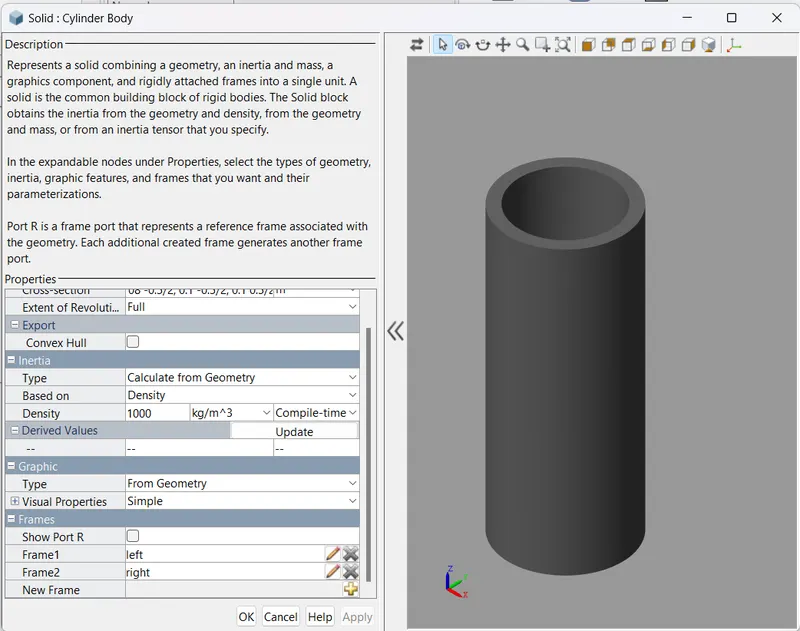

Cylinder Body:-

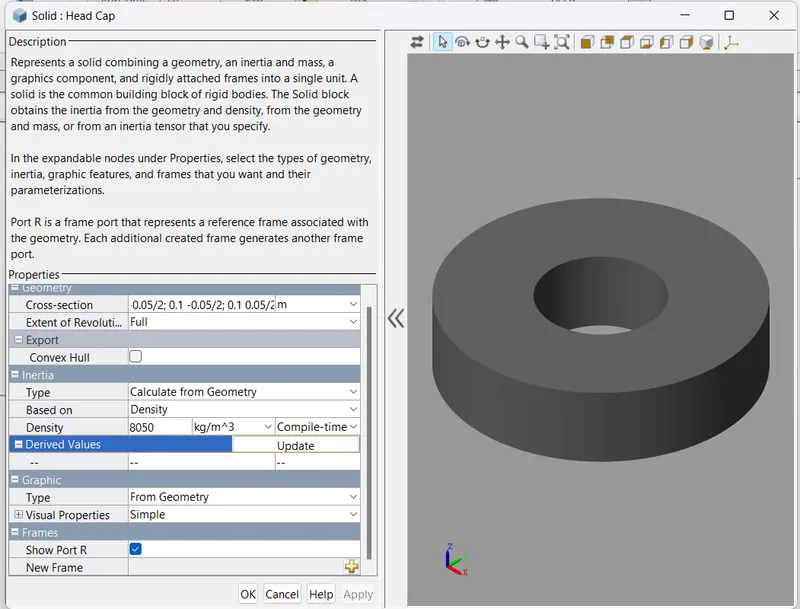

Head Cap:-

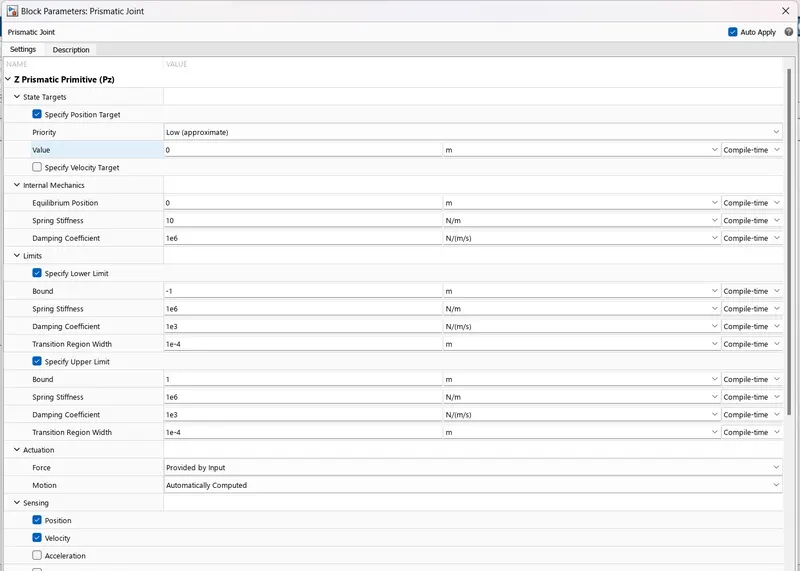

Prismatic Joint:-

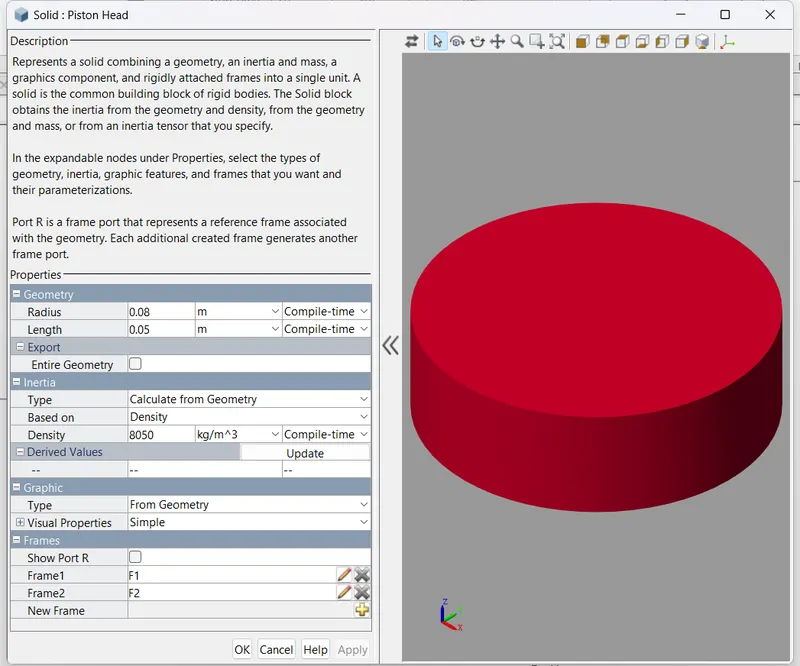

Piston Head:-

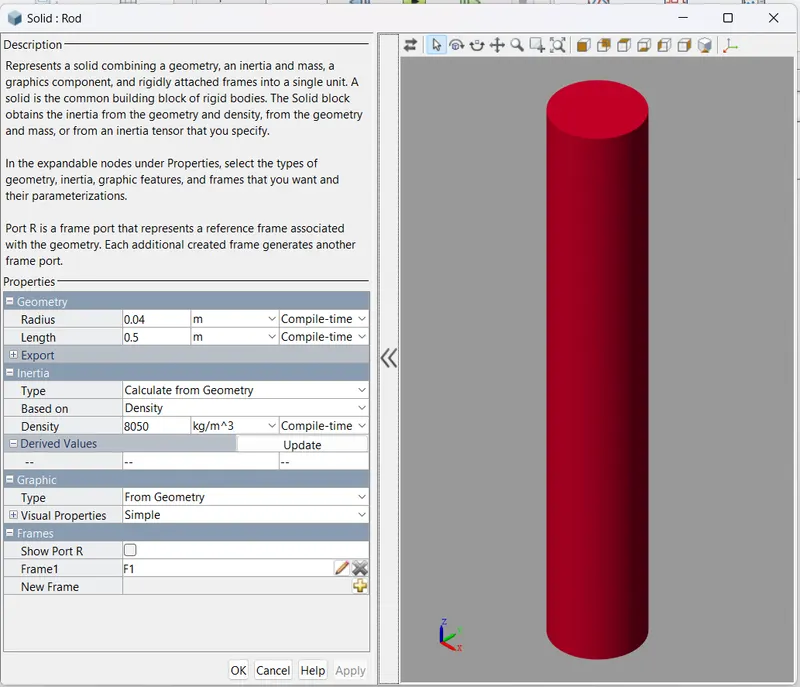

Solid Rod:-

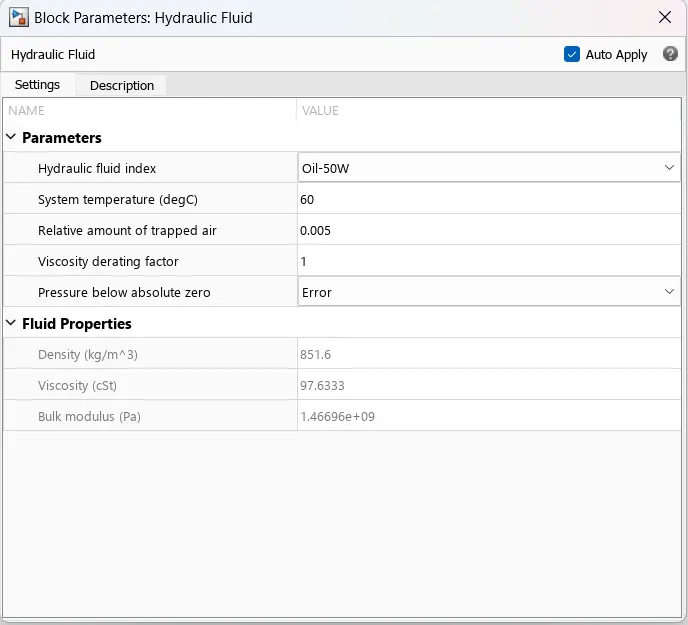

Hydraulic Fluid:-

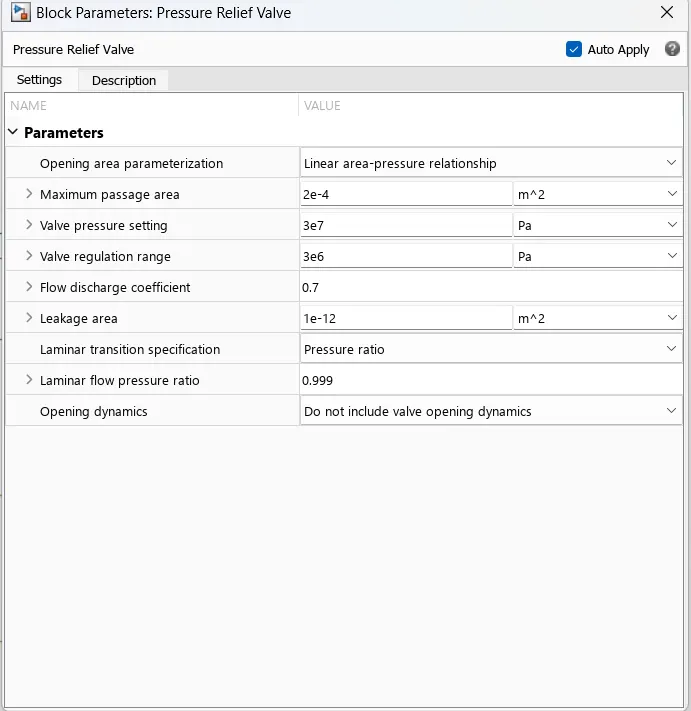

Pressure Relief Value:-

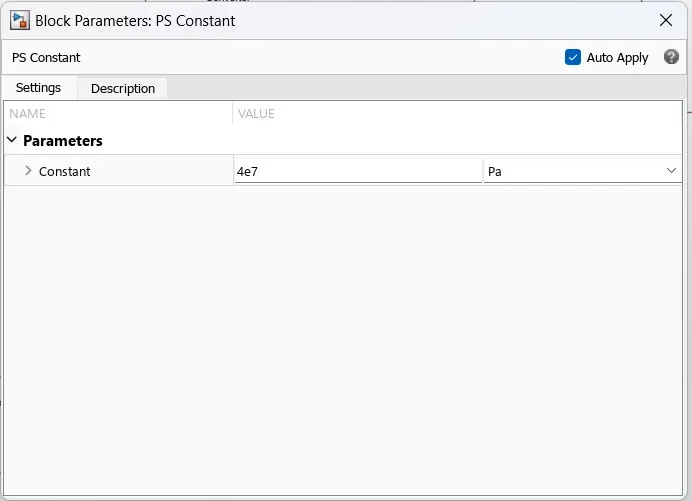

Ps Constant:-

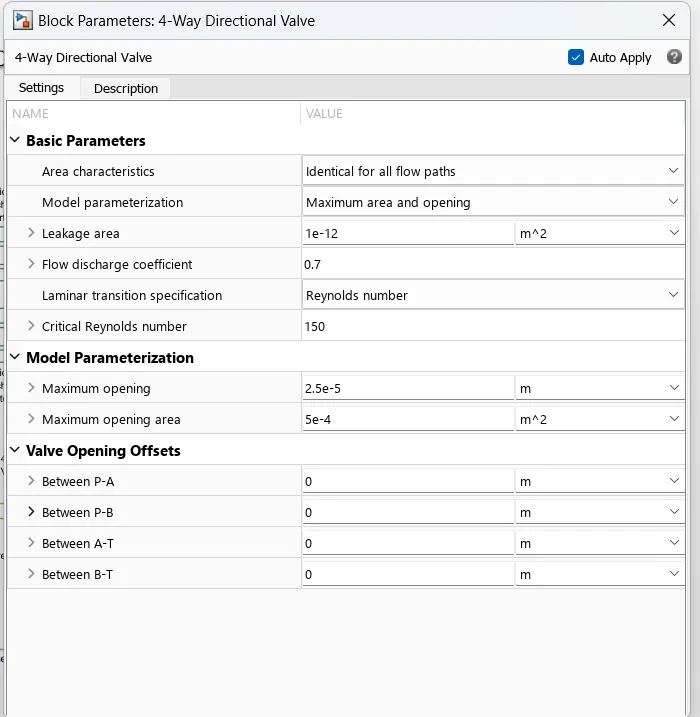

4-way Directional Value:-

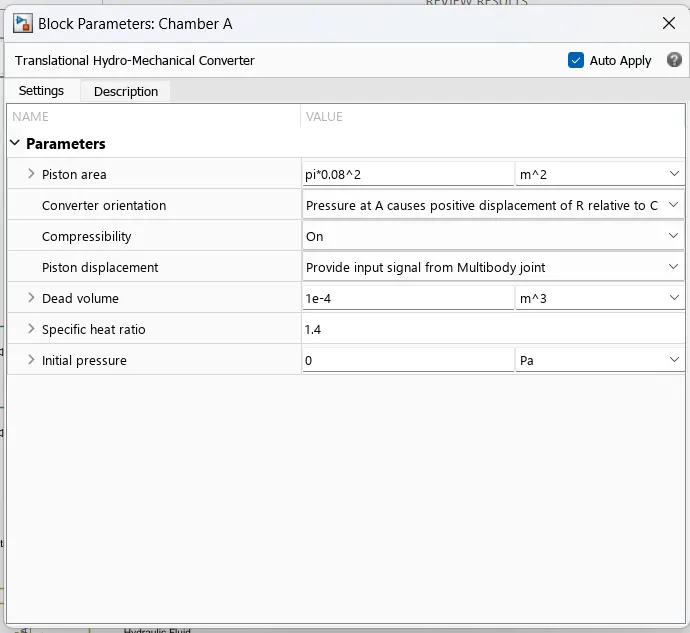

Chamber A:-

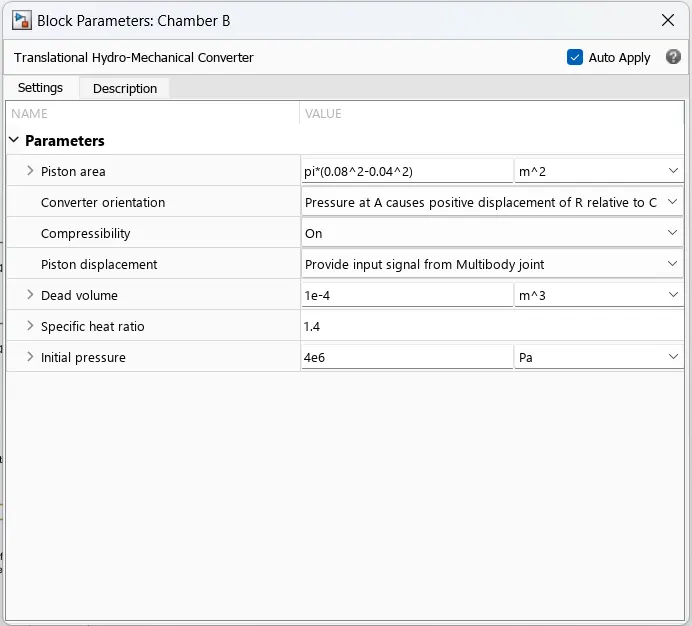

Chamber B:-

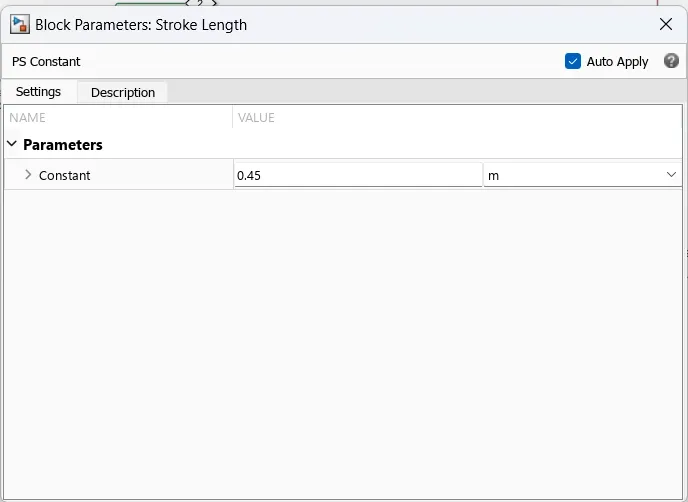

Stroke Length:-

Thse are blocks and parameters I took and Submitted.

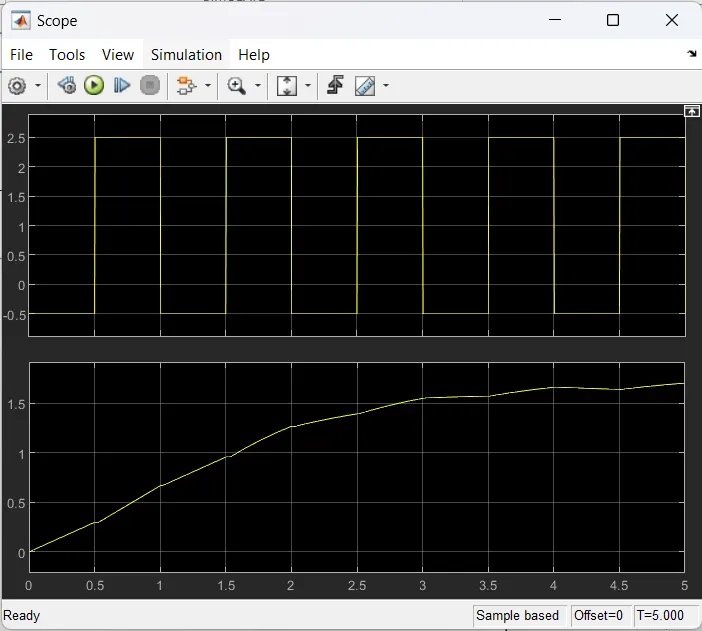

Here I am submitted scopes
