Week 9 - Challenge 2 - Switch Bezel Design

DETAILED DISCRIPTION ABOUT BEZEL SURFACE :- created an toolong axis witch is intersecting an two lines on class A surface

• created an bezel rest suface witch is extracted from the class A suface and ofset with 3mm of required dimention
• After extracted an walls of class A surface created ofset of all walls
• same aswell extracted and created base also
• The main thing of an surface is added to axis system
• with respect to all extended surfaces we may create an B surface
• trim it off all un wanted sides of an our b surface

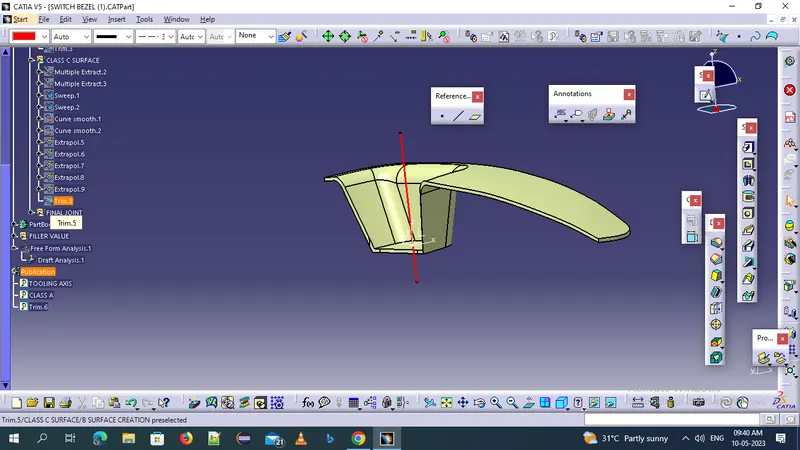

• we know about creating C surface is extra plating of exsiting walls and extend very well

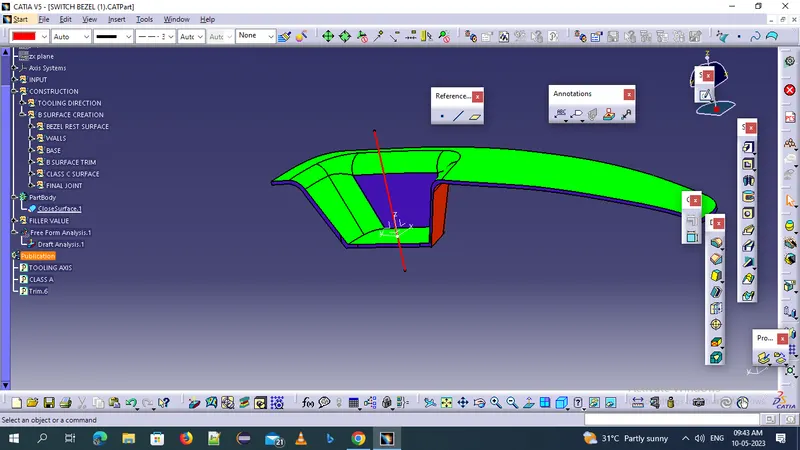

• finally joint the class A and our out put trim
• Next creating DRAFT SURFACE desing the vales witch colours we need to present at certain angles
• after applying draft to all desired surfaces exit the draft analysis work bench
