Week 10 - Challenge 2- Attachment Feature Creation (Dog House)
SELECT THE A SURFACE.

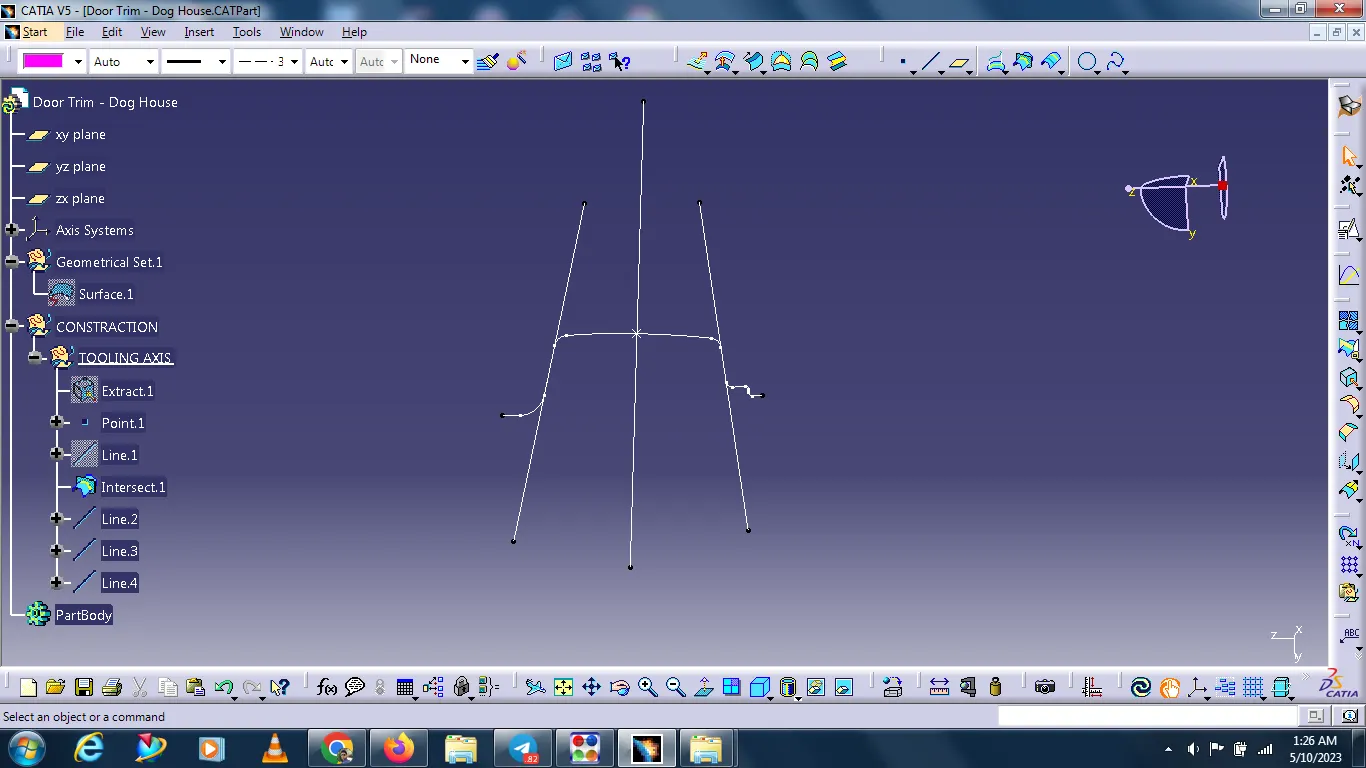

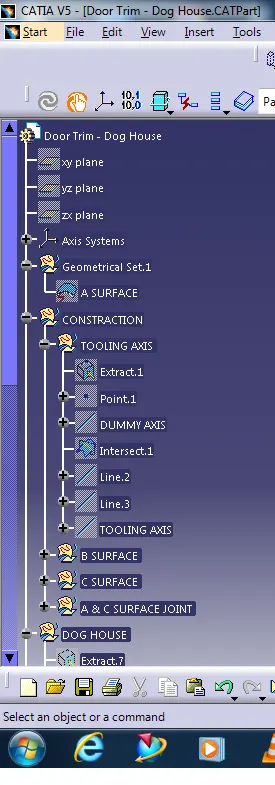

TOOLING AXIS
THE DUMMY TOOLING AXIS IS CREATED TO CREAT THE MAIN TOOLING AXIS. TAKE THE INTERSECTION OF THE DOOR TRIM AND MAKE THE LINES IN THE DEFICULT AREA THEN BISECTING THE LINES TO CREATE THE TOOLING AXIS.

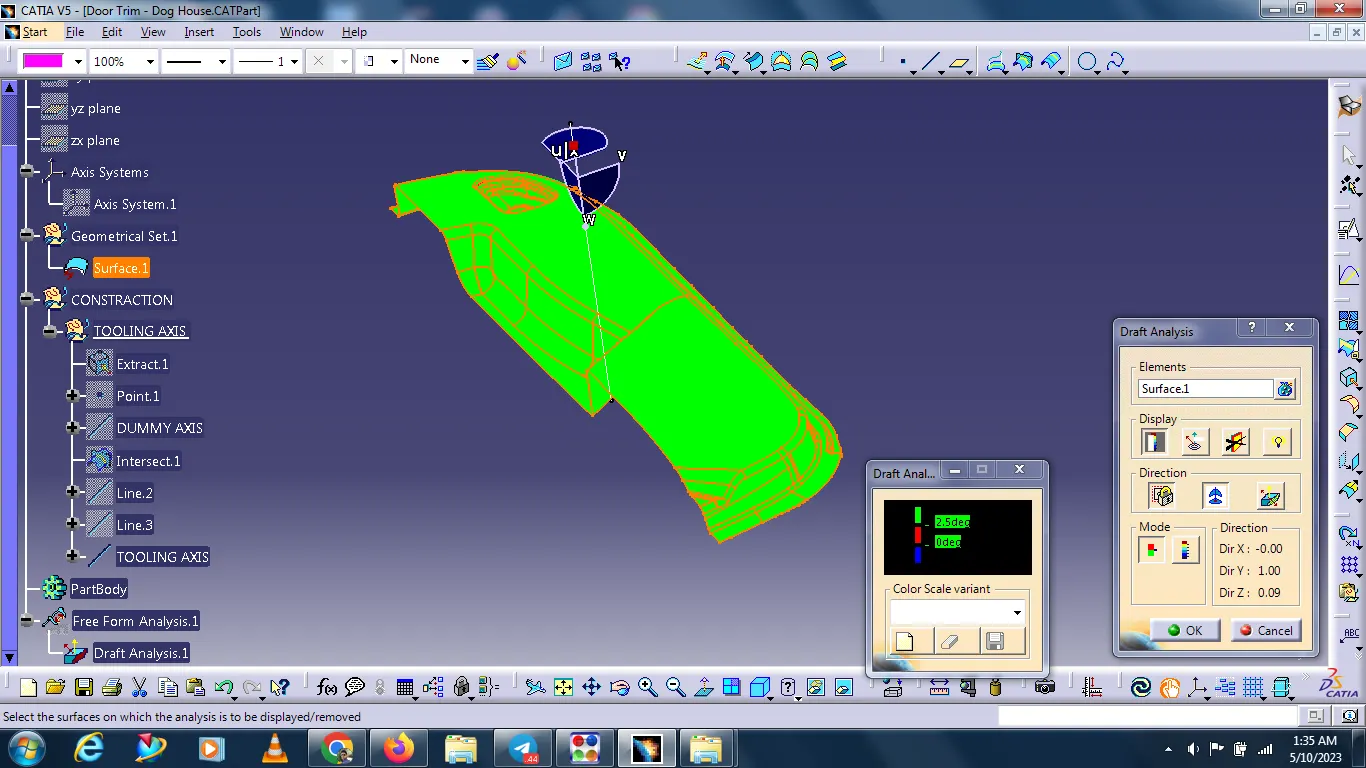

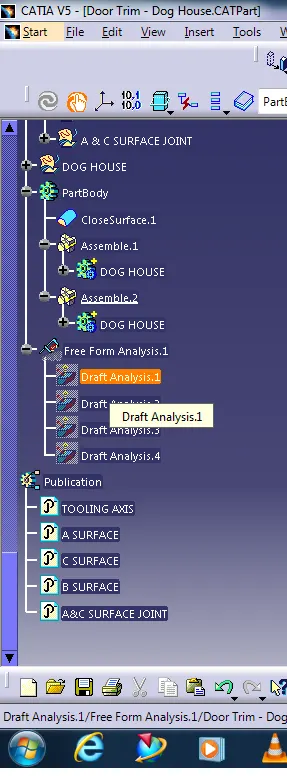

DRAFT ANALYSIS
THE DRAFT ANALYSIS IS TO IDENTIFY THE BODY IS IN PROPER DRAFT ANGLES OR NOT. THE NORMAL DRAFT ANGLE OF THE BODY IS 2.5 DEG. THE DRAFT ANGLE ALLOWS THE PART TO REMOVE OR EJECT FROM THE MOLD.

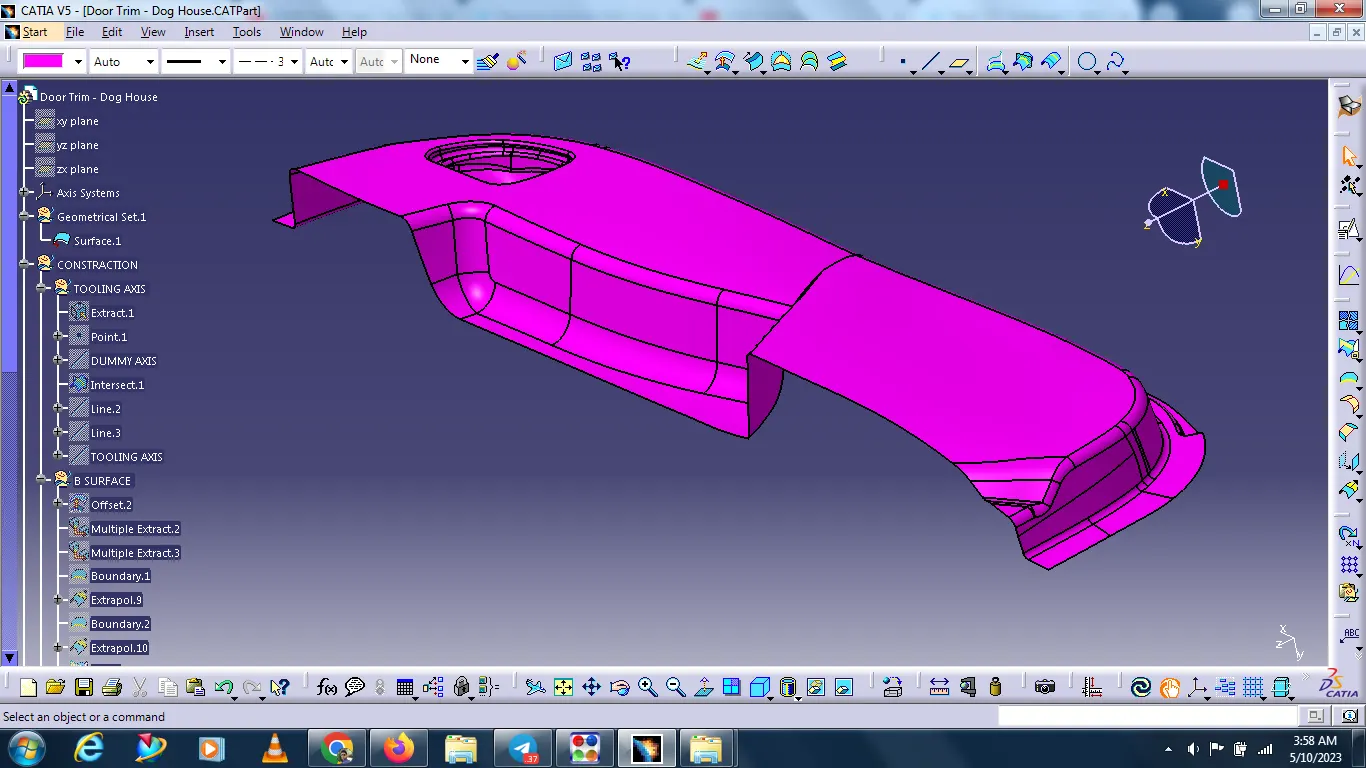

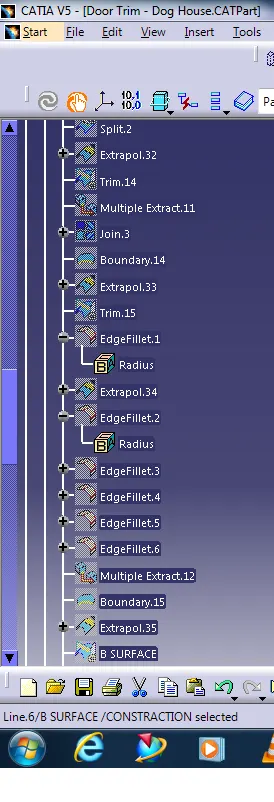

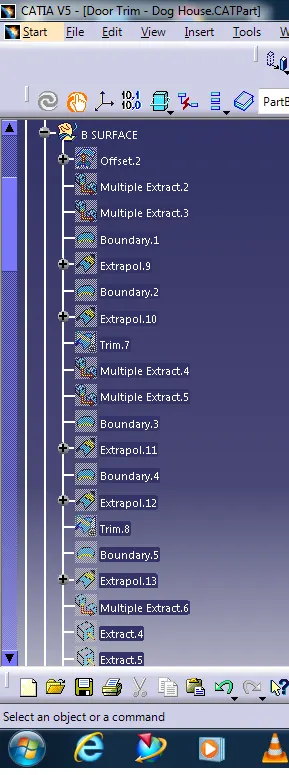

B SURFACE
TAKING THE OFFSET OF THE A SURFACE.

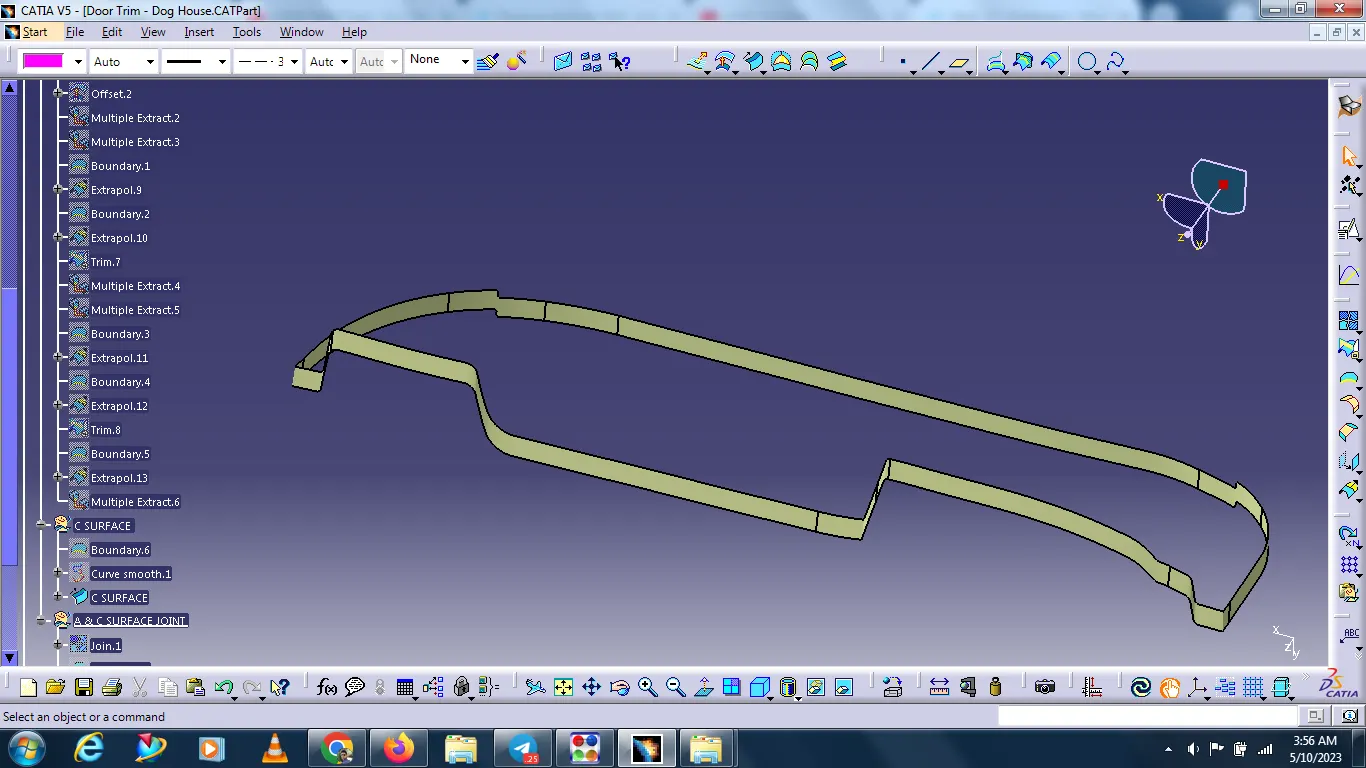

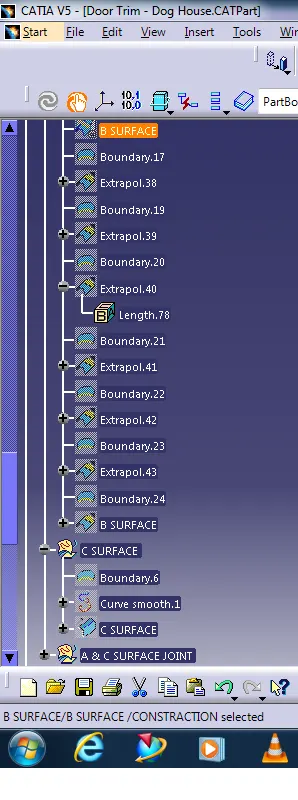

C SURFACE

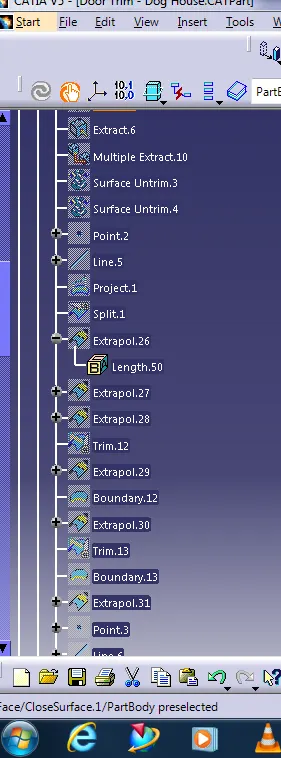

SELECT THE A MULTIPLE EXTRACT AND CREATE THE BOUNDARY LINE AFTER APPLYING THE SWEEP COMMAND.
USING THE EXTRAPOL COMMAND ANR TRIM THE UNNECESSARY AREAS

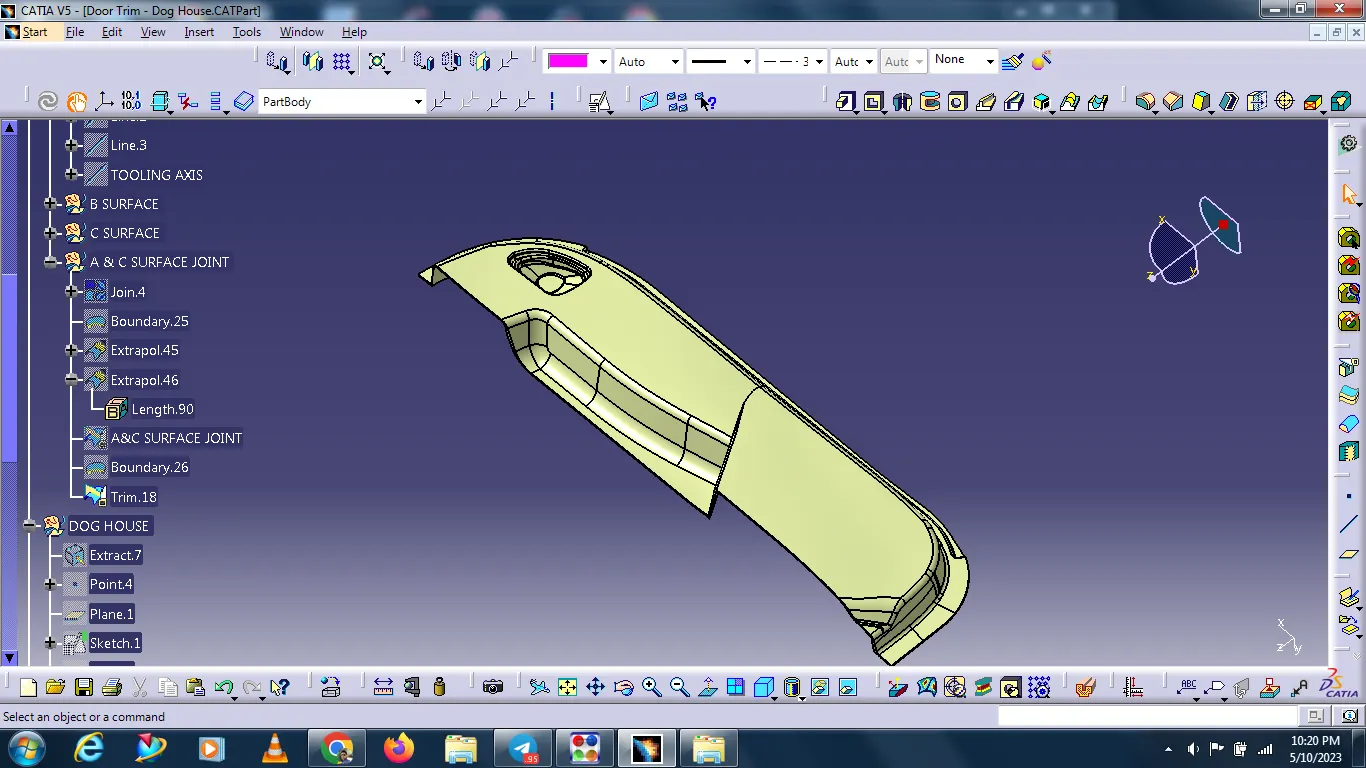

AFTER COMPLATE THE C SURFACE JOIN THE A & C SURFACE.

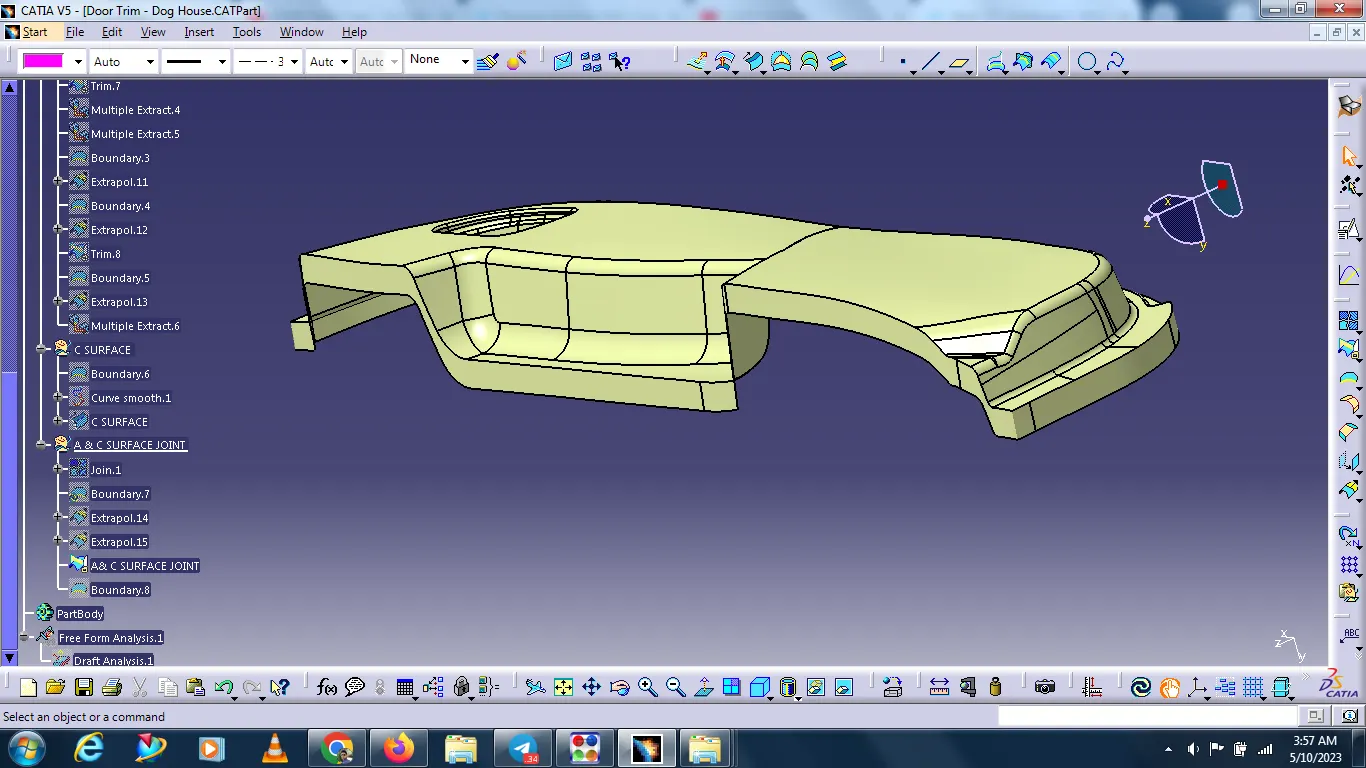

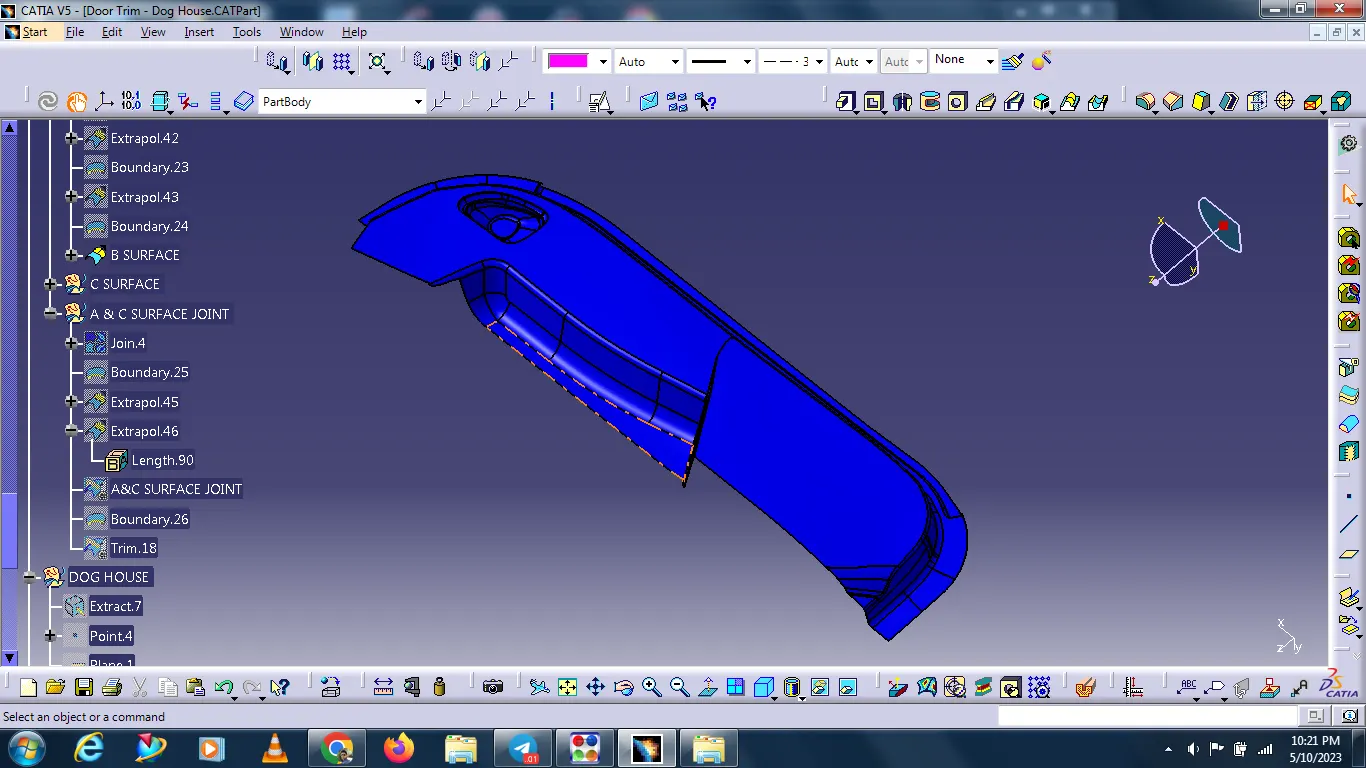

AFTER COMPLATE THE A & C SURFACE JOINING THEN DOING FINAL TRIM AND MAKE THE SOLID SURFACE.

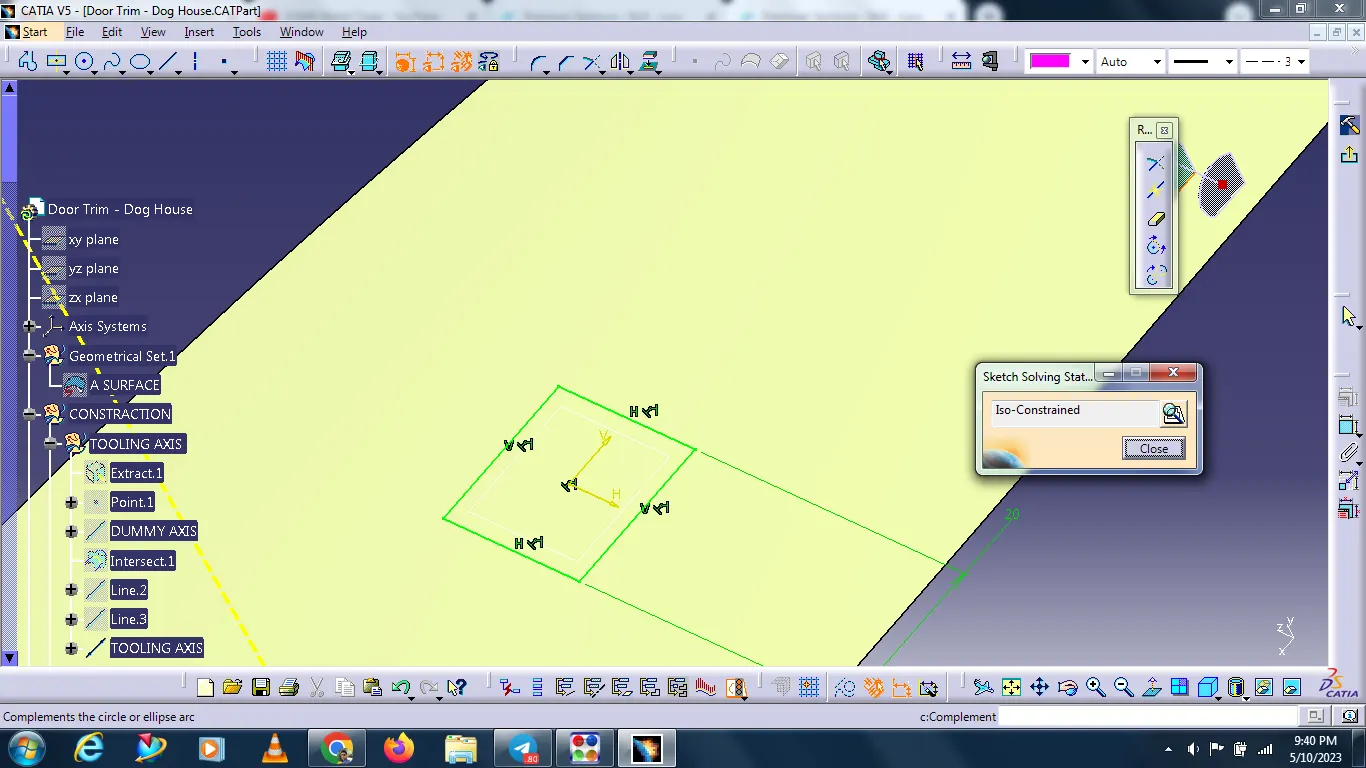

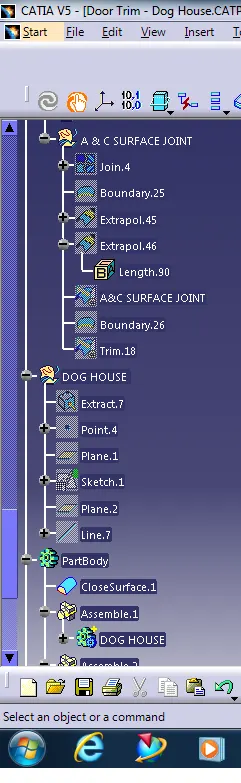

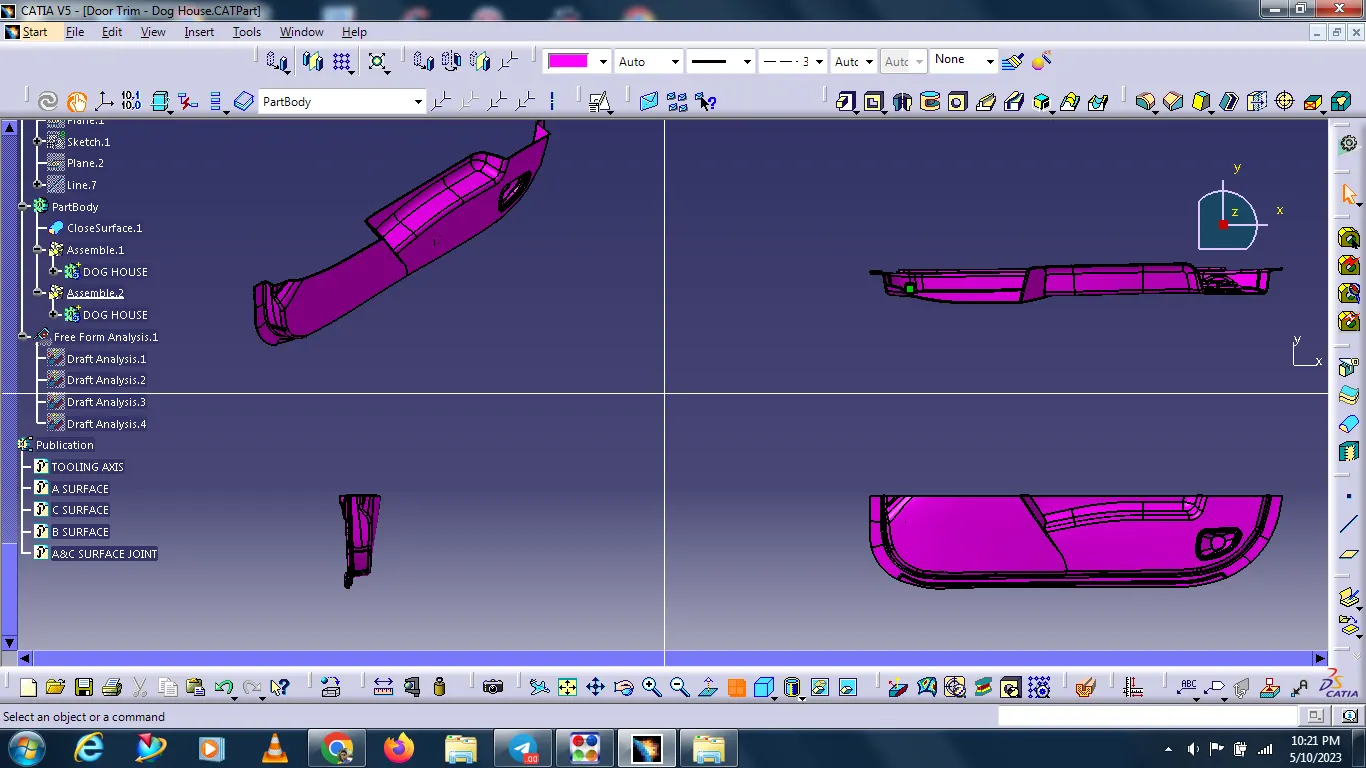

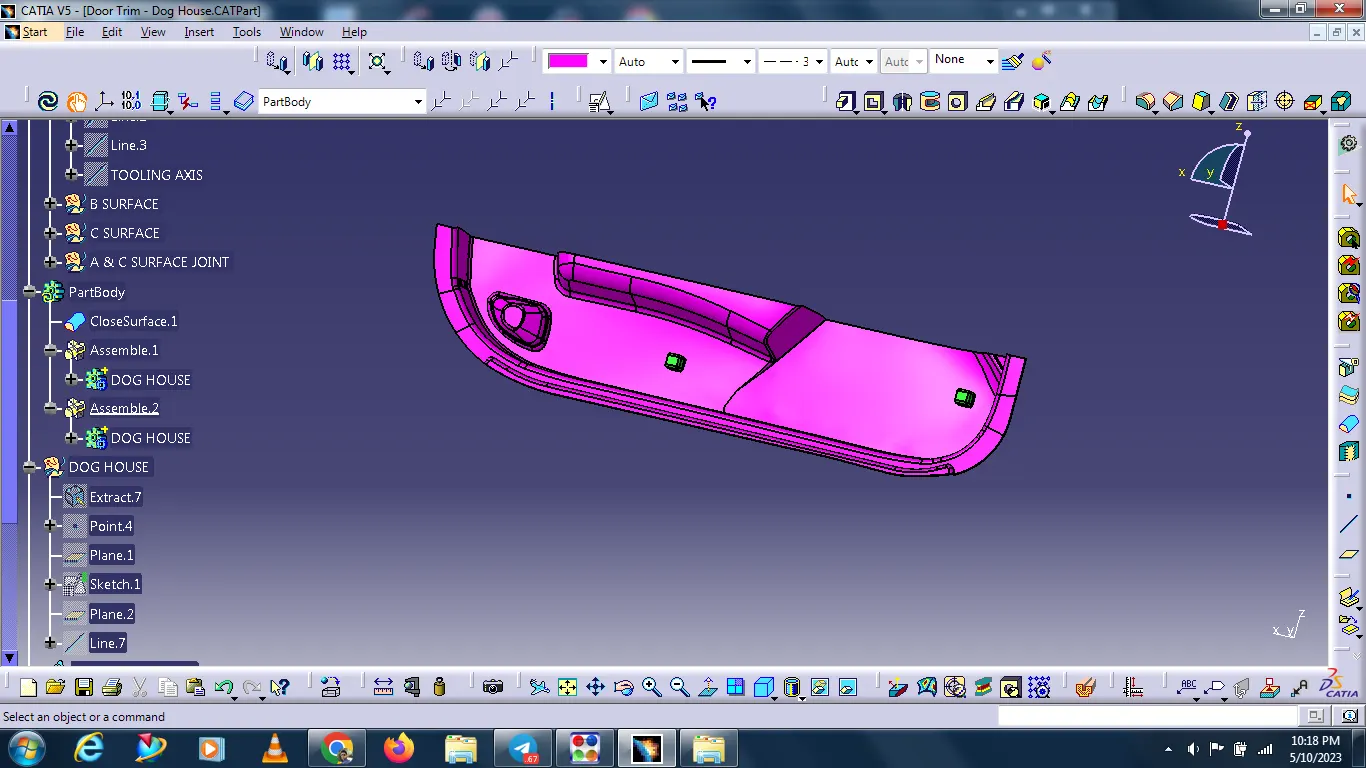

CREATIND DOG HOUSE FEATURE
