Week 9 - Challenge 1 - Base Bracket Design

Report on Draft Analysis)

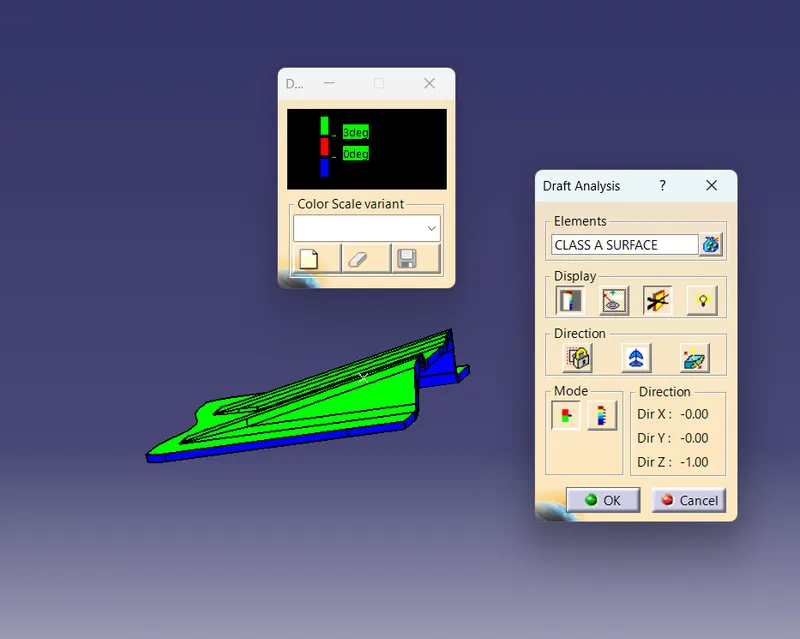

Draft analysis is done for parts that will be manufactured using processes for molding. Proper draft angles are essential to ensure that the parts can be easily released from molds or dies without getting stuck. Draft analysis in CATIA V5 allows designers and engineers to validate and optimize the draft angles of their parts during the design phase, reducing the risk of manufacturing issues and ensuring smooth production processes.

creating a tooling axis in draft analysis in CATIA V5 allows users to accurately measure draft angles along the intended direction of mold or die movement, simulate the manufacturing process, optimize the part design, consider mold or die manufacturing requirements, and follow standard industry practices.

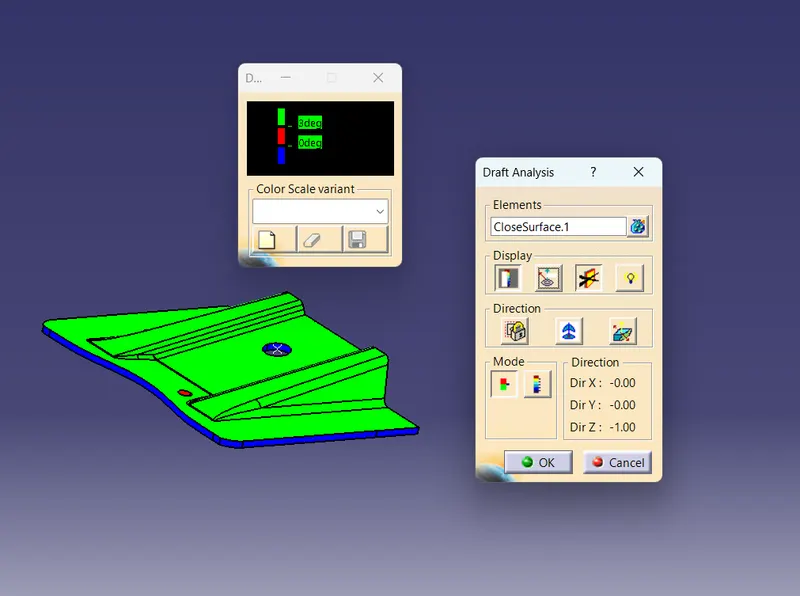

so for creating a tooling axis on any part we should first have to analyze drafting angles for getting the required surface or the surface which we thik will create any problem generating the thickness. for creating the tooling axis firstly we have to take a reference element point on any surface on which we have to thicken or making closed surface, on creating an axis for the surface we should have to create lines on the surface which we think will create problem, then we should have to create a bisecting lines on the surface with the help of planes, this will heelp us to create a Class B surface on the bisecting axis. then we can create extracted surface along the surface then we can extrapolate the extracted surface along point direction then we can trim the surfaces to get the desired part and then we can make offset according the thickness given to us, and again trimming the surface we should get the rewuired surface then after getting the required surface we can use closed surface in part body to male the surface filled or thicken it using closed surface command.
