Week 9 - Challenge 1 - Base Bracket Design

TOOLING AXIS CREATION

Tooling axis is used mold design which ensures the parts will eject from the mold without any problems.Need to identify the tooing axis in all axis to form effecfective final tooling axis with respect to invidiual tooling axis.

Step 1: Need to create plane

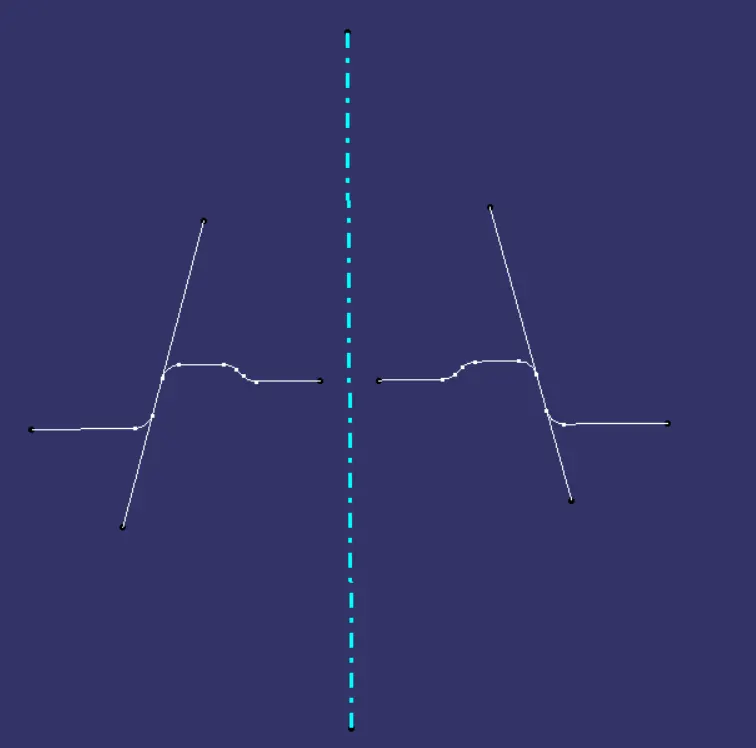

Step 2: select intersection option and create cross section of the part.

Step 3 : Select Line definetion then create a line and symetry to the prveos line creat another line.

Step 4: Select bisecting option and create bisecting line w.r.t previous lines.

DRAFT ANALYSIS

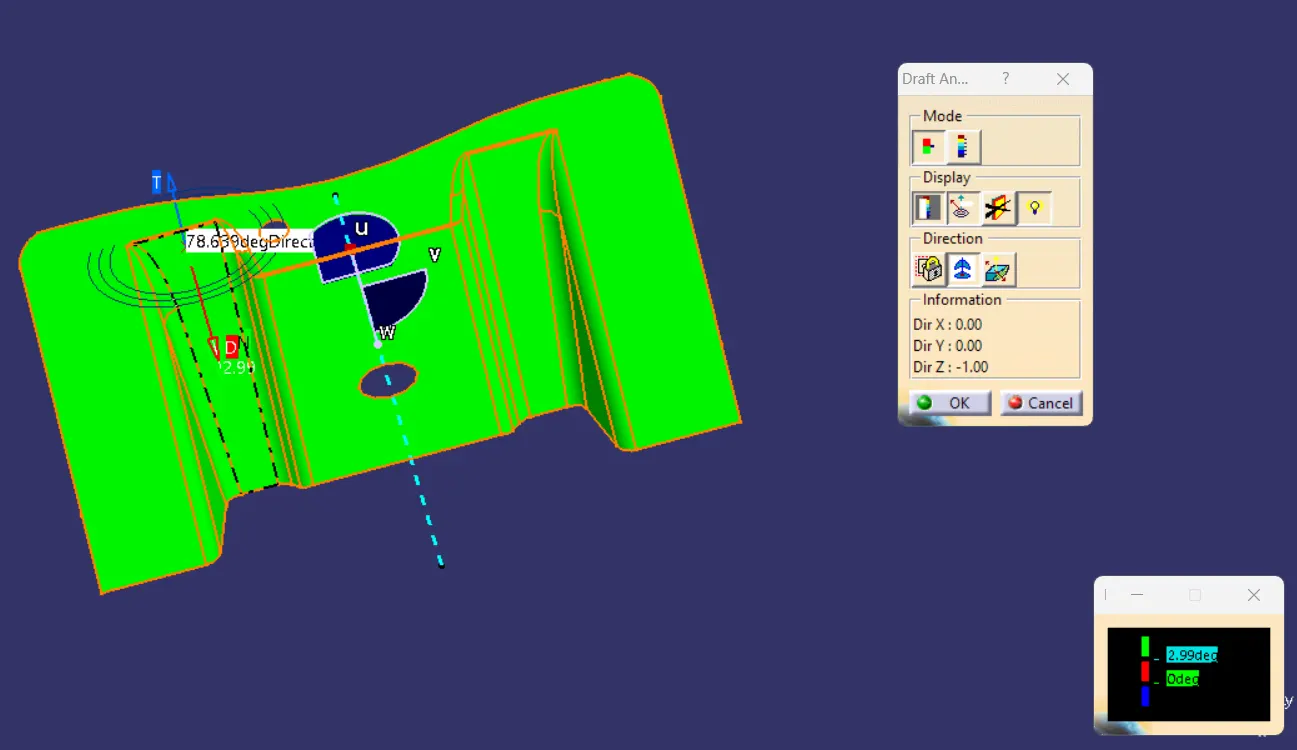

Class A surface Draft analysis

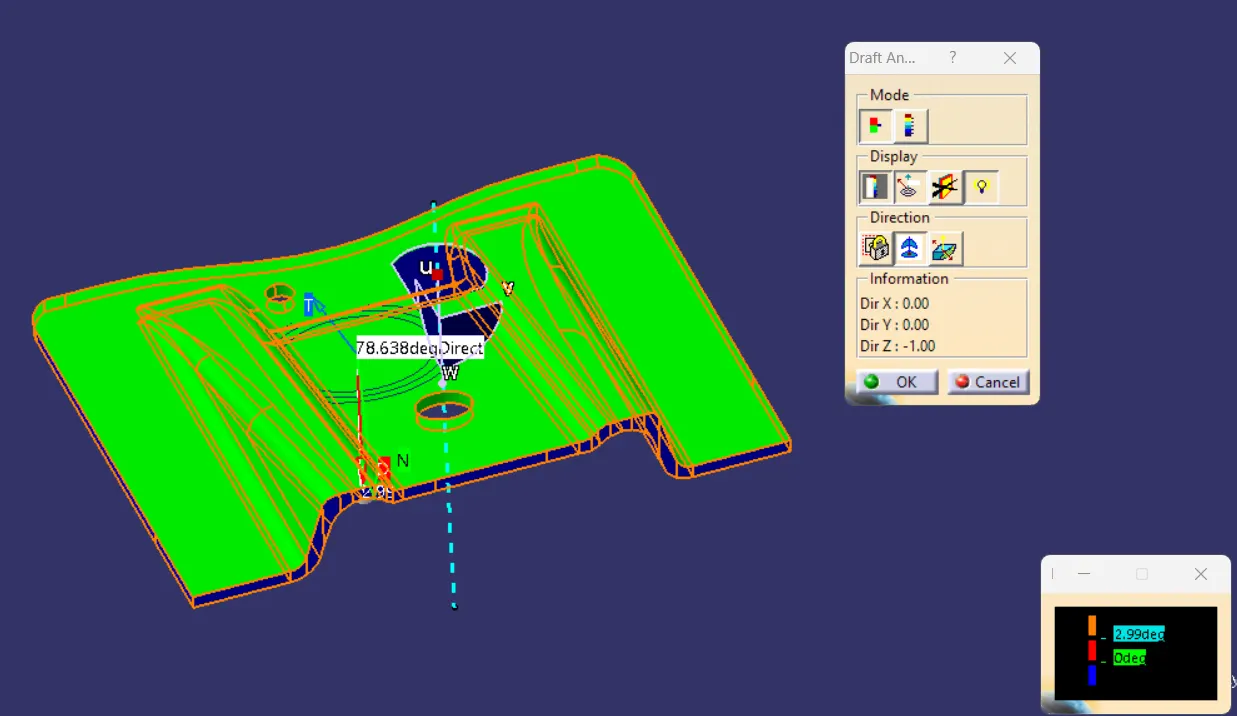

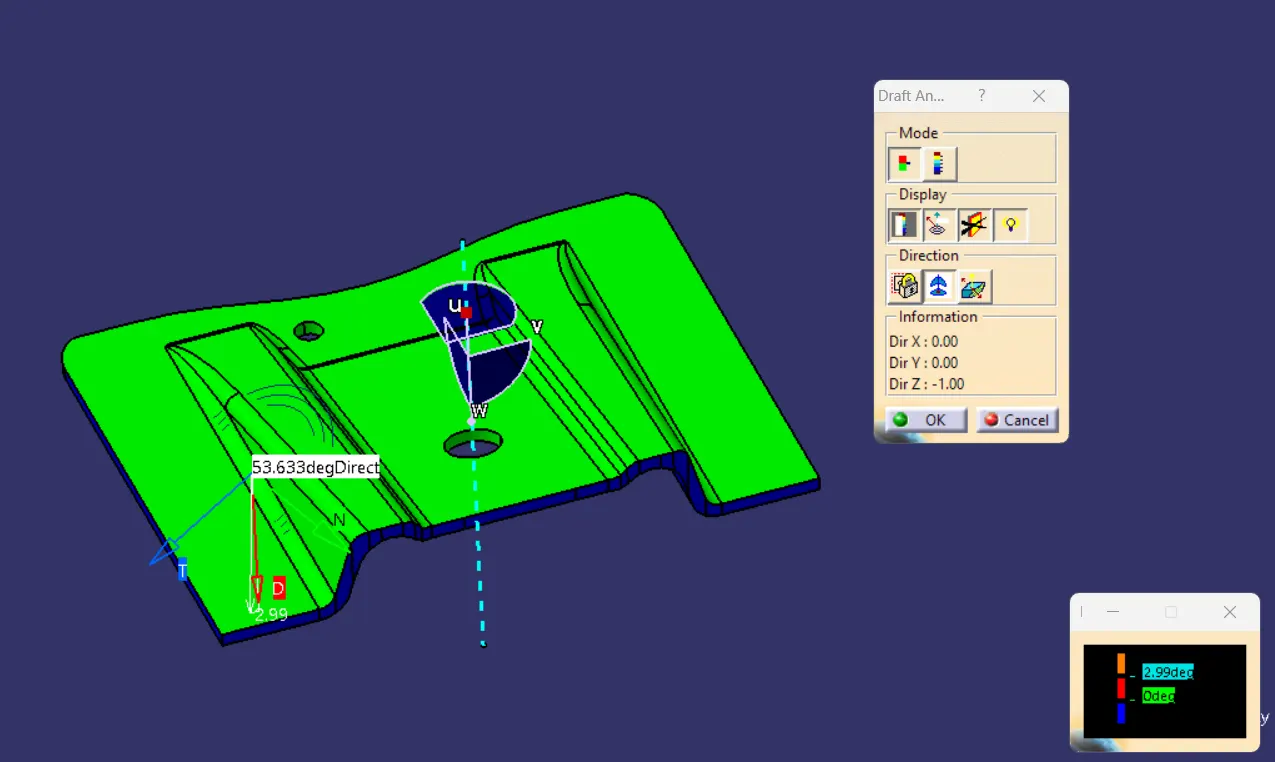

Final part: Isometric view This is Cavity side

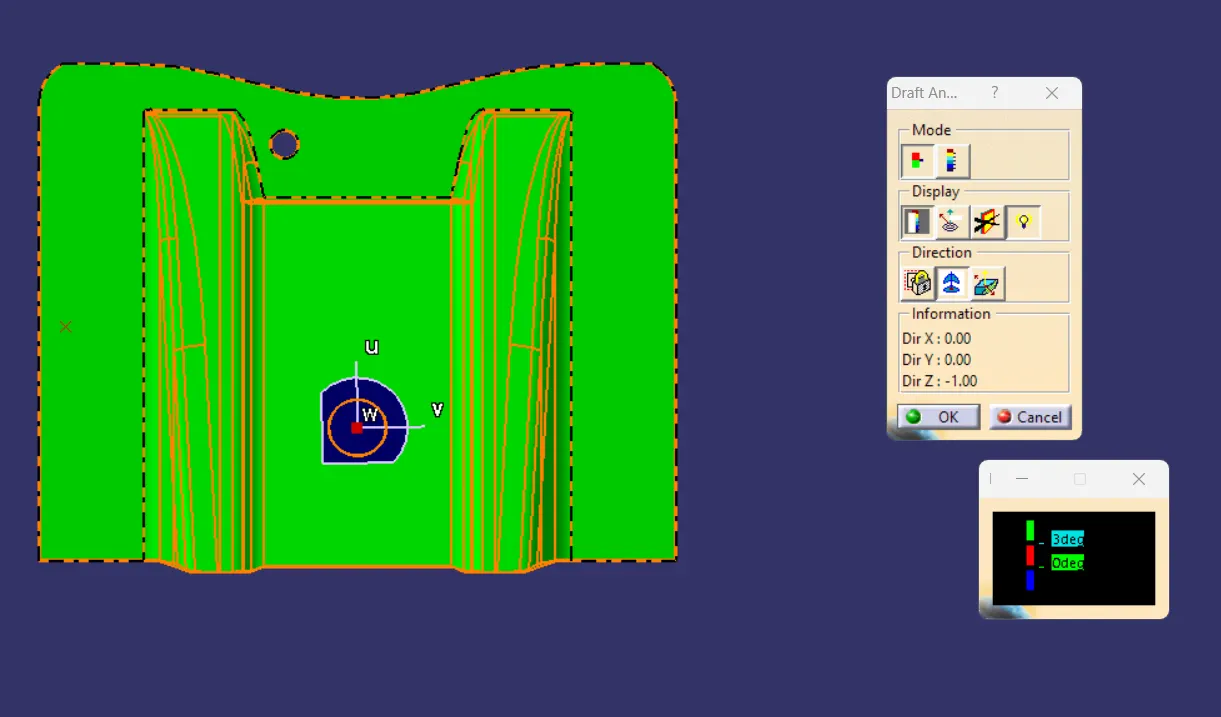

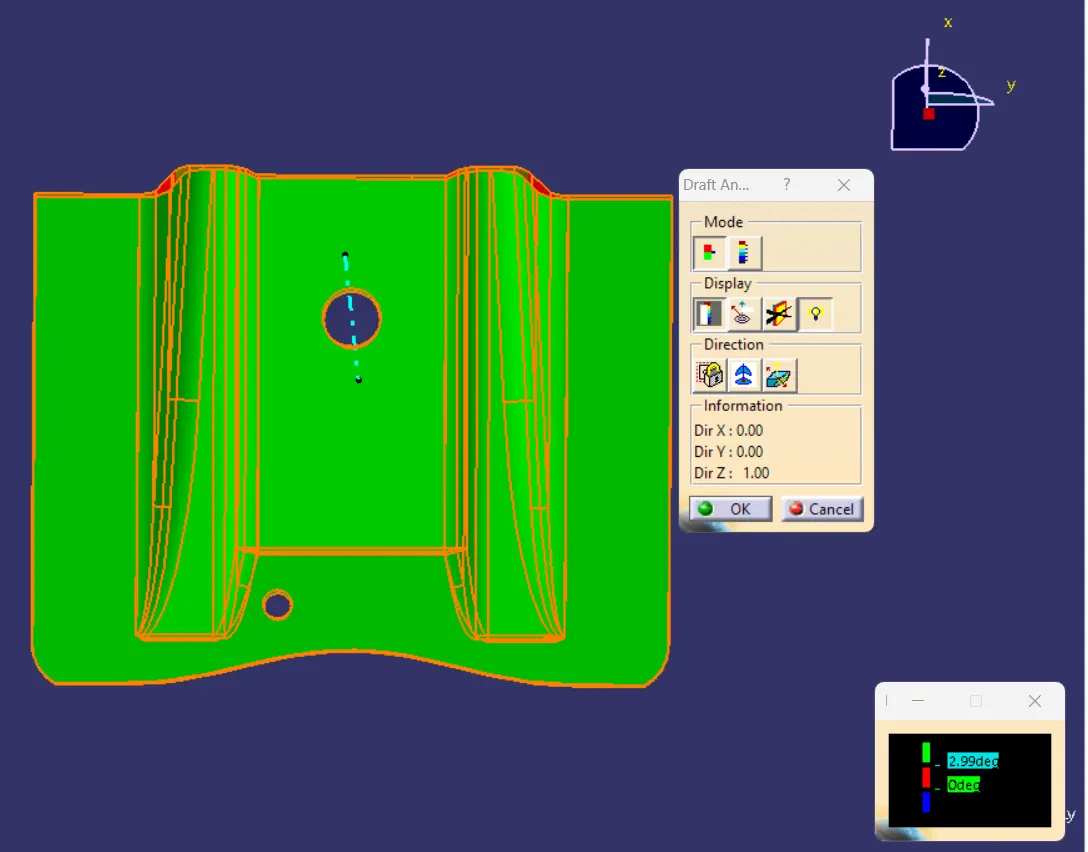

Top Veiw

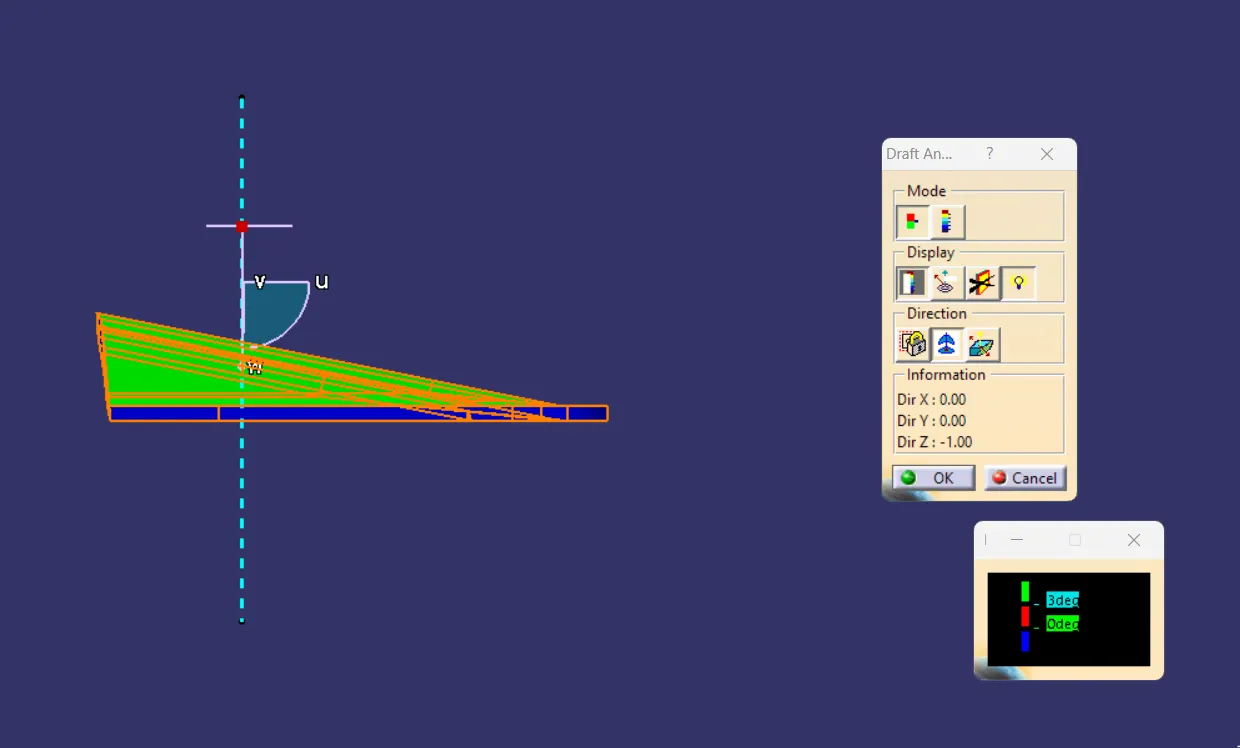

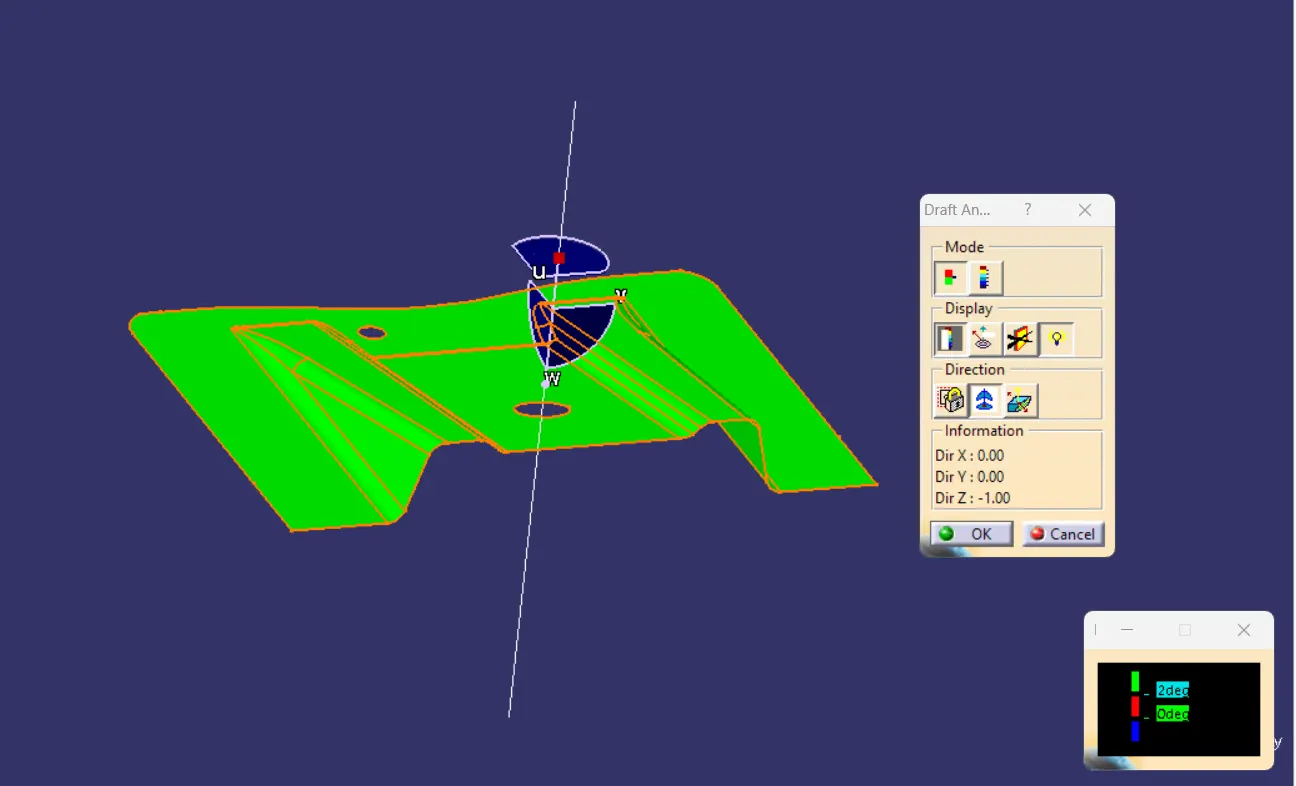

Side view

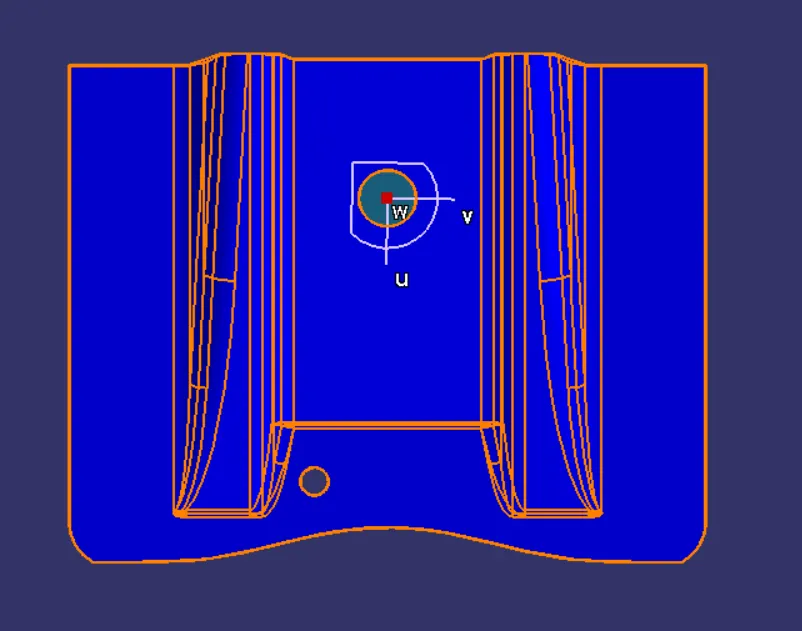

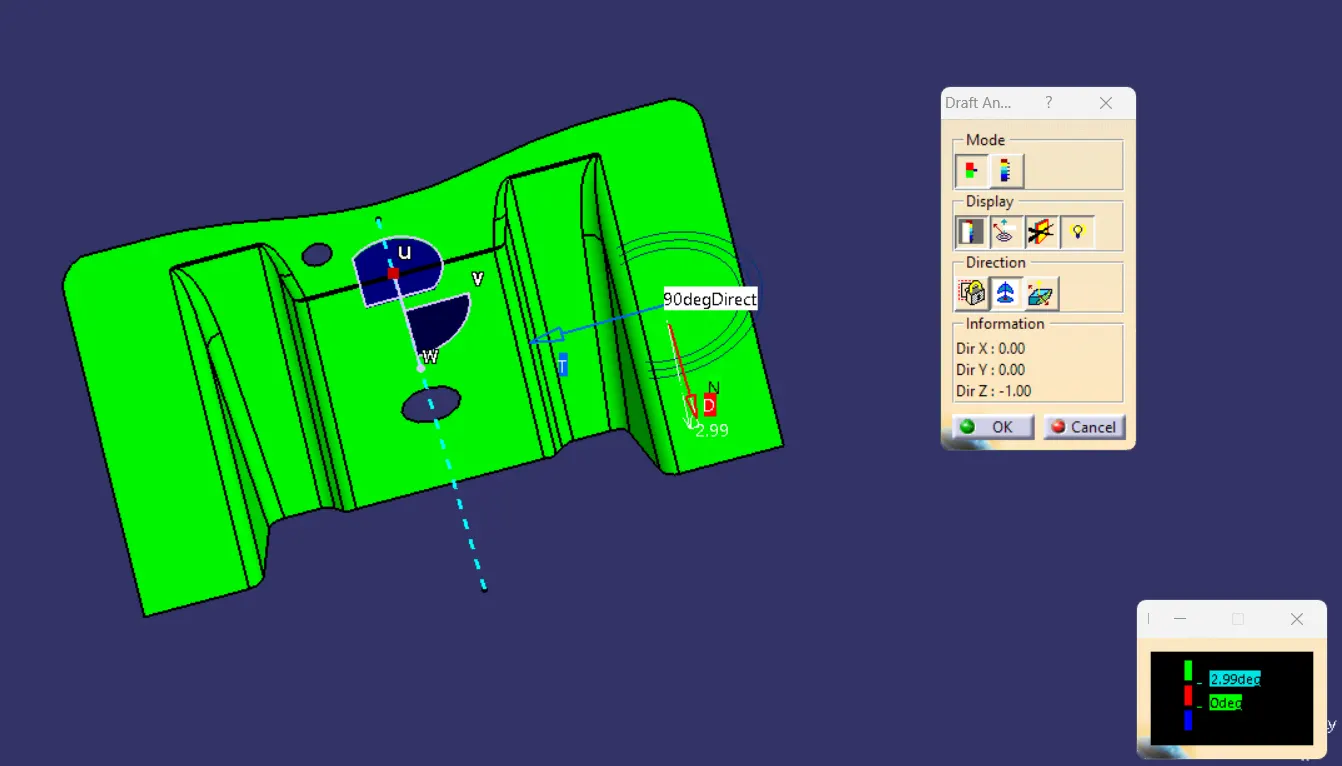

Bottom view .This is core side. If we change direction of ejection it will become green.Current ejection side is cavity.

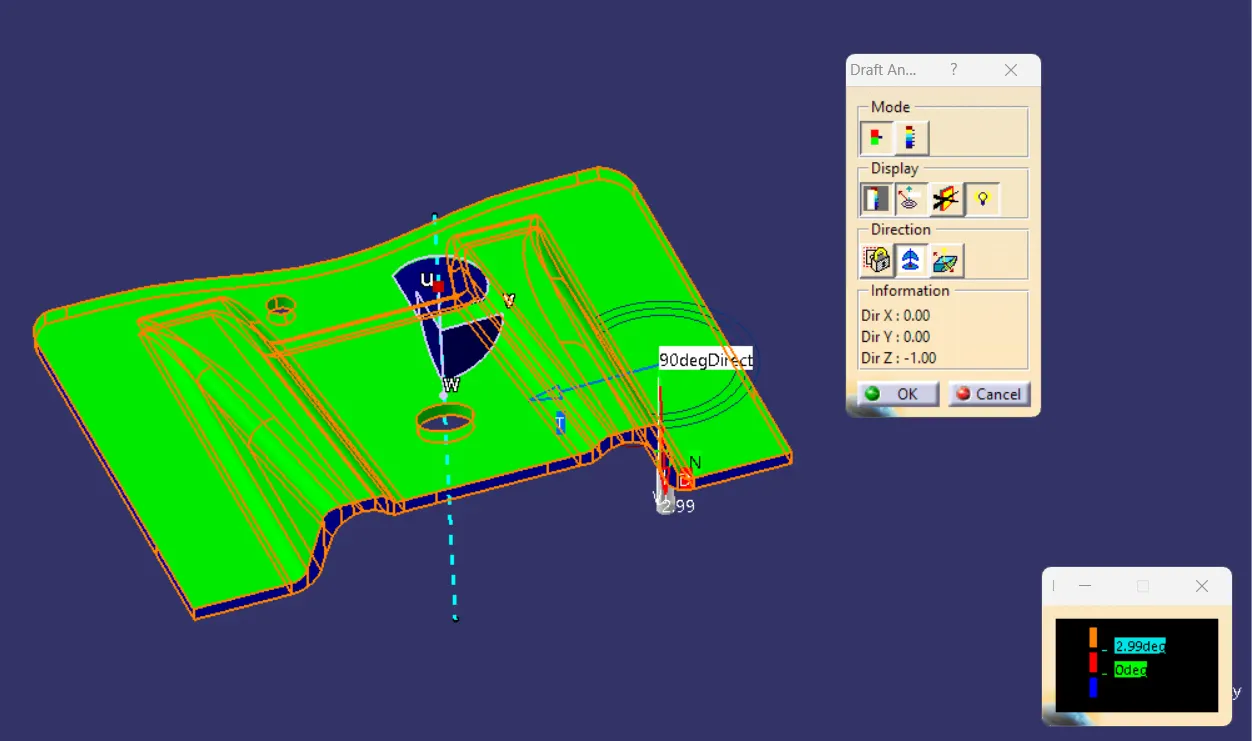

Draft analysis A Surface

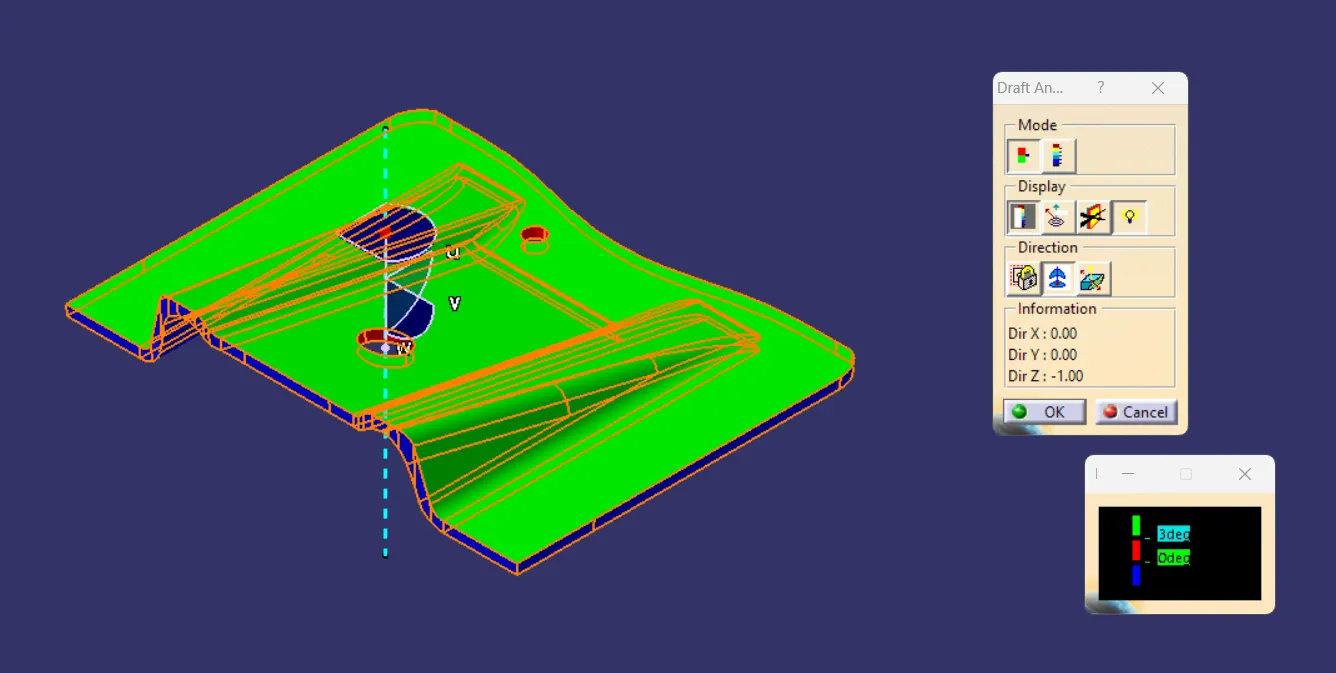

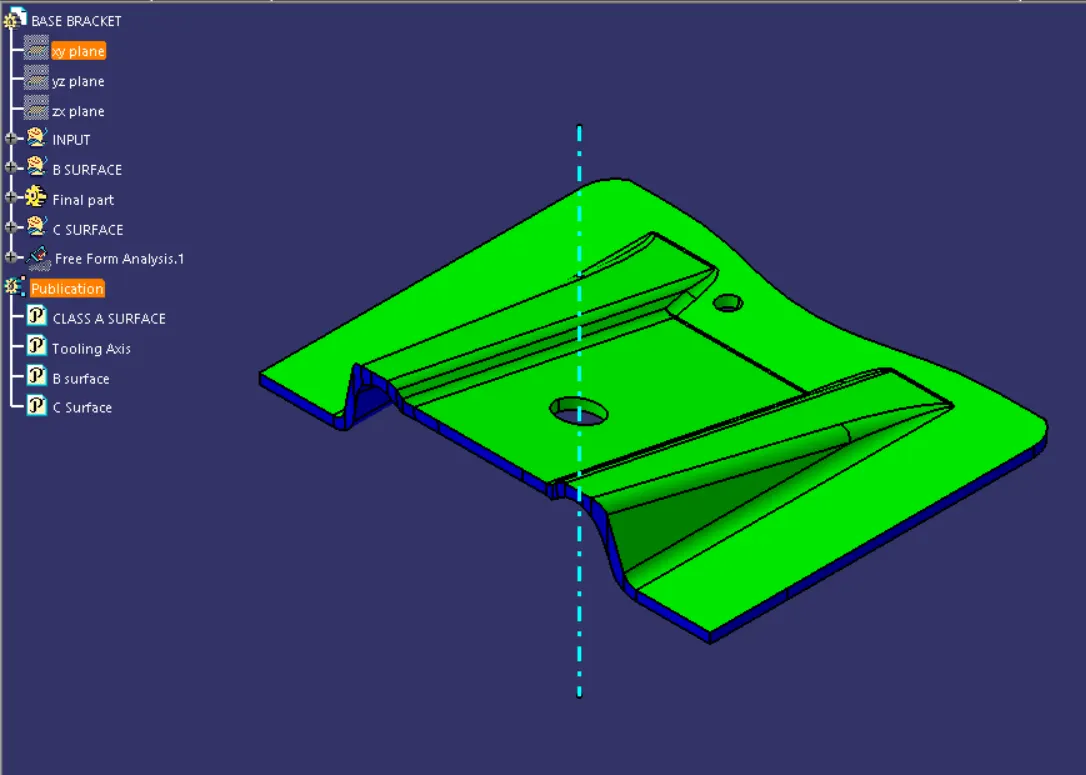

Final part

Draft analysis from core side.

Based on draft nalysis this part can able to eject from both core and cavity of the mold without any problem. Minimum draft 3 degree draft given.
