Week 7 Challenge - Assembly Workbench

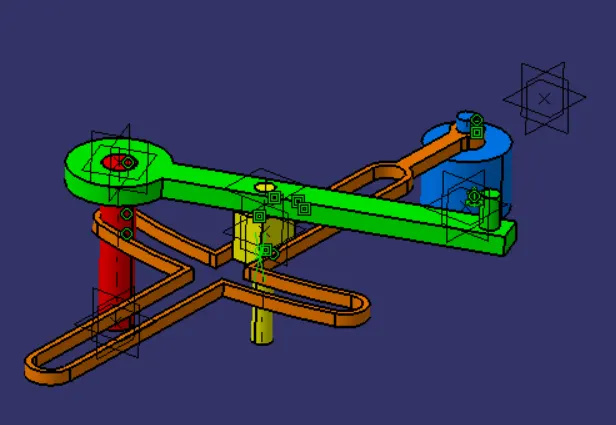

1. Quick Return Mechanism

All elements are constained with each other.

Center axis is fixed.

Body 1 constrained with Body 2, Body 3, Body 5.

Body 2 constrained with Body1 & center axis.

Body 3 Constrained with Body 1, Body 4.

Body 4 Contrained with Body 4, Body 5.

Body 5 Constrained with Body Body 1, Body 4.

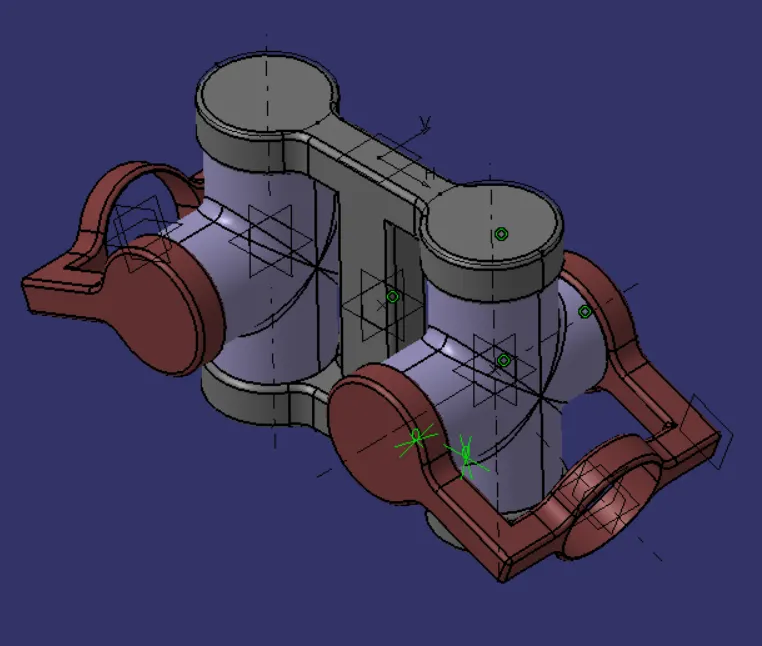

2. CV Joint

All elements are constained with each other.

Center axis is fixed.

Body 1 constrained with Body 2, Body 3.

Body 2 constrained with Body1, Symmetry of body 1 & center axis.

Body 3 Constrained with Body 1.

Symmetry of body 1 constrained with Symmetry of body 3.
