Week 9 - Challenge 1 - Base Bracket Design

GGuberan V27 Jul 2023

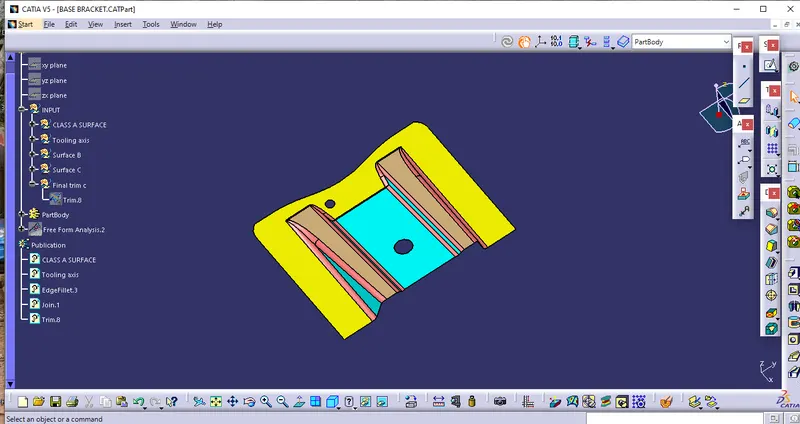

To create the plastic component of the base sracket with the Surface given we follow the given steps

Step 1

after getting the surface A we can create the other surfaces with the surfaceas refernce

Step 2

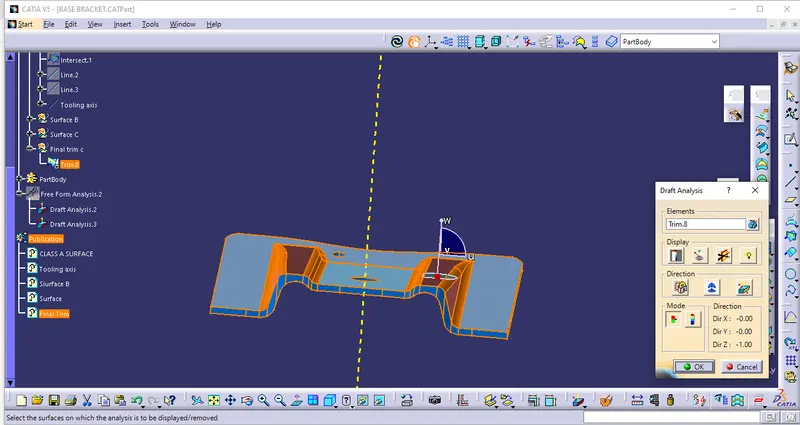

After that we can create the geometrical set for the each surfaces seperately before that we can get the draft analysis for the surface A which is given we can use the draft analysis command from the insert opition and by selecting the feature analysis to analysis the surface

after that we get the toolbar which used to analyse by using compass we know the angle of the surface which is below 3 deg or above or equal to 3 degree for better understanding

Surface B

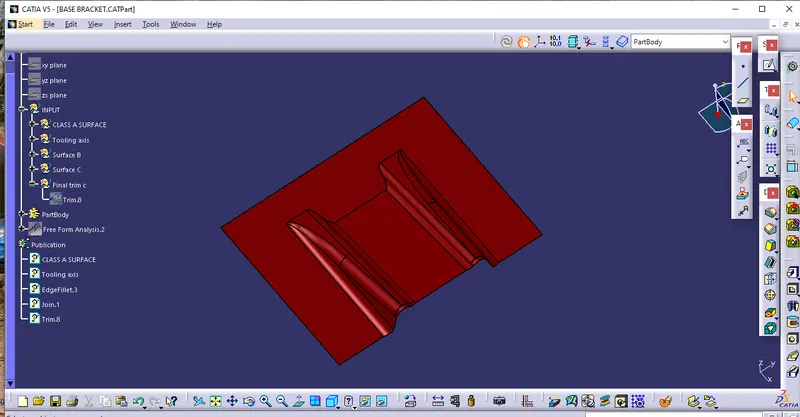

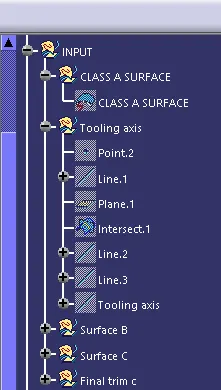

then we insert the geometrical set for tooling axis which used as a basic axis for the remaing surface creations then we create the surface B by selecting the part with using of the extract and untrim commands to create the b surface by creating the offsetof 2.5mm to create the final part

surface C

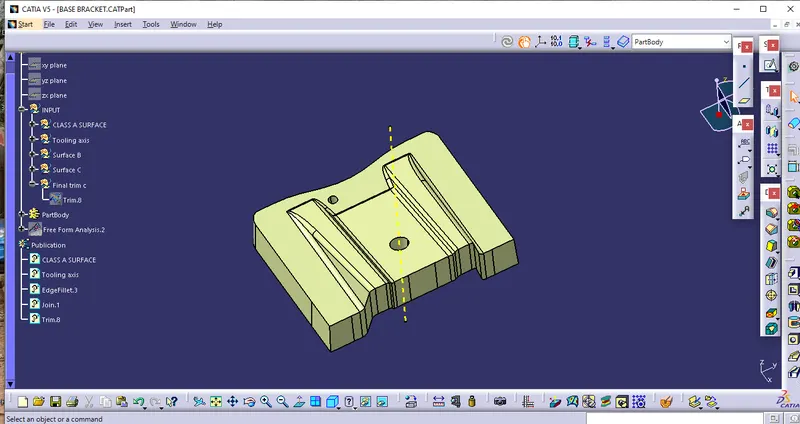

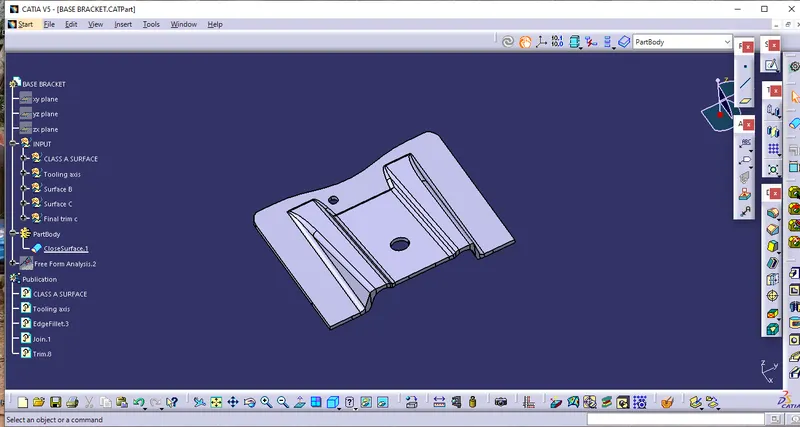

then we create the surface C inside of a seperate geometricl set and with reference of surface a and using the boundary and sweep command we can get the surface c and we can finnaly trim the surface c with surface b to get the final plastic part and we can check the draft analyse of the final part same as surface a analysis to check the degree the axis of the part and then we can create the part as a closed surface at part workbench as final part

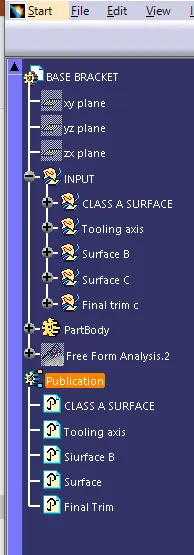

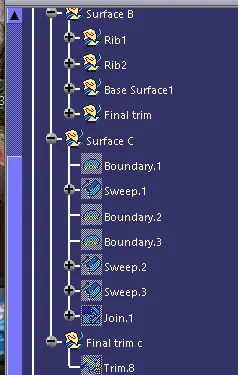

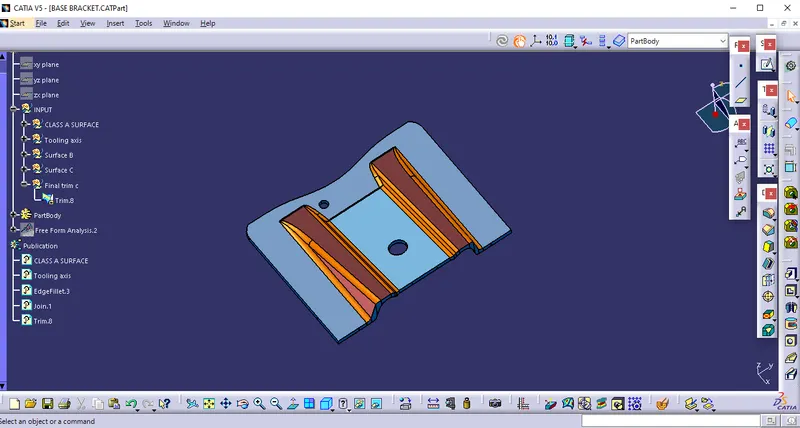

Tree structure
