Week 9 - Challenge 1 - Base Bracket Design

Steps for Plastic Part Creation are as follows:

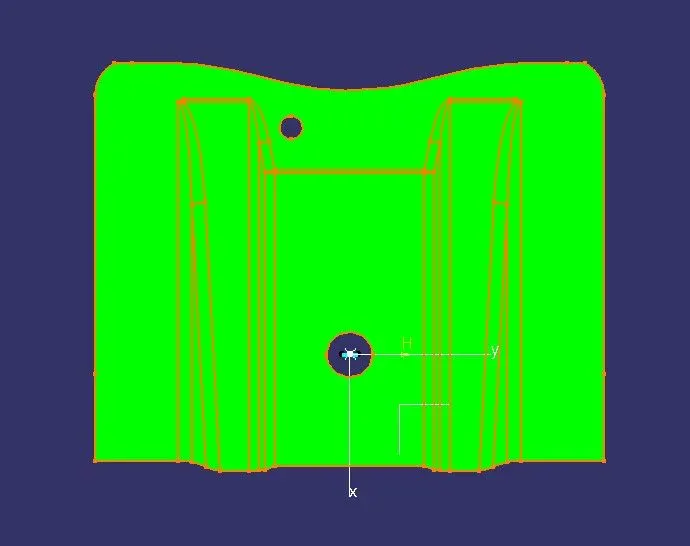

1) Create a point taking hole as center & create ab axis system taking input as point.

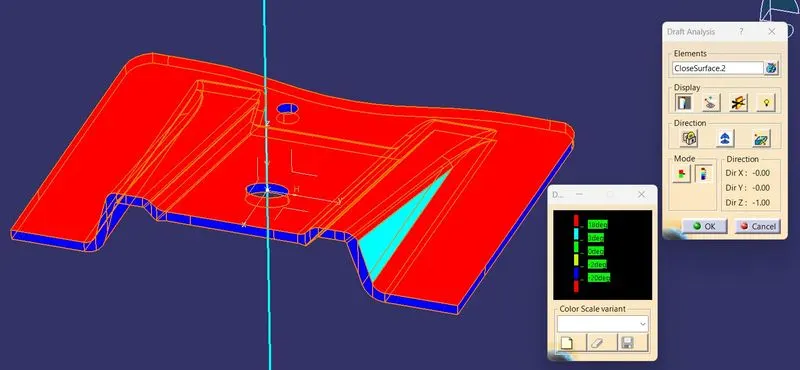

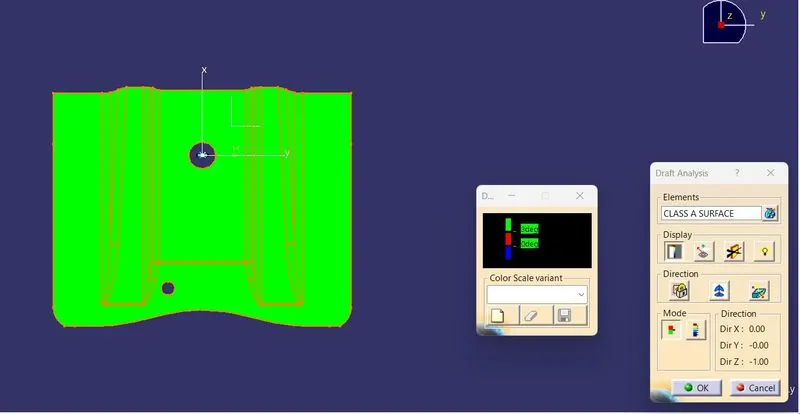

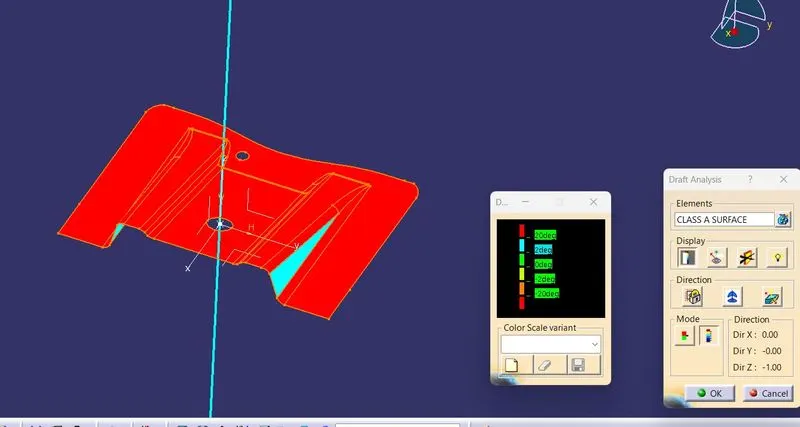

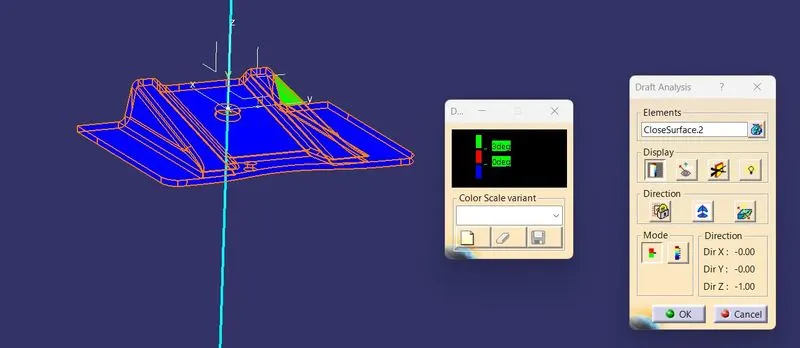

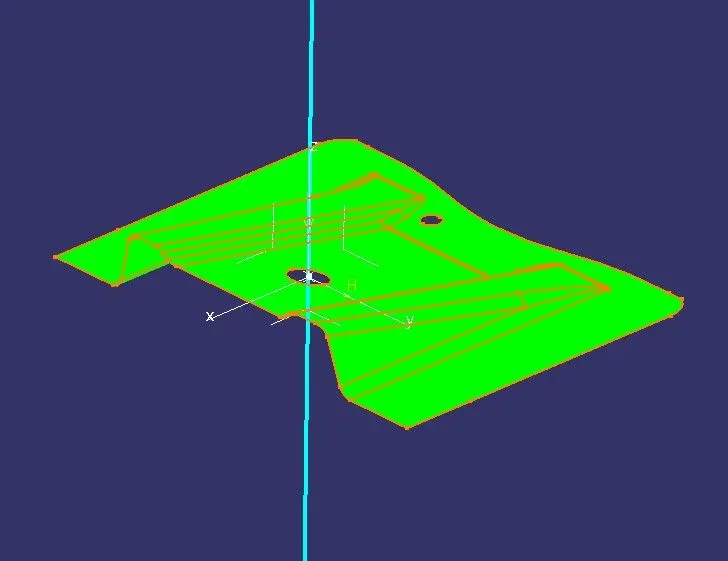

2) Create intrsections of every draft surfaces which is required to examine. Use bijection line tool to create bijection between them. The final line you will get will be tool axis.

3) Extract all planar & curved surfaces excluding fillets. Untrim then & them trim them to combine as one surface. Now give proper fillet as required.

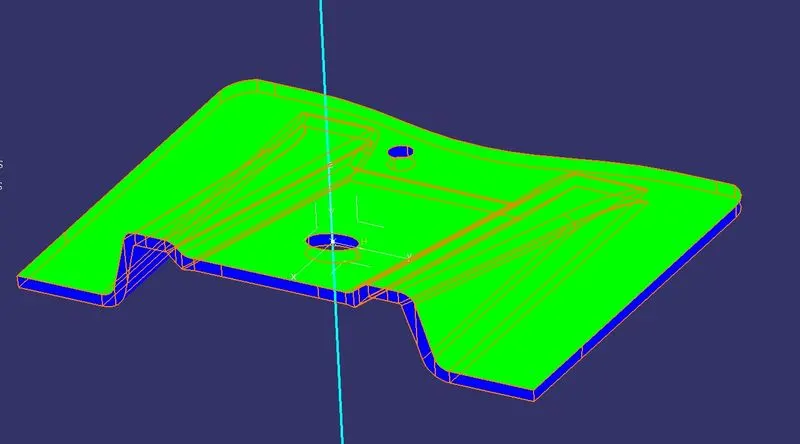

4) Take offset of created surface and extrapolate them atleast 10mm outside the boundary of Class-A surface.

5) For, Class-C surface use boundary tool to create open boundaries of class-A surface. Use Swept with draft direction to create C-Surface with req. angle & direction as tooling axis.

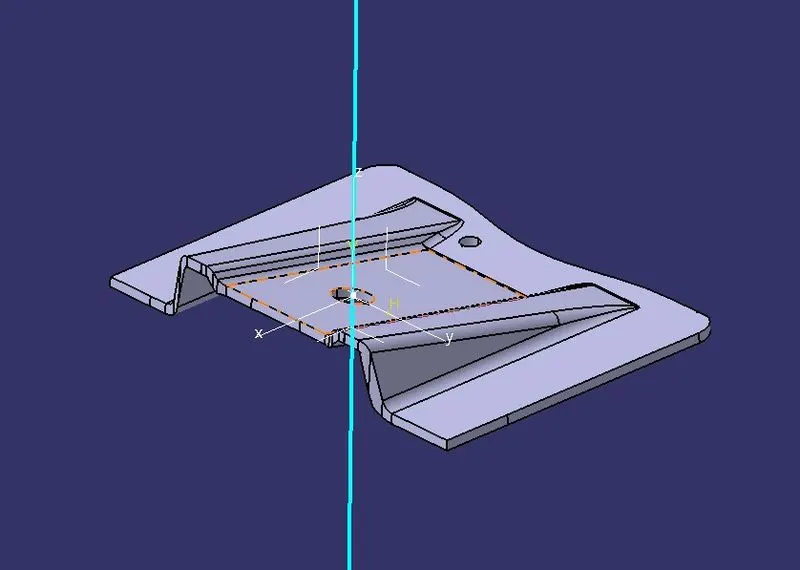

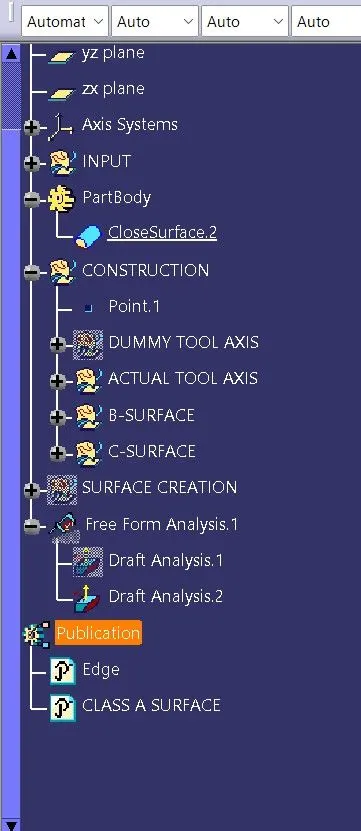

6) Trim & Join Class-A,B,C surfaces. Use close surface to get solid.
