Week 9 - Challenge 1 - Base Bracket Design

STEPS

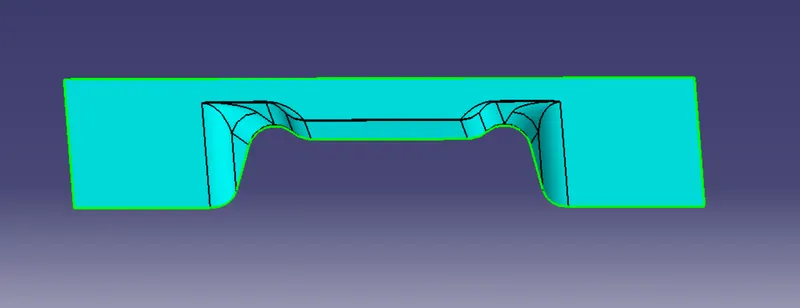

• Insert a geometrical set and create Tooling axix by extracting the flat surface.

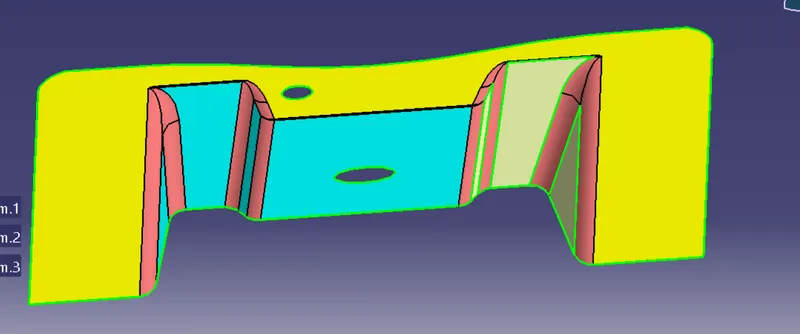

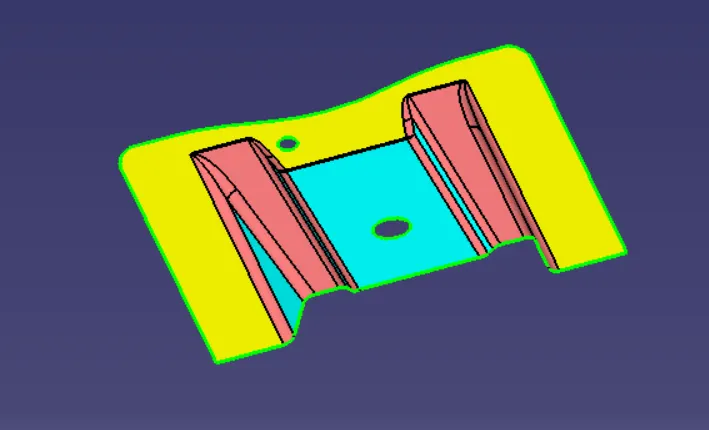

• I apply diffrent colour for doffrent parts inorder to createky seperately.

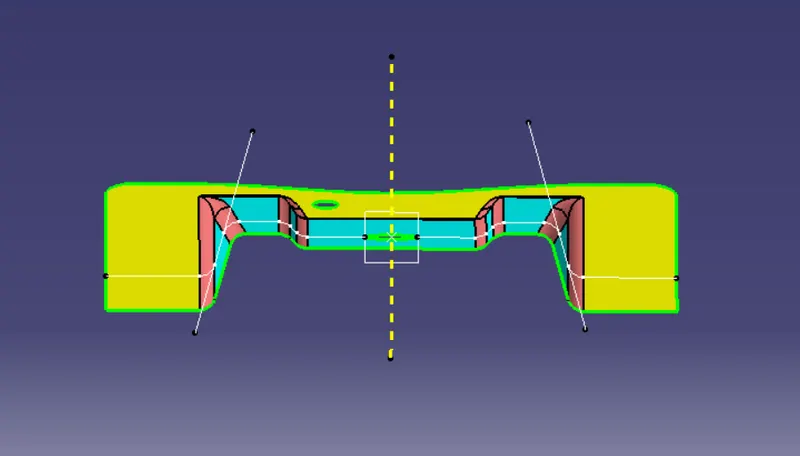

• After extracting create a point and draw a line perpendicular to the plane.

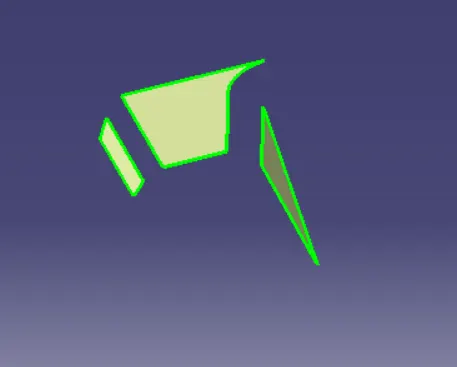

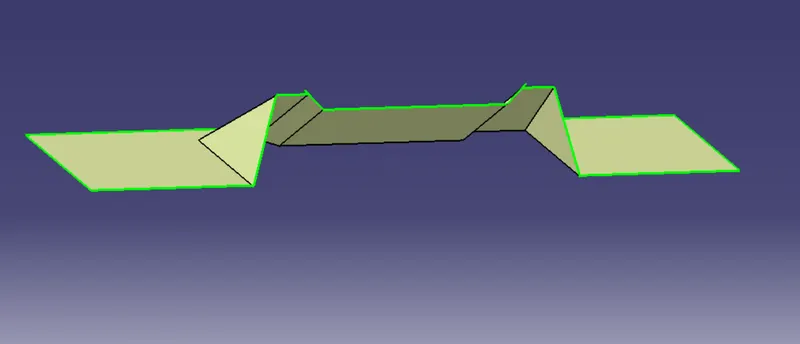

• After creating tooling axis extract the parts and untrim it.

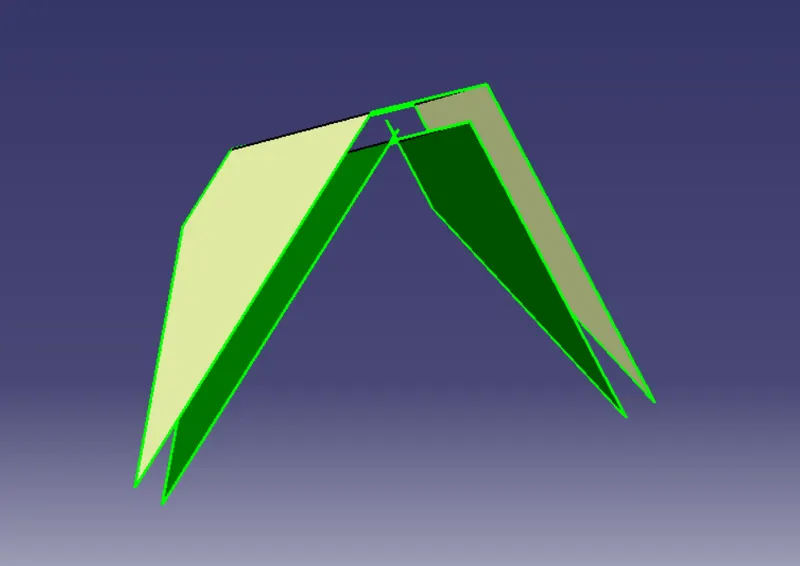

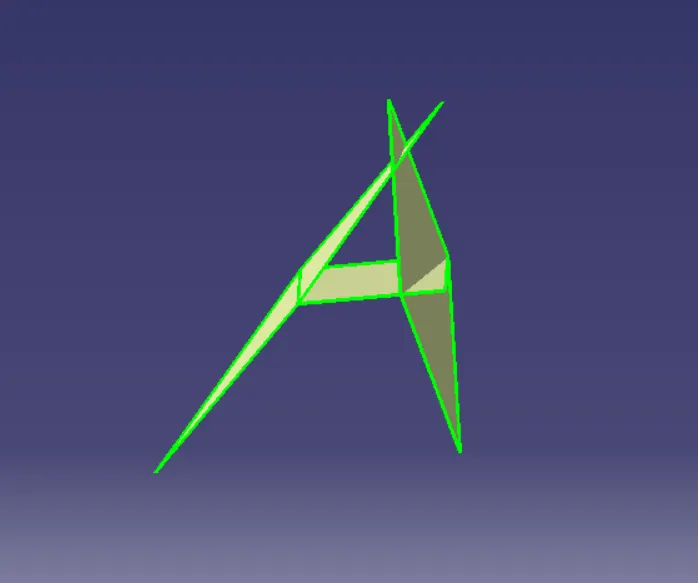

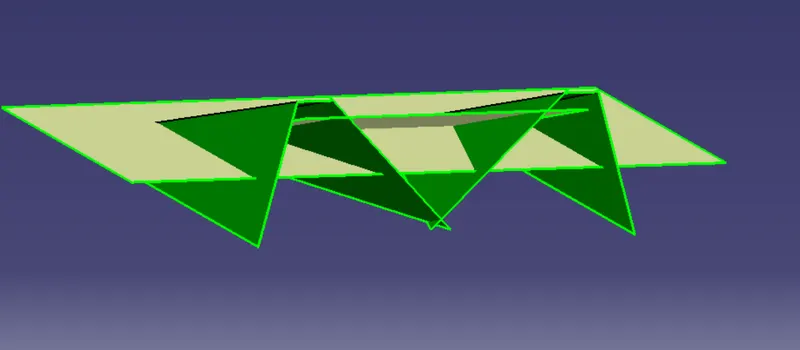

• After untrimming Extrapolate until the surfaces touches each other.

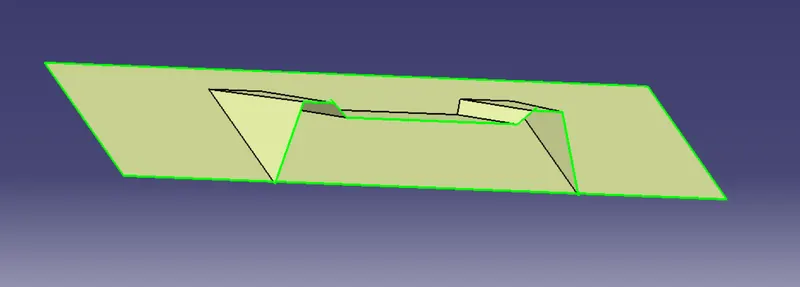

• Then trim It.

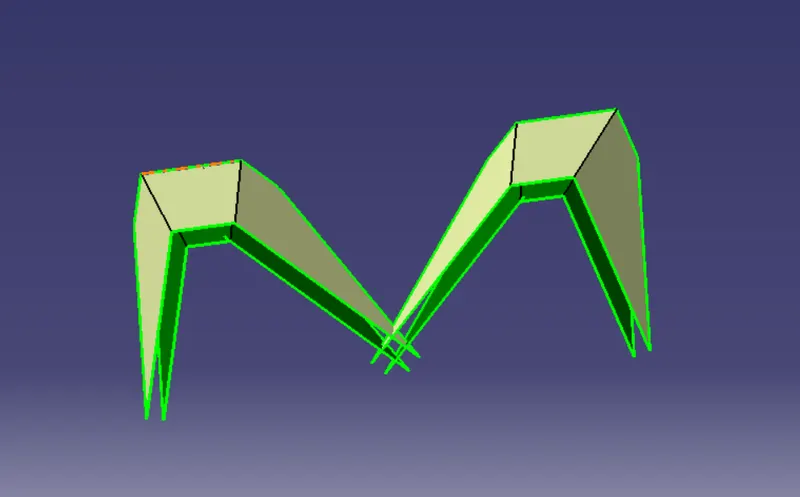

• Then Offset it .
• Later extract the remainning surfaces and utrim and extrapolate till co insiding with other surfaces and trim it.
