Week 9 - Challenge 1 - Base Bracket Design

Base Bracket Design:-

Tooling Axis:-

As From an above CAD Data I Imported file into a Catia and I started doing with a point as shown in above image.

From that point I took line toolbar and I selected point-direction command.I chaned name to DUMMY TOOLING AXIS.

After this I selected Plane in that referance plane is YZ plane and point is above one.

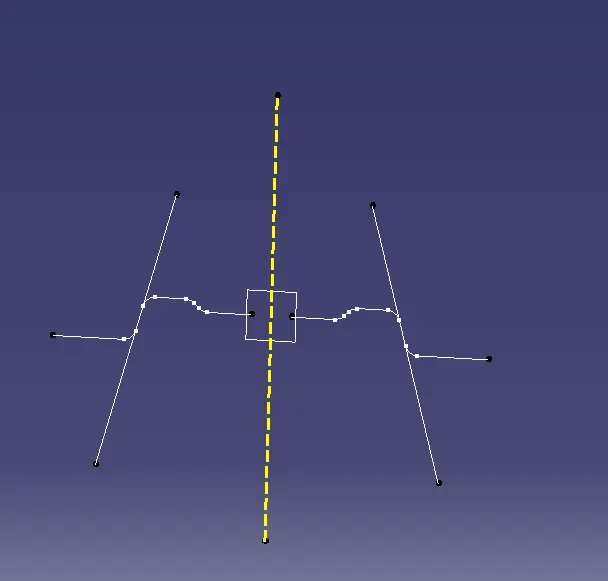

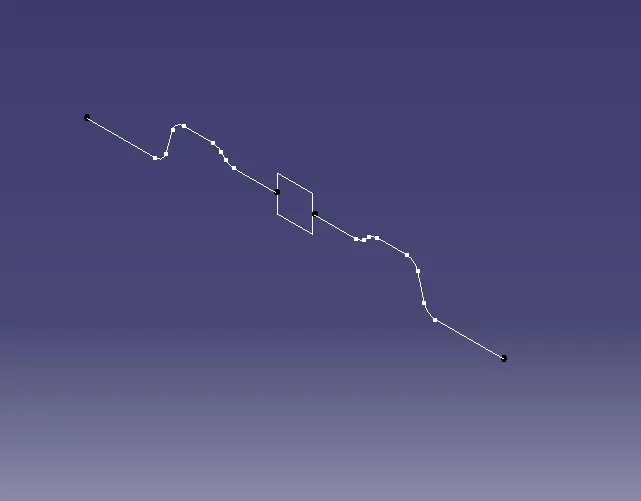

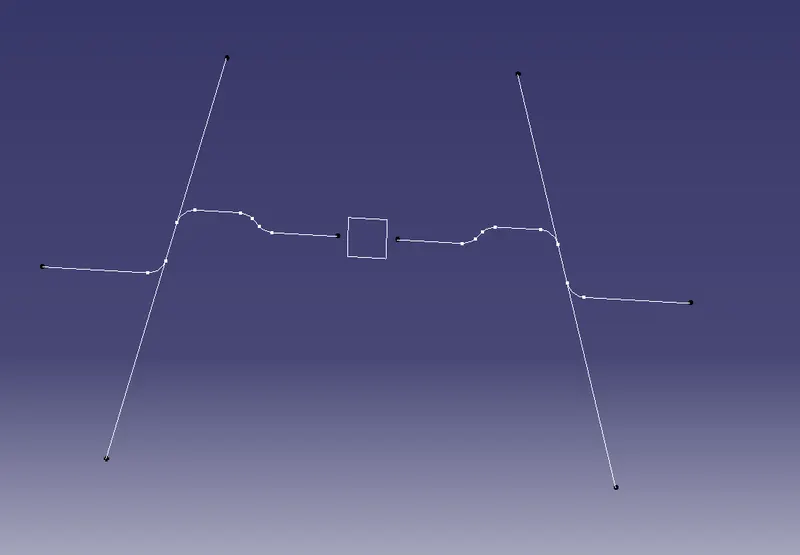

Now I selected Intersect Toolbar above image had shown From this design I used line command and I draw 2 lines point-point command.

After that I again select lint toolbar in that I selected Bisecting and I selected one afre anpther vertical lines Thus I got TOOLING AXIS(Yellow line in the Middle).

Starting from point to Tooling axis I Created a new Geometrical Set name as TOOLING AXIS.

Base Bracket(NEW Geometrical Set):-

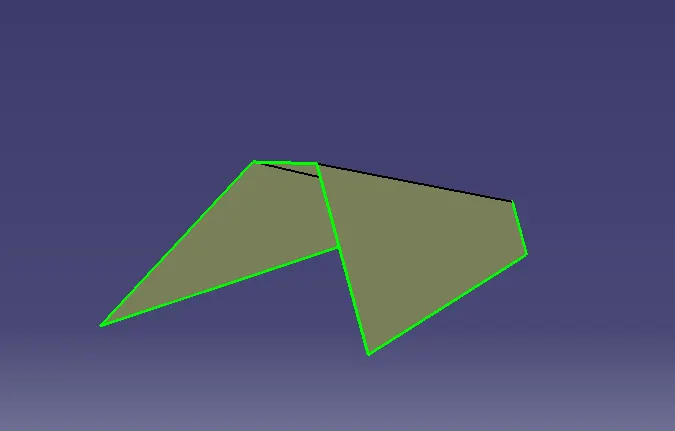

In that Base I add New Geometrical set as B Surface.In that I created a Rib 1.

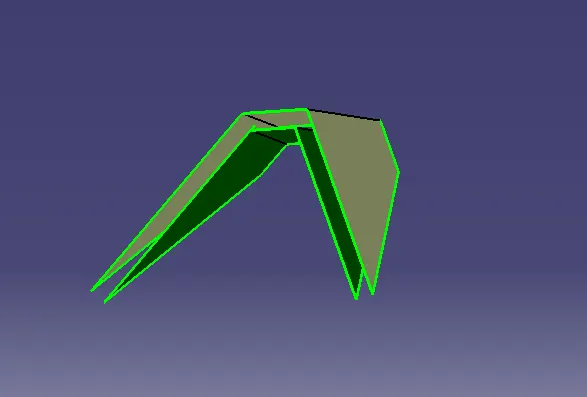

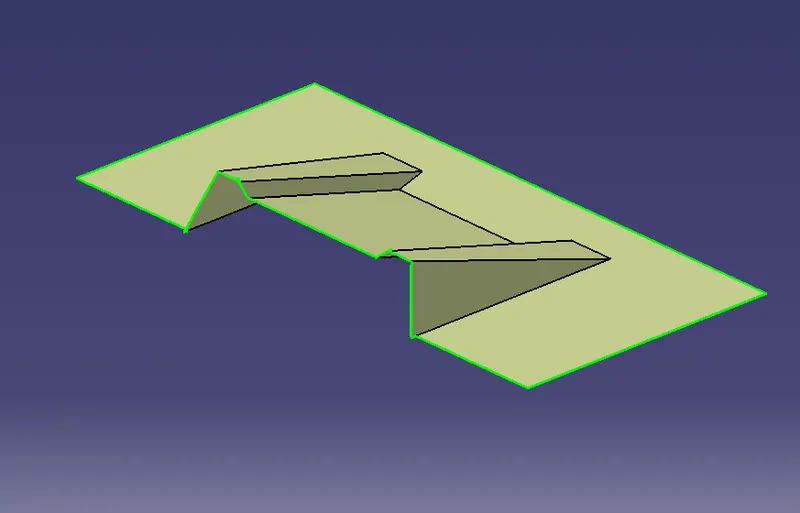

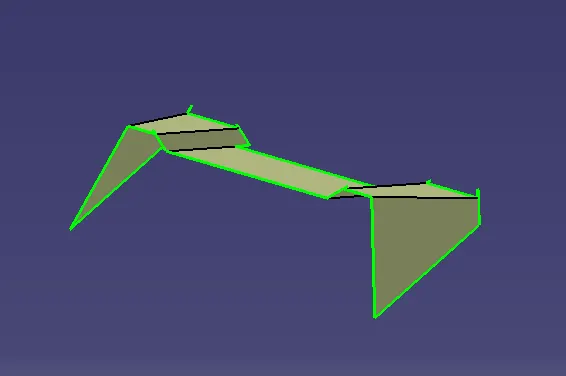

From Class Surface A I Extract 3 Ribs and I used Untrim and I Extrapolate to get maximum shape after that I trim like below Image.

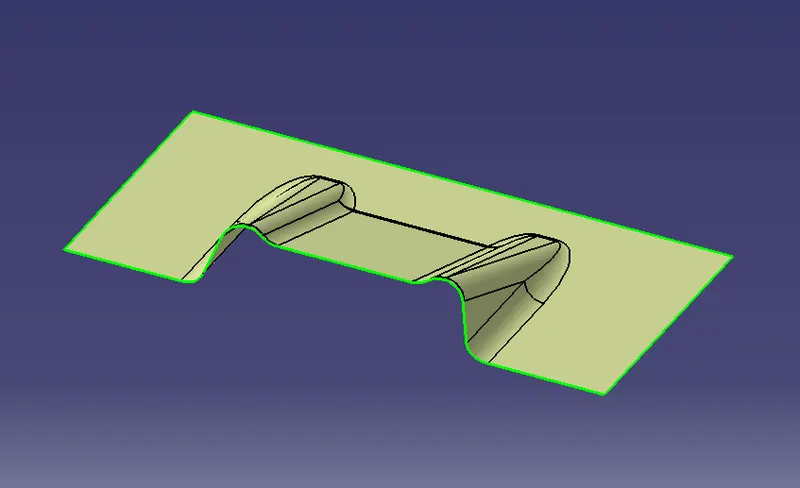

After I got this shape I used Offset Command and offset of 2.5 as Below Image(green).

The same Process I did for Rib 2 aswell like below image.

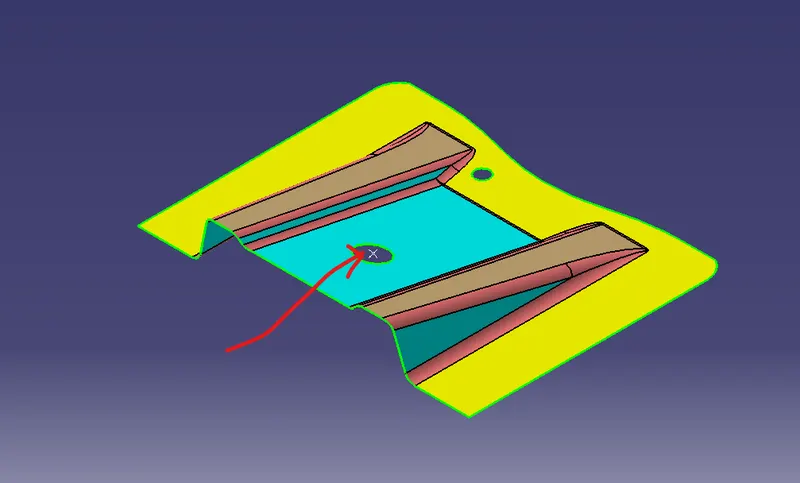

I Extract from class A as shown in below image(blue one)

From that I used offset of 2.5

After that I used Untrim to untrim holes.I used Extrapolate command to get maximum shape.

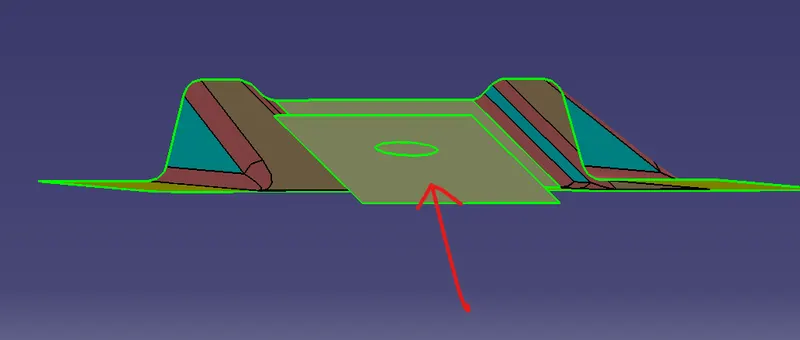

I extrapolate from Class A surface of Above image and used offset as 2.5.

Then I created New Geometrical Set as Final Trims.

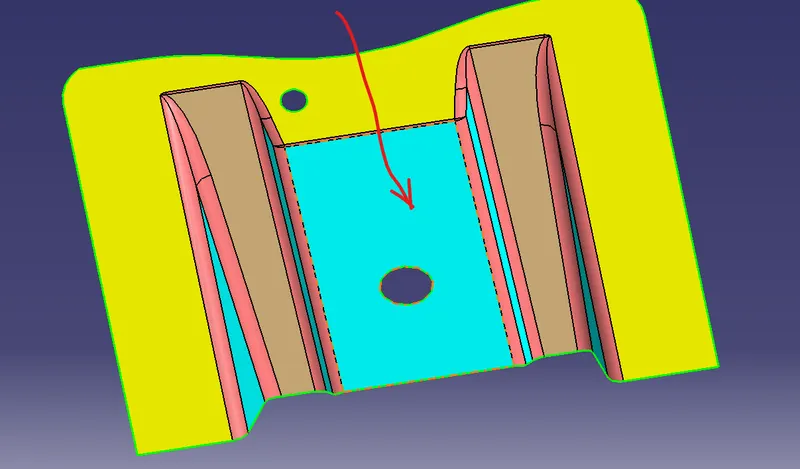

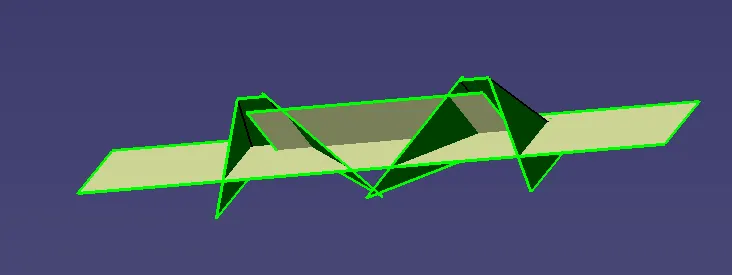

As shown in the above image I juset want to trim unwanted part and i used trim and remove it like shown.

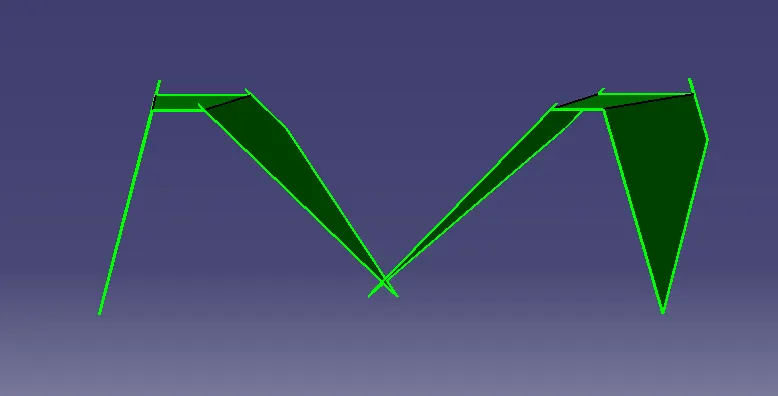

First Trim look like as shown in Below image.

Second Trim

After all Trim I used Edge Fillet and Given radius as (3+2.5)5.5.

Above is B Surface

C Surface:-

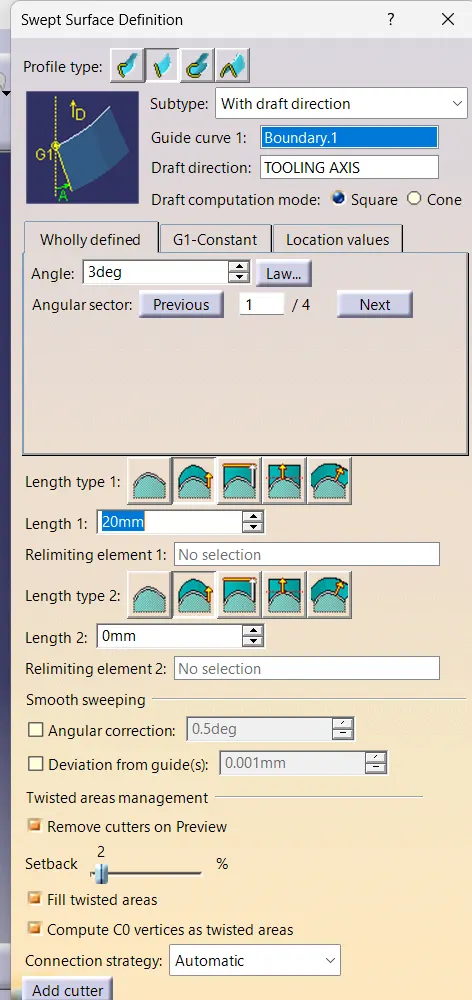

For C surface I selected Boundary of Class A surface from that boundary I used sweep command.

I used guide curve as Class A surface Boundary and draft direction as Tooling Axis.

The same procedure I used for holes as well like selection of boundary of hole and i used sweep command.After completed 2 holes i used Join command to join all.

After join I used Trim to trim unwanted surfaces.

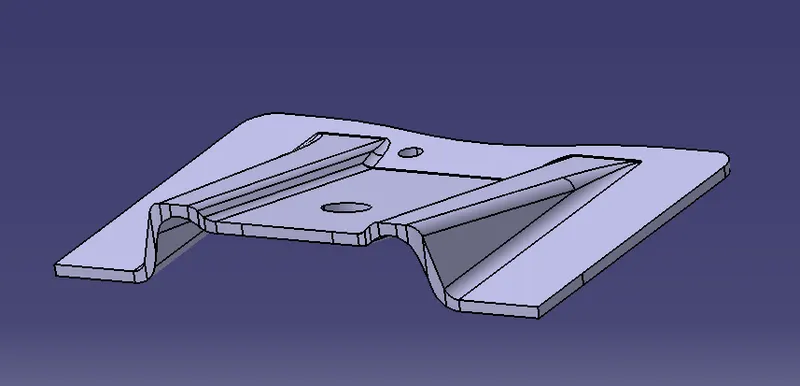

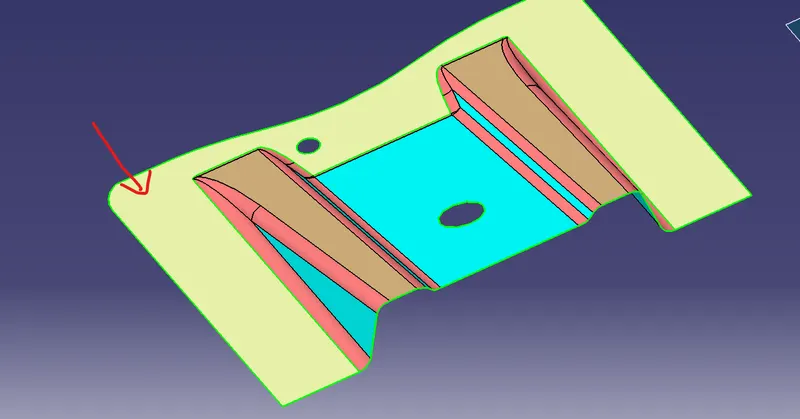

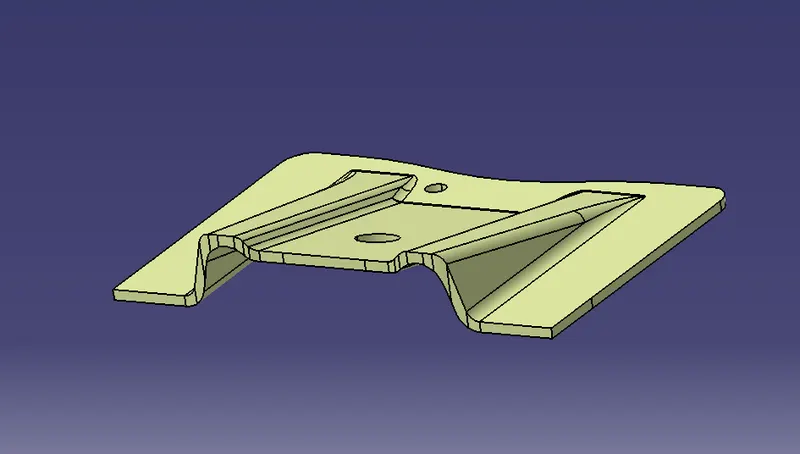

This is my Final output.

After this I used Close surface Method in partbody.

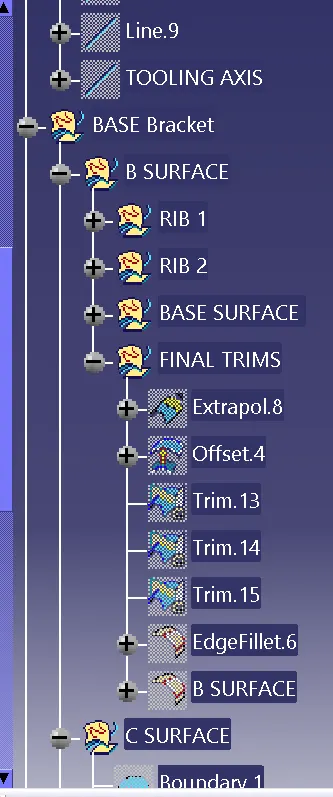

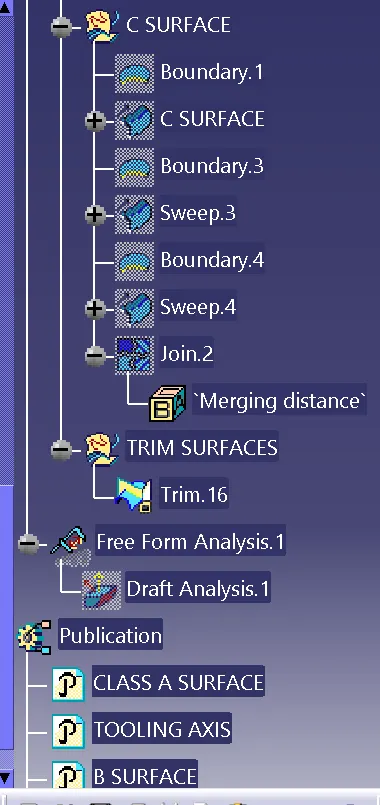

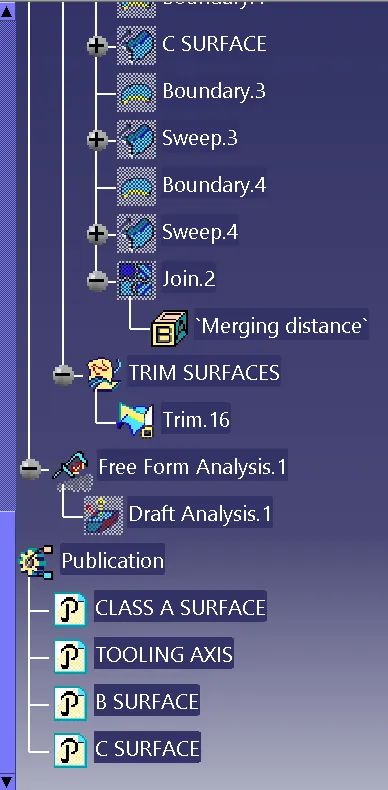

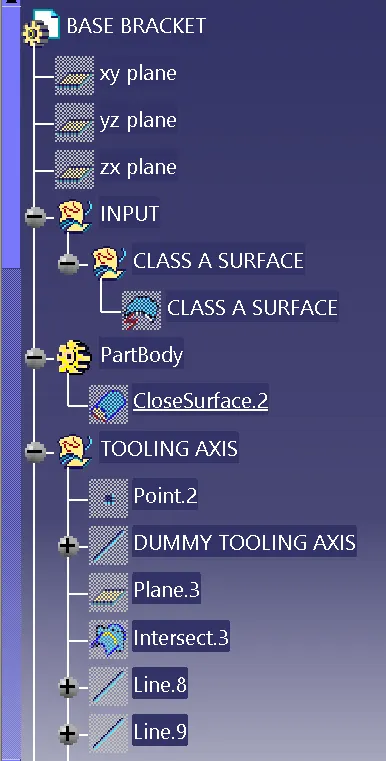

Tree Structure:-

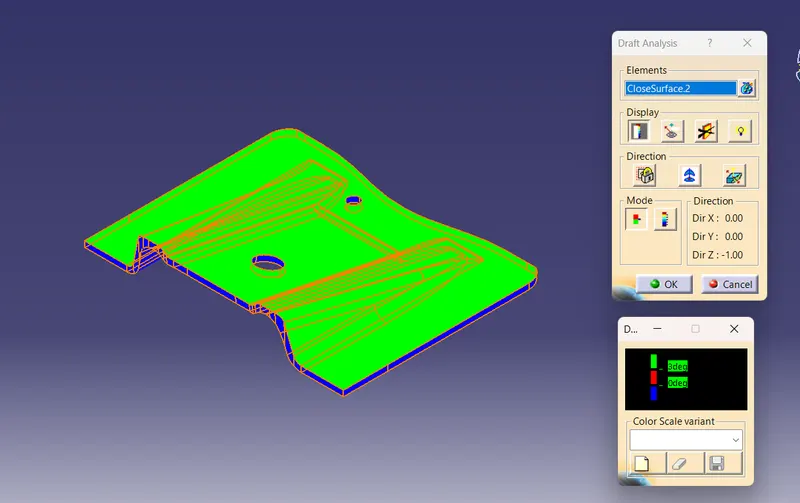

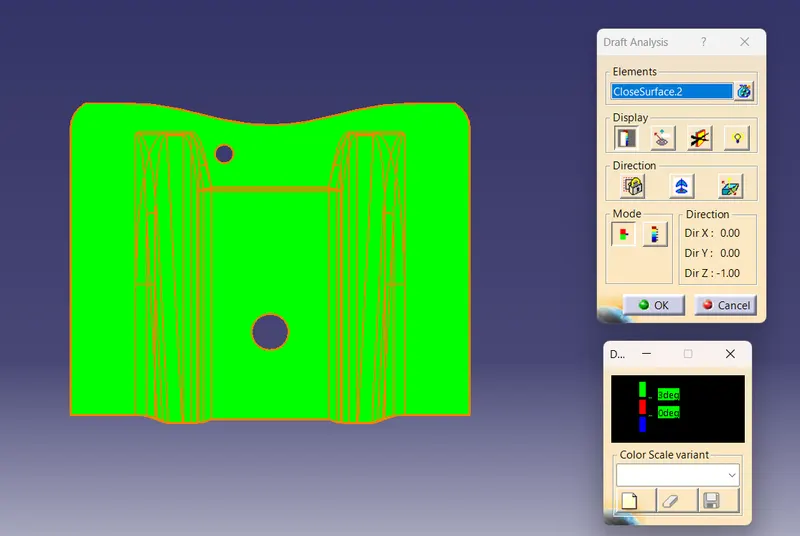

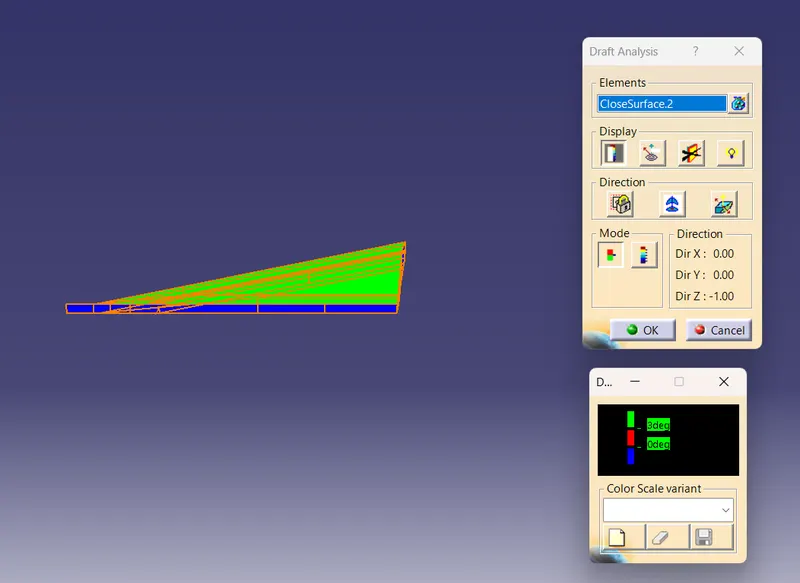

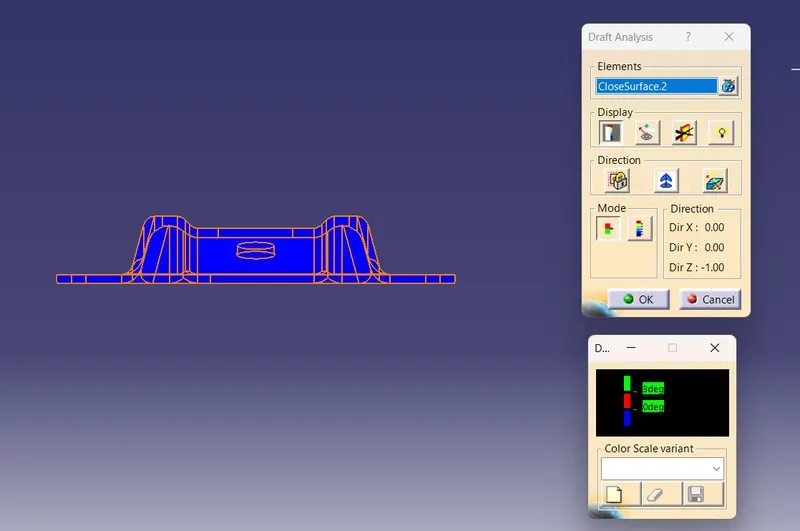

Draft Analysis:-

Views:-

Isometric View:-

Front View:-

Side View:-

Top View:-
