Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

AIM- TO CREATE B AND C SURFACE AND B SIDE ENGINEERING FEATURES.( RIBS AND SCREW BOSS)

1) TOOLING AXIS CREATION-

HERE IN CASE OF DOOR HANDLE WE CAN USE FLAT SURFACE TO CREATE TOOLING AXIS,

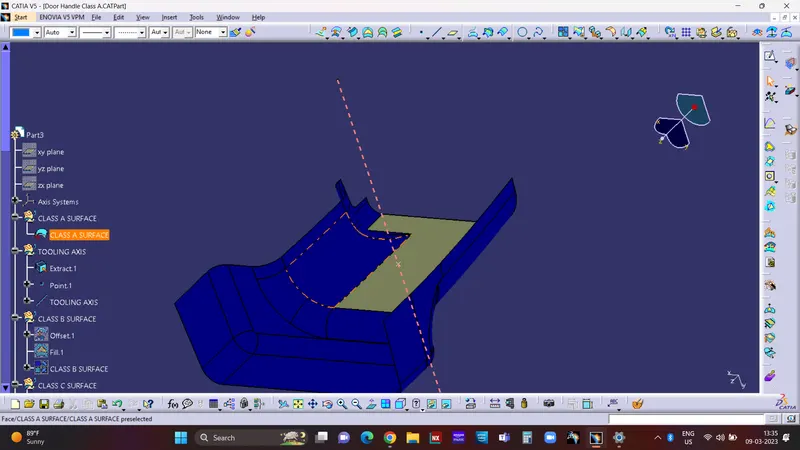

FIRST EXRACT THE FLAT SURFACE FROM THR A SURFACE, AND THEN CREATE A PONT ON THAT FLAT SURFACE USING POINT ON SURFACE COMMAND.

AFTER YHAT CREATE A LINE USING POINT AND DIRECTION FIRST CLICK ON POINT AND THEN GIVE DIRECTION PERPENDICULAR TO FLAT SURFACE.

.

AFTER THAT TAKE THE DRAFT ANALYSIS TO CONFIRM THE TOOLING AXIS IS CORRECT OR NOT.

FOR DRAFT ANALYSIS CLICK ON THE DRAFT ANALYSIS SIGN THEN CLICK ON THE COMPASS SIGN.

AFTER THAT ALIGN THE COMPASS TO THE TOOLING AXIS AND THEN LOCK POSITION OF COMPASS USING LOCK COMMAND .

AFTER CLICK ON ANY SURFACE TO ANALISE THE DRAFT.

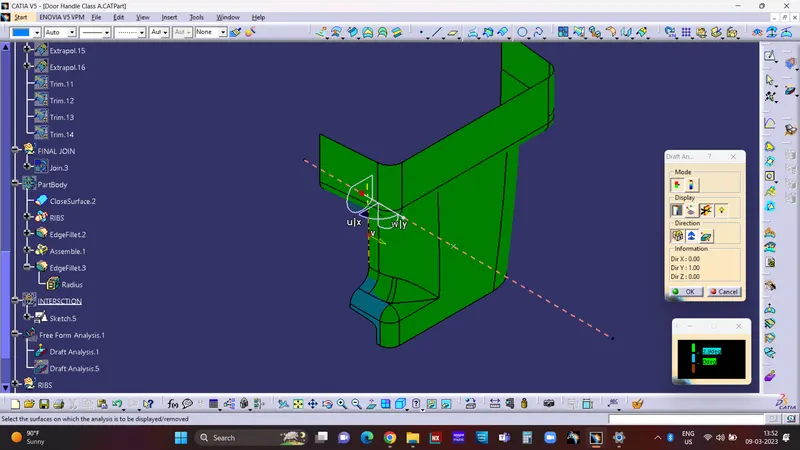

IN ABOVE IMAGE SHOWS COMPASS ALIGNATION AND LOCKIN THE POSITON.

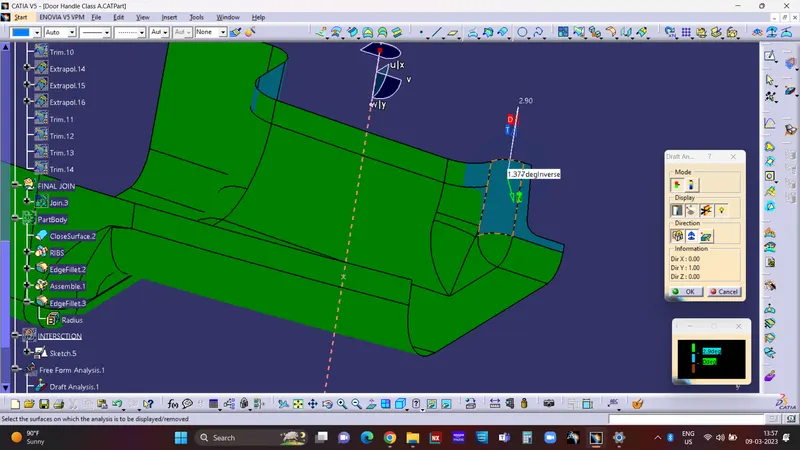

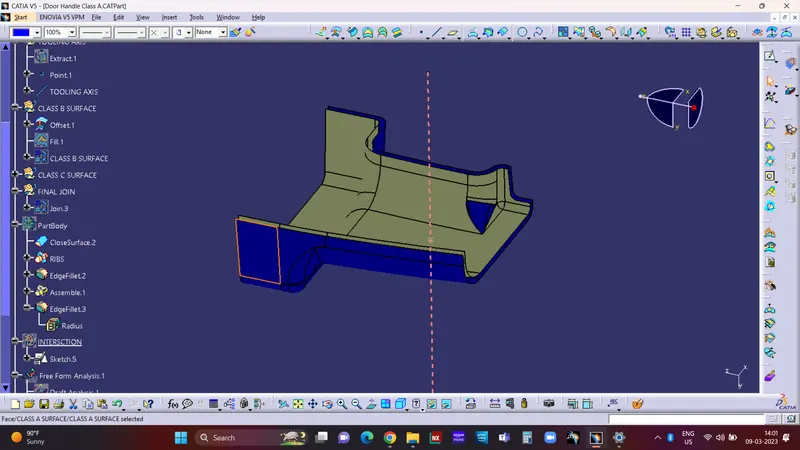

ABOVE POCTURE SHOWS THE DRAFT ANALYSIS.

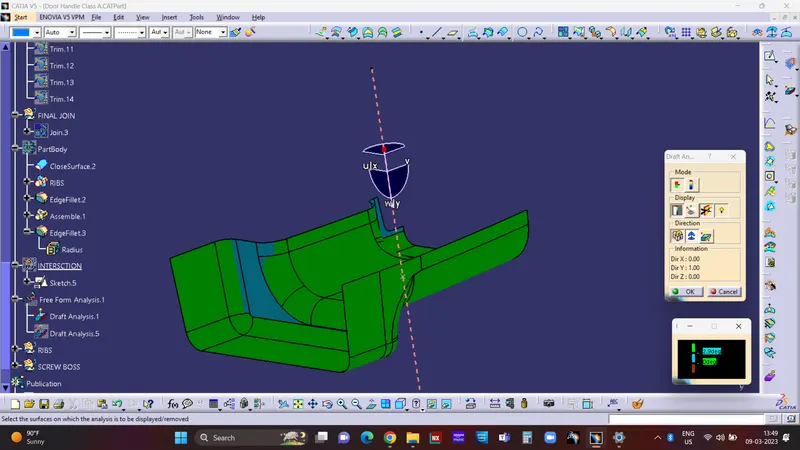

IN ABOVE PICTURE GREEN COLOR SHOWS THAT THE DRAFT ANGLE IS GREATER THAN OR EQUQL TO 2.9 DEGREES.

AND BLUE COLOR SHOWS THAT DRAFT ANGLE IS BETWEEN 0- 2.9 DEGREES.

WE CAN MEASURE DRAFT ANGLE AT ANY INDIVIDUAL FACE USING RUNNING POINT OPTION.

HERE TOOLING AXIS OK AS DRFT ANALYSIS IS OK.

AFTER THIS DESIGN B USING DIRECT OFFSET METHOD.

HERE ONE PATCH HAS NOT COME IN OFFSET SO WE CAN USE FILL COMMAND TO FILL THE PATCH.

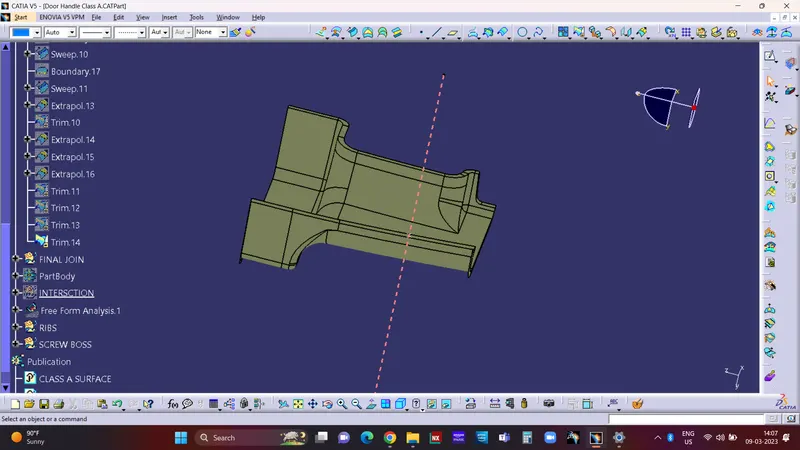

AFTER THAT JION THE BOTH FILL SURFACE AND OFFSET TO CRETE IT ONE ENTITY.

AFTER THAT USE SWEEP TO DEIGN C SURFACE

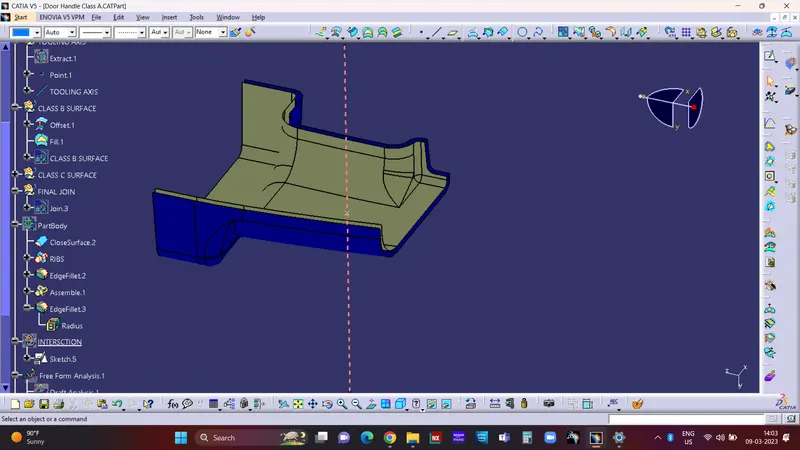

ABOVE PICTURE SHOWS THE BA NAD C SURFACE TRIM.

AFTER TAHAT JOIN A,B AND C SURFACE TOGETHER, AND MAKE IT SOLID USING CLOSE SURFWCE COMMAND.

AFTER THAT DESIGN B SIDE FEATURES (RIBS AND SCREW BOSS) .

FOR DESIGNING RIBS AND SCREW BOSS ONE MUST FOLLOW DESIGN GUIDELINES.

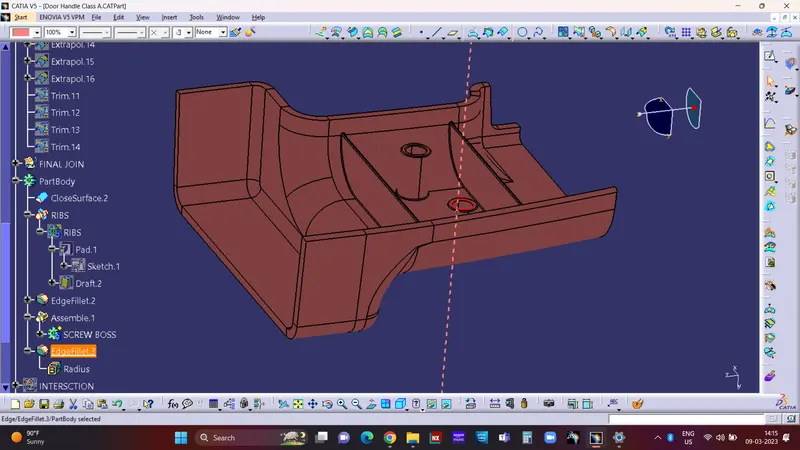

BELOW PICTURE SHWS THE COMPLTE DESIGN OF THE DOOR HANDLE WITH B SIDE ENGINEERING FEATURES.

AFTER THAT APPLYING DRAFT ANALYSIS ON PART TO CONFIRM DESIGN OF B SIDE FEATURES.

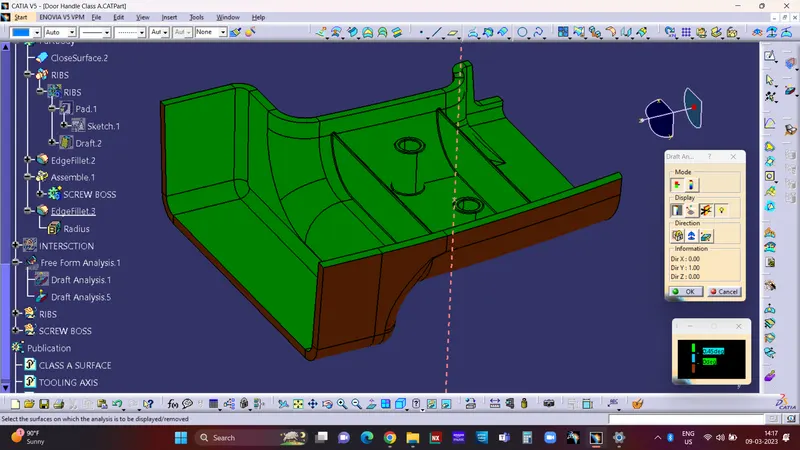

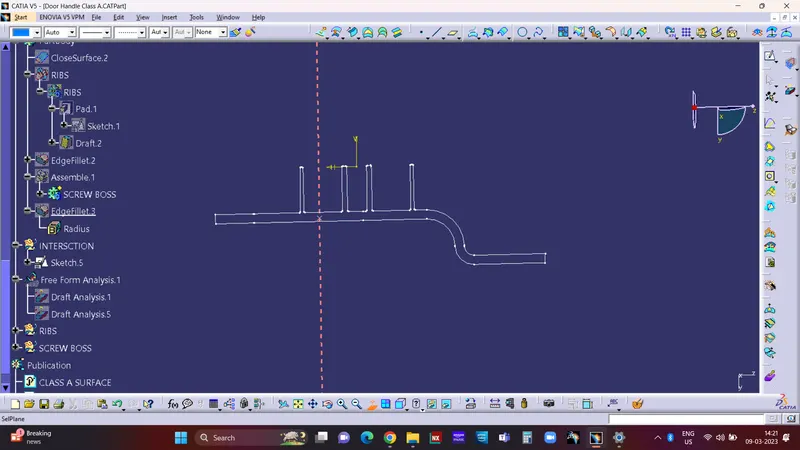

ABOVE PICTURE SHOWS THE DRAFT ON FEATURES IS OK.BELOW PICTURE SHOWS THE INTERSECTION OF B SIDE FEATURE.
