Week 8 - Challenge 3 - Coin Holder Design

AIM -TO ADD THICKNESS TO THE A SURFACE BY CREATING B & C SURFACE OF COIN HOLDER PLASTIC COMPONENT.

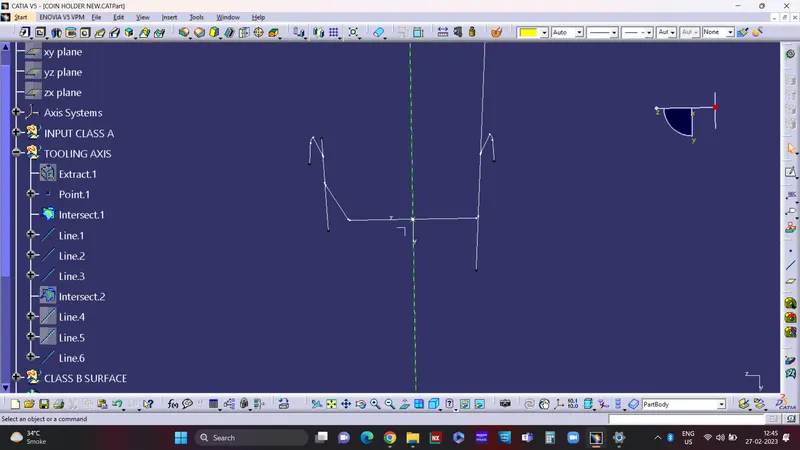

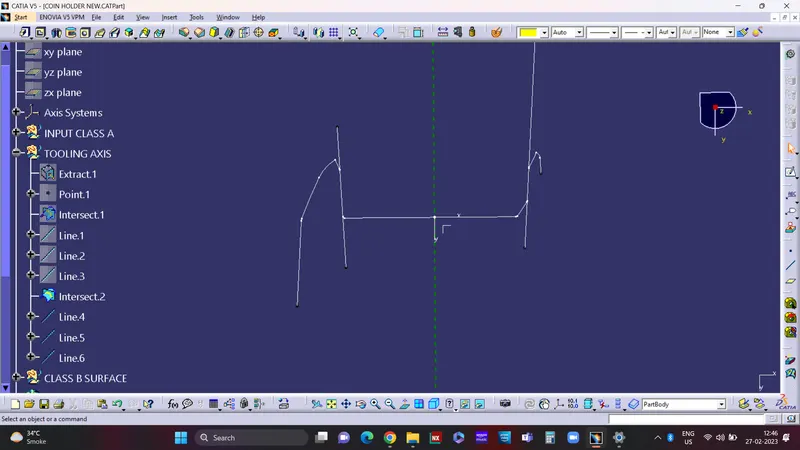

1) CREATION OF TOOLING AXIS BY BISECTING METHOD.

FIRST TAKE IINTERSECTION THEN DRAW TO LINE WHICH LOOKS APPROX PERPANDICULAR TO BASE. THEN BISECT THESE LINE AND CREATE ONE DUMMY AXIS

AFTER THAT TAKE INTERSECTION FROM OTHER SIDE AND THEN DRAW TWO LINES WHICH ARE APPROX PERPENDICULAR TO BASE. AND THEN BISECT THEM TO CREATE DUMMY AXIS.

.

AFTER THAT BISECT THESE DUMMY AXIS TO CREATE MAIN TOOLING AXIS.

2)DRAFT ANALYSIS

FOR DRAFT ANALYSI CLICK ON DRAFT ANALYSIS TOOL THEN CHANGE VIEW MODE TO MATERIAL. AFTER THAT CLICK ON COMPASS SIGN AND ALIGN IT TO TOOLING AXIS

.

AFTER THAT CLICK ON LLOCK SIGN TO LOCK THE COMPASS. AFTER THAT CLICK ON ANY SUFACE TO ACTIVATE DRAFT ANALYSIS. IN ABOVE IMAGE GREEN COLOR SHOWING THAT DRAFT I POSITIVE AND ITIS MORE THAN 3 DEGRRES. AND RED COLOR IS SHOWING THAT DRAFT IS NEGETIVE IT IS LESS THAN 0 DEGREES IN GIVEN DIRECTION.

THE BOUNDARY ISOLATES THE THE RED AND GREEN COLOR IS THE PARTING LINE.GREEN PART WILL BE MOULDED IN THE CORE SIDE AND RED SIDE PART IN CAVTY SIDE.

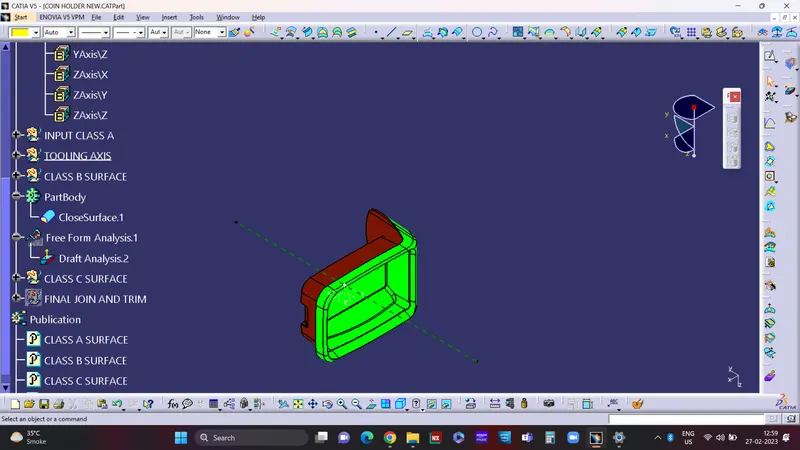

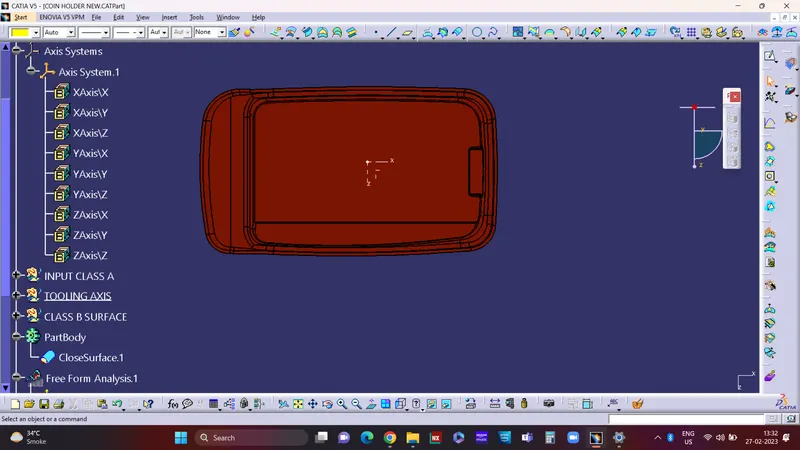

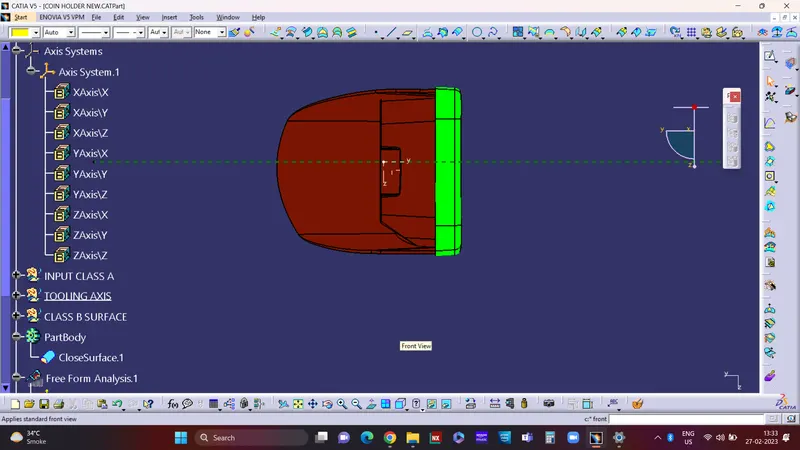

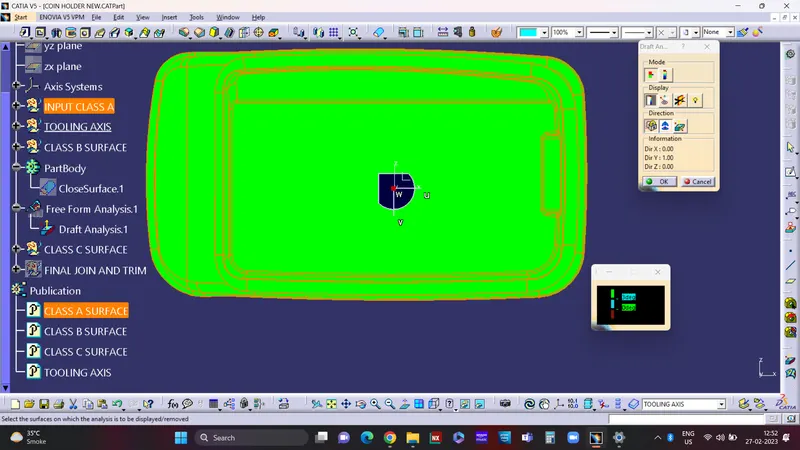

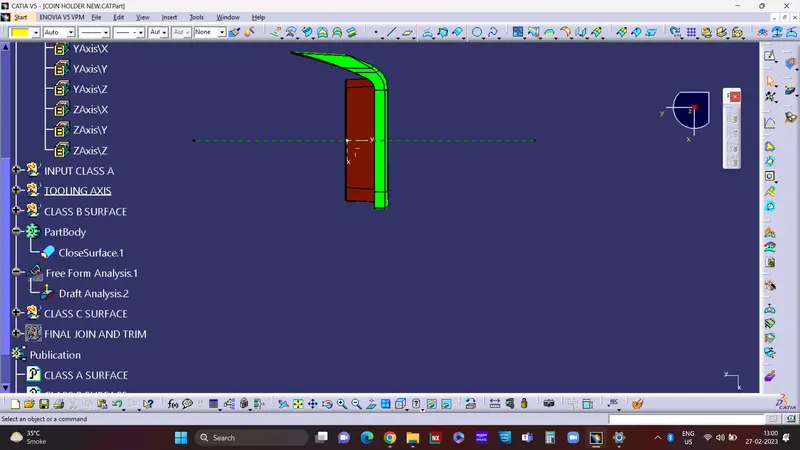

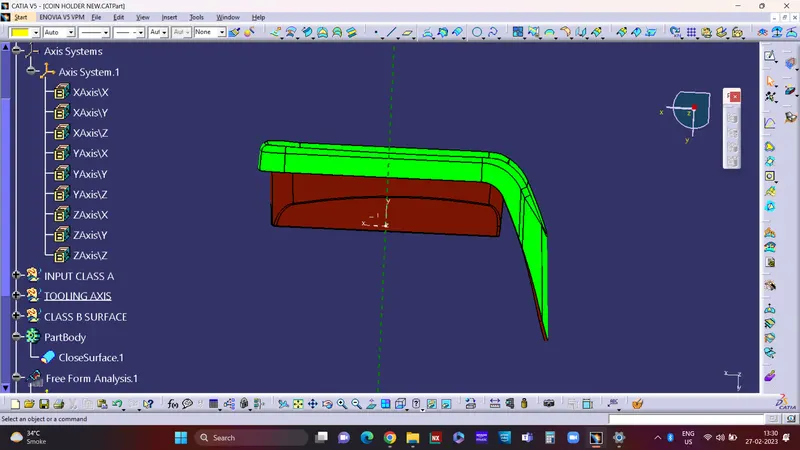

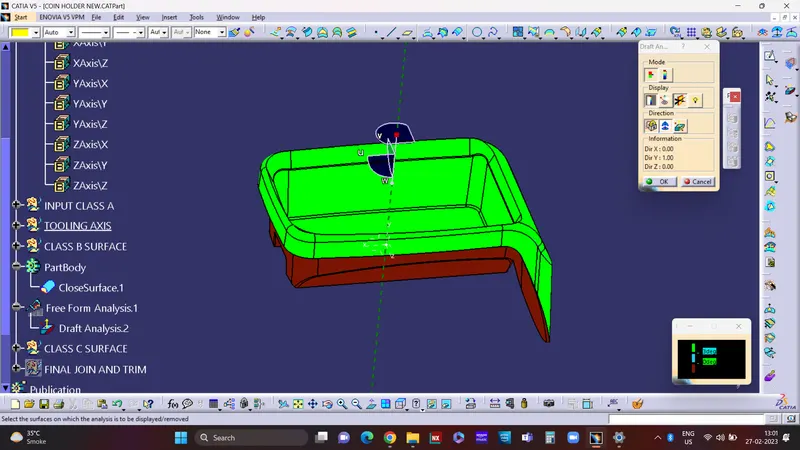

VIEW SHOWIN DRAFT ANALYSIS

.

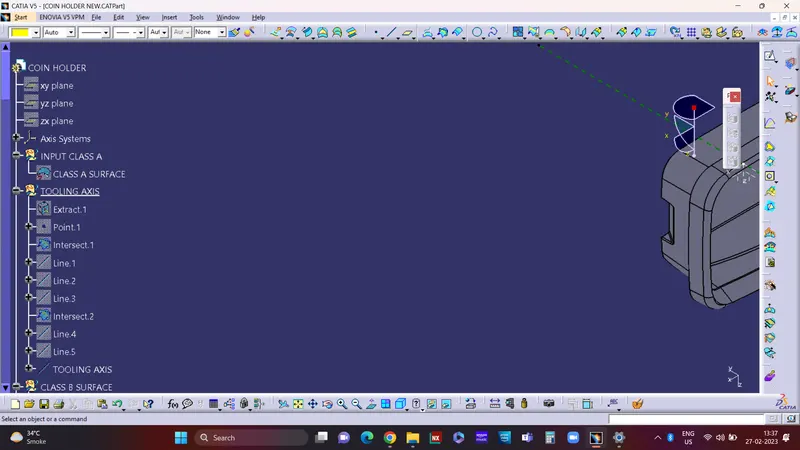

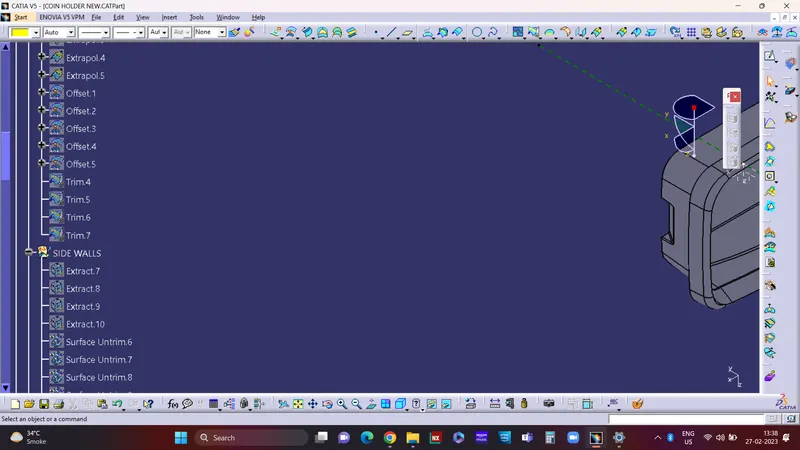

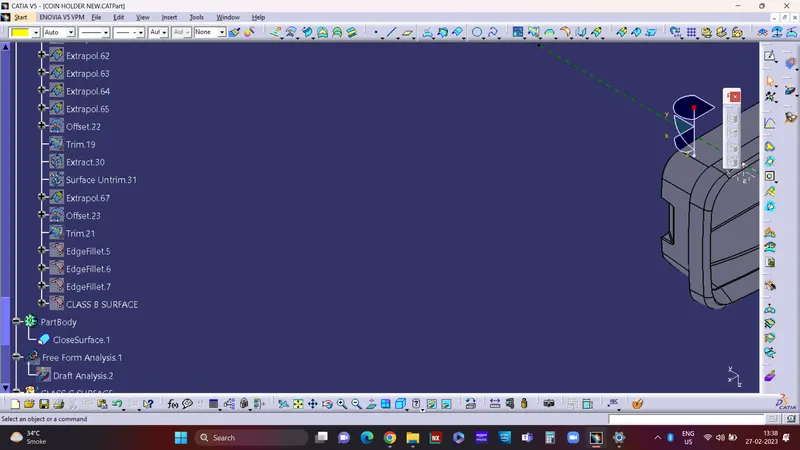

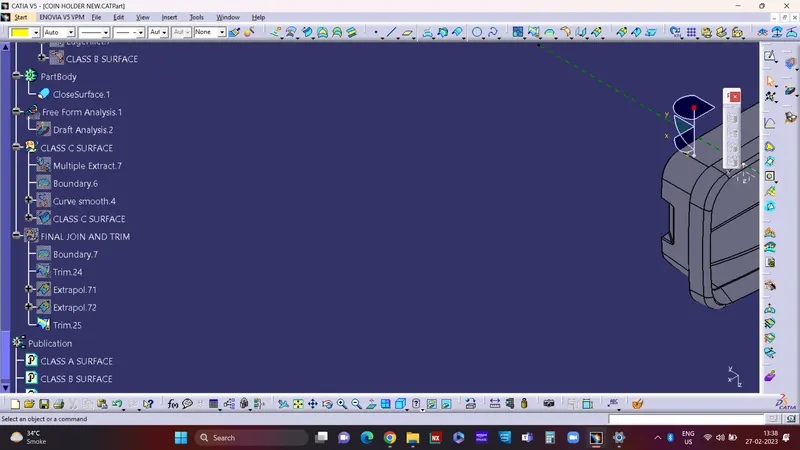

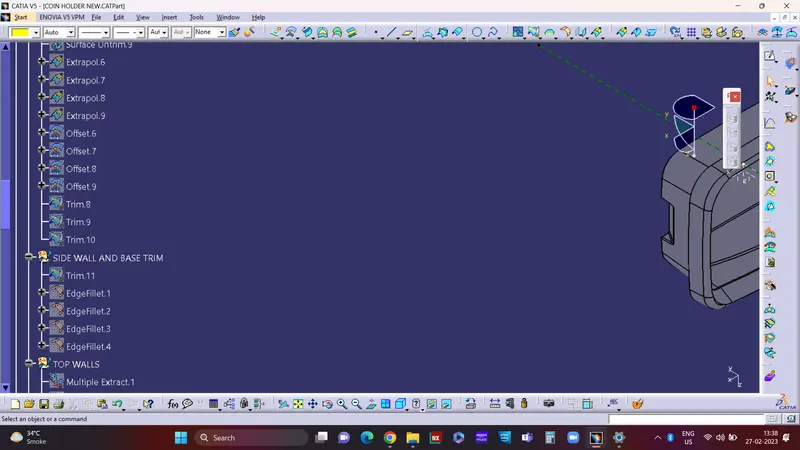

SPECIFICATION TREE SNAPS
