Week 8 - Challenge 4 - Bumper

AIM - TO CREATE TOOLING AXIS AND CARRY OUT DRAFT ANALYSIS.

1) CREATION OF TOOLILNG AXIS-

HERE IN CASE OF BUMPER WE CAN USE THE FLAT SURFACE TO CREATE THE TOOLILNG AXIS .

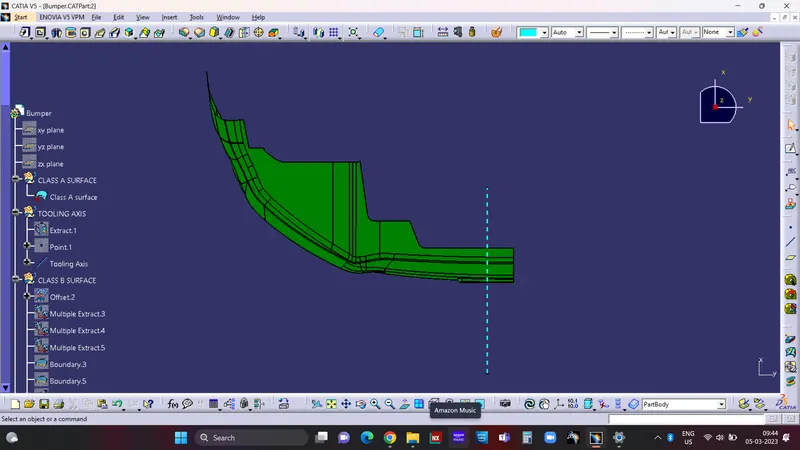

FIRST EXTRACT FLAT SURFACE AND CRATE A POINT ON THAT SURFACE AND THEN CRATE A LINE ON THAT FLAT SUFACE IN DIRECTION OF X.

2) DRAFT ANALYSIS

FOR DRAFT ANALYSIS FIRST CLICK ON DRAFT ANALYSIS TOOL AND THEN CLICK ON COMPASS SIGN. THEN MOVE THE COMPASS TO ALIGN IT TO TOOLING AXIS, THEN CLICK ON LOCK SIGN TO LOCK THE POSITION OF COMPASS.

AFTER THAT CLICK ON ANY SURFACE TO ANALYSE THE DRAFT OF A SURFACE WITH RESPECT TO TOOLING AXIS.

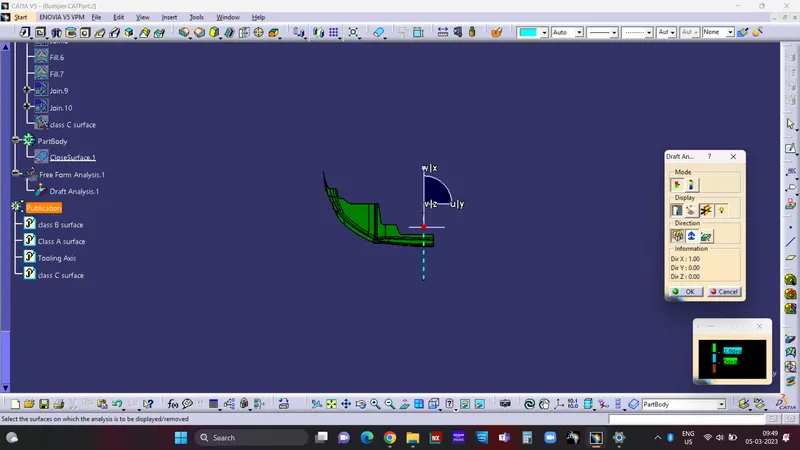

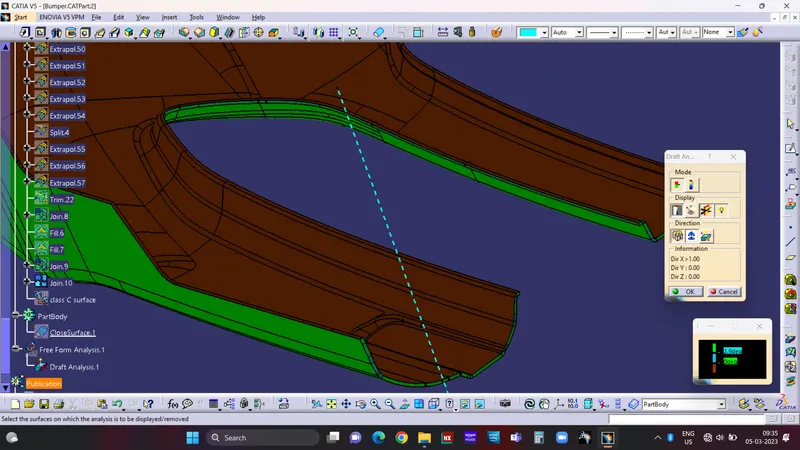

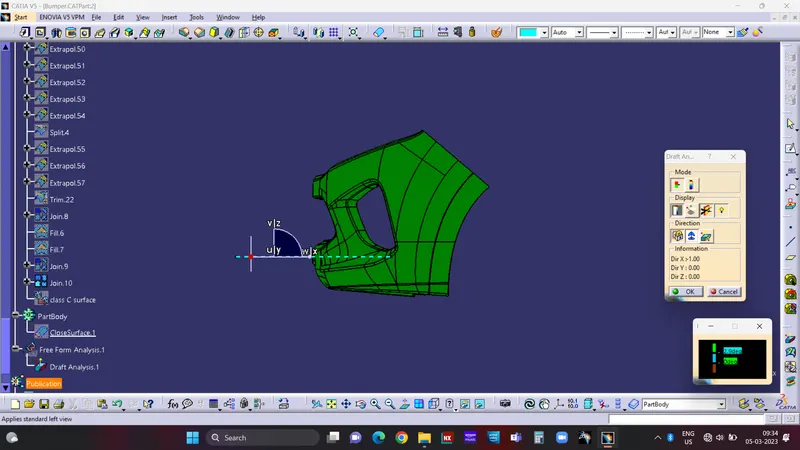

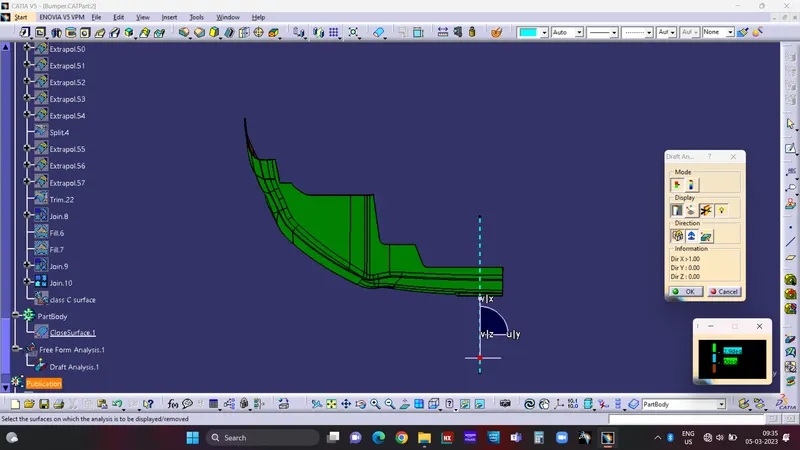

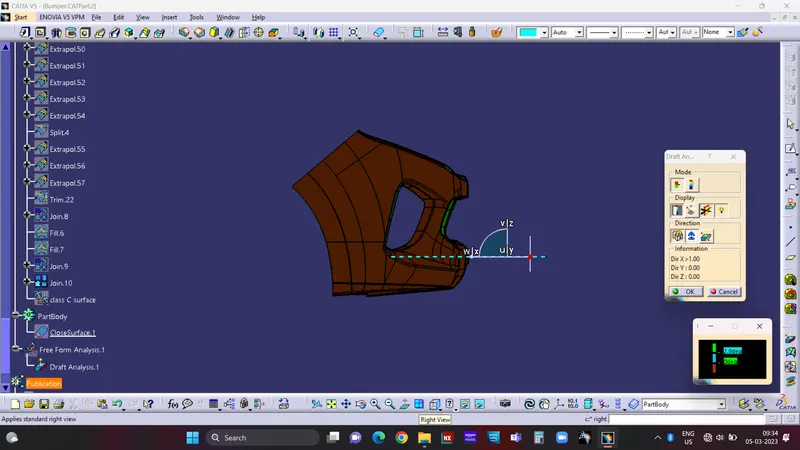

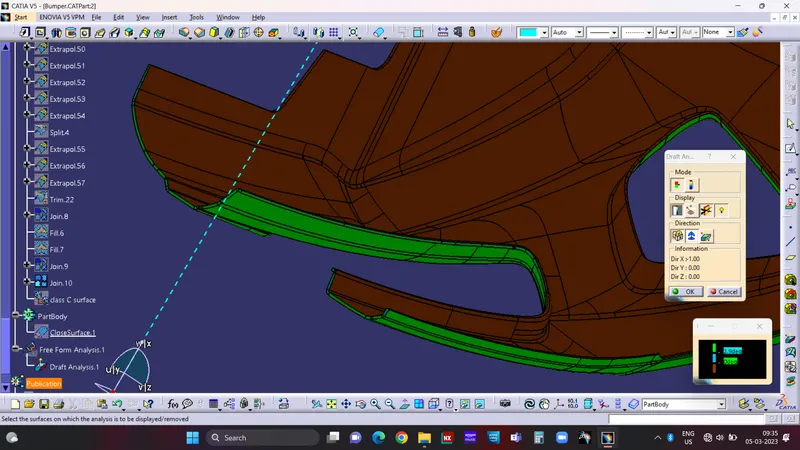

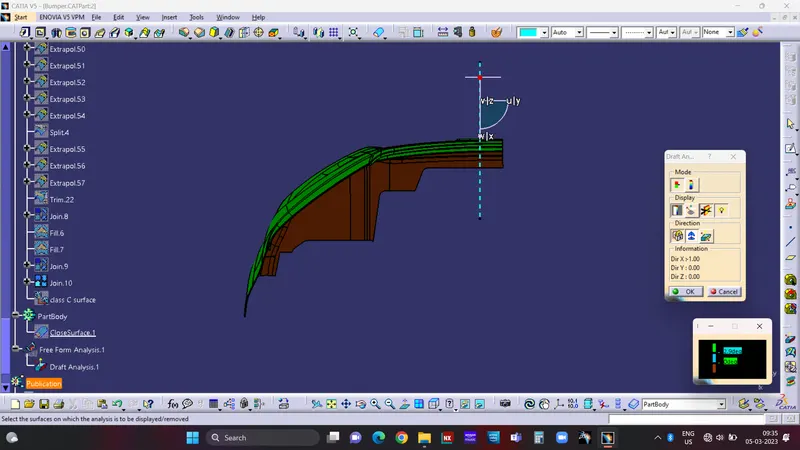

DRAFT ANALYSIS PICTURE FROM EVERY VIEW
