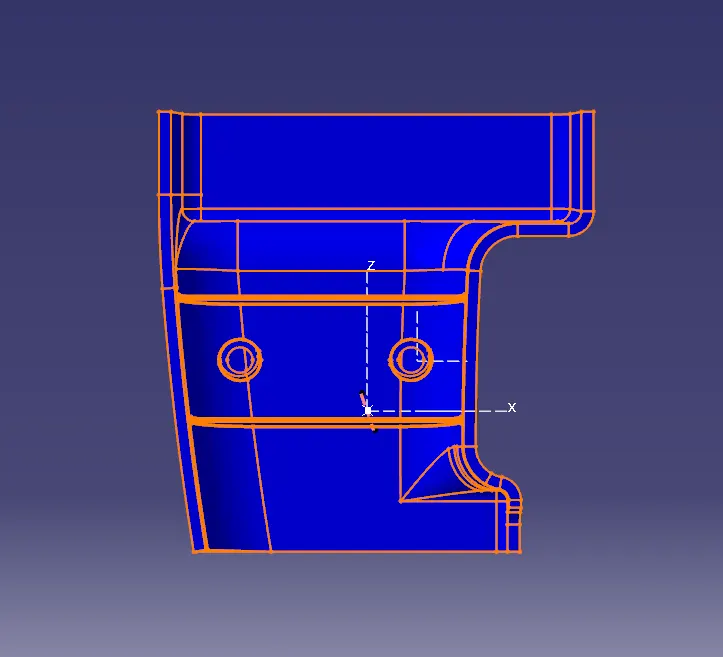

Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

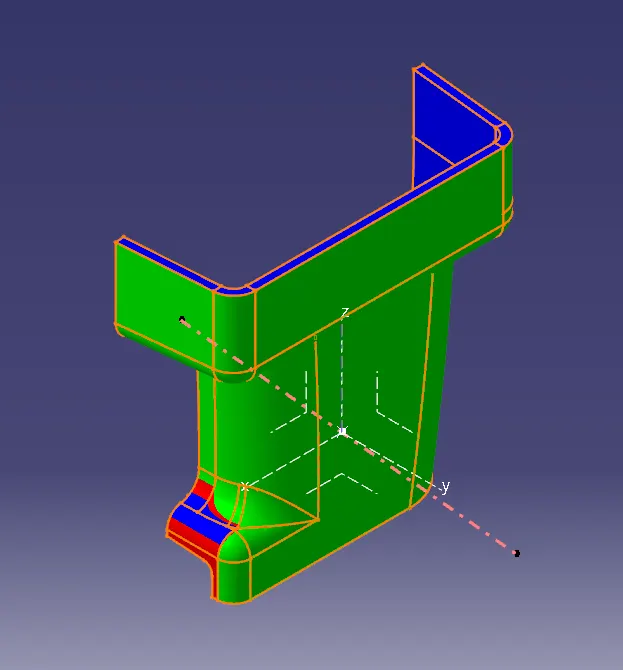

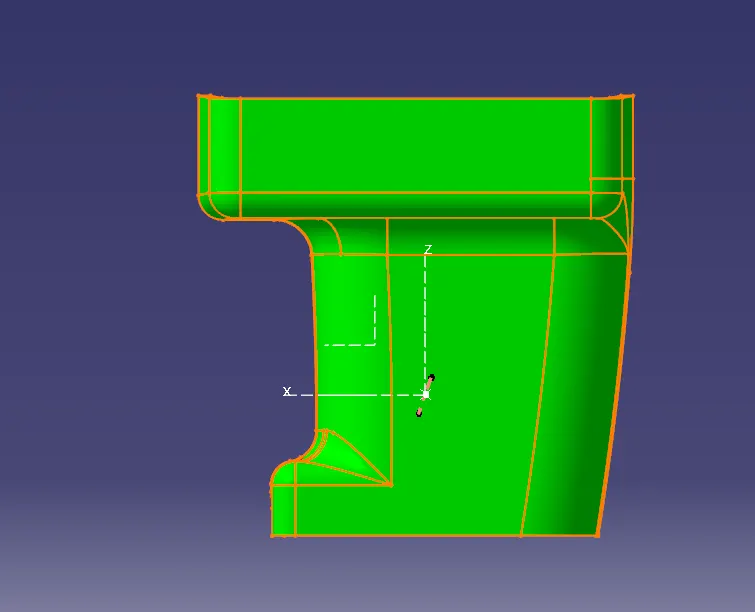

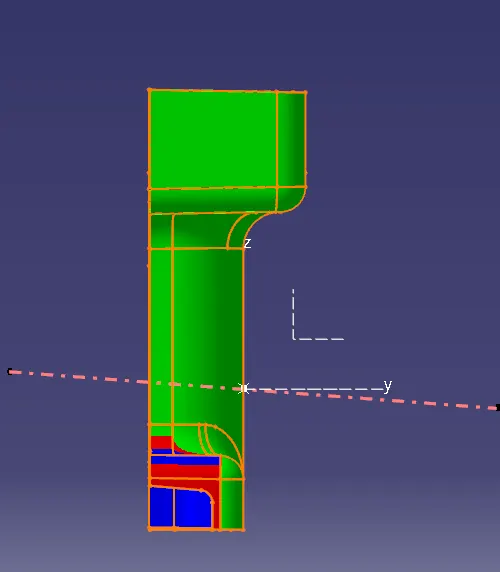

CREATING OF TOOLING AXIS :-

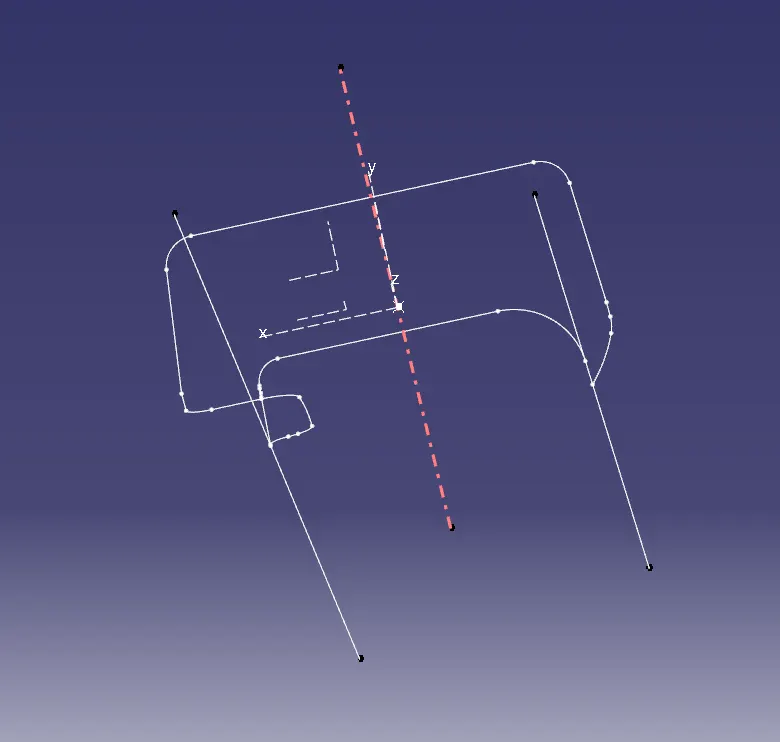

FIRSTLY WE EXTRUDE THE BOUNDARY FROM CLASS A AND THEN CREATE LINES IN ACCORDANCE OF CLEARING THE FACES AND WHICHEVER SIDE FACES DIFFICULTY IN CLEARING WE CREATE A LINE WITH POINT TO POINT DIRECTION AND WITH THE HELP OF BISECTING METHOD WE CREATE OUR TOOLING AXIS.
