Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

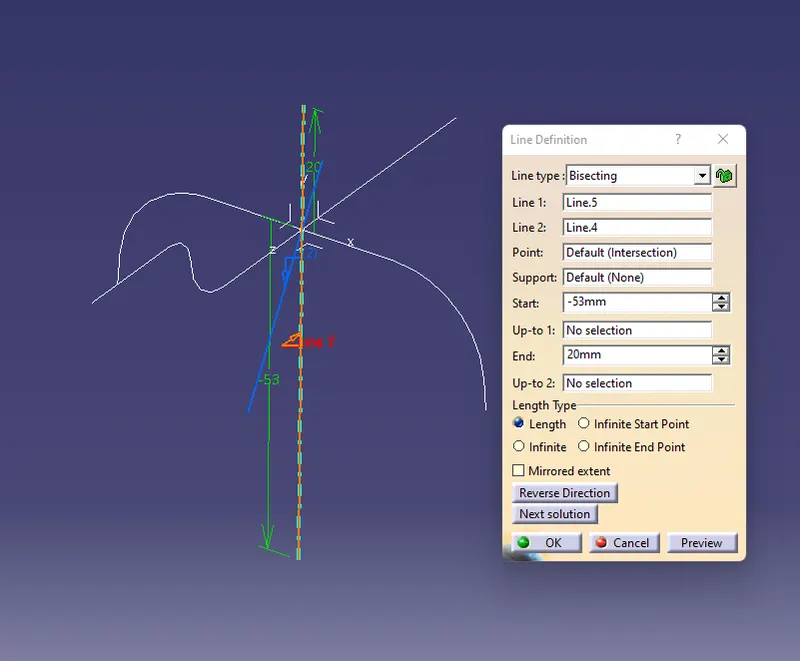

creation of tooling axis

Tooling axis is created by bisecting the tooling axis in both x and y direction which are created by extened and bisecting lines of the inetersection of the class a surfce with both xz and yz planes

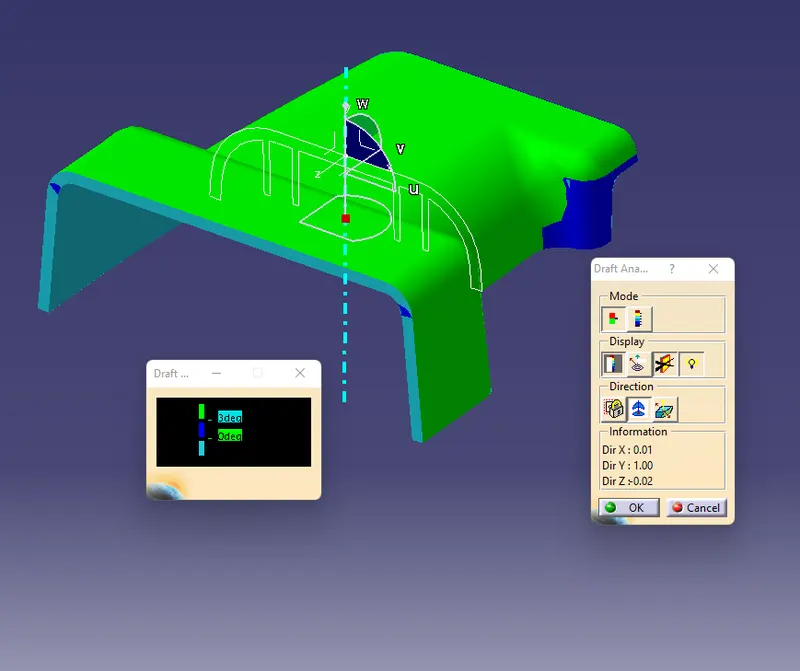

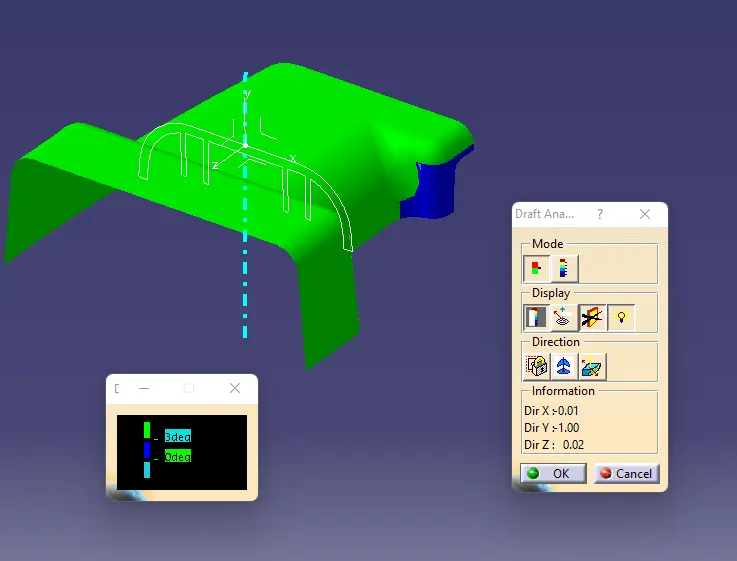

draft analysis report

draft analysis made on the CLASS A and final plastic componant by aligning the compass with the tooling direction and byclicking the componant will give the report of the CLASS A and final componant

all sketchs are positioned and iso constrained

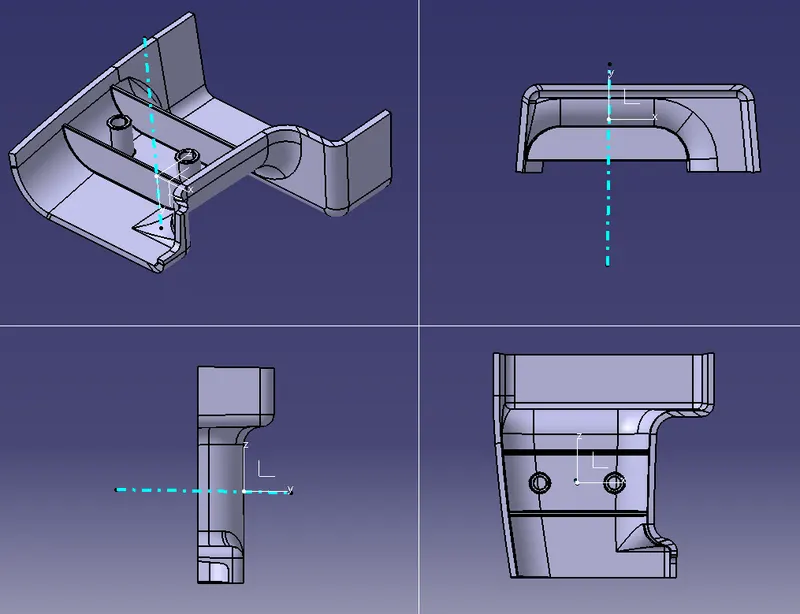

views of final product

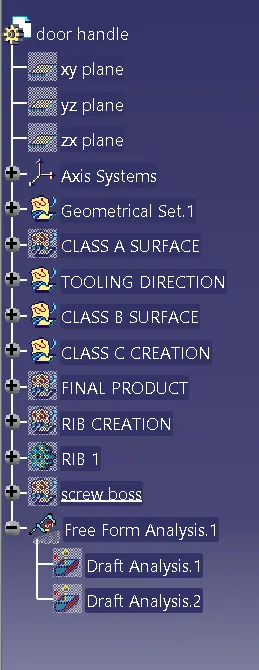

tree structure
