Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

TOOLING AXIS BY BISECTING METHOD:

• Extract the base surface from the given A surface, create a center point on the surface with xyz=0
• create a plane on the point parallel direction with XY plane as reference.

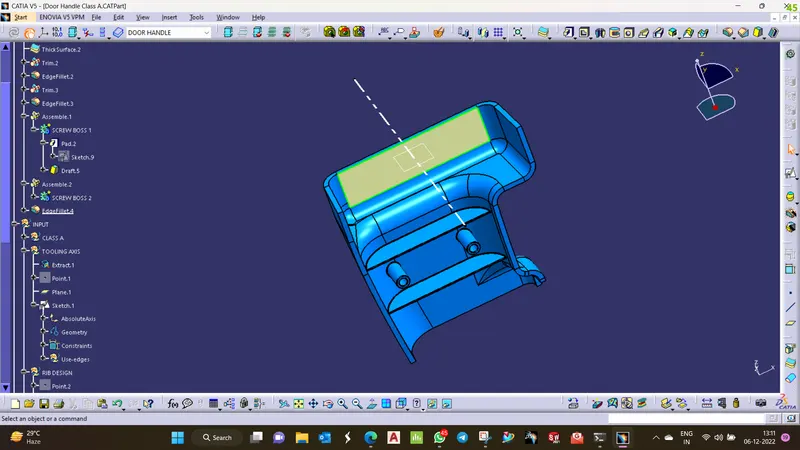

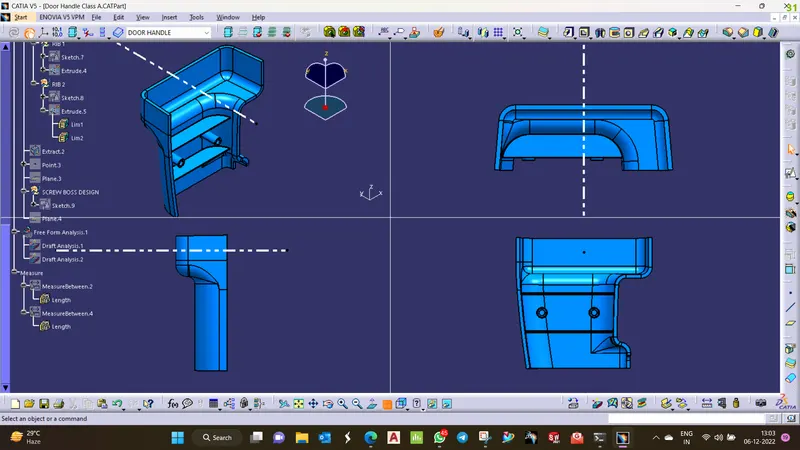

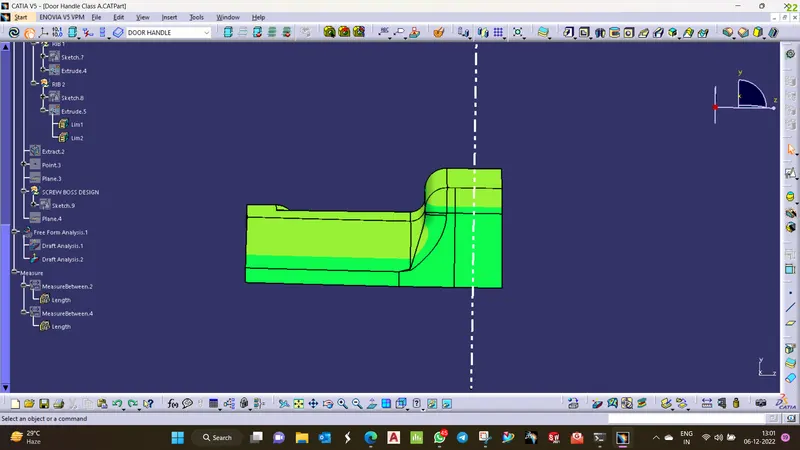

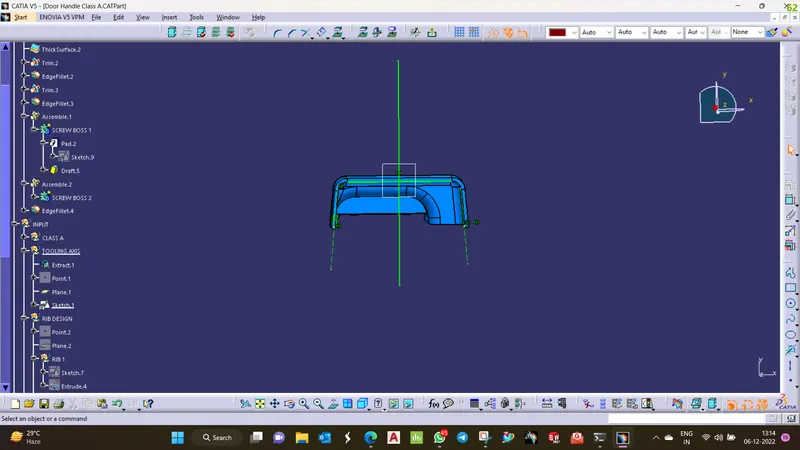

• Go to Sketch mode and project the side walls and extend the lines, with the extended line as a reference, create a bisecting line, the final tooling axis( white dotted line in Y direction).
