Week 8 - Challenge 4 - Bumper

TOOLING AXIS:

TOOLING AXIS IX WAS CREATED BASED VISUAL METHOD

IN X DIRECTION THE AREA AND THE SURFACE VISIBILITY ARE HIGH AS WE COULD SEE ALMOST 90% OF THE SURFACES. SO TOOLING AXIS IS CREATED IN THE X-DIRECTION.

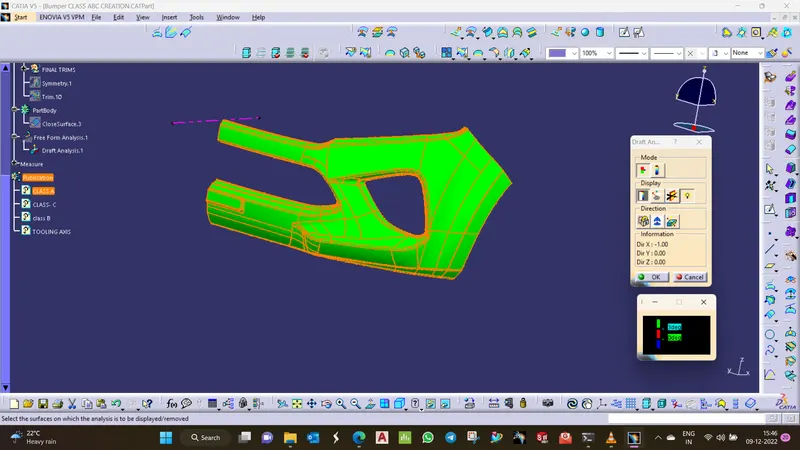

DRAFT ANALYSIS:

CONVERT TO MATERIAL MODE

PLACE THE COMPASS ON THE TOOLING AXIS AND LOCK THE POSITION

USING INVERSE DRAFT DIRECTION COMMAND INVERSE THE DIRECTION OF DRAFT ANALYSIS ON CLASS A

USING ANALYSIS UNDER THE RUNNING POINT CHECK FOR THE REQUIRED DRAFT VALUE AND ADJUST THE TOOLING AXIX TO ATTAIN THE REQUIRED DRAFT.
