Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Submitted by: Syed Rizwan Ali
Course: Automotive plastic design using CATIA V5
Challenge: Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

1. A detailed report should be done explaining the draft analysis and the tooling axis creation-

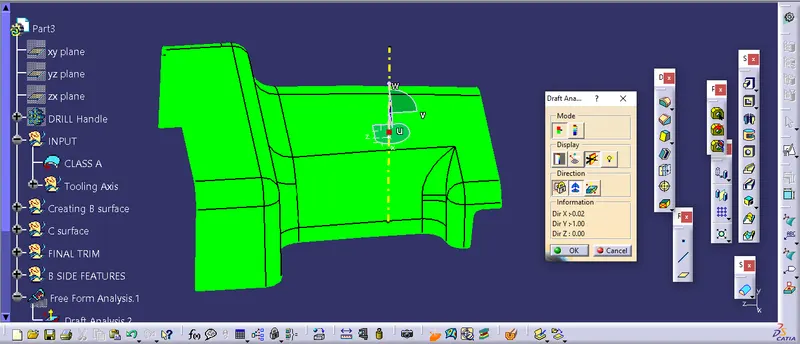

Draft analysis on Class A surface of Drill Handle-

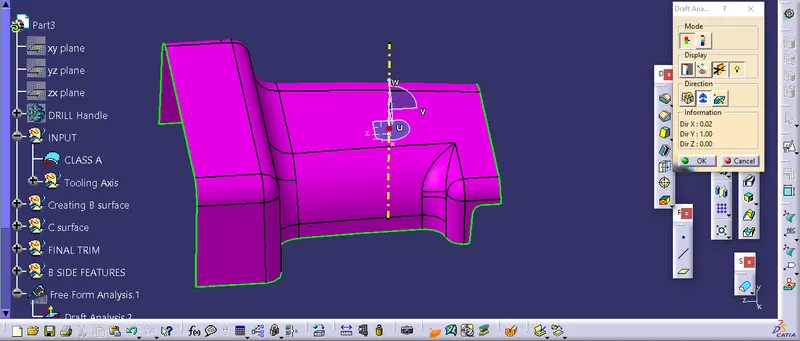

Step 1- Open draft analysis and move the compass to coincide with the Tooling axis as below

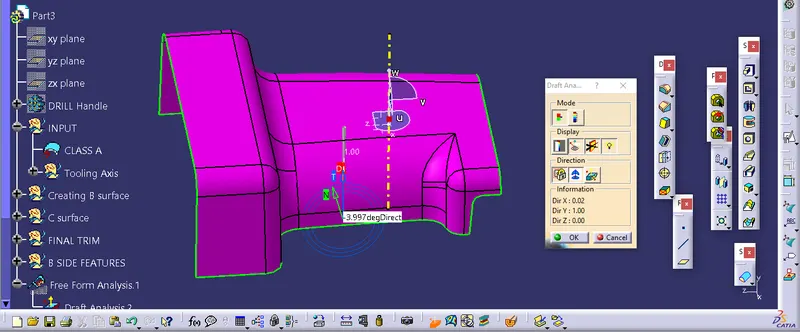

Step 2- Lock the compass and check the radius using the running analysis option-

Step 3- Set the color code for the draft angle i.e green for above 1-3 degrees, Blue for 0 degrees, and red for angle value lesser than 0.

Step 4- Click on the surface using light effect, if the color goes green throughout means your draft analysis is good and ready for manufacture-

Using Class A surfaces B and C surfaces are created and published same can be observe from tree structure of the below screenshot-

Now creating B side features like RIBS screw boss and other assemblies which provide strength to the parts and made part easy to assemble-

Creating Tooling axis-

2-An explanation should be given on the way of creating the tooling axis, particularly the Bisecting method.

ANS- Tooling Axis-

Now creating the tooling axis by using bisecting line and a dummy axis-

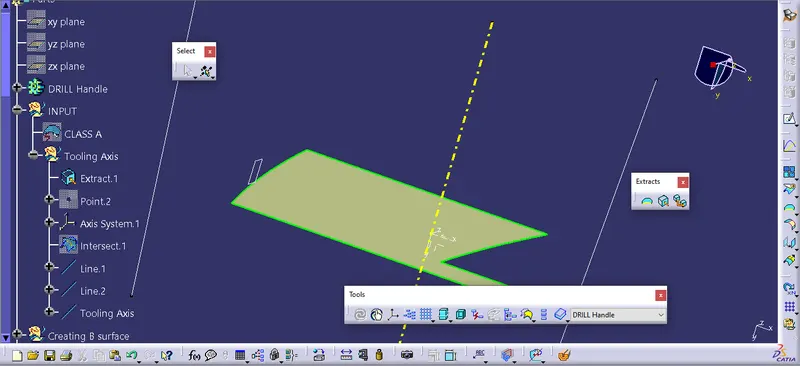

1. open the file which contains the Class A surface, after creating a geometrical set "Tooling Axis" then select the most appropriate position, and in this select a base of the tab/pocket.

2. Then create a point at the surface extracted then draw a dummy line on the z-axis.

3. After that create a plane on the point created with reference to XY plane direction.

4. Then select the intersect tool that gives the intersection on the Class A surface.

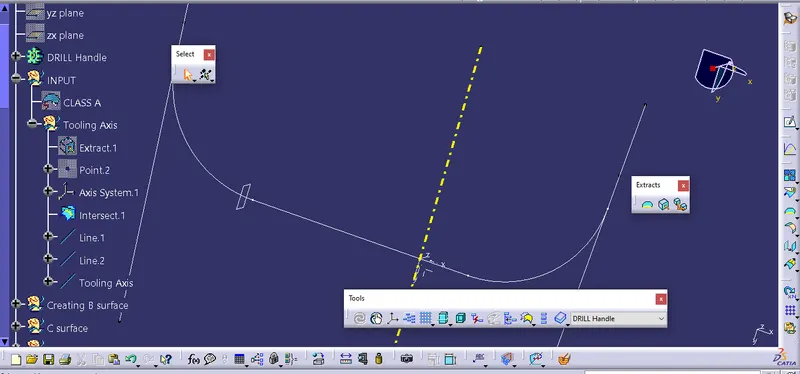

5. Now create 2 lines using the point and direction method as shown below screenshot.

6. the Last step creates a bisecting line using the above 2 lines.

Have a look at the Screenshots

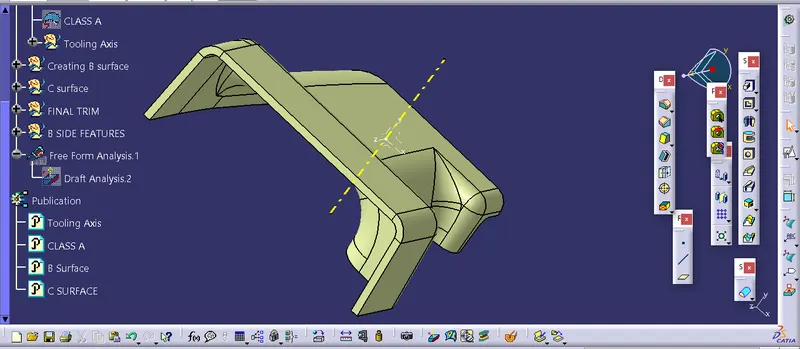

The final step for the Tooling axis -
Bisect the lines created in sketch 9 and sketch 11 using the bisecting line command-
Color it yellow and published it.

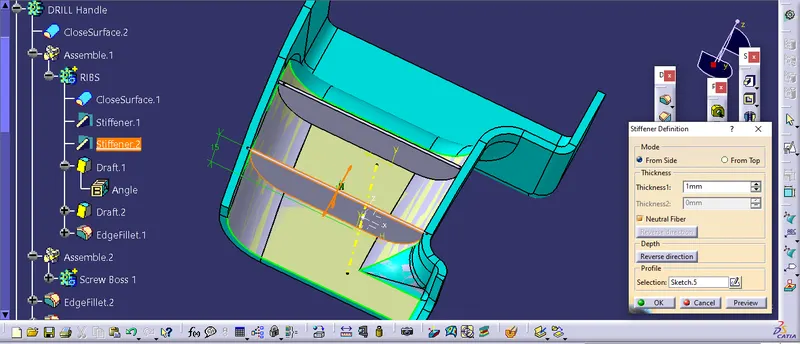

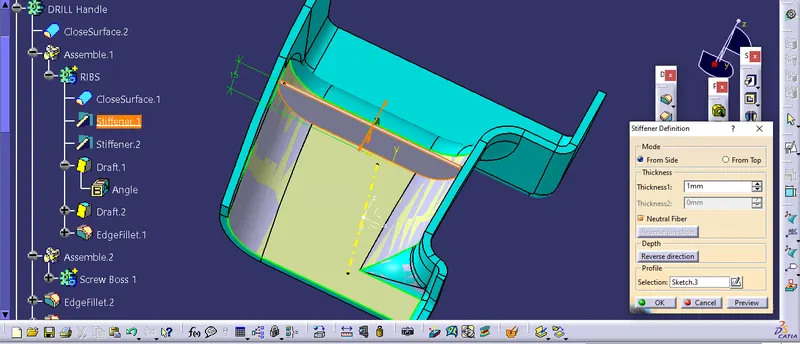

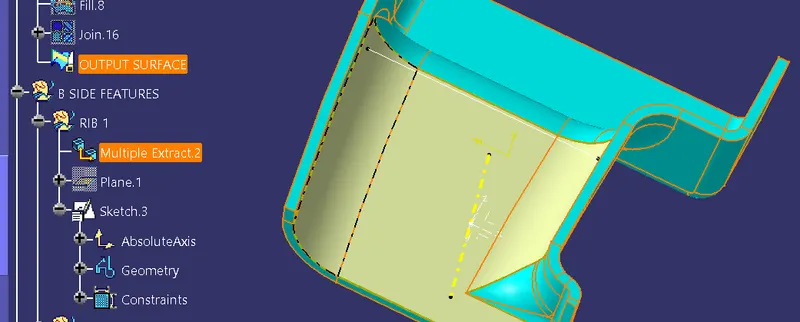

Creating RIBS 1- using design rules

go to part design and use the

stiffener command to produce the rib.

Assemble the rib with the main body and do the same steps for rib 2

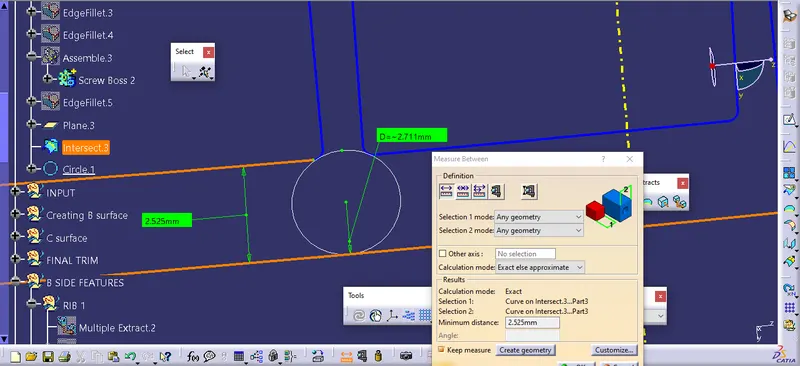

Design Analysis of RIBS and Screw Boss

Now We have the proper ribs which follow the design rules.

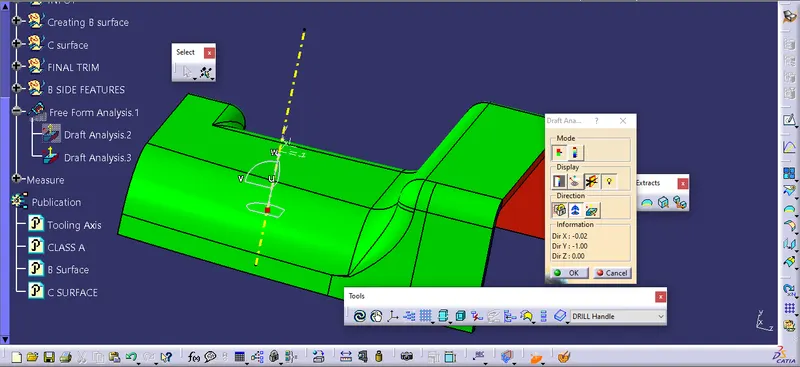

Draft Analysis on Final drill handle from B side-
Follow the same steps as did in Class A surface draft analysis

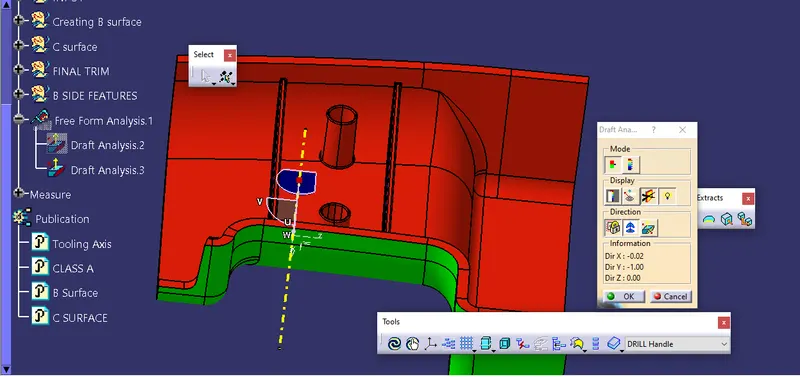

Now flip the body and take a draft analysis-

=========================================================

Thank you
