Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

AIM:

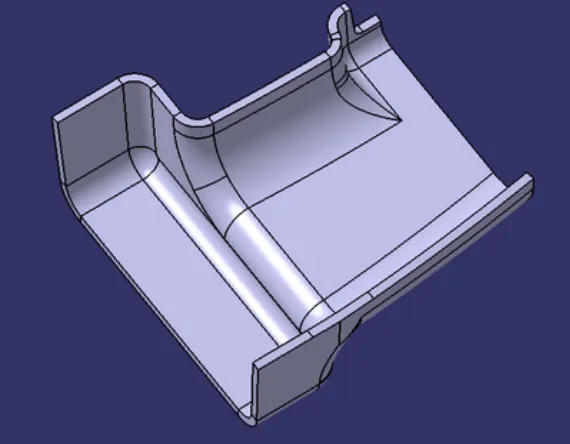

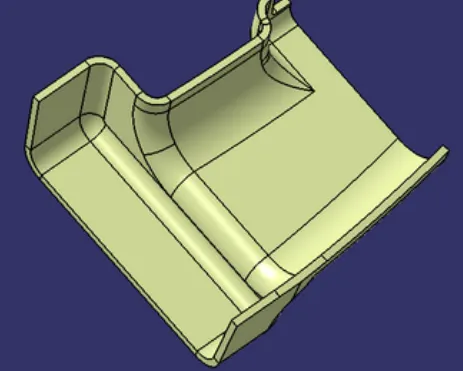

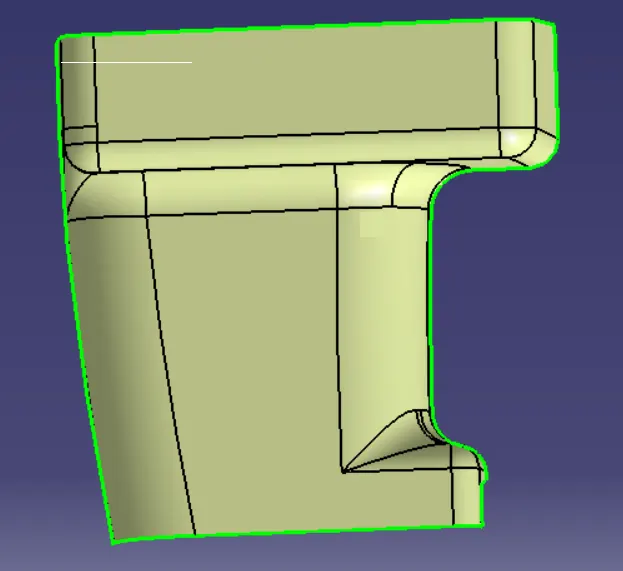

To Create the Door Handle Component from the given Class-A surface.

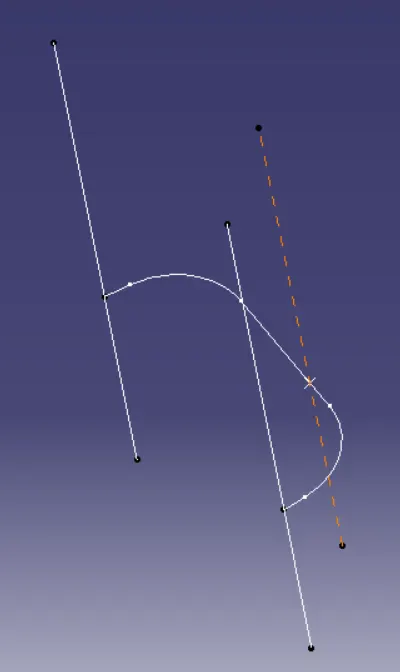

To Create the tooling axis for the given Class-A Surface meeting the requirements of the
draft angle.

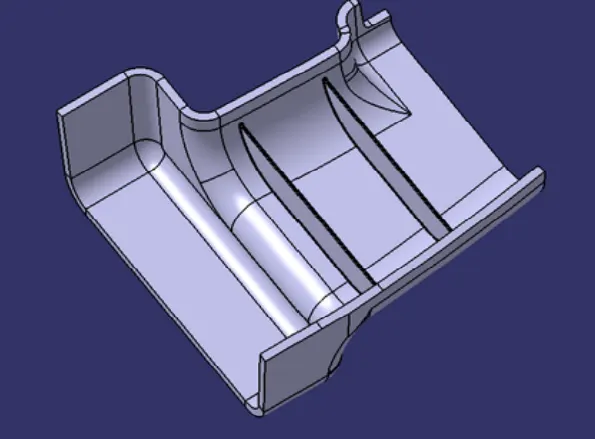

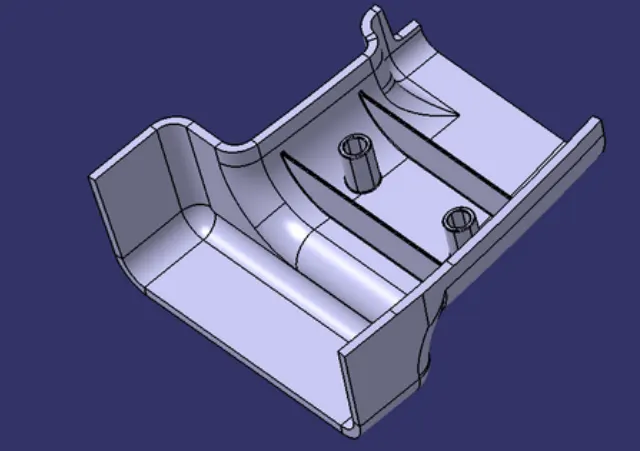

To Attach B side Features in the component.

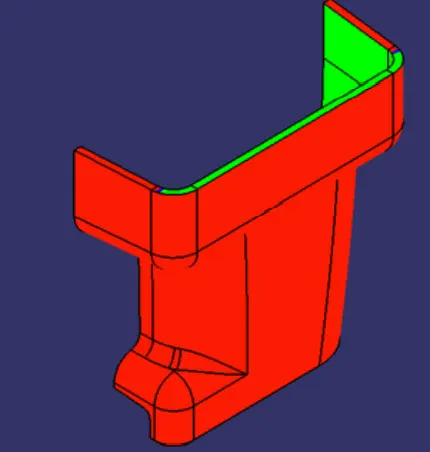

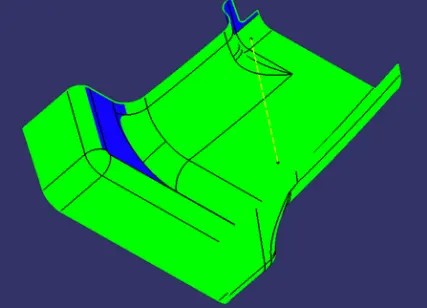

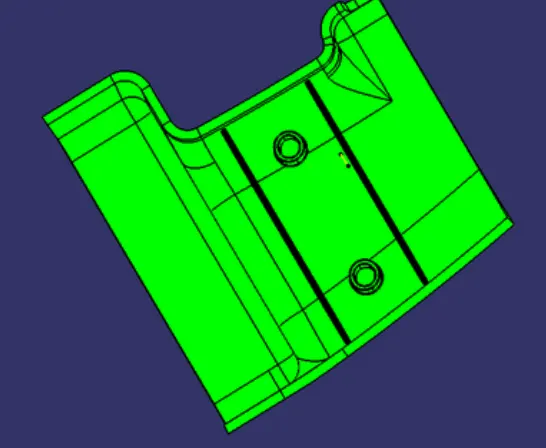

To perform the Draft analysis on the model.
TOOLS USED:
Boundary
Join
Multiple extract
Bisecting line
Trim
Surface offset
Draft analysis
Intersect
Surface sweep
Close body surface
