Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

AArshil Kumar29 Aug 2022

Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

AIM

Create the rib for the Drill Handle considering the design rules.

INTRODUCTION

Ribs and screw bosses are engineering features which are created on the B side of the plastic components.

RIBS

Ribs are used to strengthen the walls of your mould without increasing wall thickness which means that you minimise the problems that come into play when the wall thicknesses have to be increased.

In essence, if the wall is too thick, warping and sinking can result so that the entire design may need to be rejected.

SCREW BOSS

Boss features are commonly found in injection molding designs. They are used to aid in the assembly of molded parts by providing a channel for a screw. Designing plastic screw bosses is fairly straightforward but there are a few considerations to ensure a strong connection between parts and mitigate cosmetic defects.

OBJECTIVE

Create Tooling axis for the given CLASS -A surface.
Create the CLASS B and C surfaces of drill handle using the given CLASS-A surface.
Create final surface model and convert it into solid body using close surface command in the part design workbench.
Create ribs and screw bosses on the B surface by considering the design rules.
Perform draft analysis for both Class-A surface and Final part body.

Design methodology

Class-A surface means visible surface. It gives the aesthetic of the component which is created by the styling team and gives to the part design engineer to create the part with all engineering aspects.

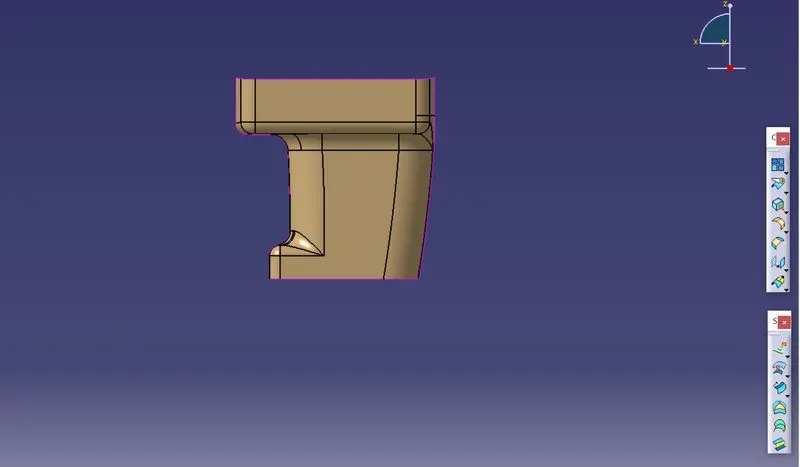

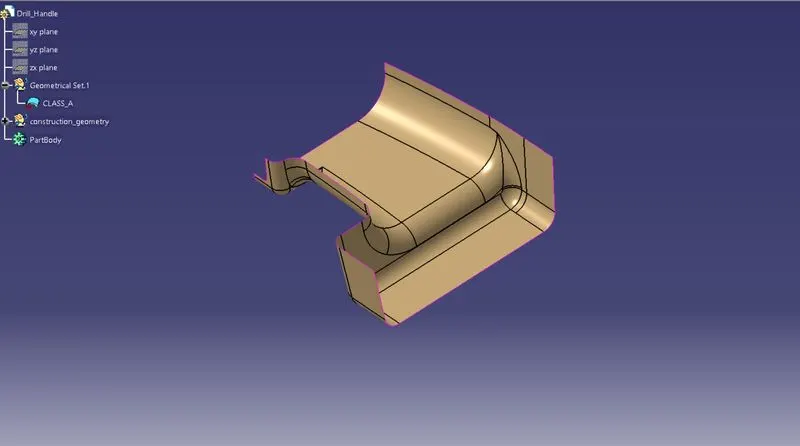

Given CLASS-A surface

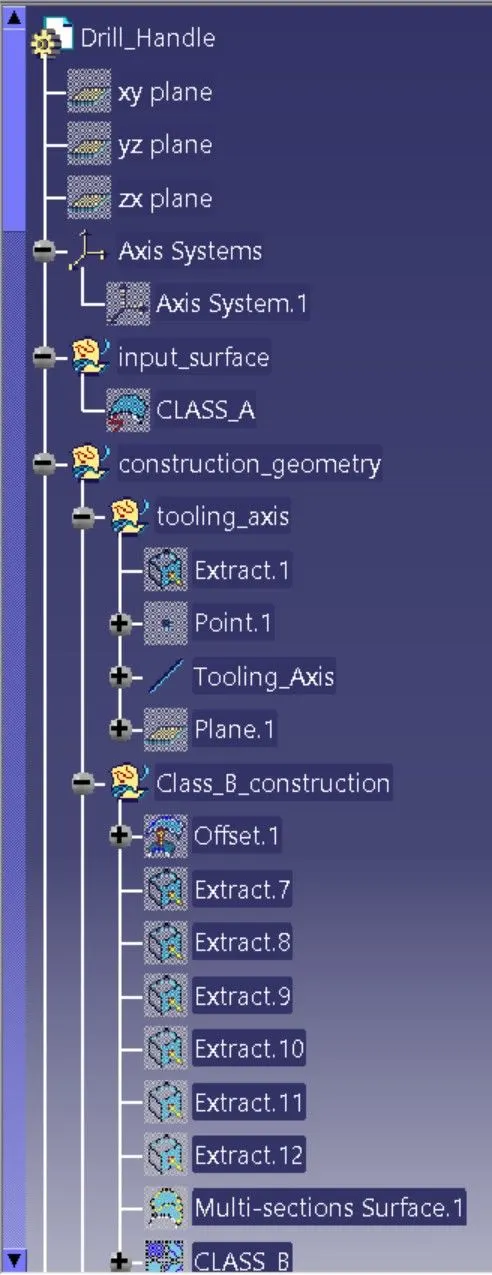

Tooling axis creation

Arrange the view manually to check the best tooling direction which covers most of the surfaces.
Tooling direction along Y axis can clear most of the surfaces. So we can create tooling axis along y direction.

I have created tooling axis using normal to the surface method. For that extract a plane surface and create a midpoint on it.

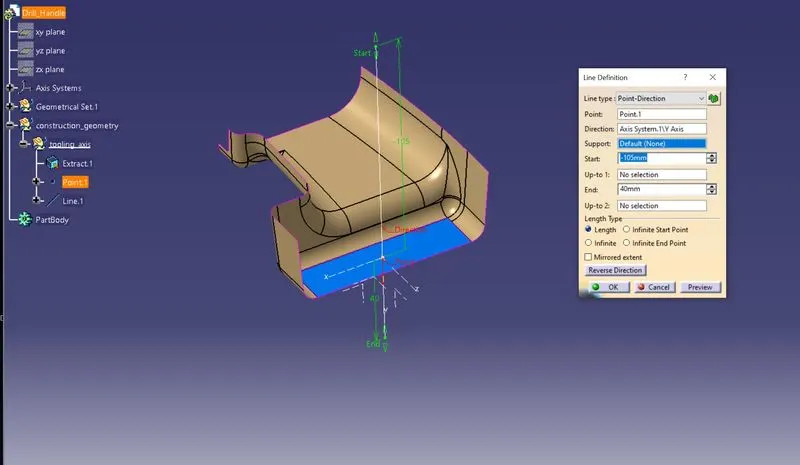

Create a line on the point and direction along y axis.

CLASS-B surface creation

Class-B surface means thickness of a part it is not visible and is inside part. In other words, Class-B surface is a surface below a certain thickness from the class-A surface. This is the surface that contains engineering aspects of a model.

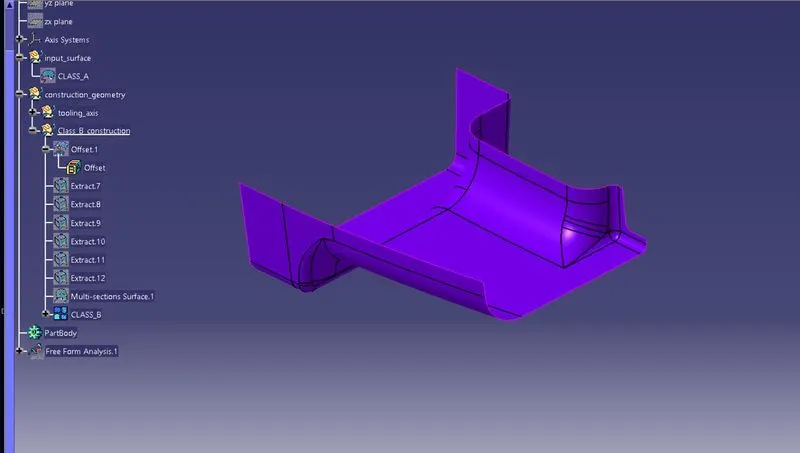

Offset the class-A surface about 2.5mm inward direction.
Work on the patches created on the offset surface with the help og extracted curves and multi section surface features.
We can join the working surface and check for the continuity.

CLASS-C surface creation

Surface that joins class-A and class-B surfaces is class-C surface. Class C is often specified for interior surfaces not readily visible, surfaces that will be covered by another part when assembled

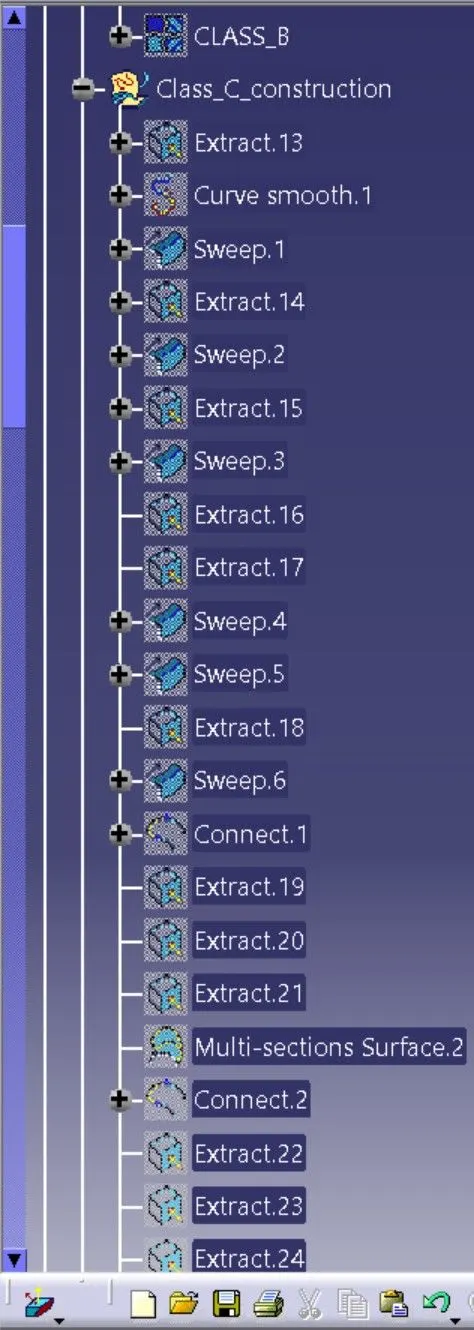

Multi extract the boundary edges and sweep it with reference to surface at 90 degrees, this method is useful when the created sweep surface is facing perpendicular to the tooling axis.
C surface sweep which is creating parallel to the tooling axis should have at least 3 degree of angle value while sweeping to pass the draft analysis.

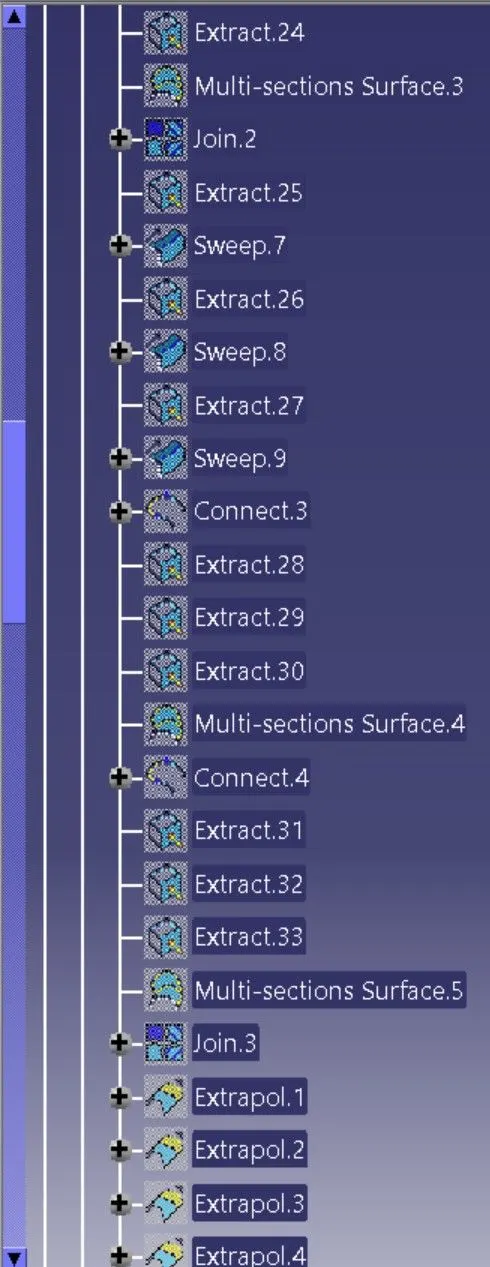

Create curves using extract feature and connect curve features to create sweep surface on the complicated regions.

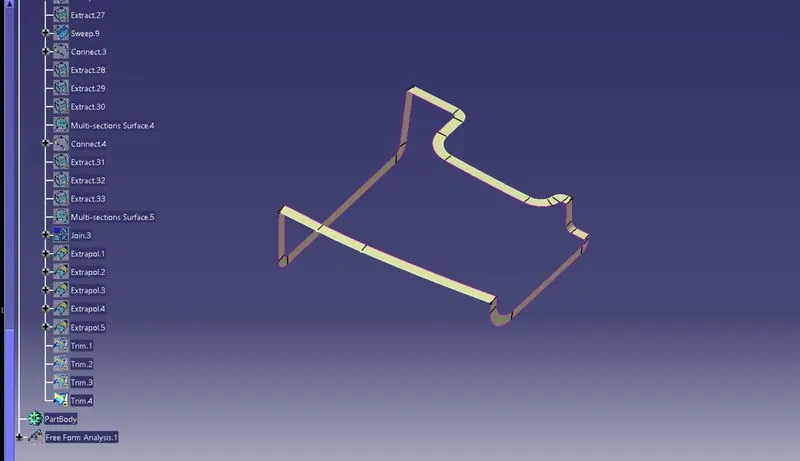

Extrapolate the sweep surface at required edges and trim it with the other surface.
Then join the whole sweep surfaces created and check for the boundary.

Creating Final Drill handle surface

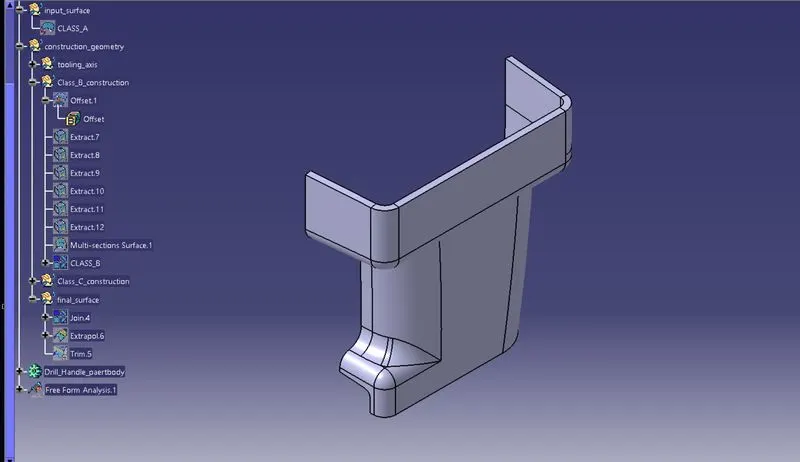

Join the CLASS-A surface with CLASS-C surface.

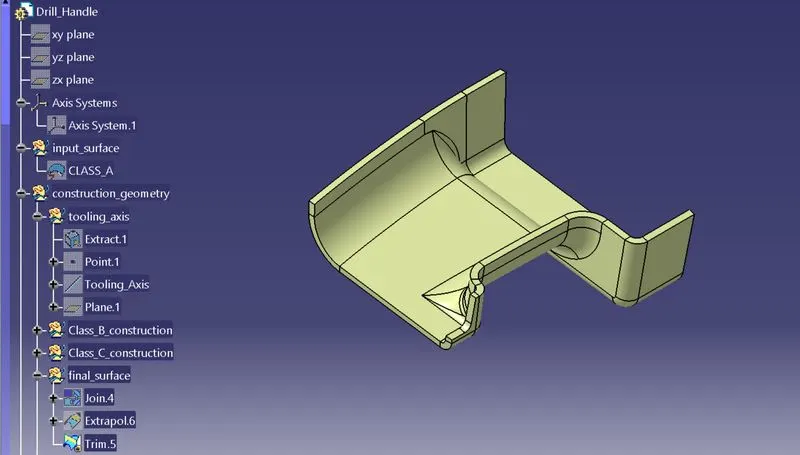

Extrapolate the CLASS-B surface and trim it with Joined surface.

Then create the solid part using close surface command in the part design workbench.

Rib Creation

Draft: 0.5 Degree per side (minimum)
Thickness of ribs: 40% of wall thickness
Height: ≤ 5 times the wall thickness
Spacing (for more than 1 rib): 3:1- steel height/width ratio (maximum). h/w =3 or2(preferred) where h is the height of the rib and w is the space between two ribs.
Minimum thickness at the tip: 0.75
Radius: 0.25mm max
Rib root thickness should not be more than 30% of the wall thickness.

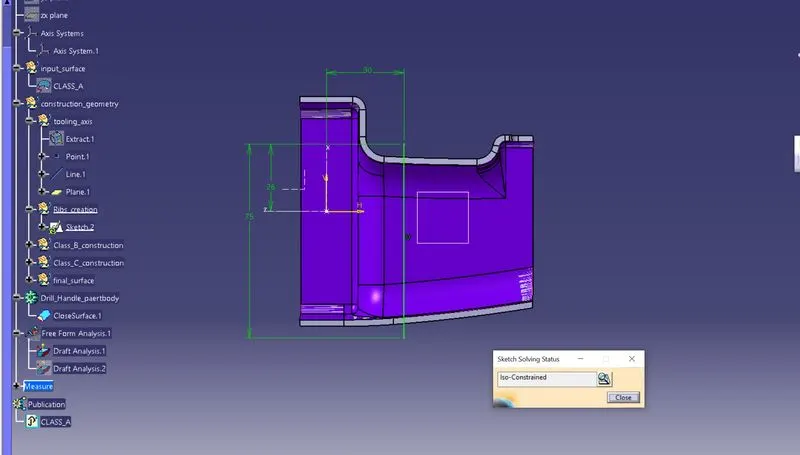

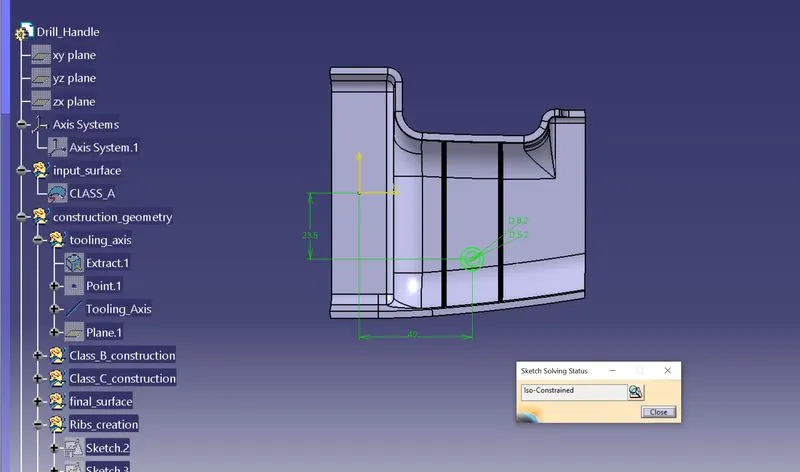

Create a reference plane on the b surface.

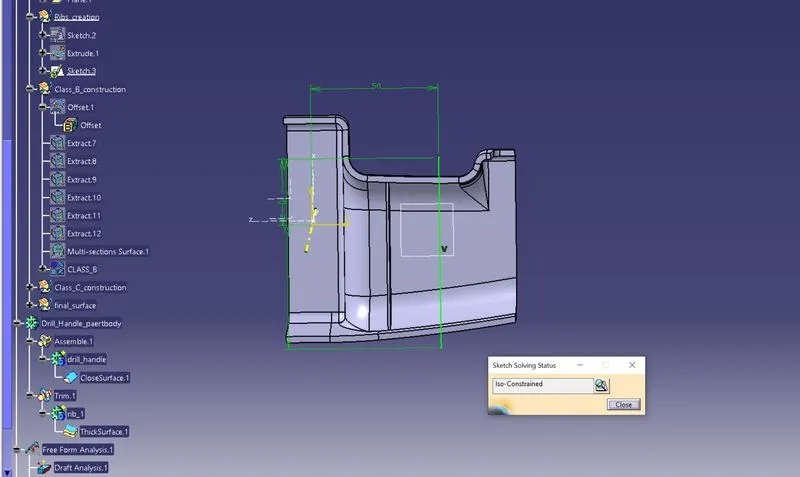

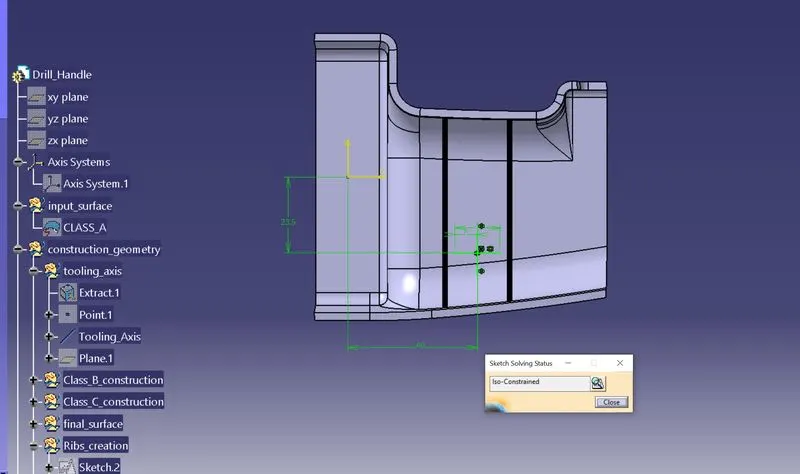

Create positioned sketch for the ribs and extrude the sketch with reference to the tooling axis or other method is create thicken pad with reference to the tooling axis.
Perform union of ribs with the drill handle part body

Screw Boss creation

W= 0.6*T
Draft 0.5 Degree on both inside and outside walls of the screw boss.
Height to diameter ratio – 3:1
Radii(fillet) – 0.25mm(maximum)
Boss Gussets must meet rib guidelines

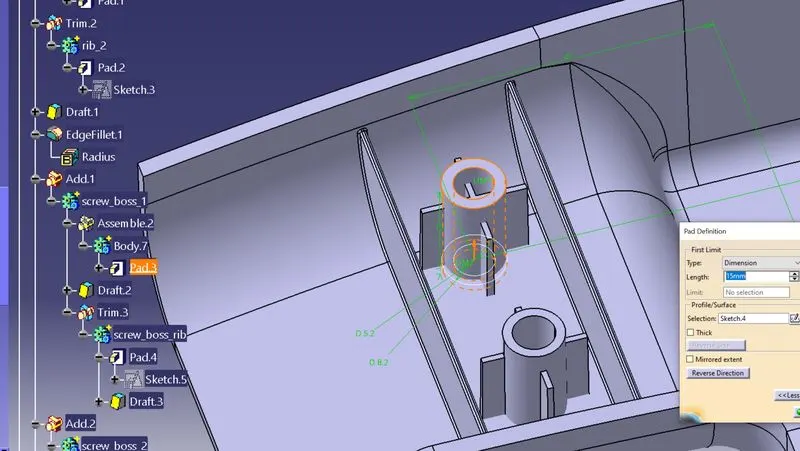

Create sketch of screw boss and extrude it with reference to the tooling axis.

Add boss gussets to support and add strength to the screw boss

Using the Boolean operation union trim the boss gusset with the screw boss and then add it of the main body.

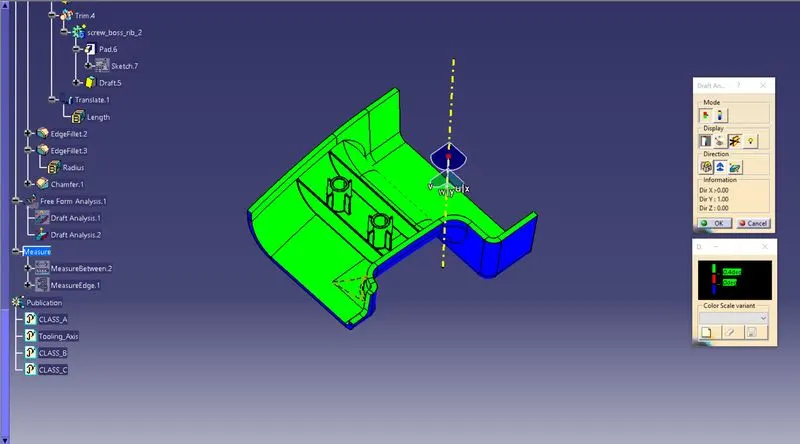

Final part after creating ribs and screw bosses on the b side of the component

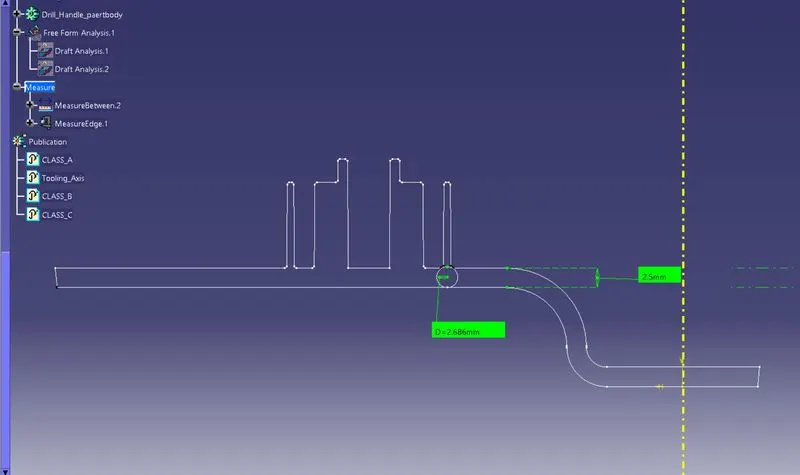

Rib root thickness Analysis

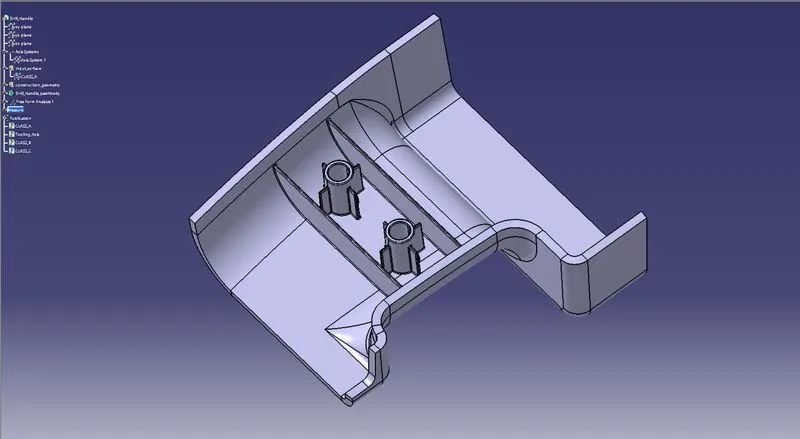

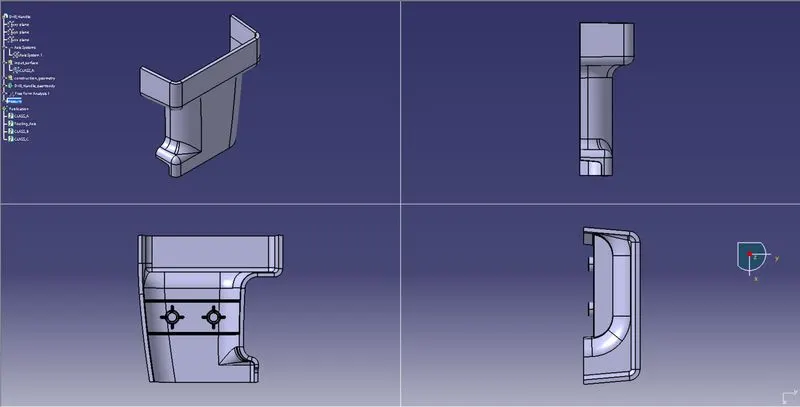

3D Part model in various orientations (Isometric, Front, Side, and Top View)

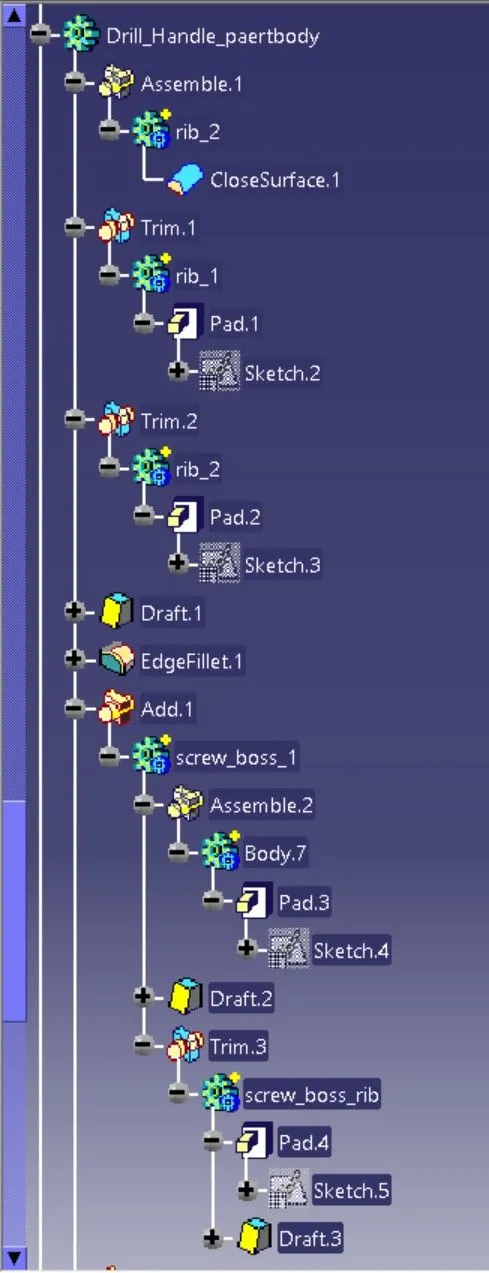

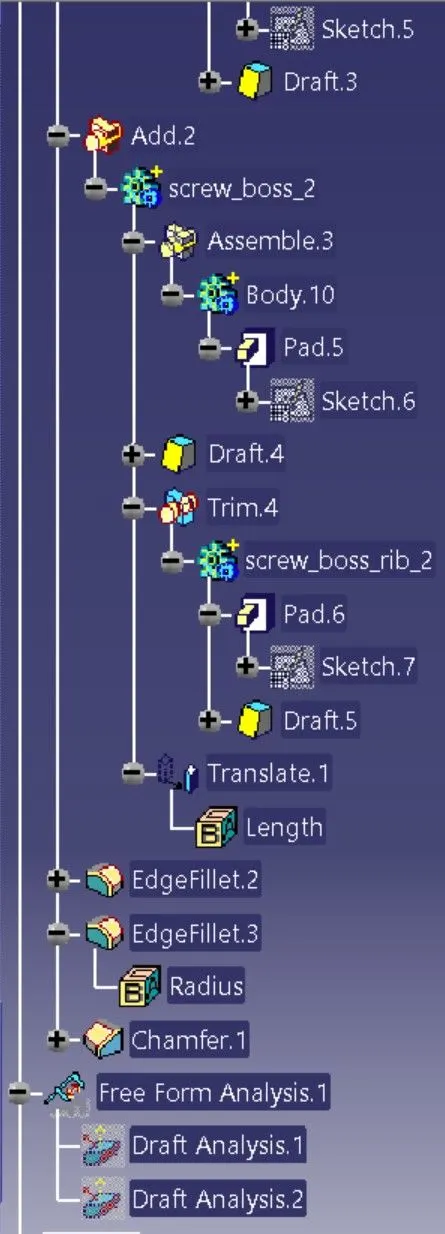

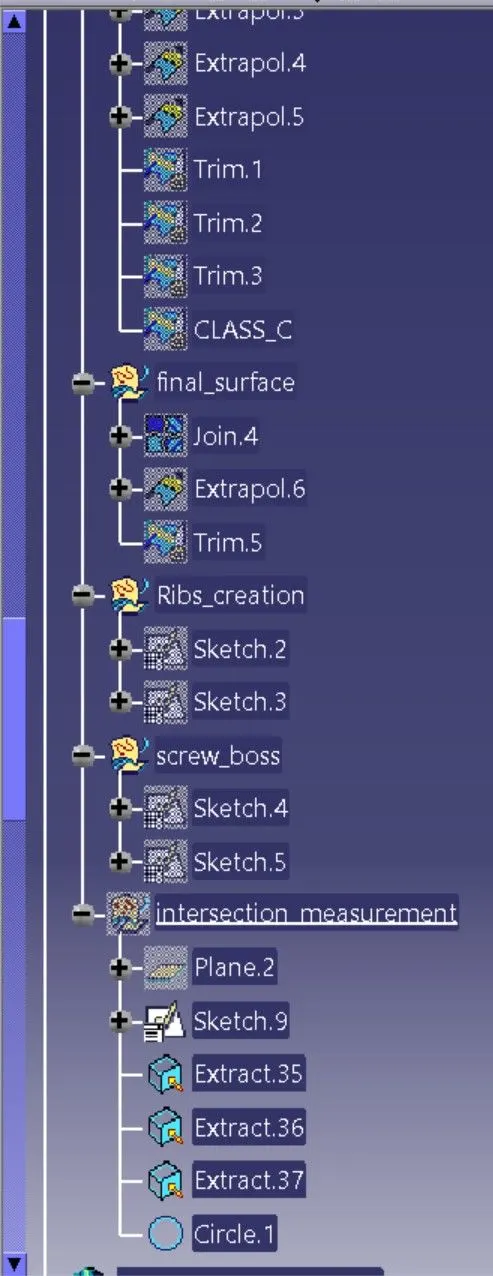

The expanded Tree Structure for the geometrical set and the Part Body

Publication

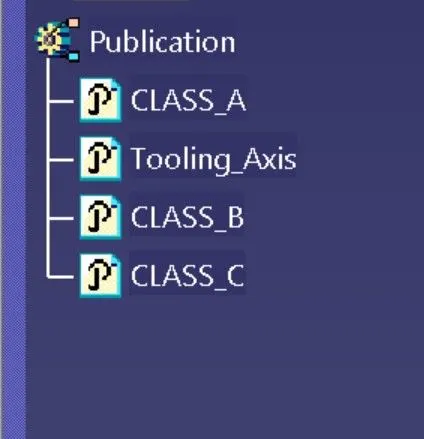

Publication is done to the component to make it visible and navigate easily.

DRAFT ANALYSIS

The Draft Analysis is a command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on colour ranges identifying zones on the analysed element where the deviation from the draft direction at any point, corresponds to specified values.

Draft analysis is done after determining the tooling axis, draft analysis is used to check whether the minimum draft (3 degrees) is maintained or not.

Procedure for performing the draft analysis are as follows
Change the view mode of the component to be in customized parameter mode and then select the shading mode as materials.
Then open the featured draft analysis tool from the insert menu.

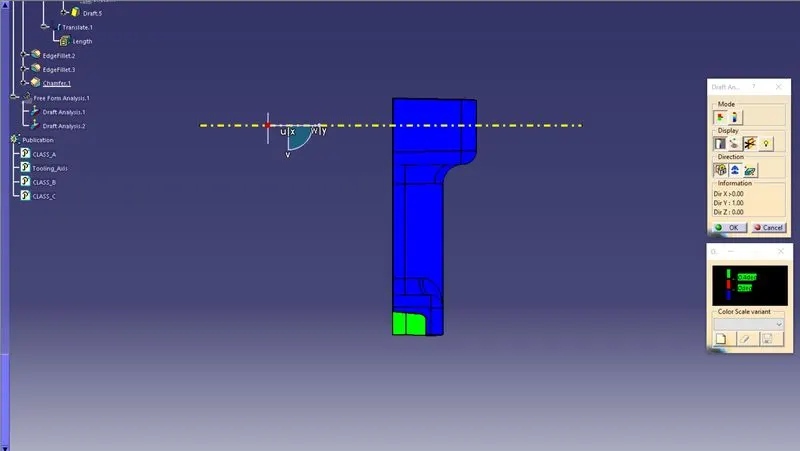

Then click on use the compass to define the current drafting direction and then drag and align the compass on the Tooling axis.
Then lock the draft direction and perform draft analysis by clicking on the component.

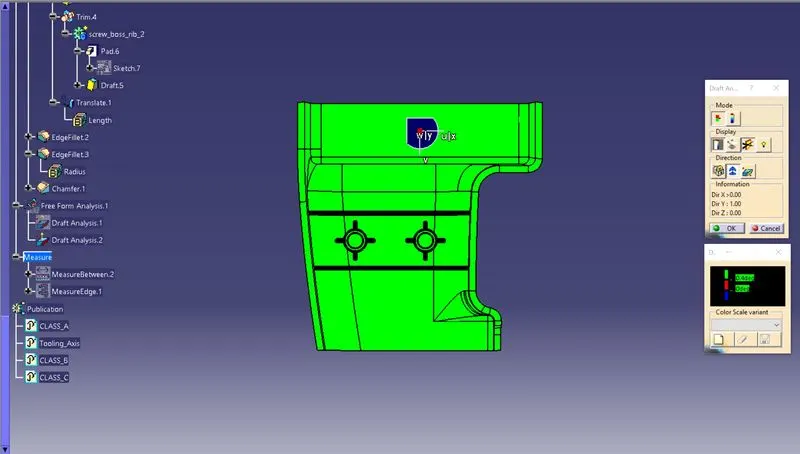

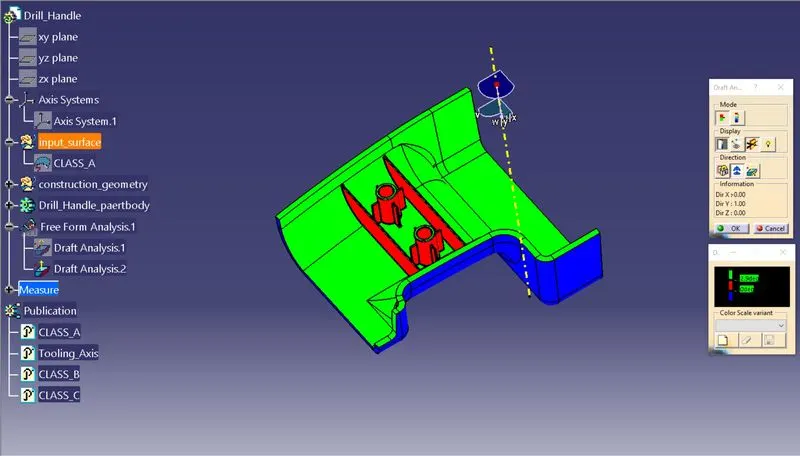

The green colour shows the positive daft tooling direction and the given surface passes the draft analysis.

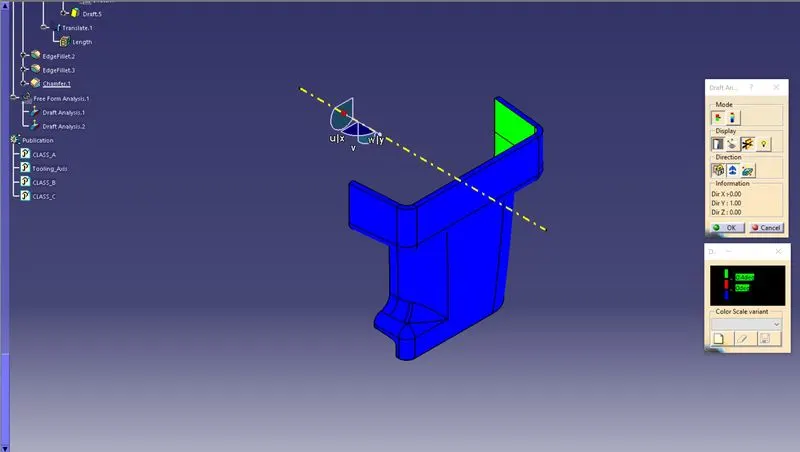

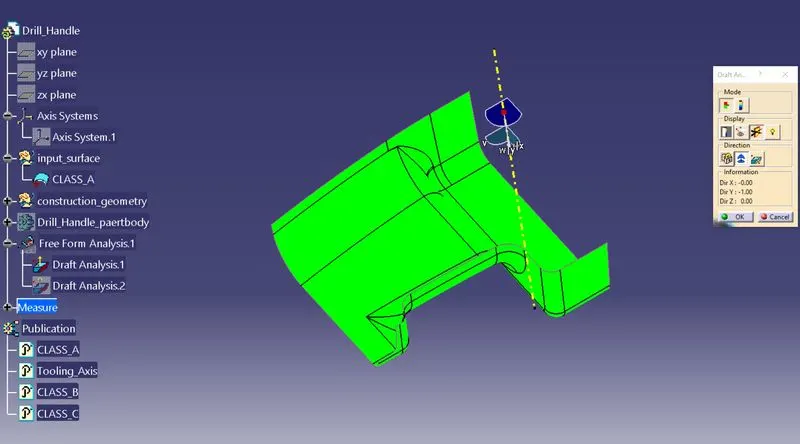

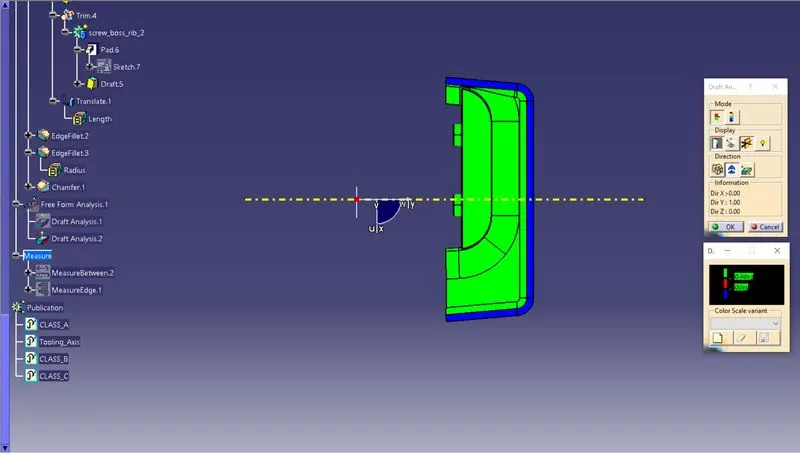

Draft analysis for the given CLASS-A surface
