Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

TOOLING AXIS -

TOOLING AXIS CREATE BELONG TO Y DIRECTION.THE Y DIRECTION IS SHOWN MAXIMUM SURFACE.

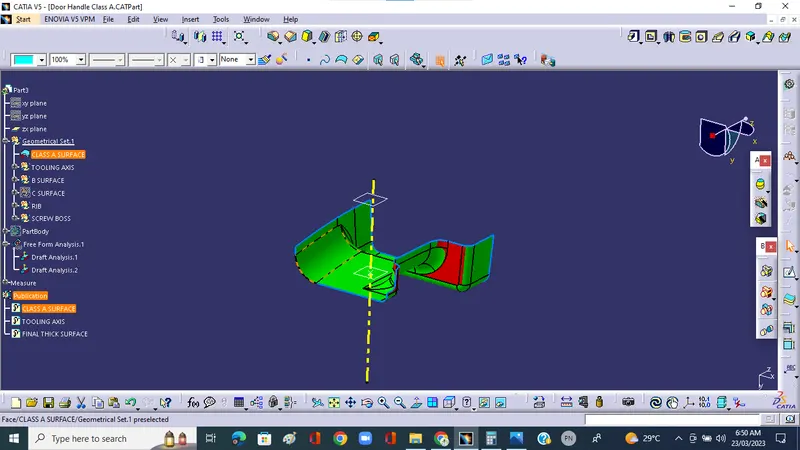

FEATURE DRAFT ANALYSIS

CLASS A SURFACE- THE DRAFT ANGLE BEYOND TO TOOLING AXIS IS MAX 2.9  DEG DENOTE AT COLOUR GREEN

THE  DRAFT ANGLE 0 DEG DENOTE RED COLOUR

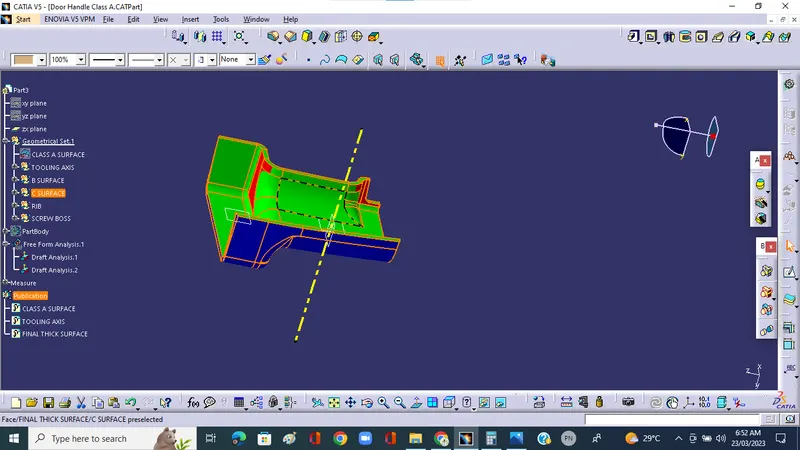

CLASE C SURFACE - THE OUTER SURFACE OF BLUE COLOUR IS DENOTE DRAFT ANLGE IS LESS THAN 0 DEG

THE  INNER SURFACE  OF RED COLOUR IS DENOTE DRAFT  ANGLE IS 0>2.9 DEG

THE INNER SURFACE OF THE GREEN COLOUR IS DENOTE DRAFT ANGLE IS 2.9<3
