Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

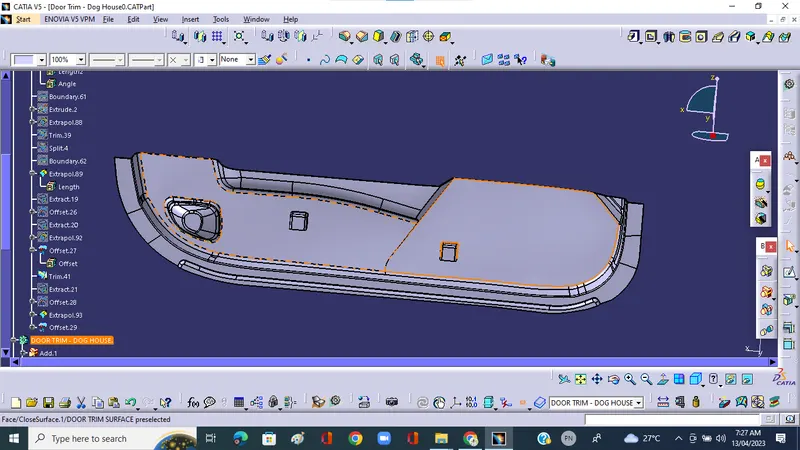

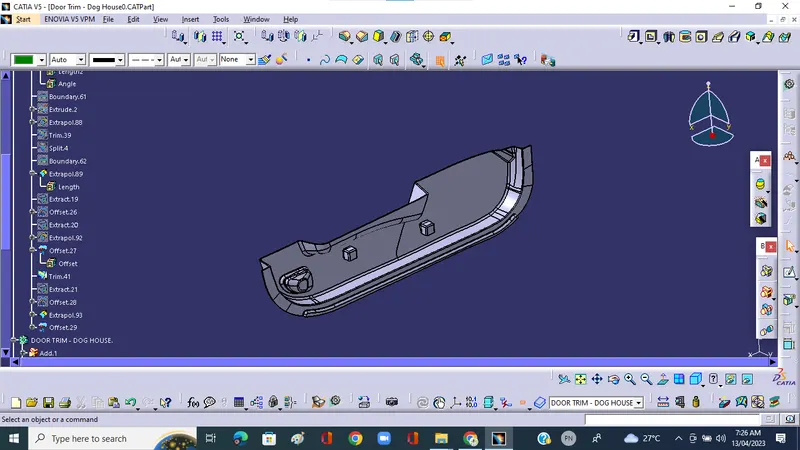

ISOMETRIC VIEW
DOG HOUSE

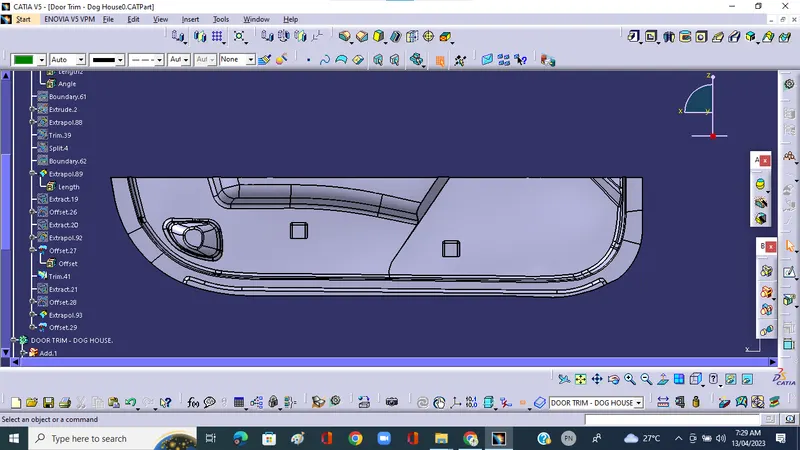

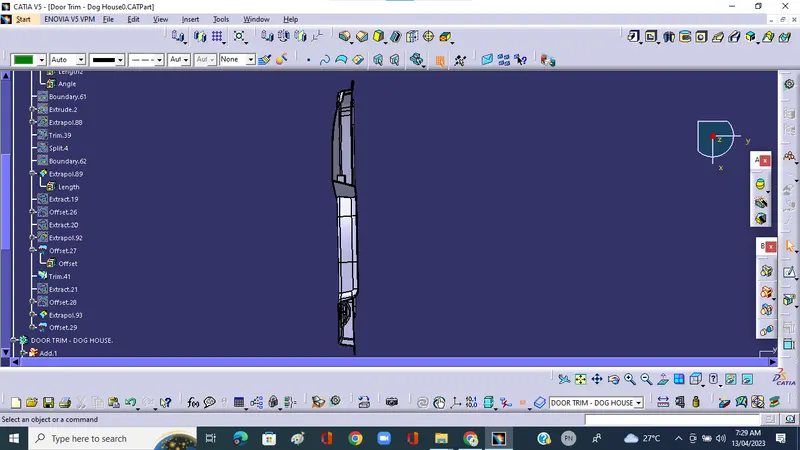

FRONT VIEW

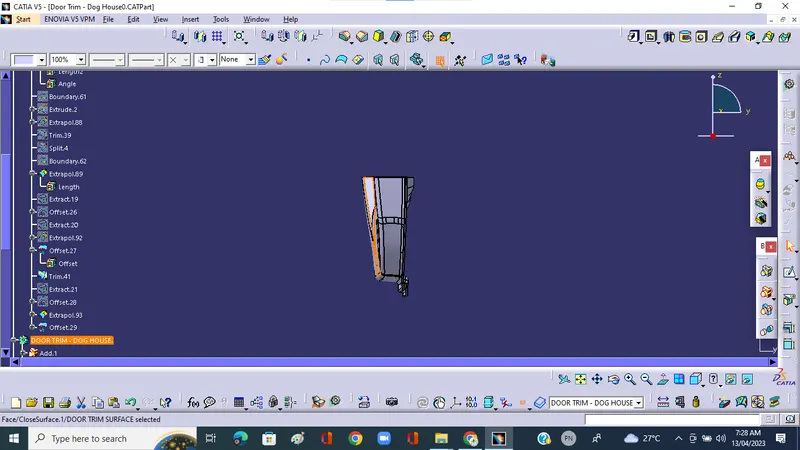

RIGHT SIDE VIEW
TOP VIEW

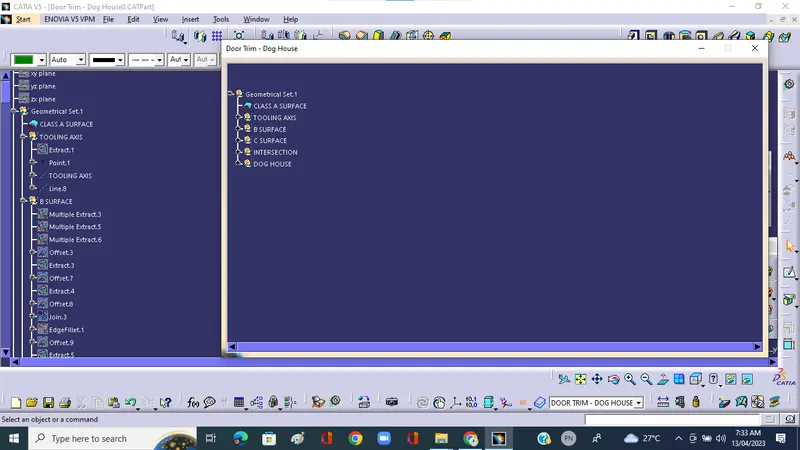

SUB TREE

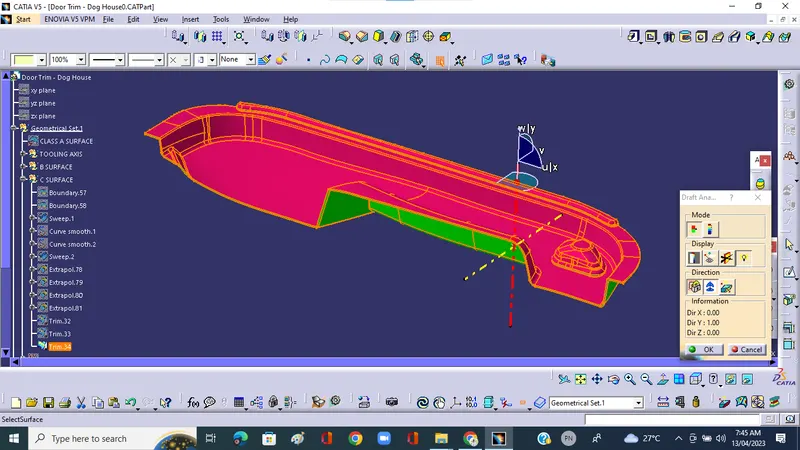

DRAFT ANALYSIS

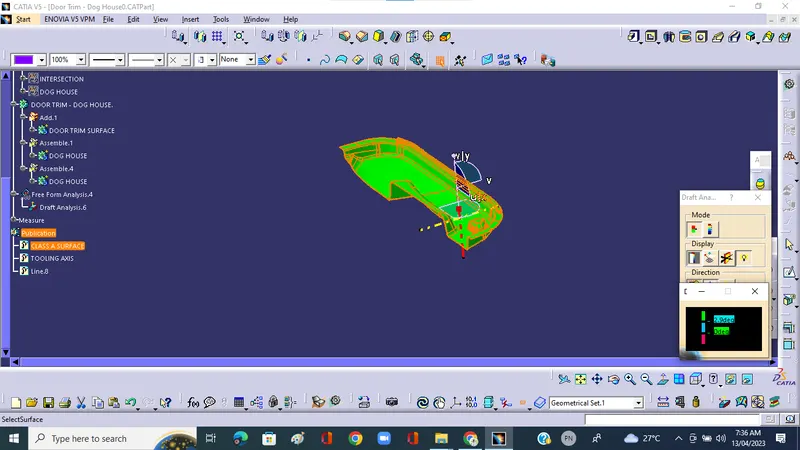

CLASS A SURFACE
THE DRAFT ANDLE OF THE CLASS A SURFACE IS GREATER THAN 3 DEGREE.IF THE TOOLING AXIS IS 'Y' DIRECTION.
CLASS A+B+C SURFACE
THE SAME TOOLING AXIS REPRESENT THE DRAFT ANGLE OF INSIDE THICKEN SURFACE IS LESS THAN 0 DEGREE AND OUT SIDE IS GREATER THAN 3 DEGREE.

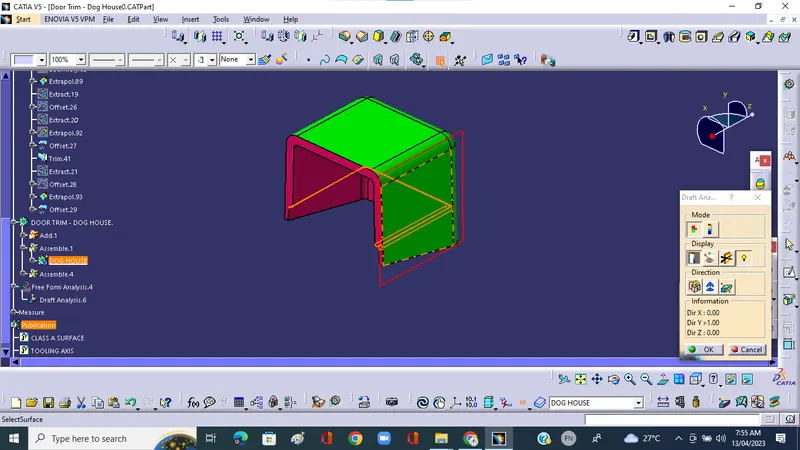

DOG HOUSE
THE TOOLING AXIS REPRESENT THE DRAFT ANGLE OF DOG HOUSE IS 1.45 DEGREE IS OUTSIDE AND THE INSIDE -1.45 DEGREE

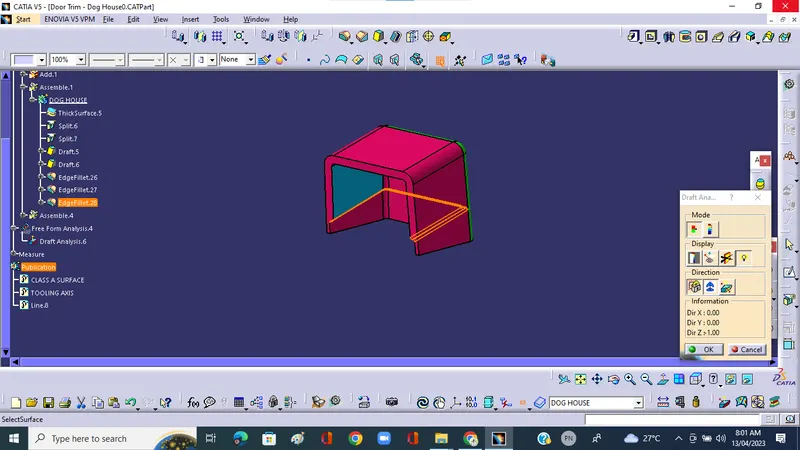

THE Z DIRECTION AXIS REPRESENTS THE DRAFT ANGLE 1.45 DEGREE , 0.5 DEGREE , -1.45 DEGREE
