Week 8 - Challenge 4 - Bumper

AAniket Khedkar15 Mar 2023

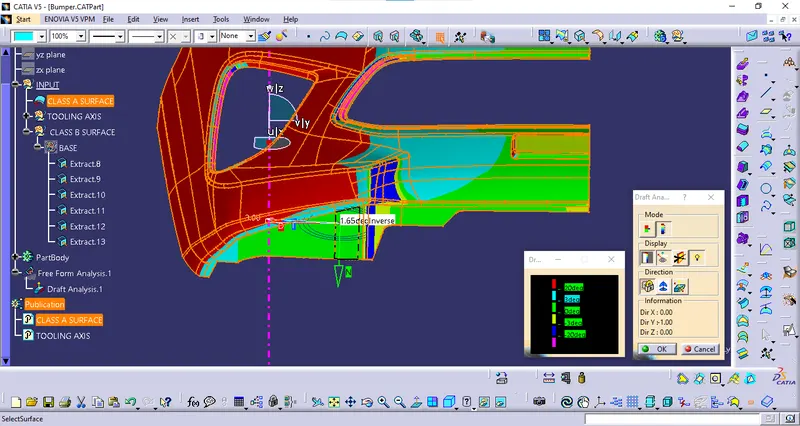

CLASS A SURFACE DRAFT ANALYSIS REPORT

THE BASE PORTION DRAFT ANGLE IS 0 DEG DENOTE GREEN COLOUR

THE FILLETE PORTION DRAFT ANGLE IS 0 TO 3 DEG DENOTE BLUE COLOUR

THE HEAD LAMP SIDE PORTION DRAFT ANGLE IS GREATER THAN 3 DEG TO 20 DEG.

 DARK BLUE  COLOUR BASE PORTION OF DRAFT ANGLE  IS -20 DEG
