Week 9 - Attachment Feature Creation - Challenge 2

Attachment Feature Creation

Objective:

Create the Dog House for the Door Trim considering the design rules mentioned in the video. Consider the thickness of the part to be 2.5 mm

Given Data:

"C" is where the doghouse contacts the backside of the surface

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• The height of ( B ) should be between 3.0 – 6.0 mm

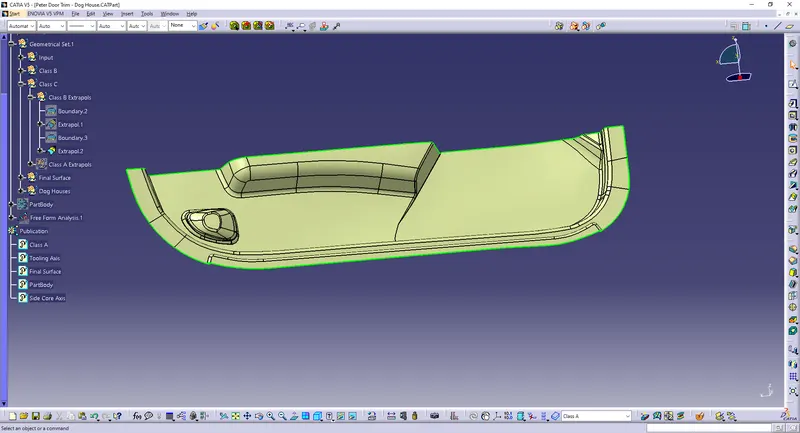

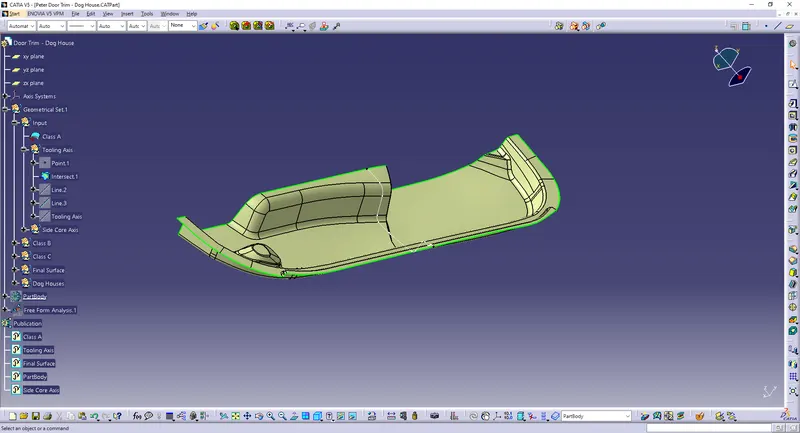

Creation of Tooling Axis:

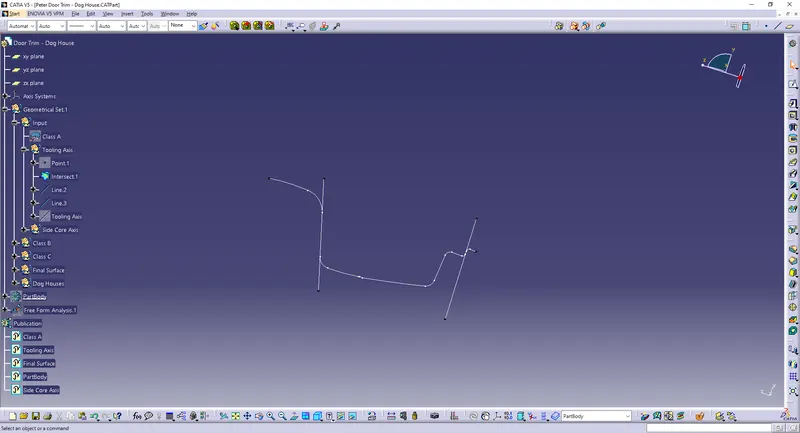

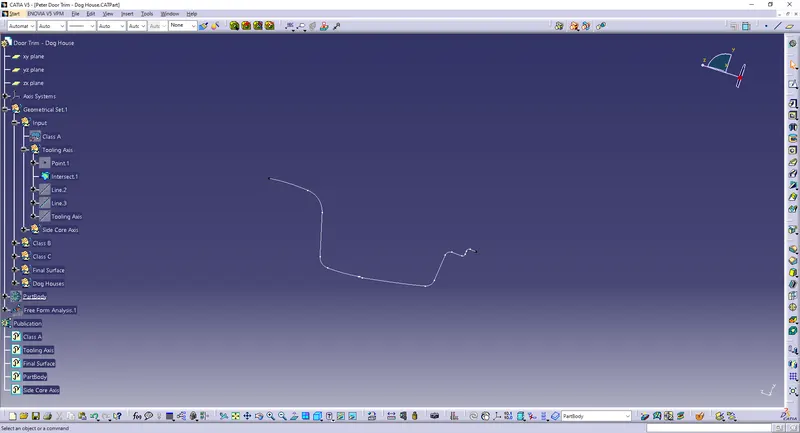

Making an intersection on the y-z plane.

Make 2 lines.

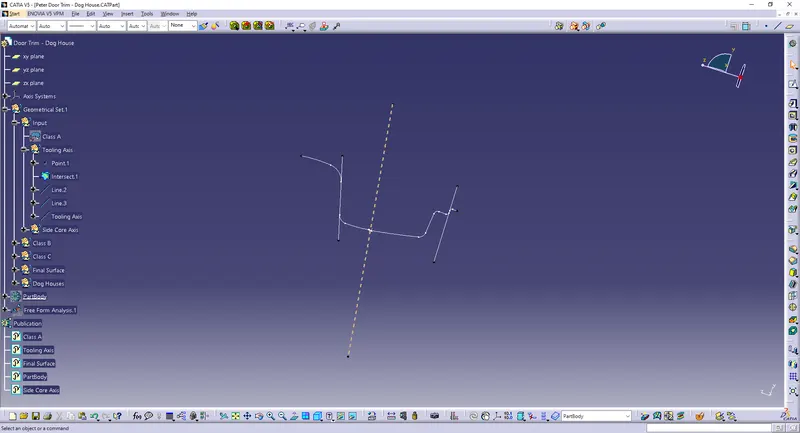

Create a bisecting line to get the Tooling Axis.

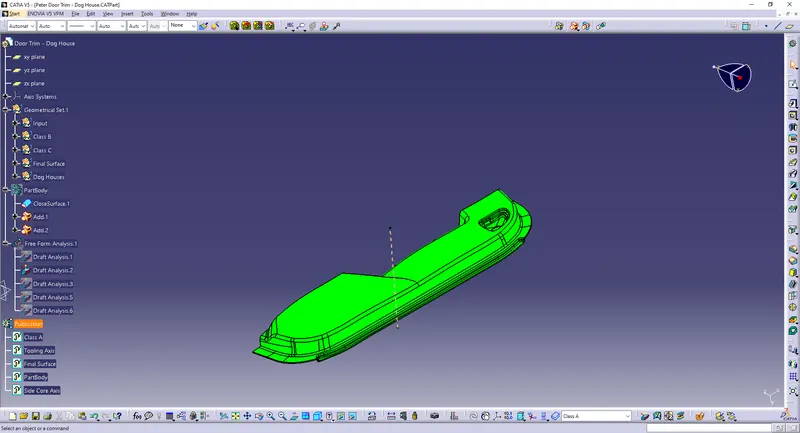

Checking the tooling axis by draft analysis.

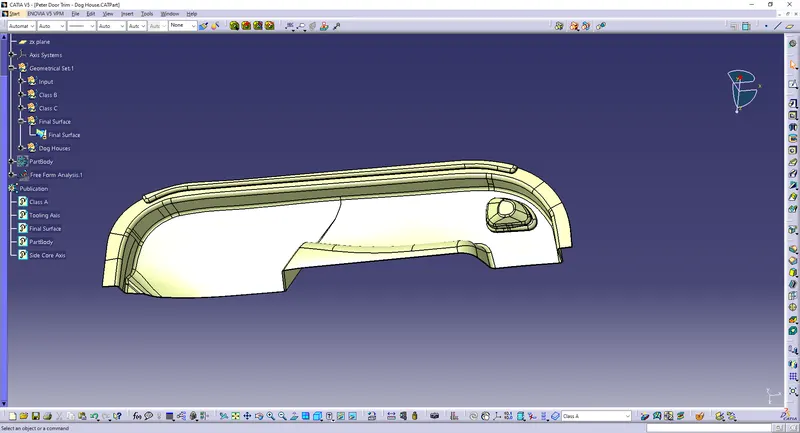

Part Design:

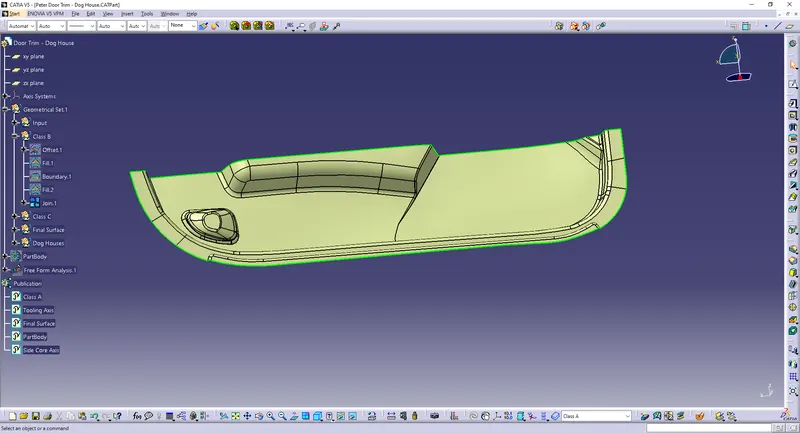

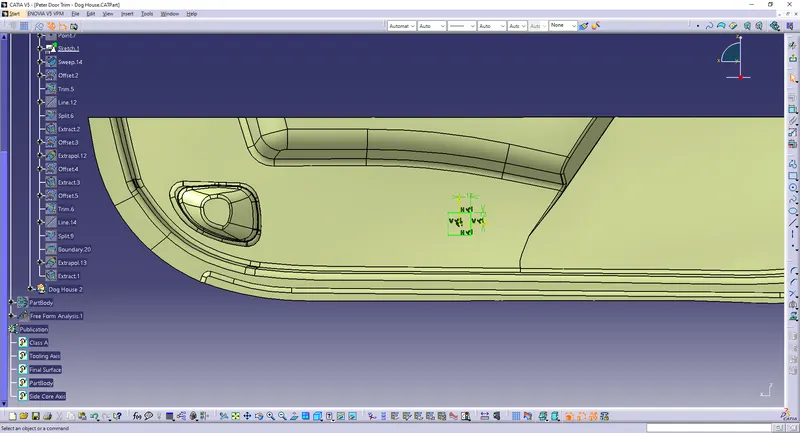

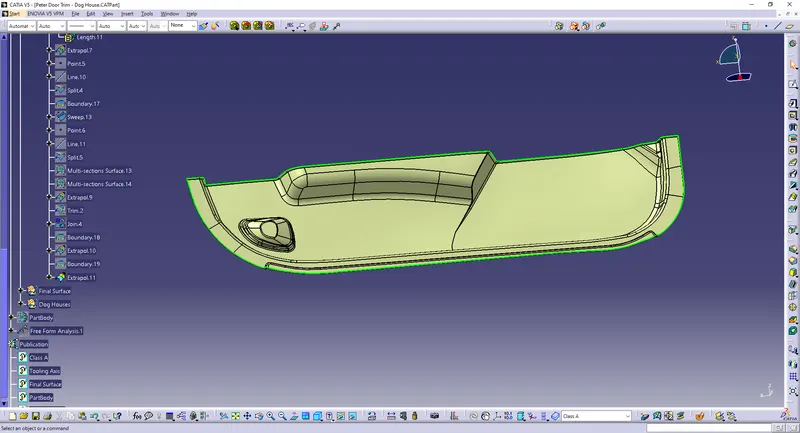

The B surface is created by an offset value of 2.5 mm:

The C surface:

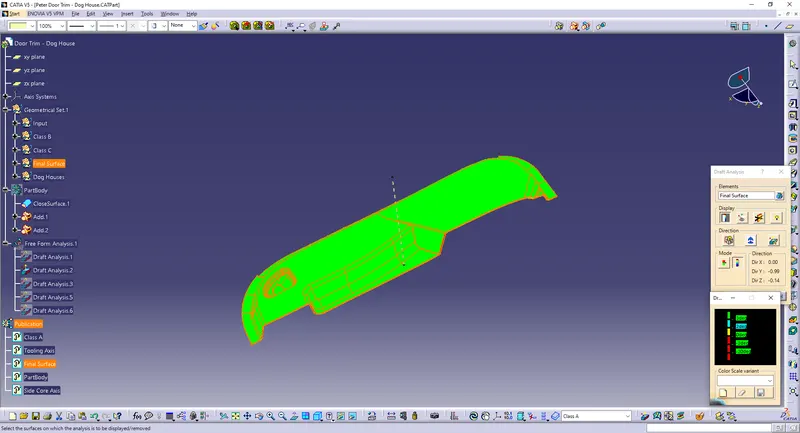

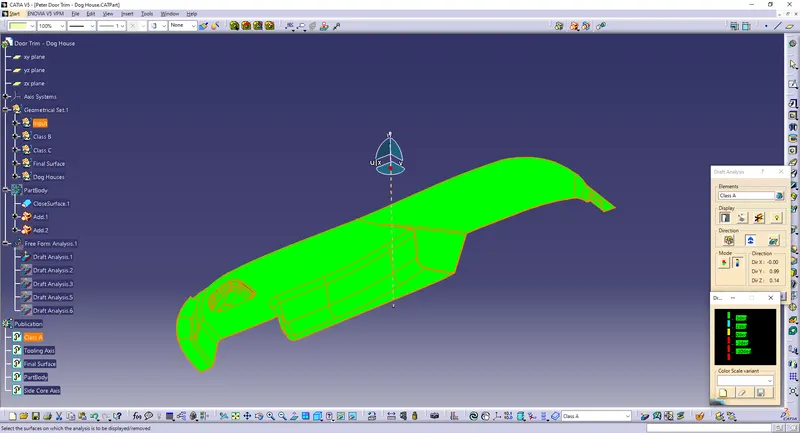

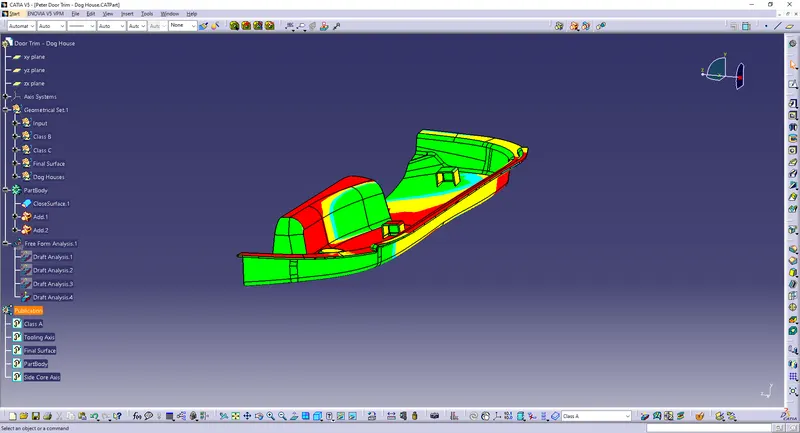

Draft Analysis:

The draft analysis is done to determine if the designed part is tool able or not. Here the tooling axis is 3°.

By using the compass option, drag and place it on the tooling axis. Click ok then check the result.

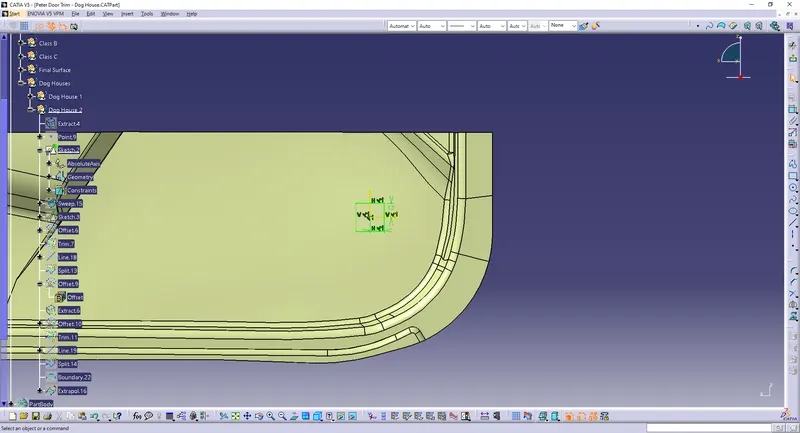

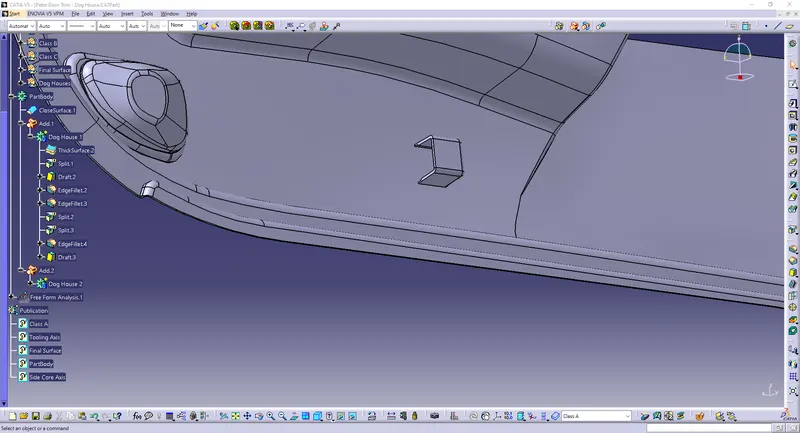

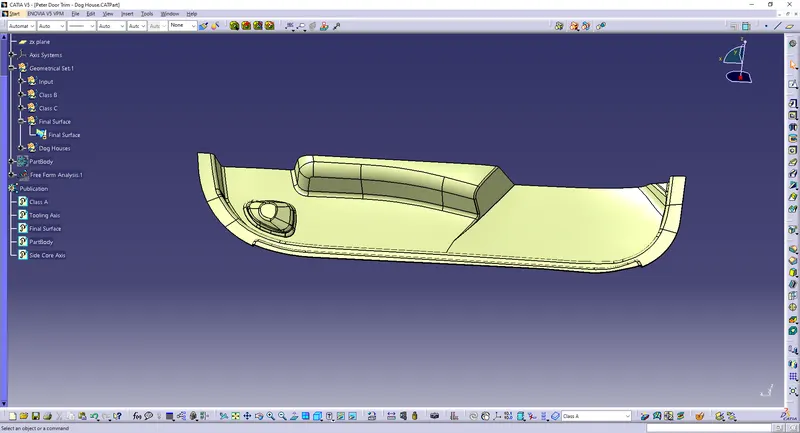

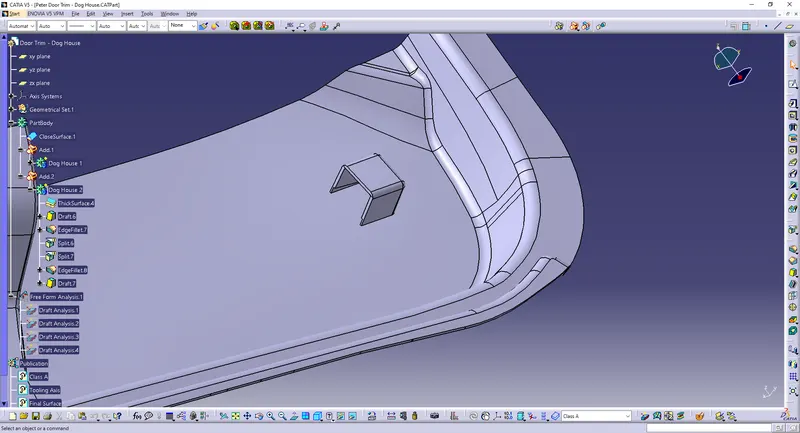

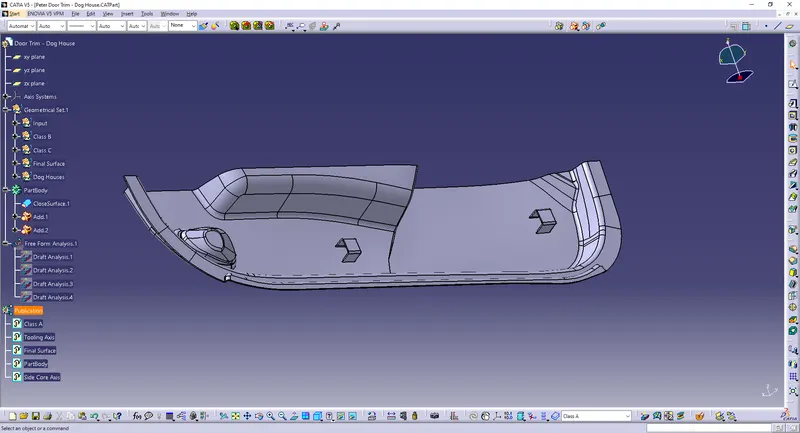

Dog Houses:

C = 40%*t = 0.4*2.5 mm = 1 mm

B = 3 - 6 mm

Wall Draft Angle = 1.5°

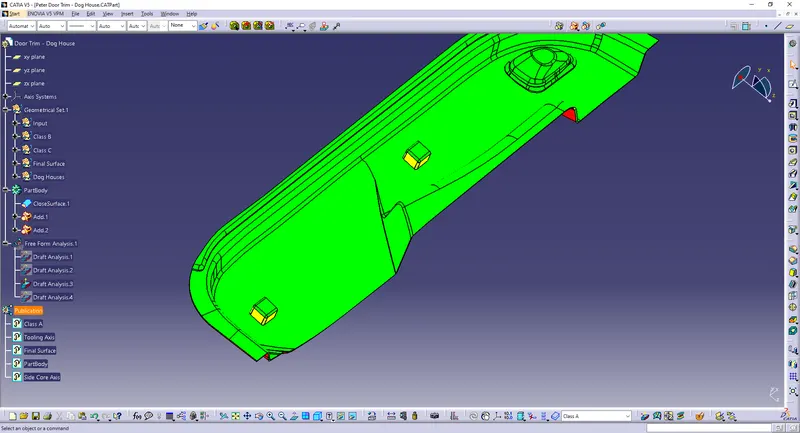

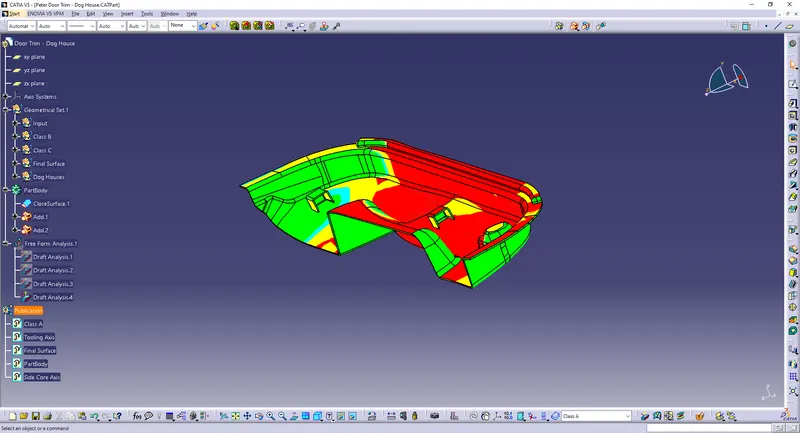

Dog Houses Draft Analysis:

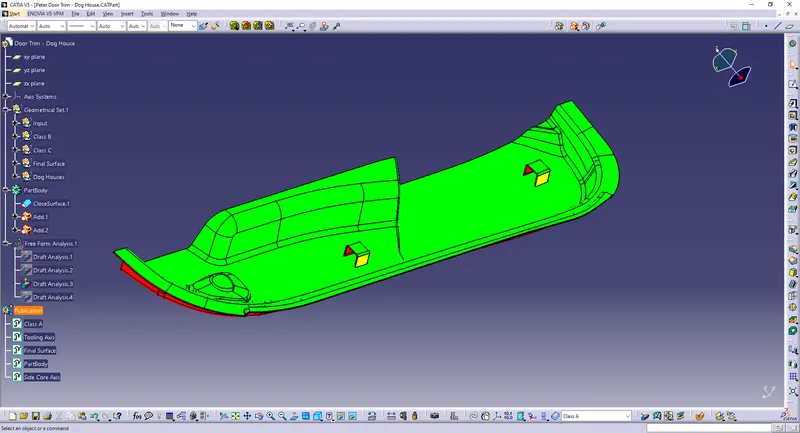

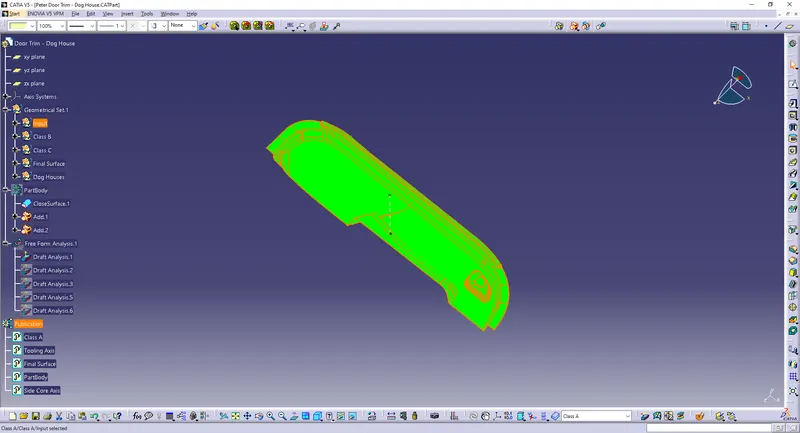

Final Draft Analysis:

The draft analysis is done to determine if the designed part is tool able or not. Here the tooling axis is 3°.

By using the compass option, drag and place it on the tooling axis. Click ok then check the result.

Conclusion:

The part has been designed as per the design requirements.
