Week 9 - Attachment Feature Creation - Challenge 2

1,

COMPLETE PART

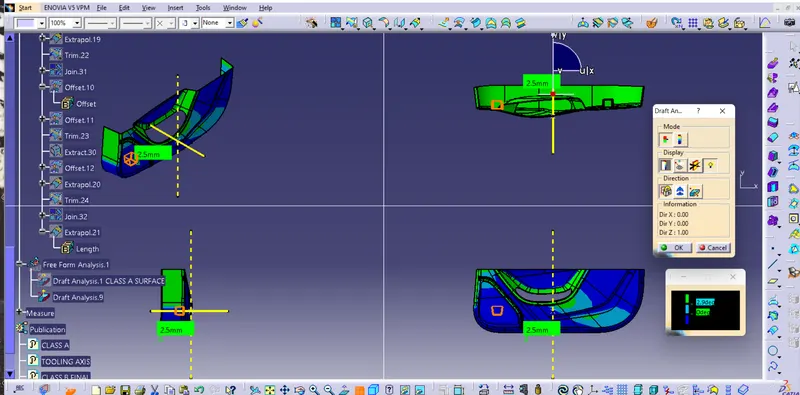

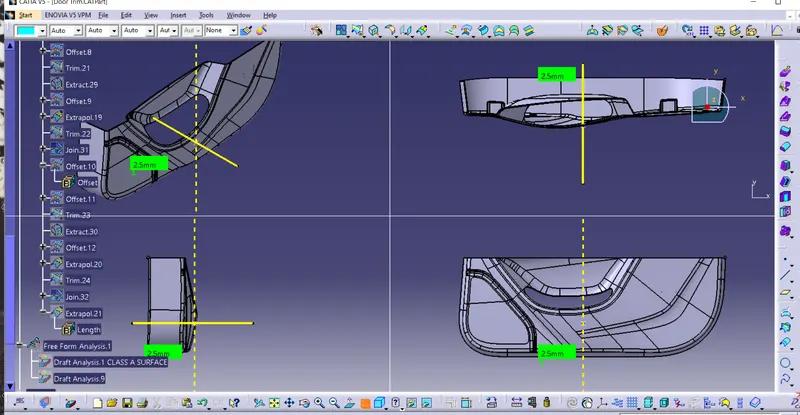

2,DRAFT ANALYSIS OF THE COMPONENT

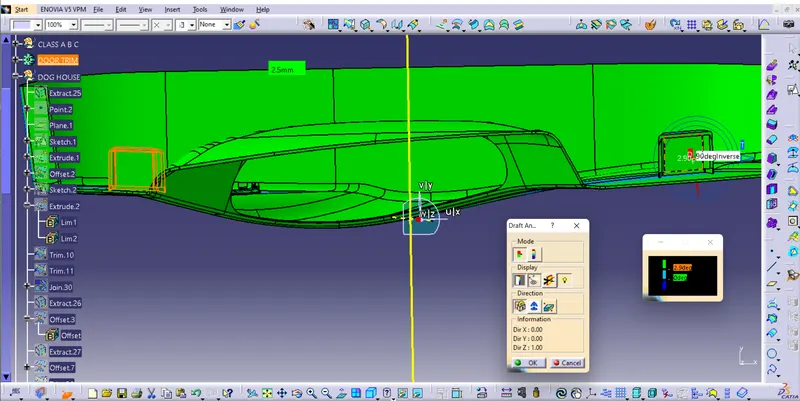

3,DRAFT ANALYSIS OF DOGHOUSE (IN SIDE CORE AXIS)

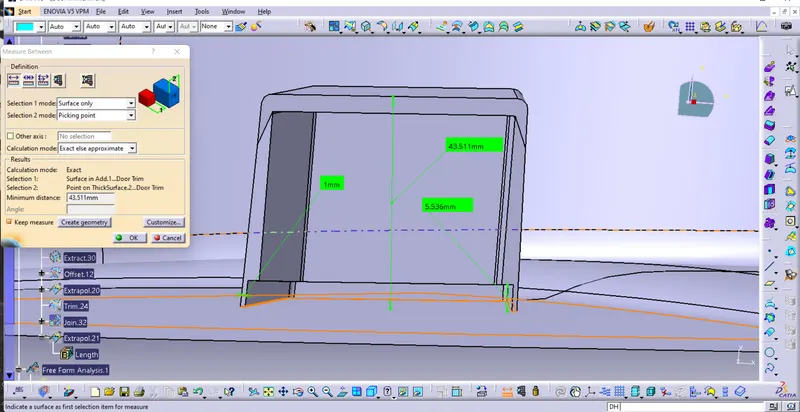

4, DOGHOUSE MEASURMENT

FINAL REPORT :-

In this given challenge Class A is not good so i chosed previous door trim for fixing Doghouse.
