Week 9 - Attachment Feature Creation - Challenge 2

Tooling Axis creation:

Using the tooling axis created along the x and y-axis, these tooling axes are used to create the tooling axis by a bisecting method where the two lines and points will be selected as inputs.

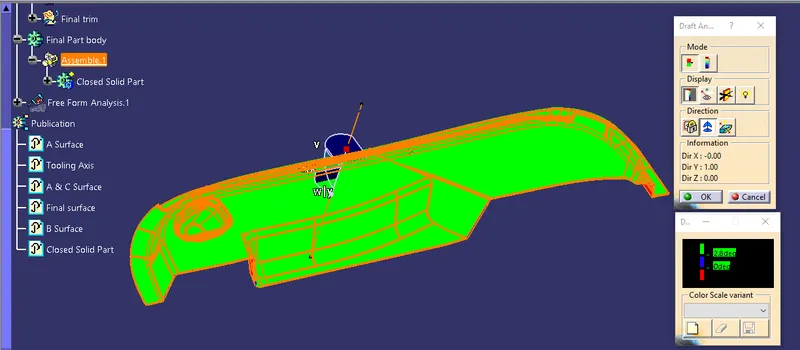

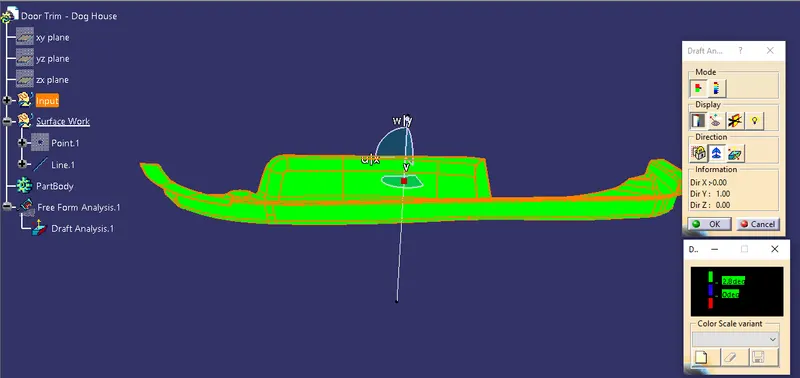

Draft Analysis:

The Draft Analysis command lets you detect if the part you drafted will be easily removed. This analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point corresponds to specified values.

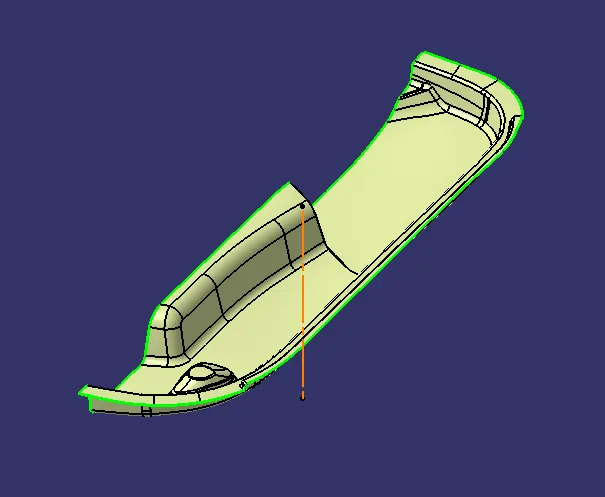

CLASS B SURFACE

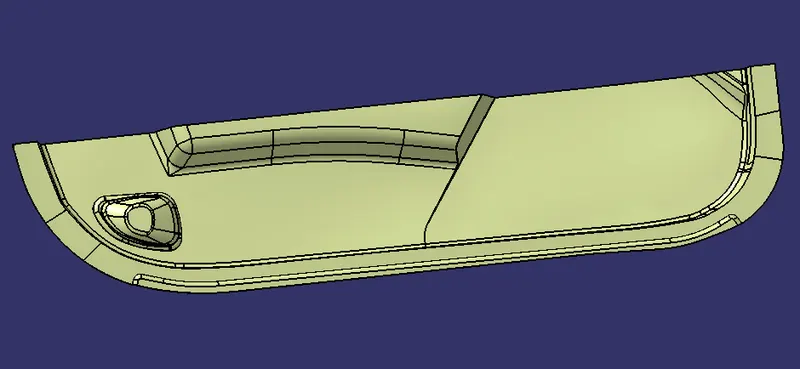

CLASS A AND C SURFACE

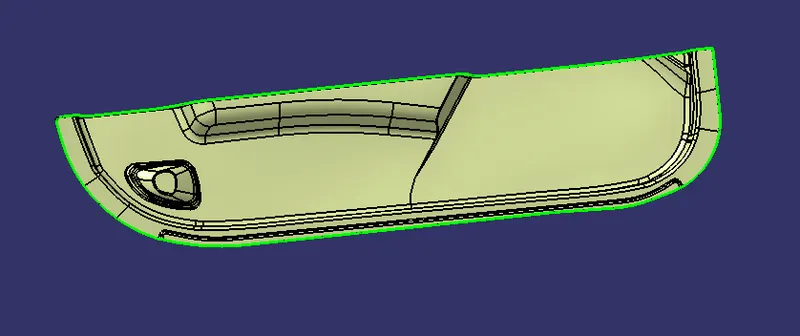

FINAL PLASTIC

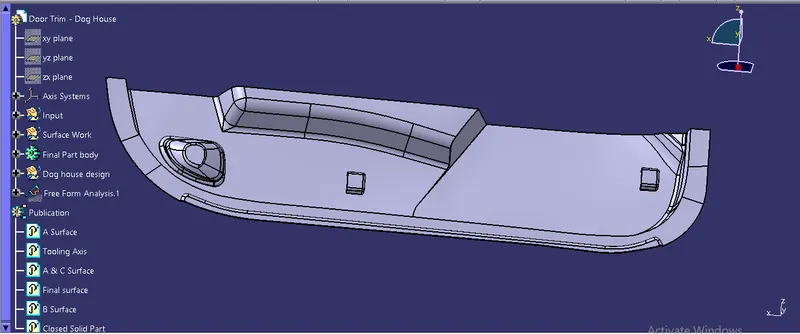

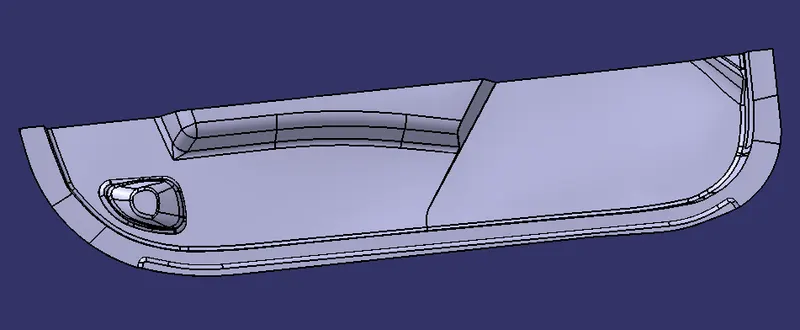

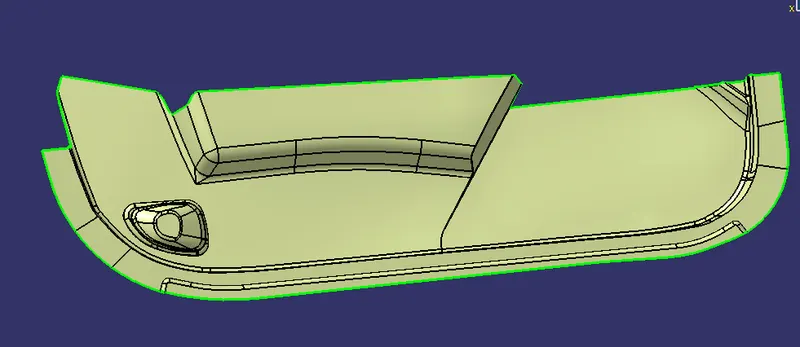

DOOR TRIM WITH B SIDE FEATURES
