Week 8 - Challenge 2 - Switch Bezel Design

1.A detailed report should be done explaining the draft analysis and the tooling axis creation.

Draft analysis on Class A surface of Switch Bezel below-

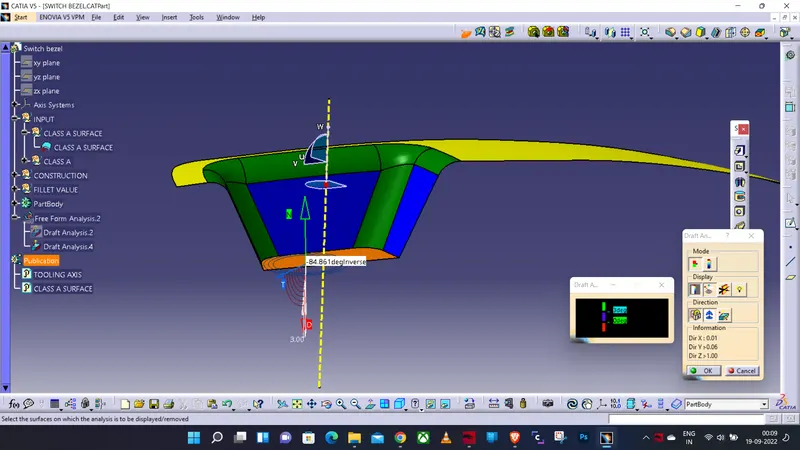

Step 1- Open draft analysis and move the compass to coincide with Tooling axis as below

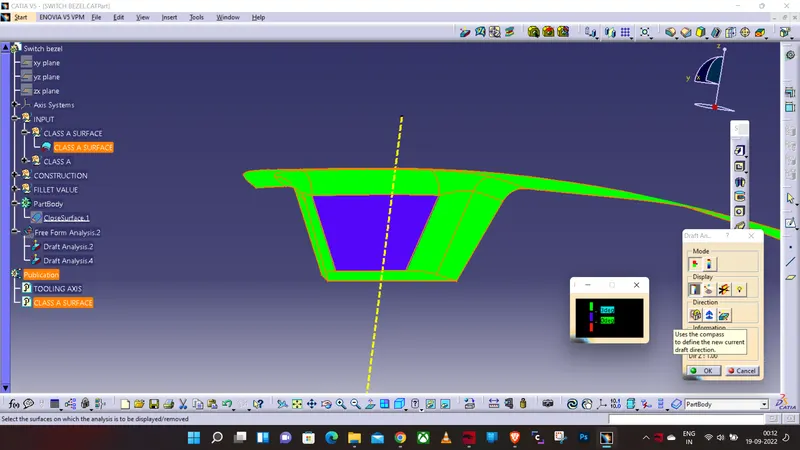

Step 2- Lock the compass and check the radius using the running analysis option-

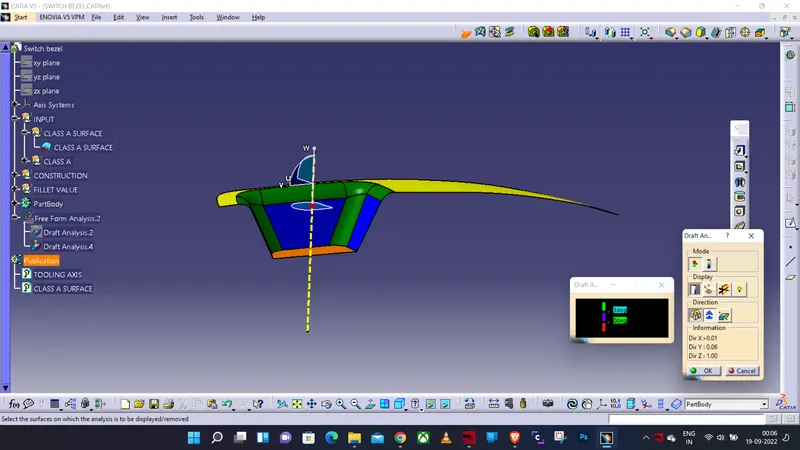

Step 3- Set the color code for the draft angle i.e green for above 3 degrees, Blue for 0-3 degrees, and red for angle value lesser than 0.

Step 4- Click on the surface using light effect, if the color goes green throughout means your draft analysis is good and ready for manufacture-

Now Creating Class B and Class C surface for switch Bezel-

2-An explanation should be given on the way of creating the tooling axis, particularly the Bisecting method.

ANS- Tooling Axis-

Now creating the tooling axis by using bisecting line and a dummy axis-
1. open the file which contains the Class A surface, after creating a geometrical set "Tooling Axis" then select the most appropriate position, and in this select a base of the tab/pocket.

2. Then create a point at the surface extracted then draw a dummy line on the z-axis.

3. After that create a plane on the point created with reference to XY plane direction.

4. Then select the intersect tool that gives the intersection on the Class A surface.

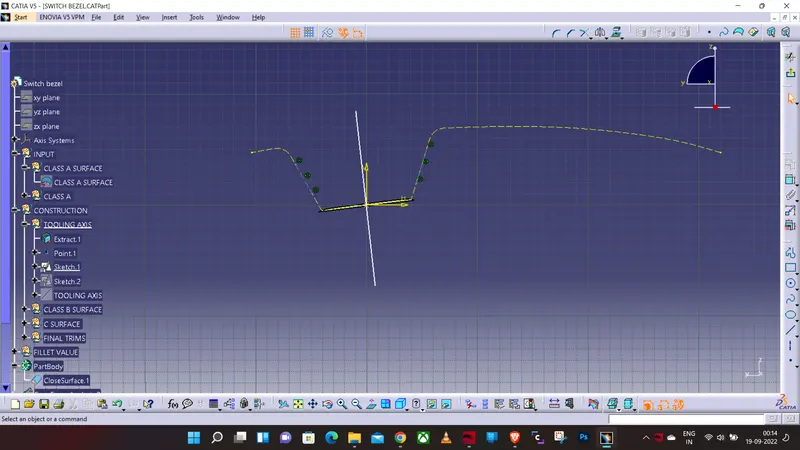

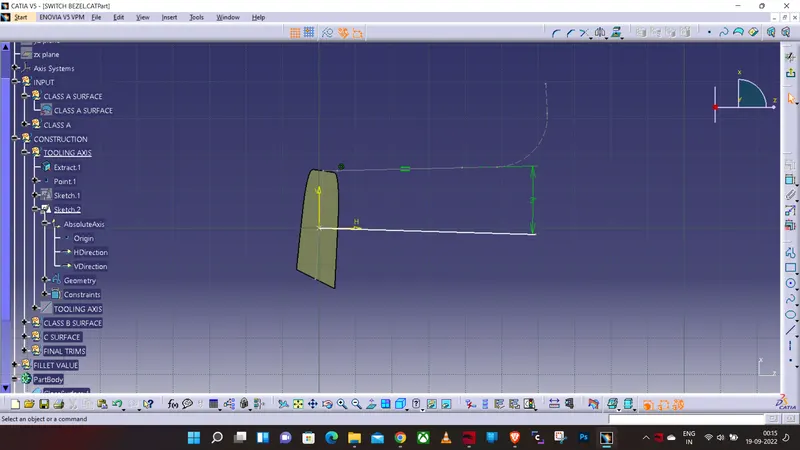

5. Now create 2 lines using the point and direction method as shown below screenshot.

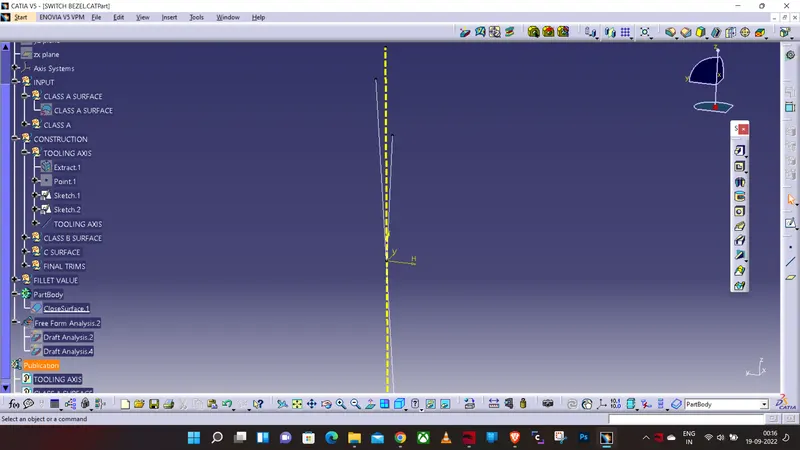

6. the Last step creates a bisecting line using the above 2 lines.

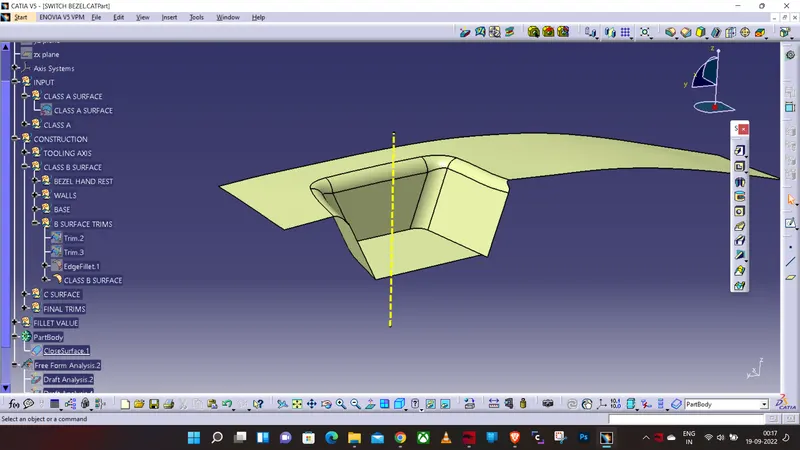

CLASS B SURFACE

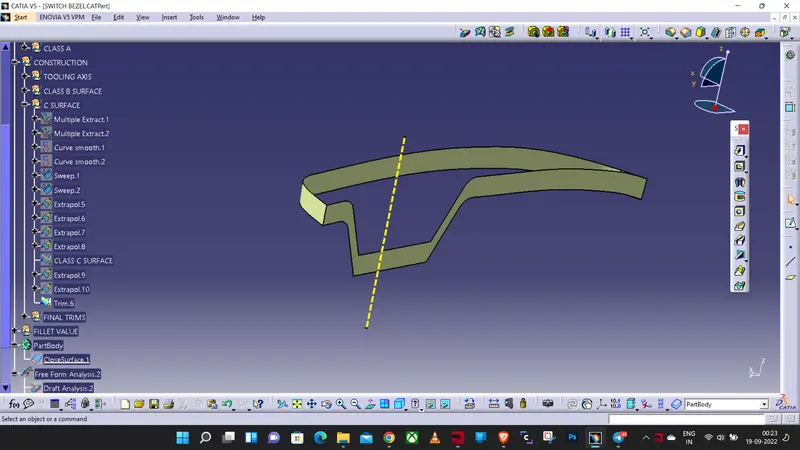

CLASS C SURFACE

SWITCH BEZEL

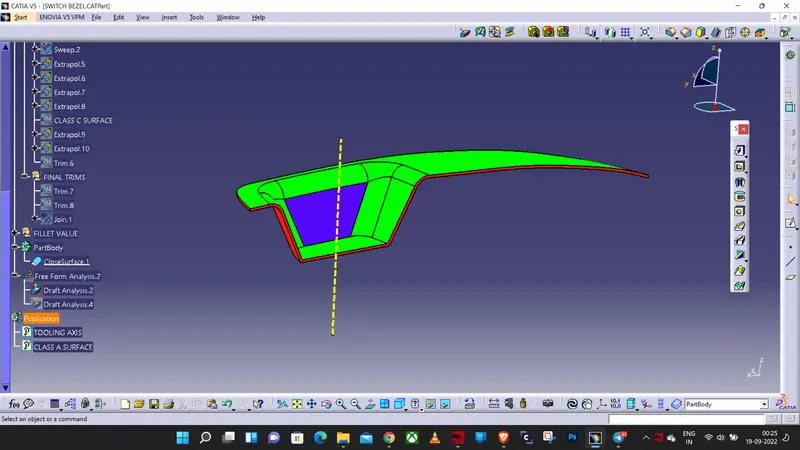

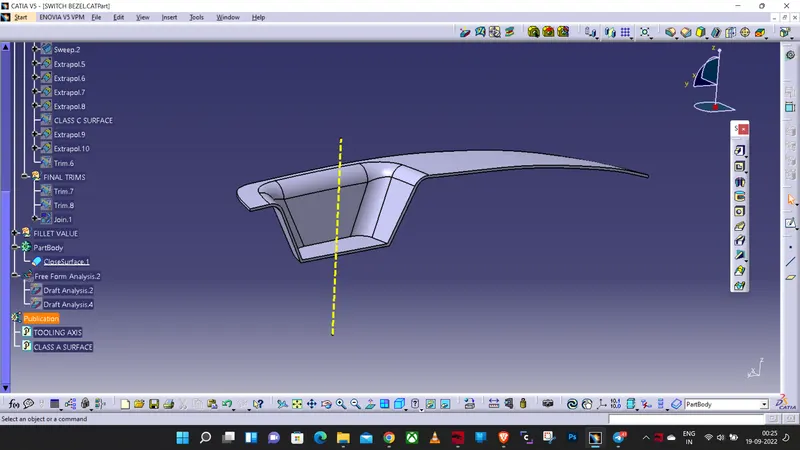

SWITCH BEZEL FINAL DRAFT ANALYSIS
