Week 9 - Attachment Feature Creation - Challenge 2

AIM: To create the Dog House for the Centre console coin holder by considering the design rules.

OBJECTIVE:

"C" is where the doghouse contacts the backside of the surface

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).
• Height of ( B ) should be between 3.0 – 6.0 mm

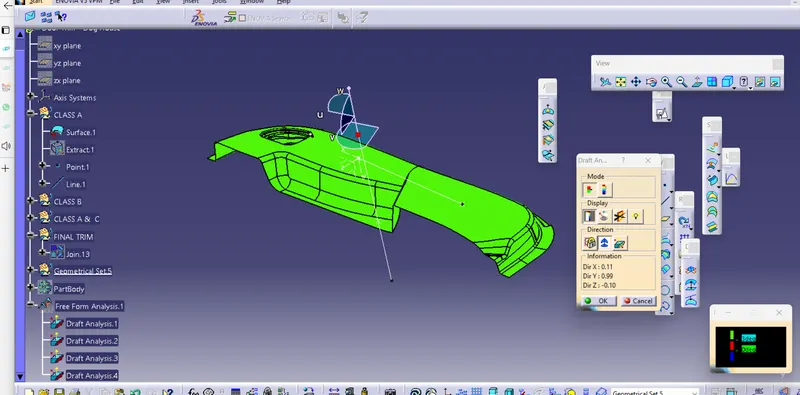

CLASS A SURFACE TOOLING AXIS

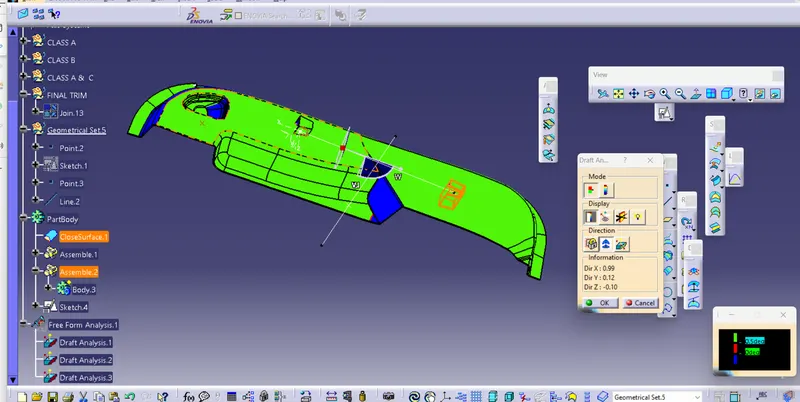

CLASS SURFACE SOLID BODY OR CLOSED BODY TOOLING AXIS

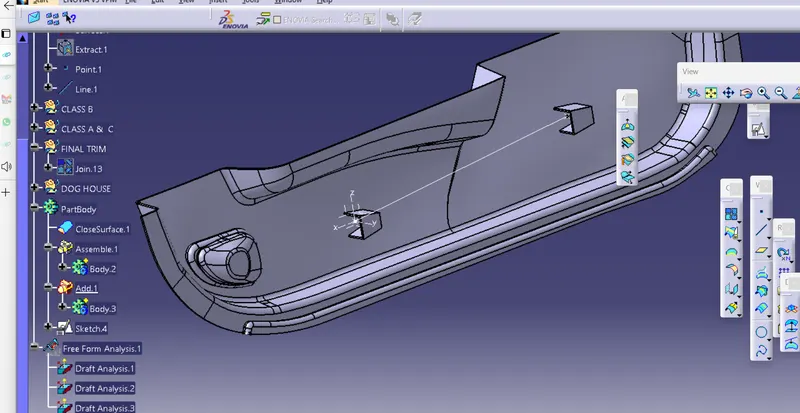

CLASS SURFACE DOG HOUSE TOOLING AXIS

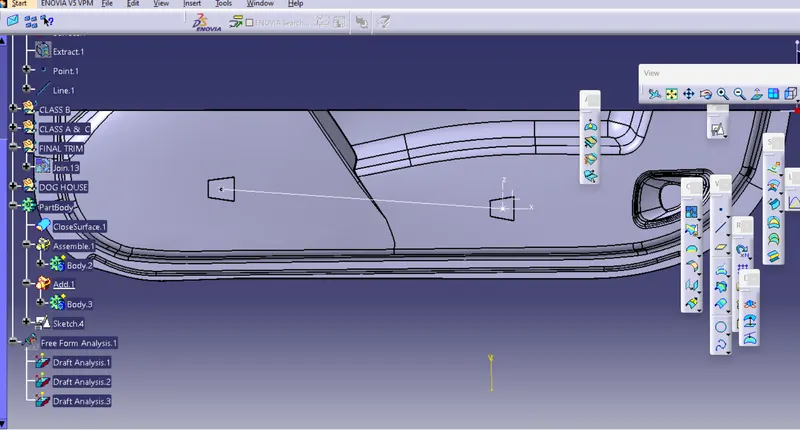

ISOMETRIC VIEW

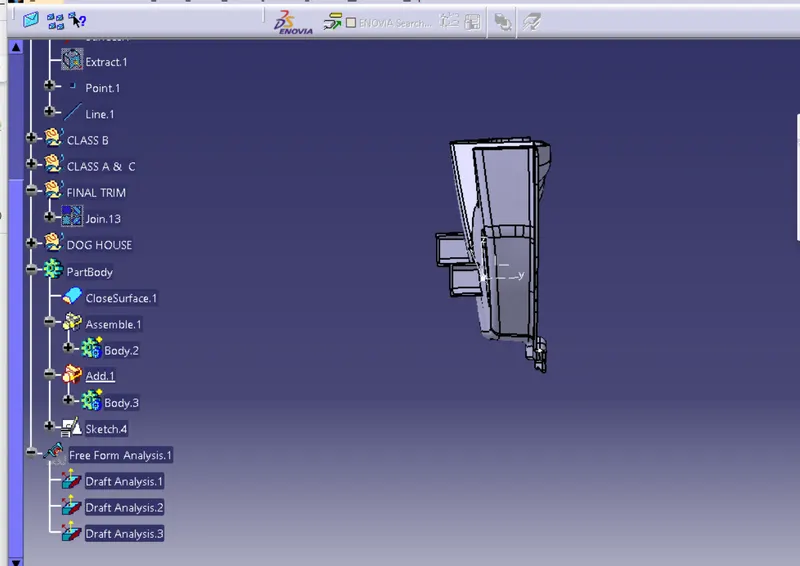

FRONT VIEW

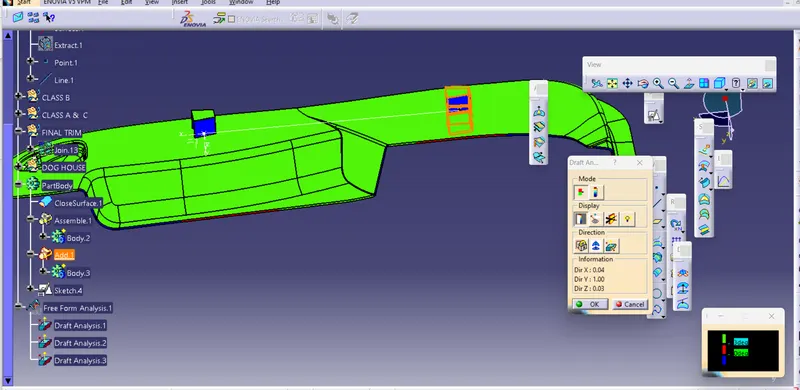

SIDE VIEW

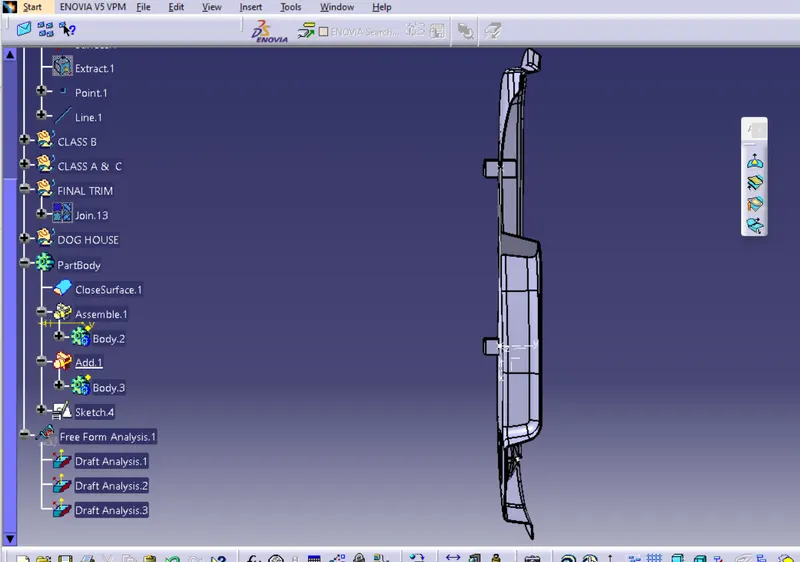

TOP VIEW

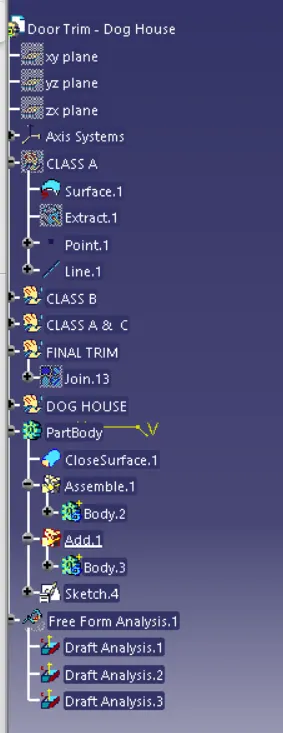

TREE STRUCTURE
