Week 9 - Attachment Feature Creation - Challenge 2

General guidelines that need to be followed while designing the dog house:

• Doghouse wall thickness at the intersection of the part wall (C) should be 40% or less than the main wall stock (T).
• "C" is where the doghouse contacts the backside of the surface.
• Height of (B) should be between 3.0 - 6.0 mm • Sketch the dog house profile and extrude.
• Add thickness of 2mm.
• Provide 0.5° draft on the faces with side the tooling axis as pulling direction.
• To form the "C" profile offset the base at 4mm and extrude the dog house then offset it by Imm use trim to get the profile (The length for C will be 1mm).
• Then split it with the thickned solid.
• Provide draft on the inner faces.
• Give 1mm fillet on inner surface of house and 3mm on outer.
• Translate the boss on top of dog house.

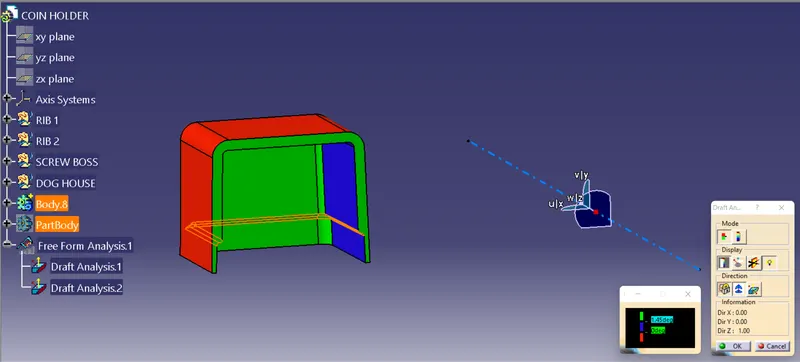

Draft Analysis Report:

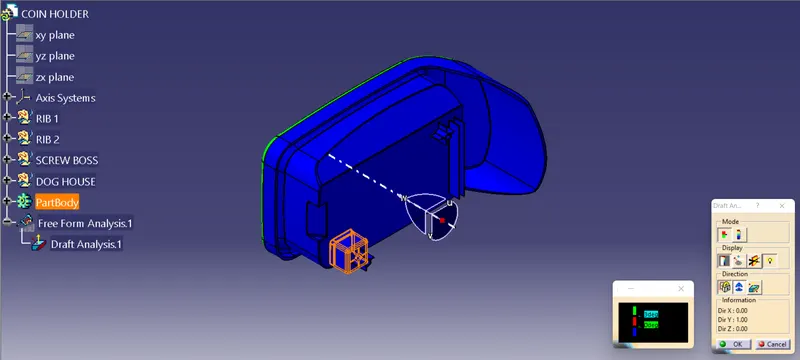

• For the draft analysis go to Insert Analysis-Feature Draft Analysis and make sure the view mode is on material
• Inline the compass with the Tooling Axis and lock then click on the solid part we will get the draft analysis the minimum draft required is of 3 degrees
• When we click on the part it will turn green that means the required draft angle is maintained
• We can change the value of draft angle from the colour scale table and the model will change the colour accordingly
• We can also analyse the draft at a particular point on the body by moving the mouse cursor on the surface

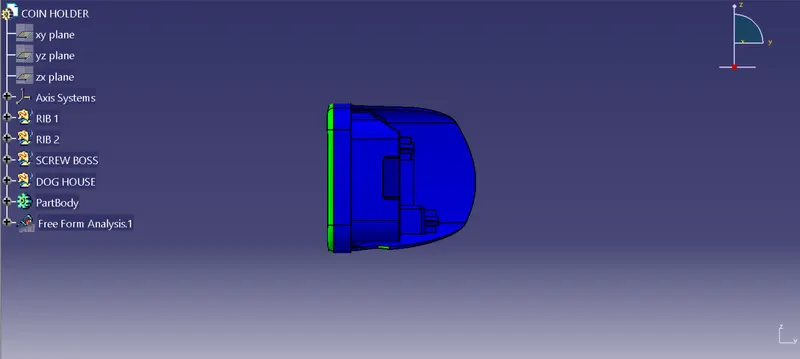

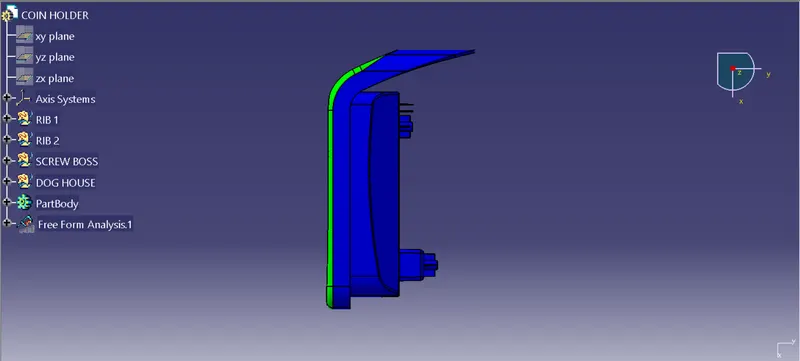

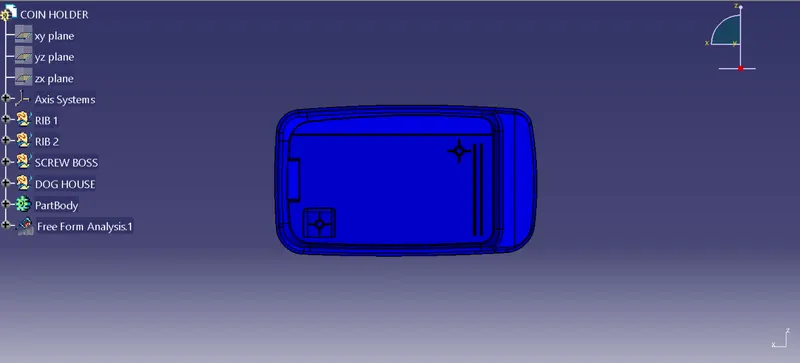

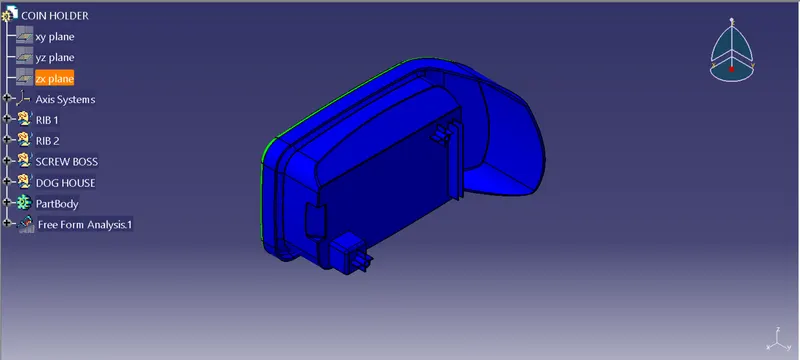

Orientations:
