Week 9 - Attachment Feature Creation - Challenge 2

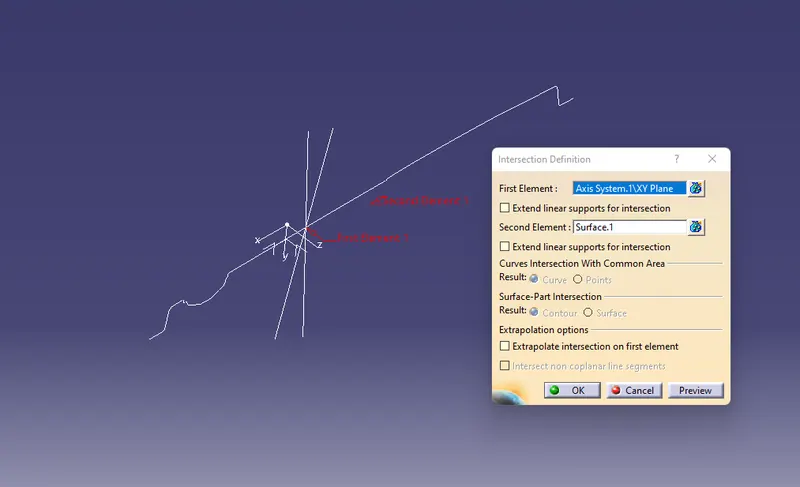

creation of tooling axis in x direction by crating line at some angle to extended line from the intersection

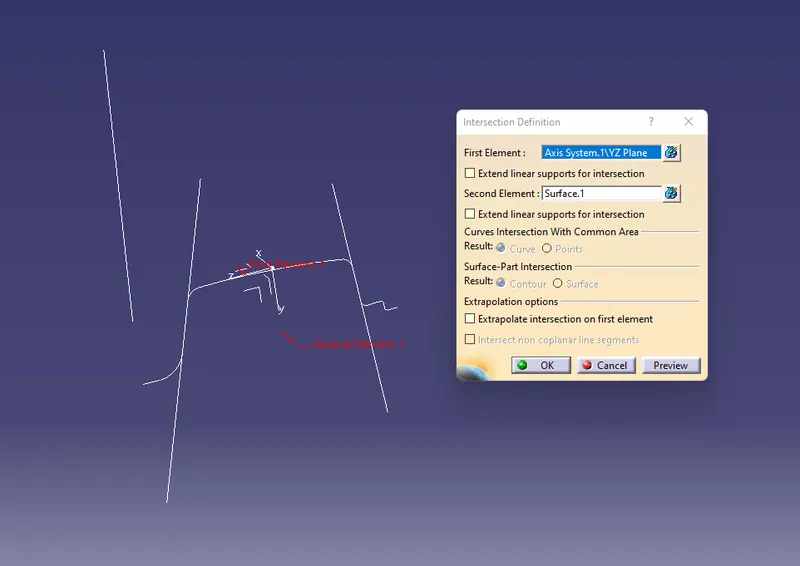

creation of tooling axis which clears the z direction by using the intersetions of the zy plane and switch bezel

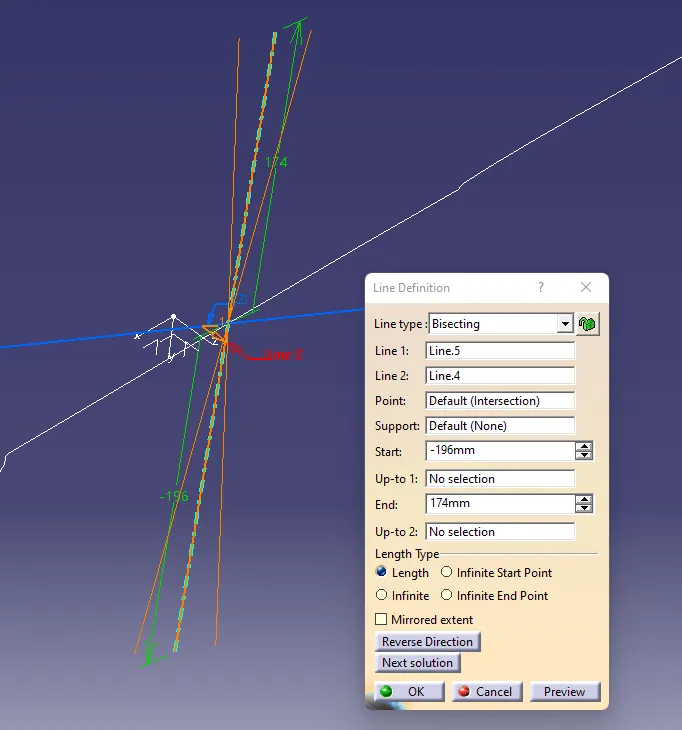

creation of tooling axis in y direction by bisecting the extended line of intersection lines of previous oparetion

creation of of main tooling axis in by bisecting the both tooling axis lines

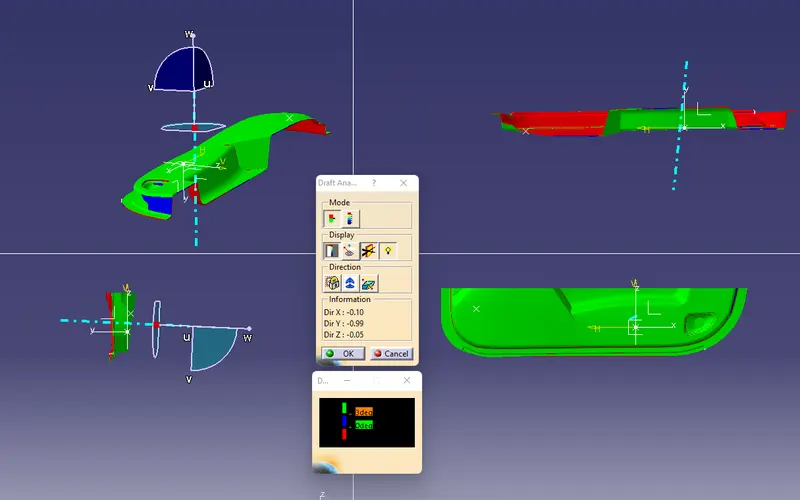

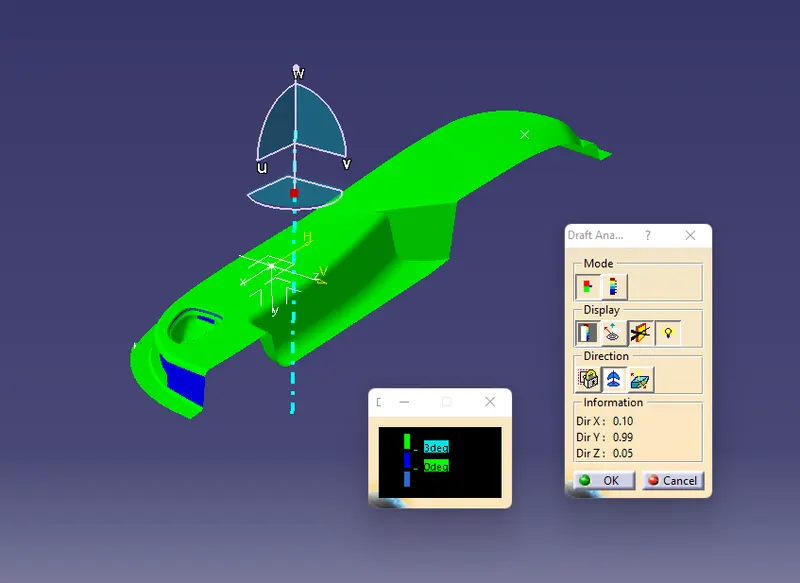

draft analysis is made class a surface amd final plastic product by using main tool axis by locking the compass in toolling direction to clear all surface of class-a and final plastic product surfaces if not changing the tooling direction angle and checking draft analysis to clear surfaces.

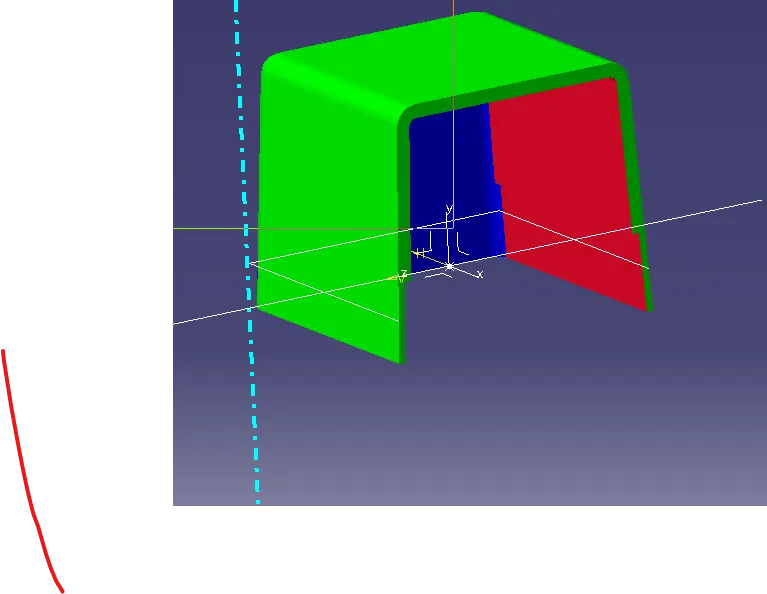

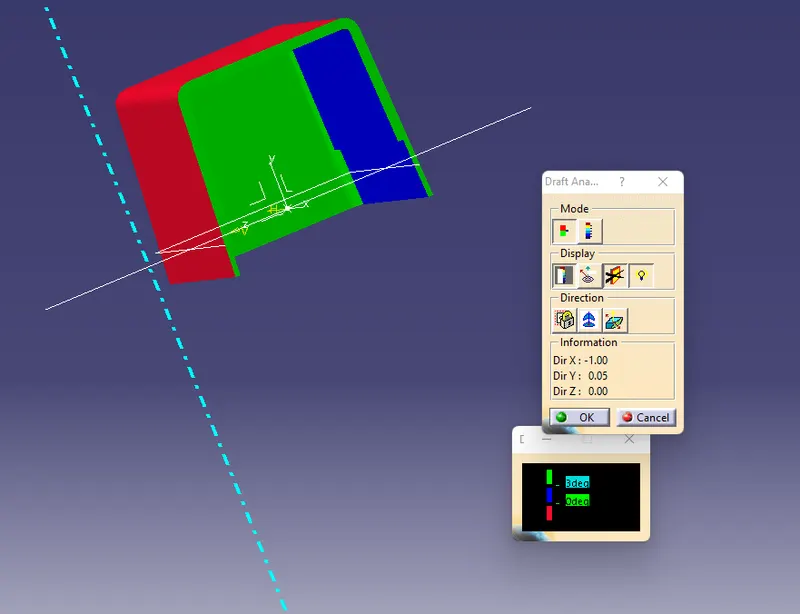

draft analysis on dog house also made in the same way in two different direction in two different tooling directions

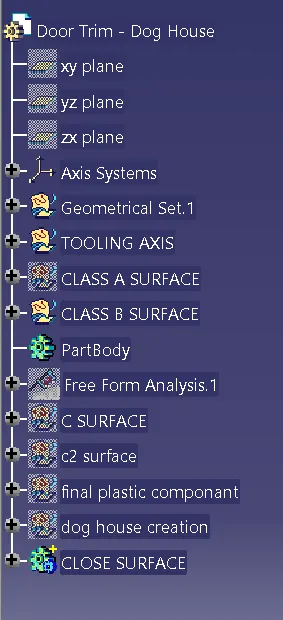

tree structure
