Week 9 - Attachment Feature Creation - Challenge 2

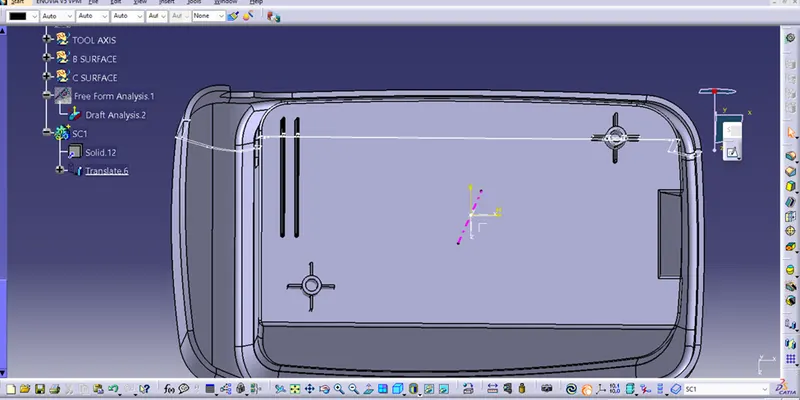

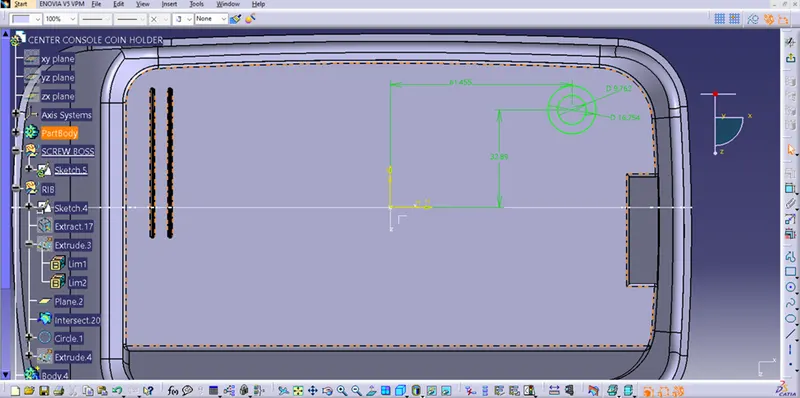

Figure shows the screw boss on the coin holder with the inner and outer diameter of 5.2 mm and 8.2 mm

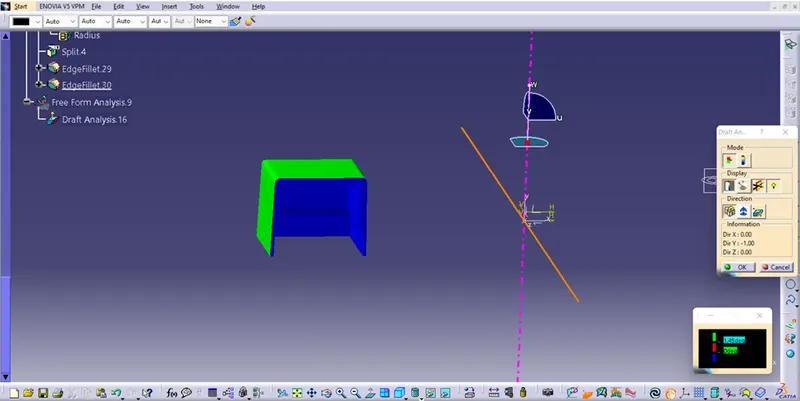

Draft analysis were performed with the main tool axis, the outer surface are projected 3 degree from the tooling axis and inner surface is undercut

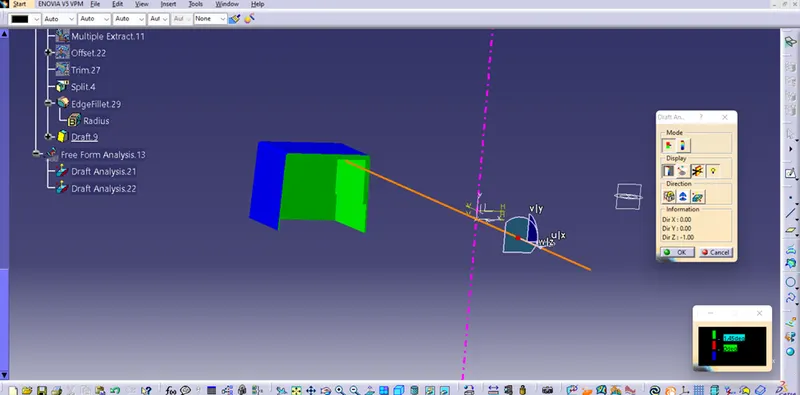

In order reduce the undercut inside dog house, the side core draft analysis is performed and their results are shown in Figure

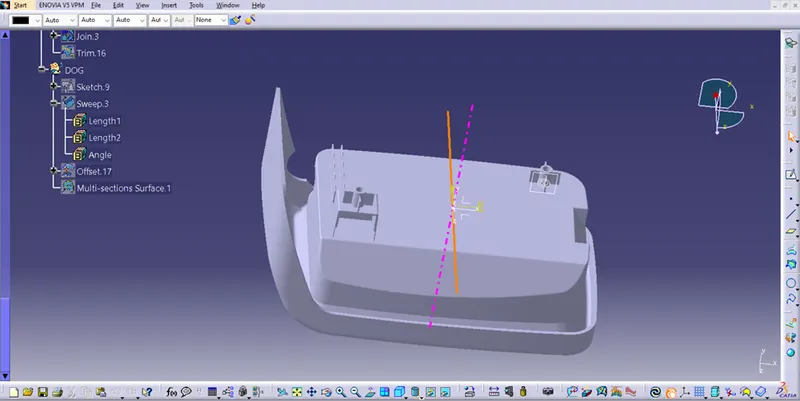

Figure shows the screw boss at the top of dog house
