Week 9 - Attachment Feature Creation - Challenge 2

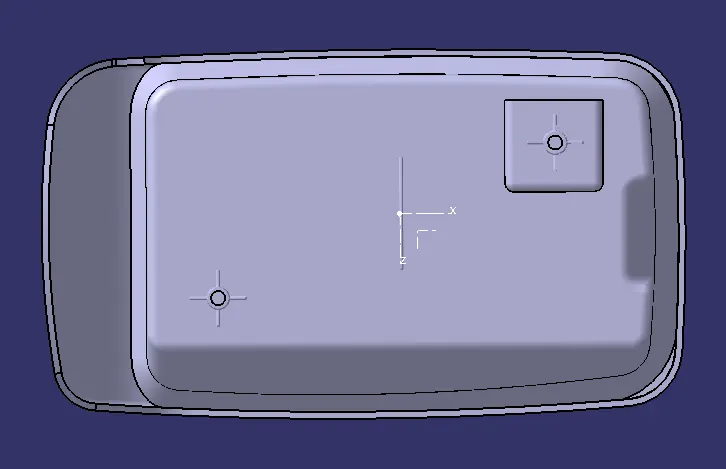

Screw boss creation.

Draft analysis of Screw boss.

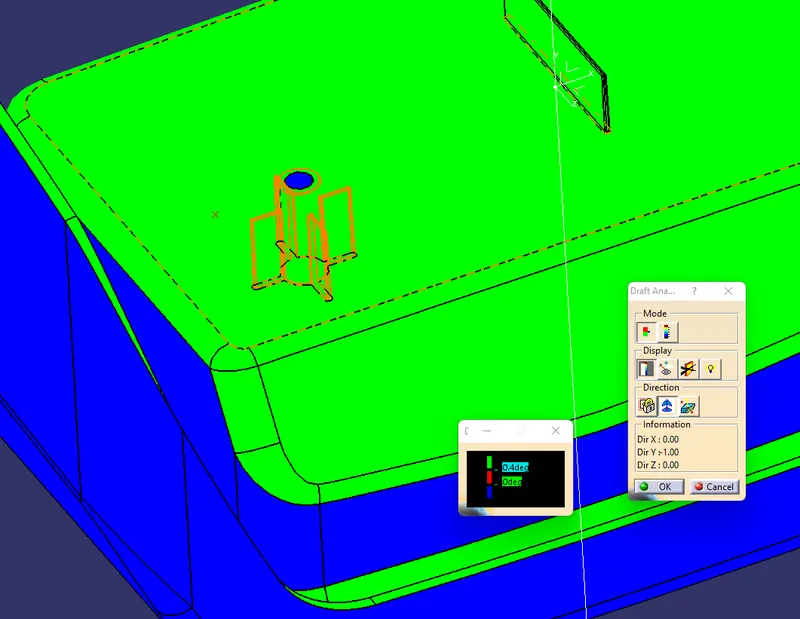

We ccan absorb in the image that the screw boss and Ribs are in Green WRT to tooling axis so it is Feasible to manufacture.

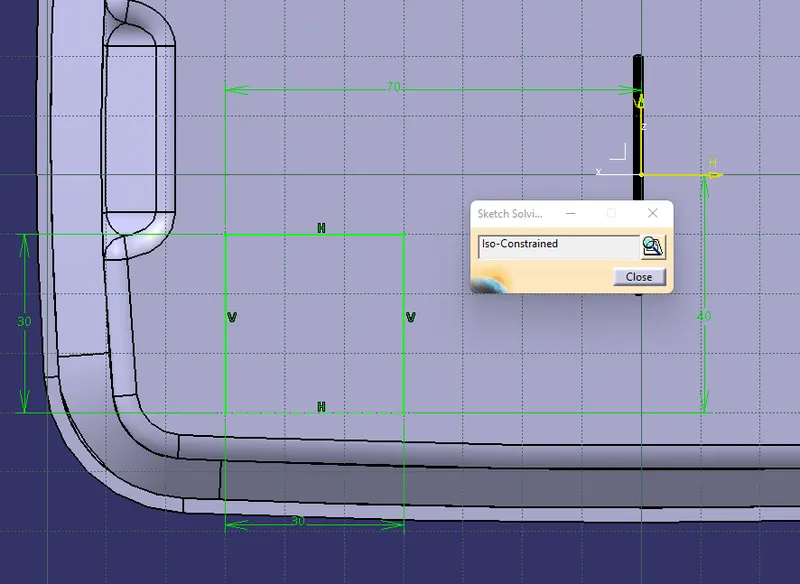

Dog house iso constrain.

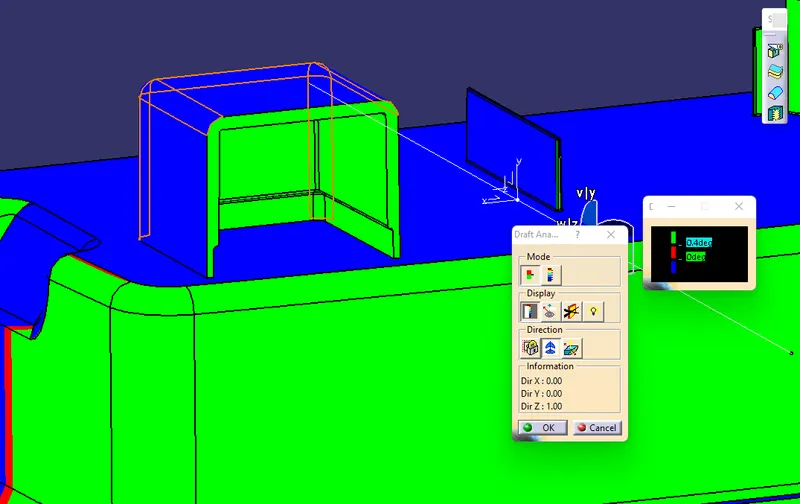

We can see in the below image that draft analysis of the outside Dog house WRT tooling Axis.

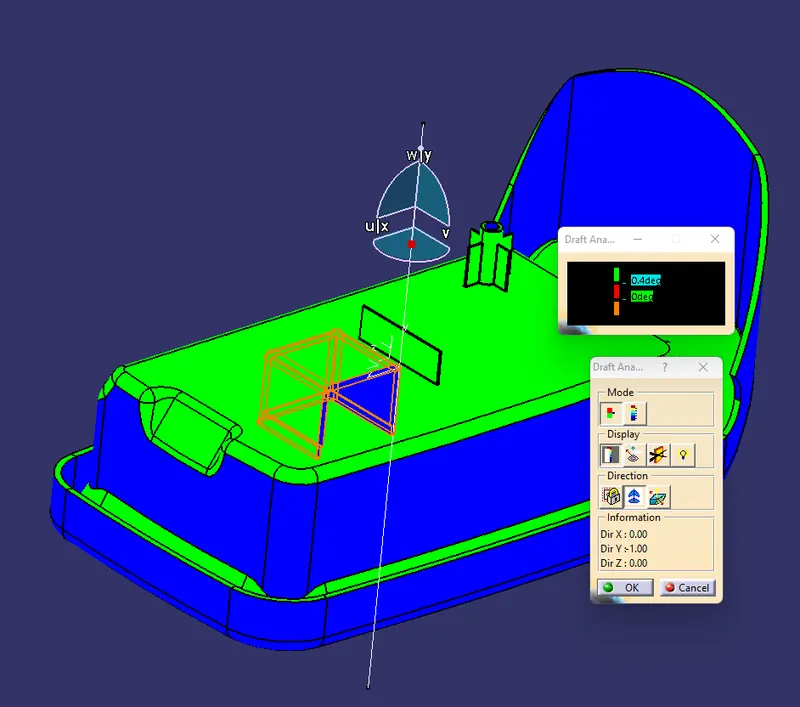

Draft analysis of the inside Dog house WRT to side core tooling axis.

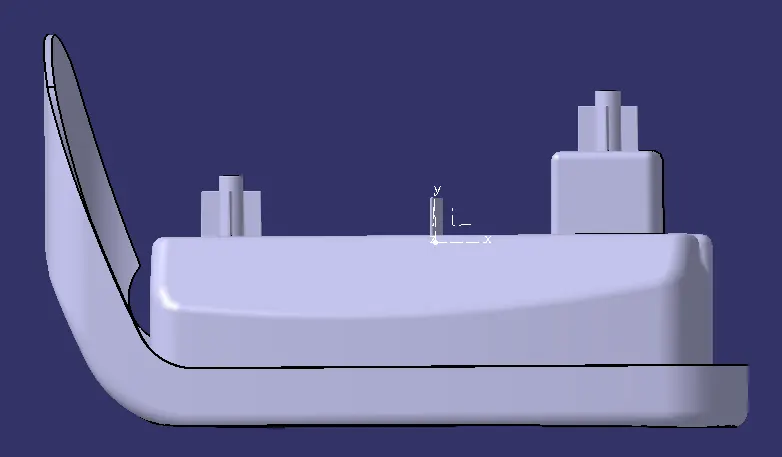

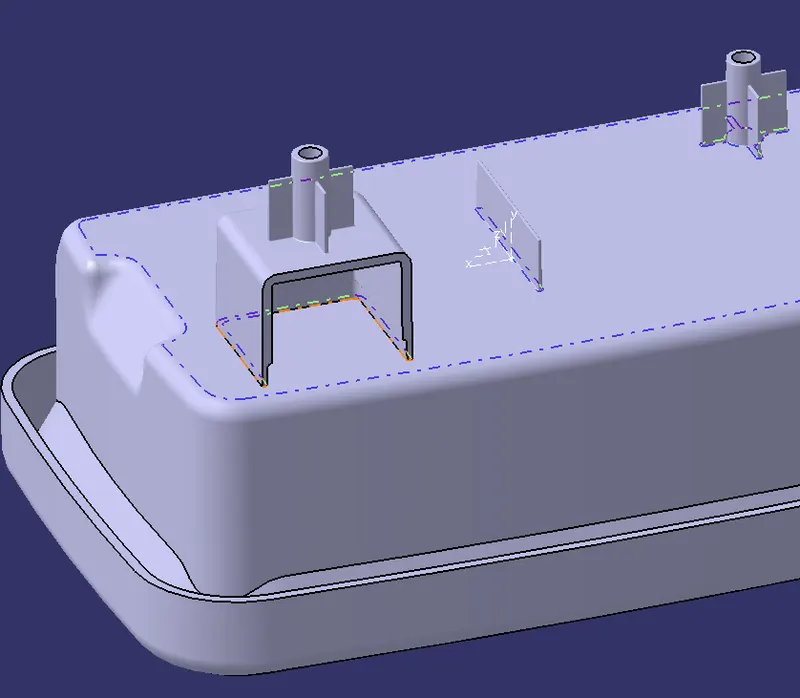

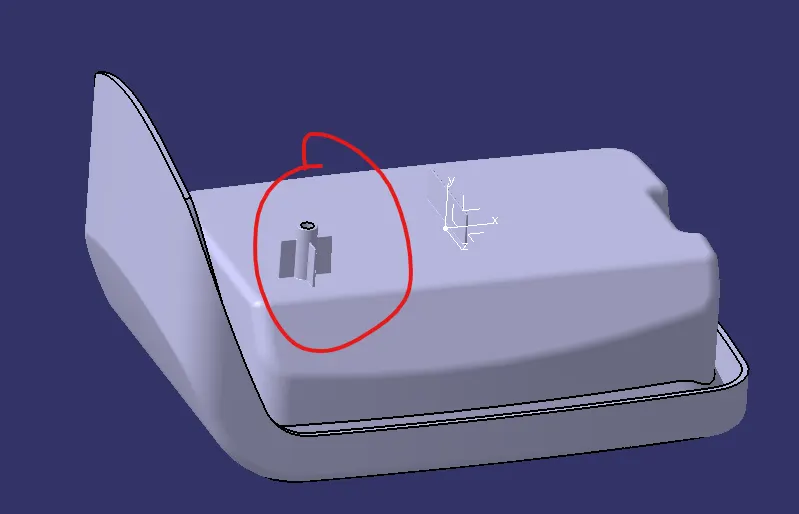

Screw boos with Dog house.
