Week 9 - Attachment Feature Creation - Challenge 2

Views:

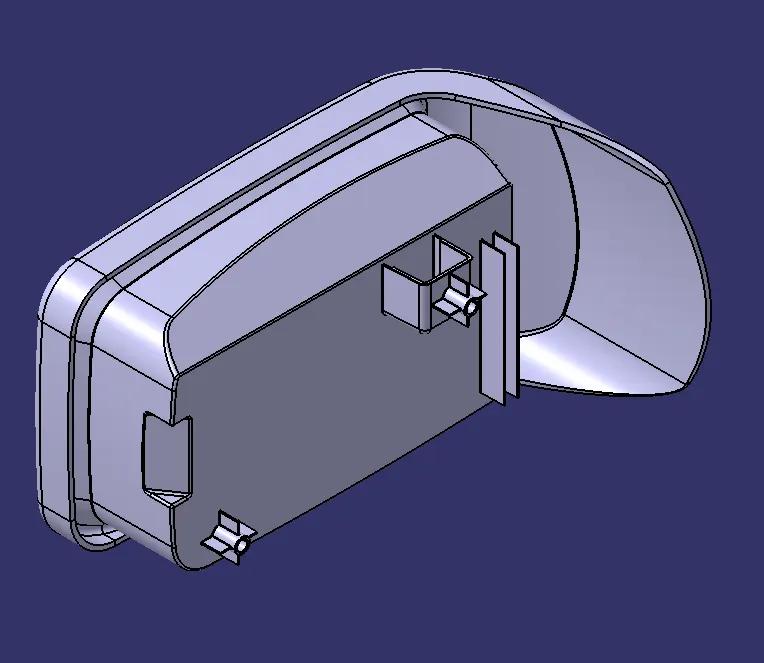

Isometric:

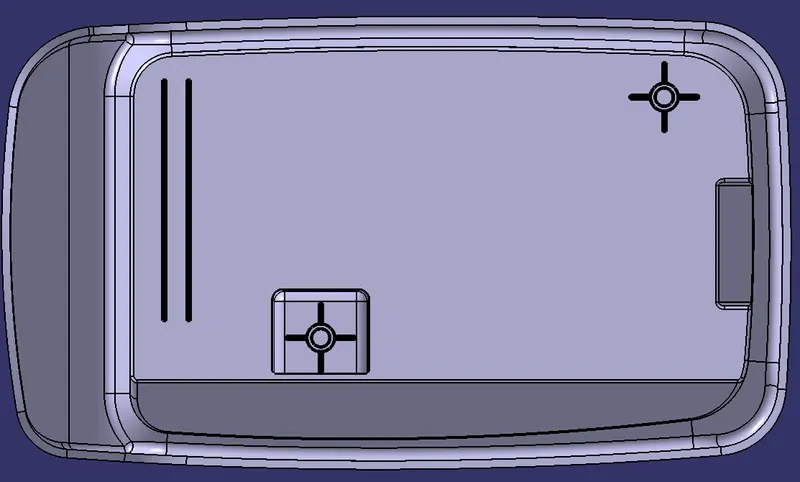

Bottom:

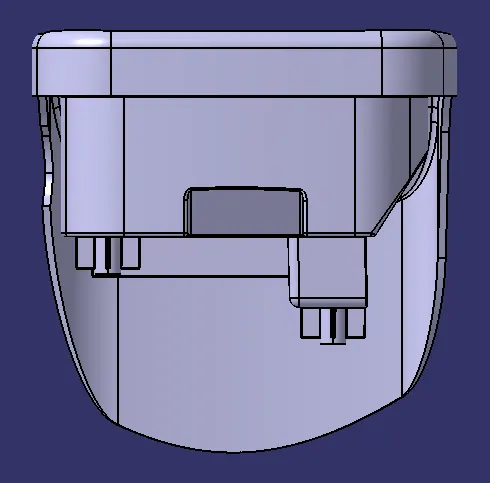

Front:

Tooling axis creation and Draft analysis:

The design of the screw boss and the dog house are done considering the design guidelines. They were designed considering the minimum draft of 0.5 degrees. The tooling axis of the doghouse is created by using the default tooling axis by orientating it perpendicular to the dog house base.

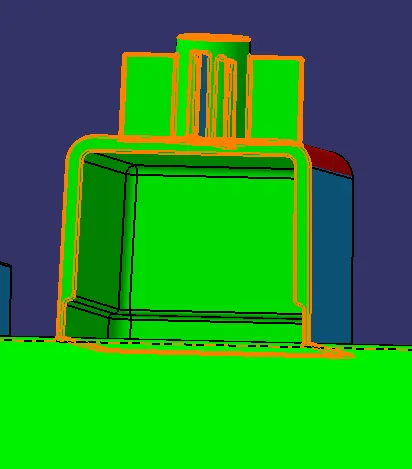

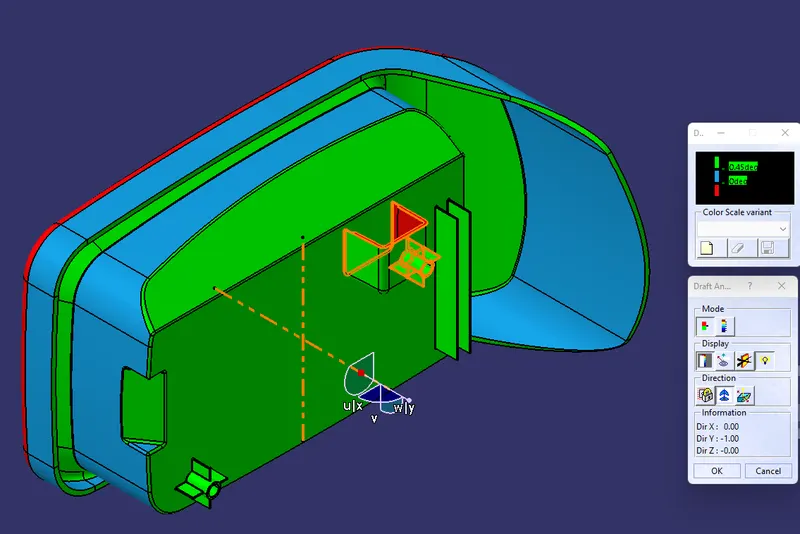

The draft analysis is run considering both the tooling axis and the respective results are plotted.

Conclusion:

From the plotted results is evident that the product is built with a minimum of 0.5-degree draft and the overall product is manufacturable considering both the tooling axis which needs a side core.
