Week 9 - Attachment Feature Creation - Challenge 2

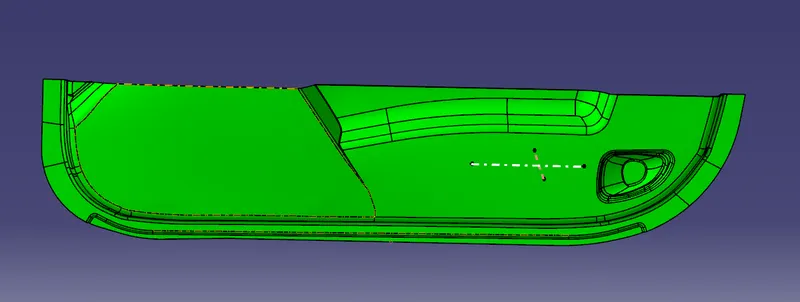

CLASS B SURFACE

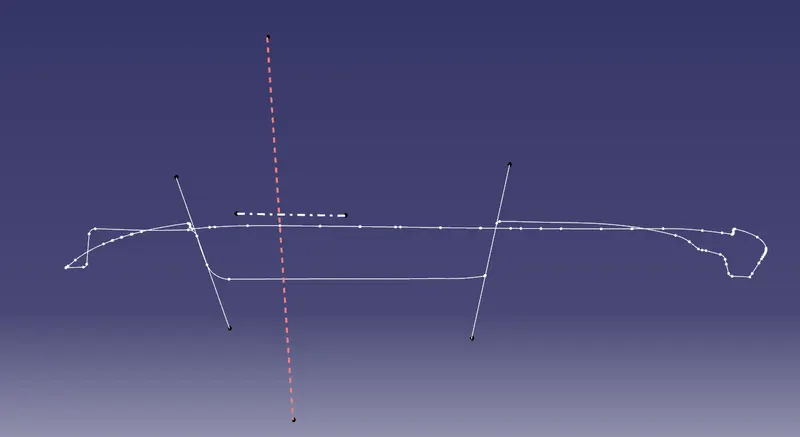

CREATING TOOLING AXIS :-

ALL THE SURFACE ARE ABLE TO CLEAR WITH THE Z COMPONENT BUT THE PROBLEM OCCUR FROM THE PATCH. AND TO OVERCOME THAT UNCLEARED SURFACE WE CREATE TWO LINES PROJECTING THROUGH IT AND WITH THE HELP OF BISECTING METHOD WE GOT OUR MAIN TOOLING AXIS. AND FOR THE SIZE CORE AXIS WE CREATED A LINE IN POINT DIRECTION CLEARING ALL THE INSIDE FACES OF THE DOGHOUSE.

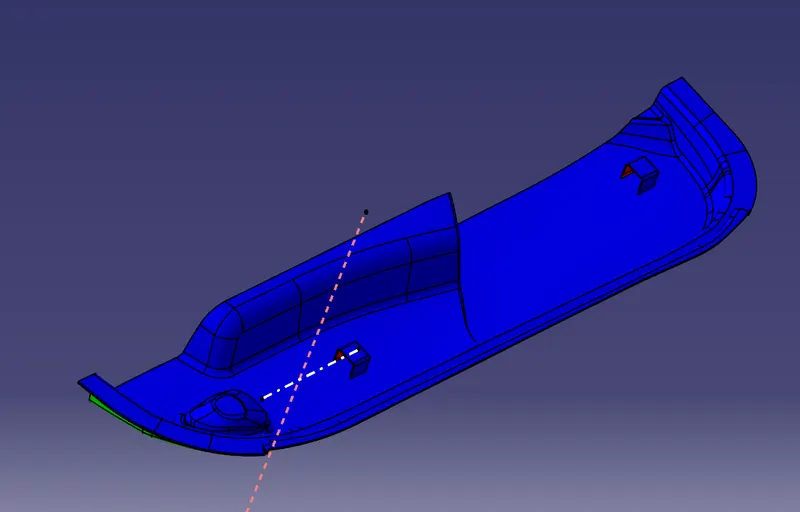

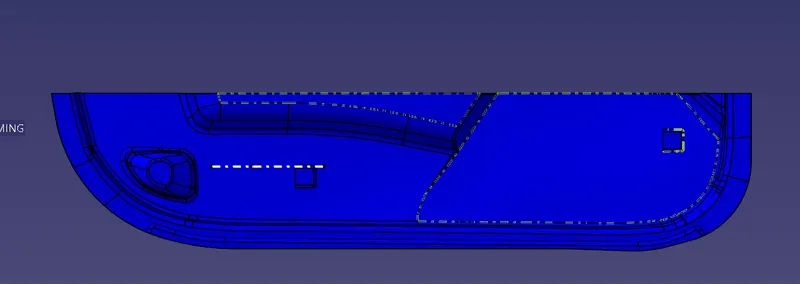

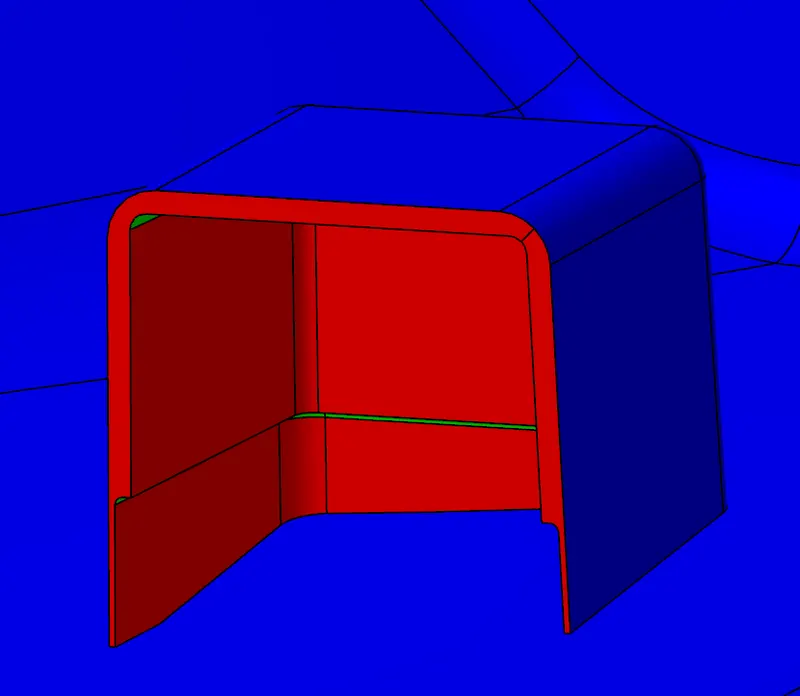

PICTURES IN DIFFERENT VIEW WITH DRAFT ANALYSIS:-
