Week 9 - Attachment Feature Creation - Challenge 2

DOOR TRIM :

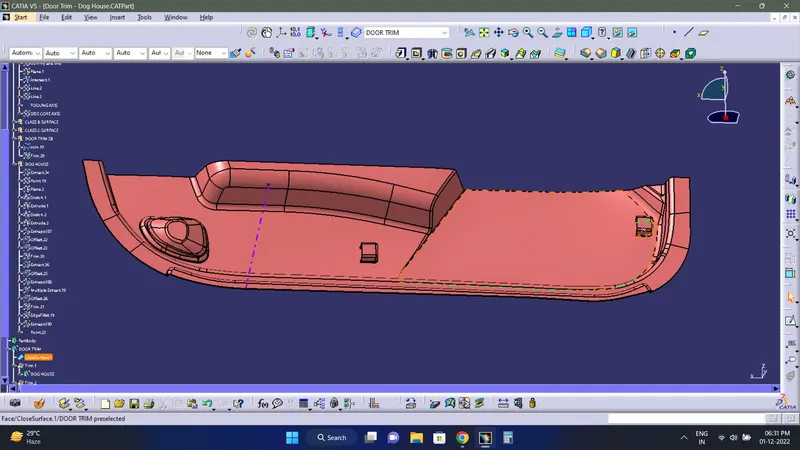

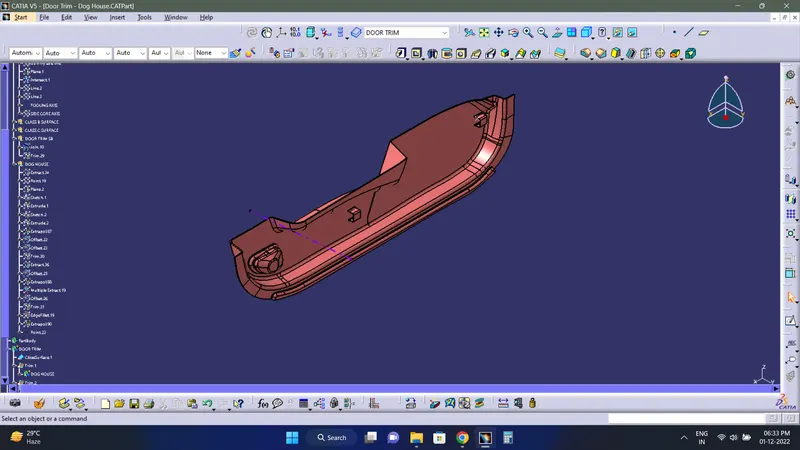

SOLID DESIGN :

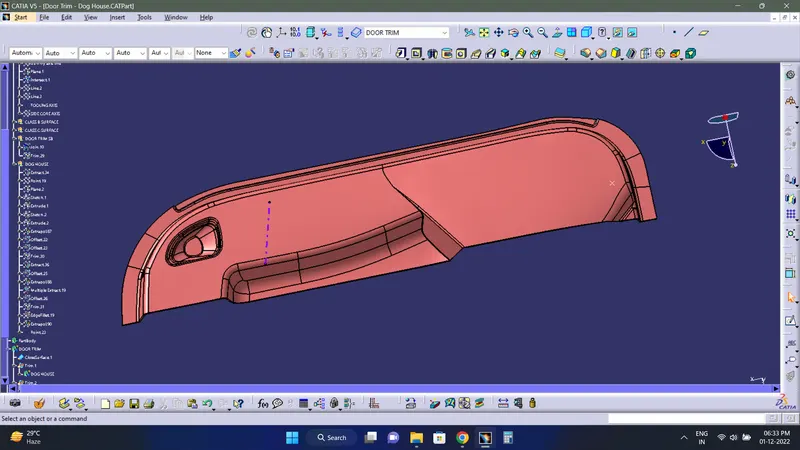

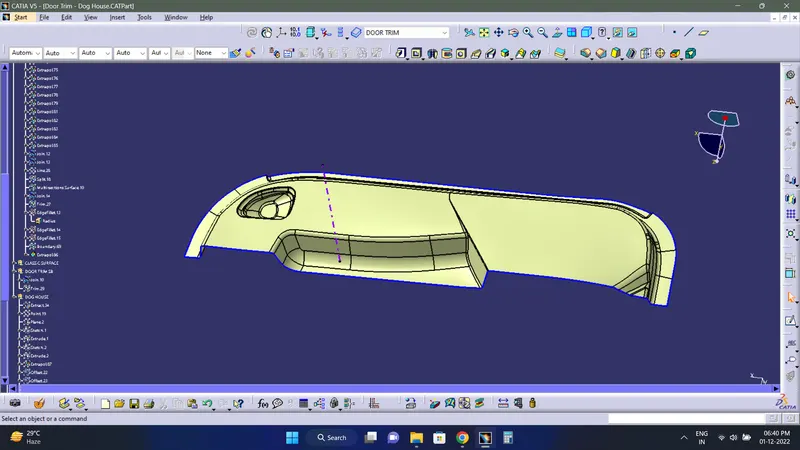

SURFACE DESIGN :

TOOLING AXIS :

CLASS A SURACE DRAFT ANALYSIS :

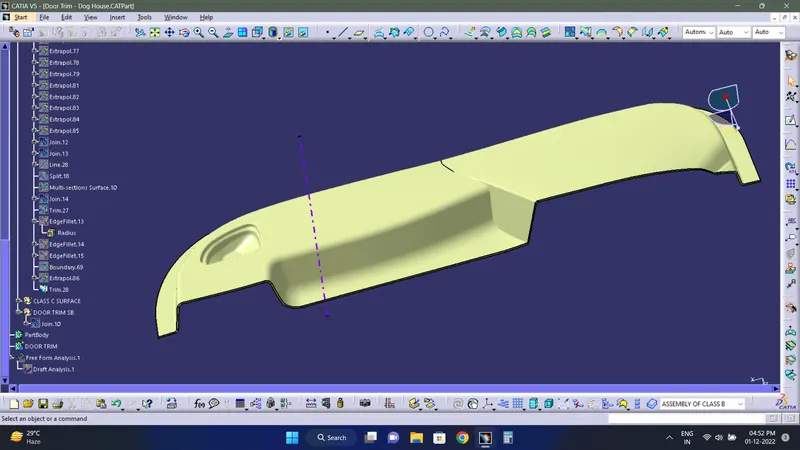

CLASS B SURFACE :

CLASS C SURFACE :

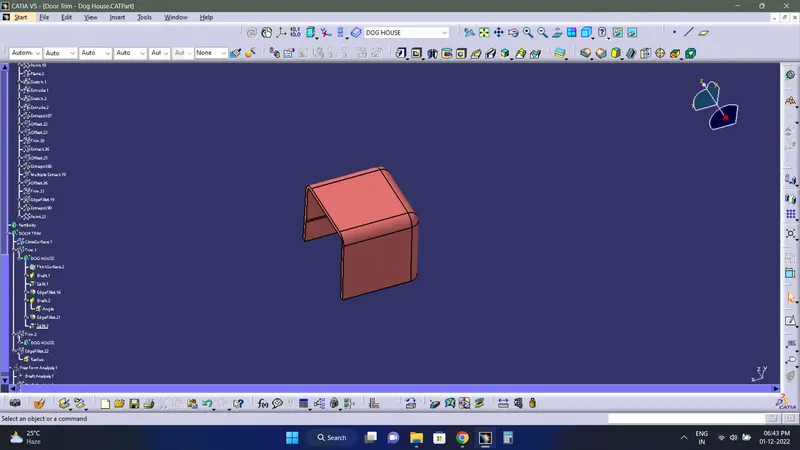

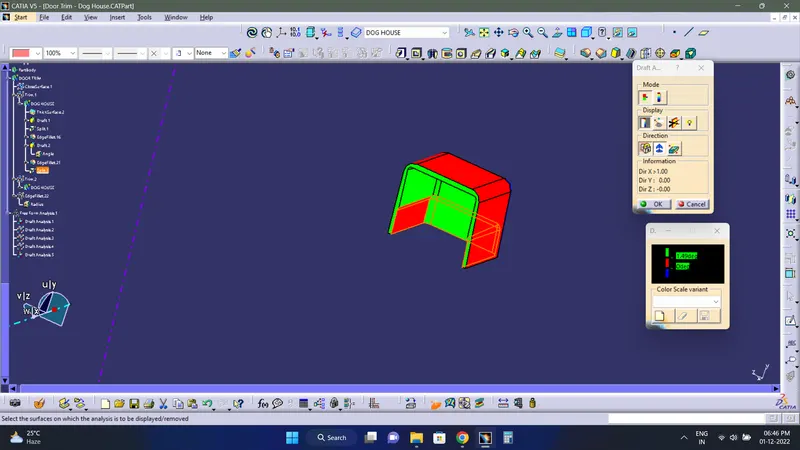

DOG HOUSE :

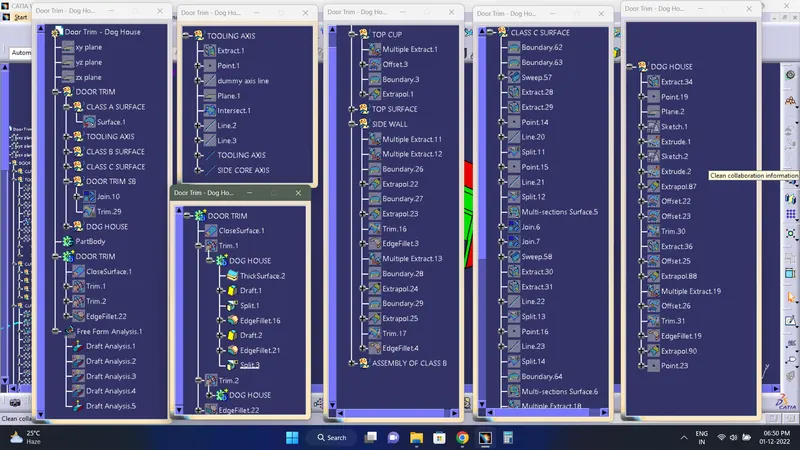

TREE STRUCTURE :

WORK REPORT DETAILS :

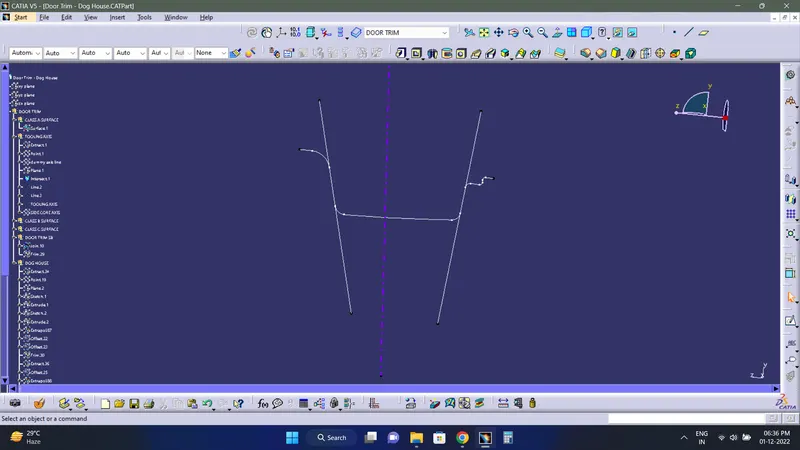

TOOLING AXIS = Y AXIS IS MAIN TOOLING AXIS OF THIS PART AND X AXIS IS SIDE CORE AXIS FOR DOG HOUSE

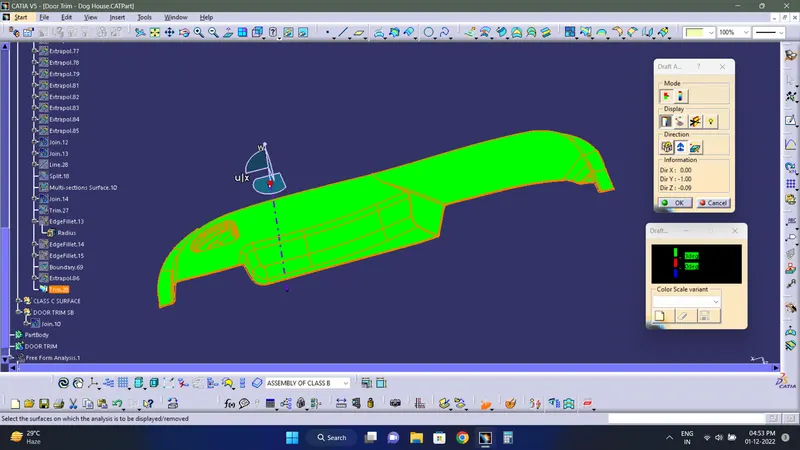

CLASS A SURACE DRAFT ANALYSIS : ALL THE SURFACE ARE ABOVE 3 DEGREE DRAFT AS SHOWN IN IMAGE BELOW

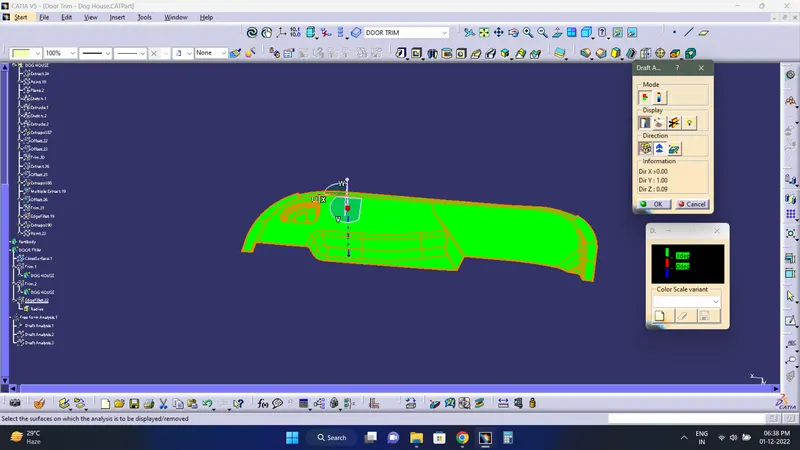

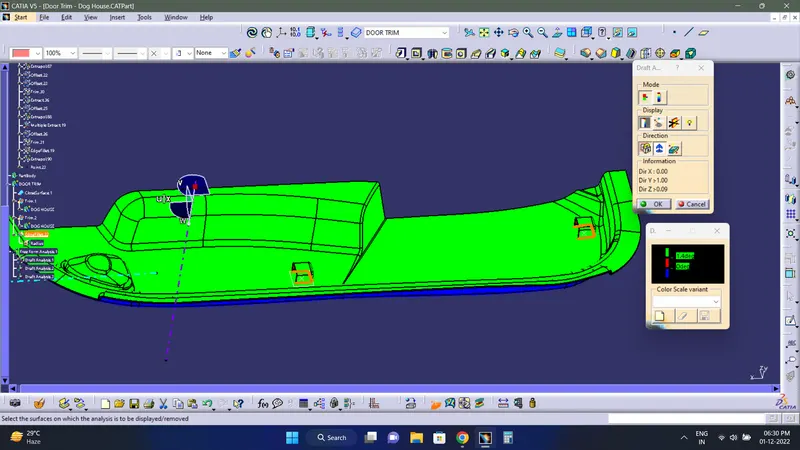

DOOR TRIM SURFACE DRAFT ANALYSIS : ALL THE SURFACE ARE ABOVE 3 DEGREE DRAFT AS SHOWN IN IMAGE BELOW FOR MECHANICAL FEATURES DRAFT ANGLE IS 1.5 DEGREE

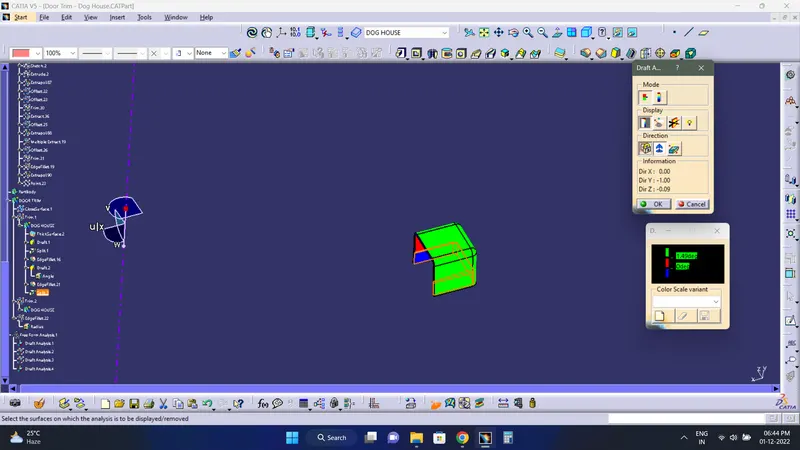

NOTE : 1.49 DEGREE DRAFT AS TAKEN DUE TO DOG HOUSE DRAFT ANGLE IS 1.5 DEGREE.
