Week 9 - Attachment Feature Creation - Challenge 1
- Aim: Create the rib for the Centre console coin holder considering the design rules mentioned in the video.
- Objectives:
- To create the rib as per the rules.
- To perform draft analysis.
- Method:
- Ribs are generally used for stiffening purpose.

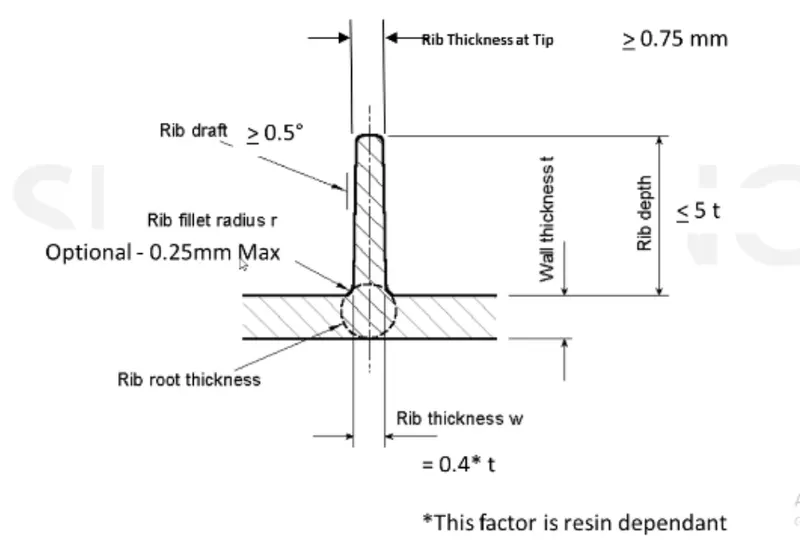

- To create a rib following rules must be used for proper dimensioning.
|

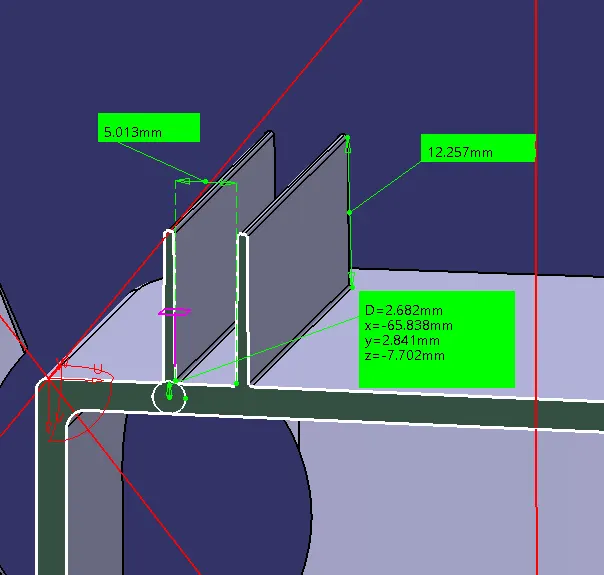

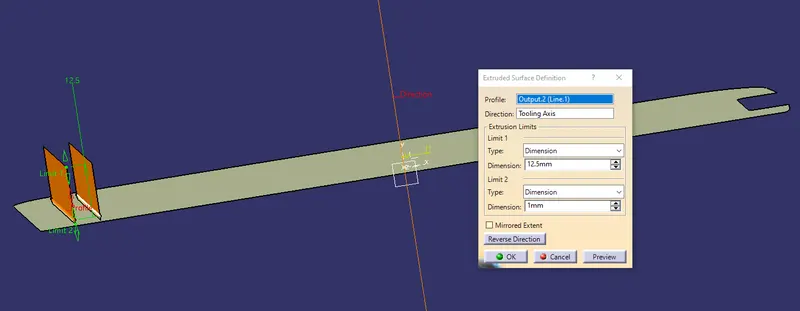

Basic sketch must be created and then it is required to extrude it. |

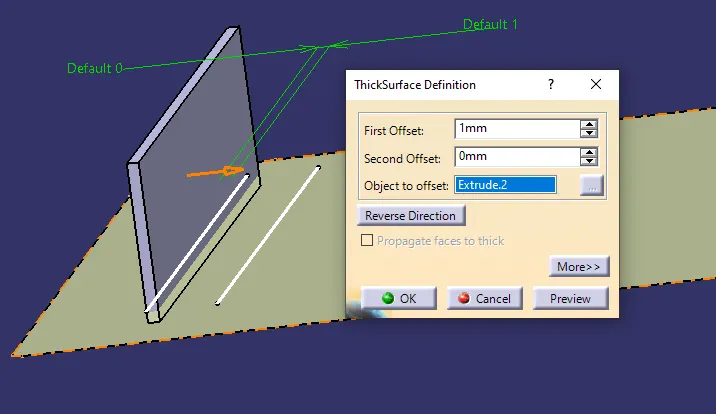

After surface is formed, it is required to thicken it for form the solid. |
|

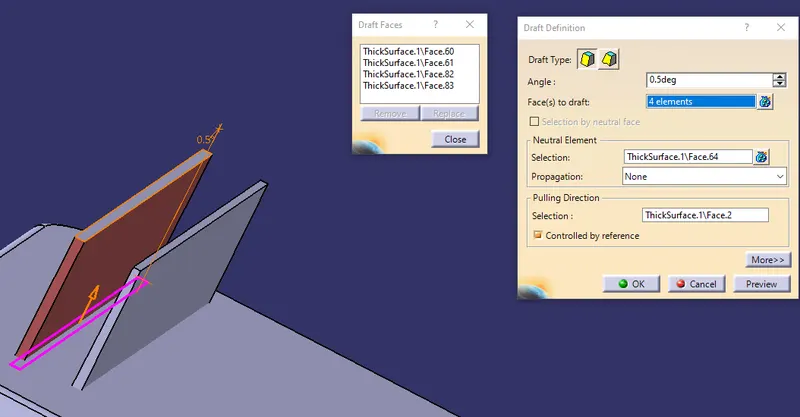

As per the requirement, draft has to be given which is 0.5 degree. |
 |
|

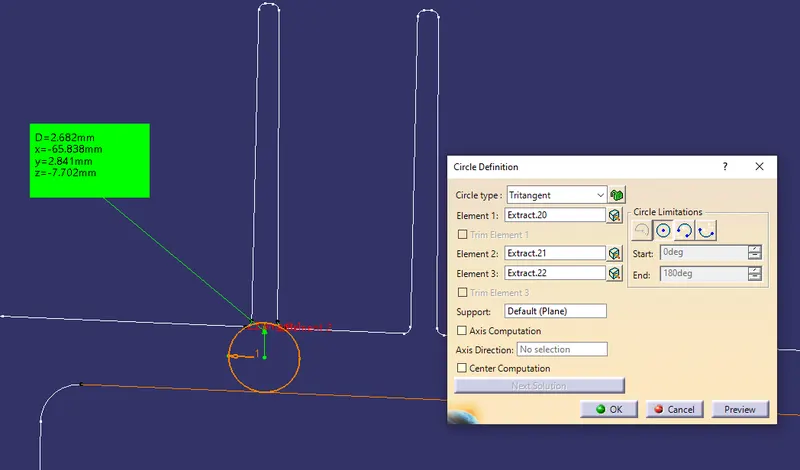

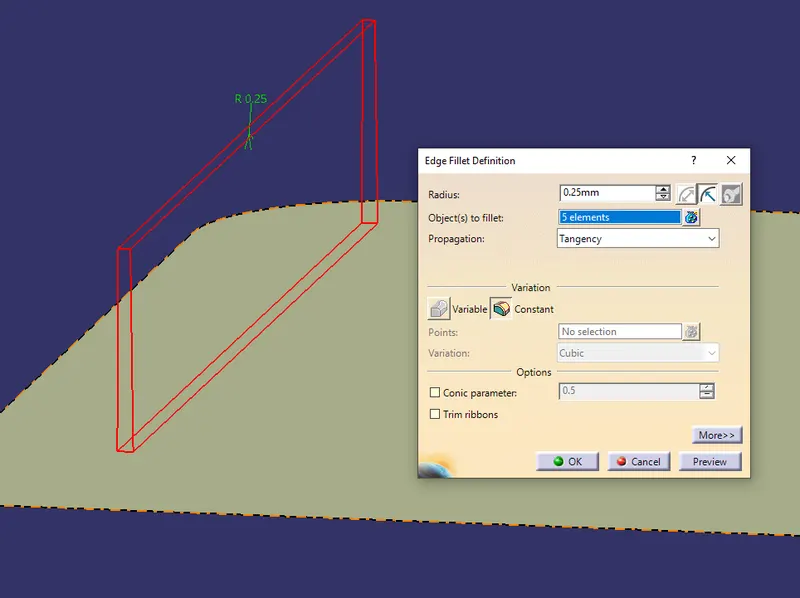

Base radius can be measured. |
 |
|

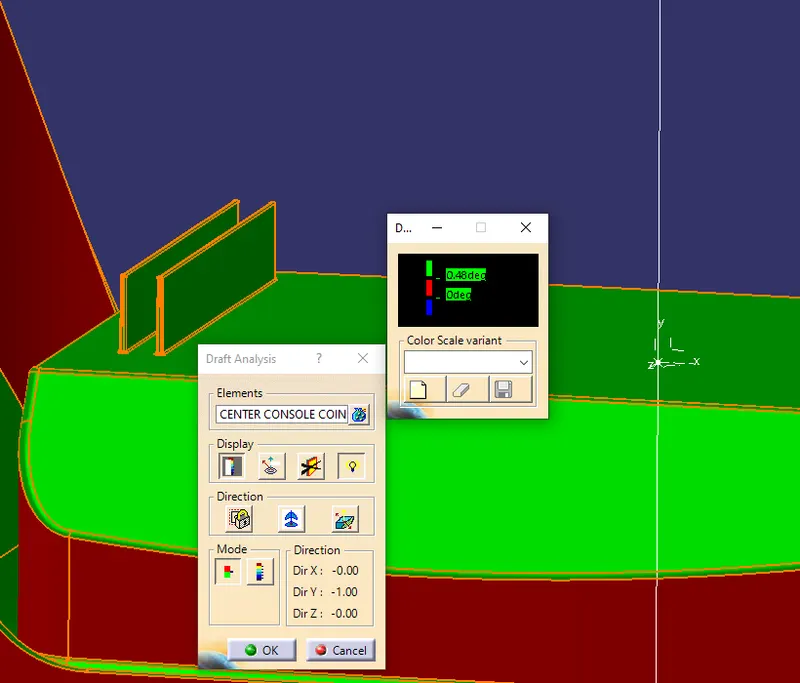

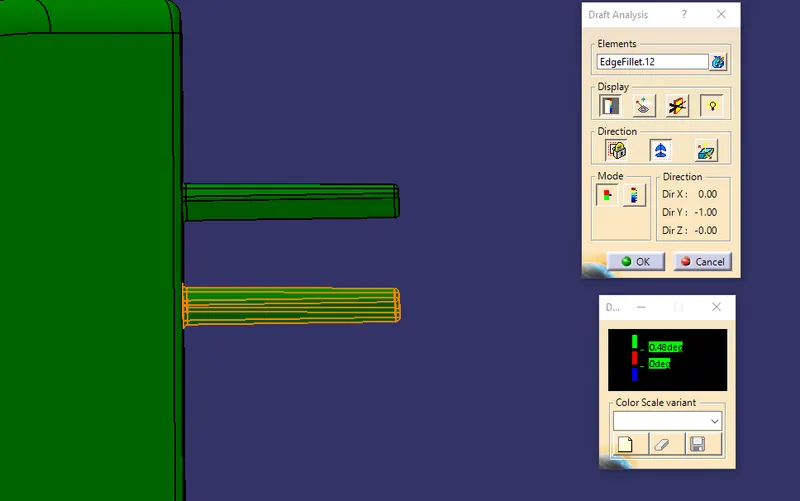

Draft analysis to be done in order to see rib is feasible to manufacture or not. |
 |
- Learning outcome:
- To design a rib for strengthening purpose.
- To perform draft analysis for the same.
