Week 9 - Attachment Feature Creation - Challenge 1

RIB DESIGN

TO DESIGN RIB

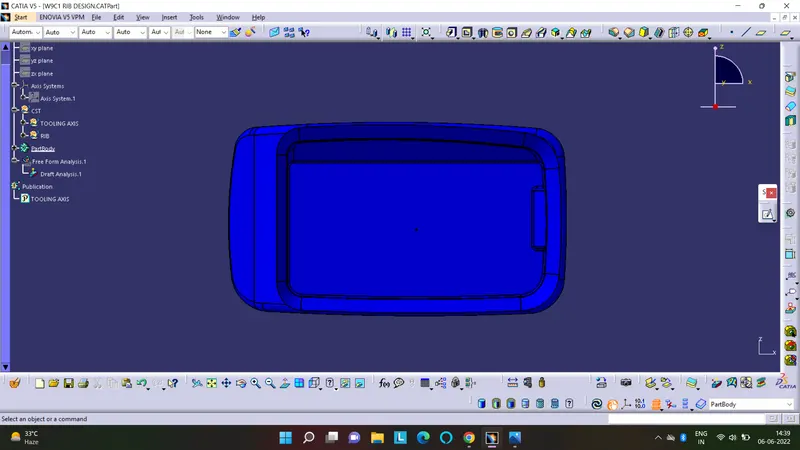

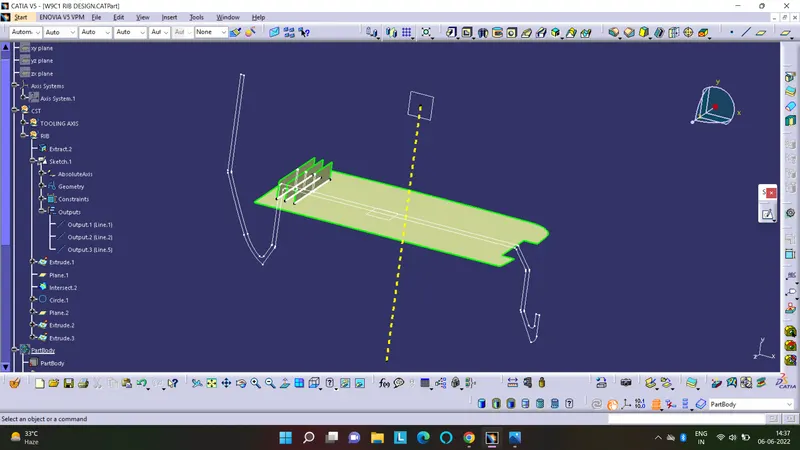

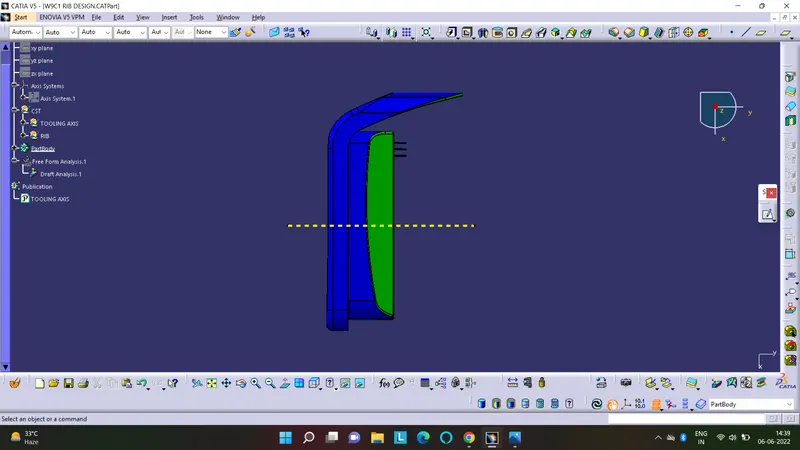

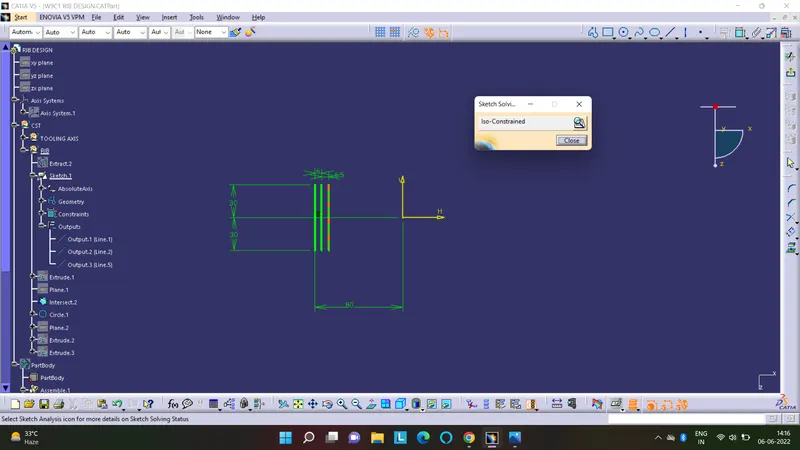

EXTRACT BASE OF THE COIN HOLDER THEN CREATE SKETCH ON IT.

AND TAKE THAT LINE AS OUTPUT FEATURE

THEN EXTRUDE THAT LINE ALONG TOOLING AXIS

GO TO PART WORKBENCH, WITH THE HELP OF DESIGN RULE THICKEN THE EXTRUDE AND GIVE DRAFT TO IT.

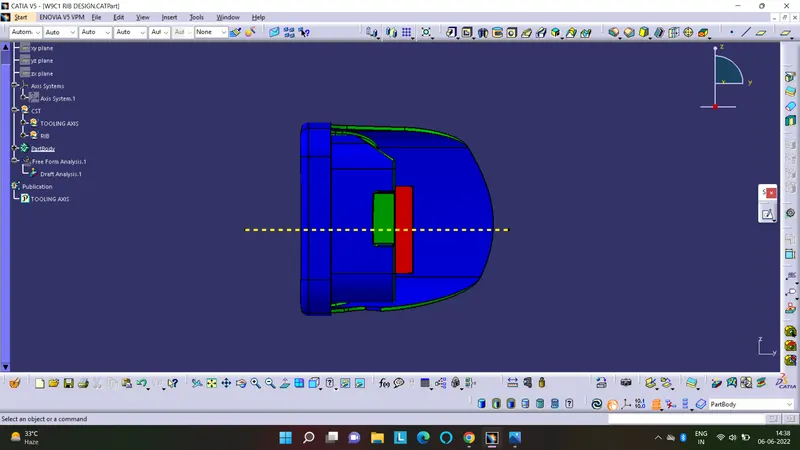

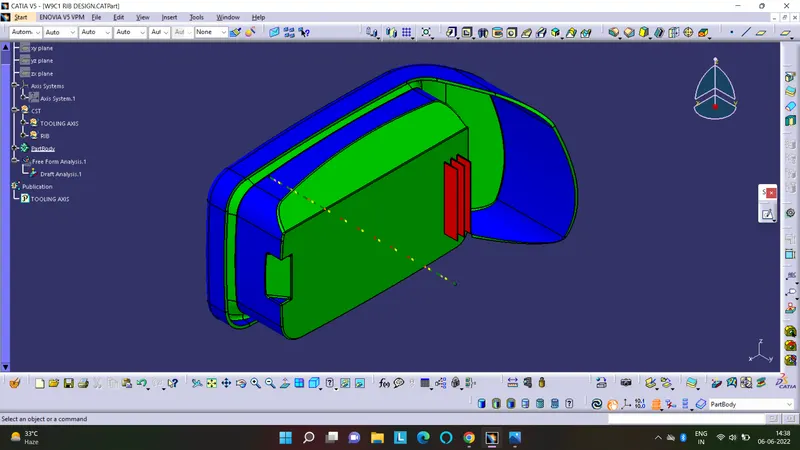

ASSEMBLE THIS BODY WITH MAIN BODY AND GIVE FILLET.

THEN TAKE INTERSECTION TO CHECK RIB ROOT THICKNESS.

AGAIN REPEAT THIS PROCEDURE FOR NEXT TWO RIBS

SPACING BETWEEN 1ST AND 2ND RIB IS AT 3:1 (HEIGHT:WIDTH) RATIO

AND 2ND AND 3RD RIB IS AT 2:1 RATIO.

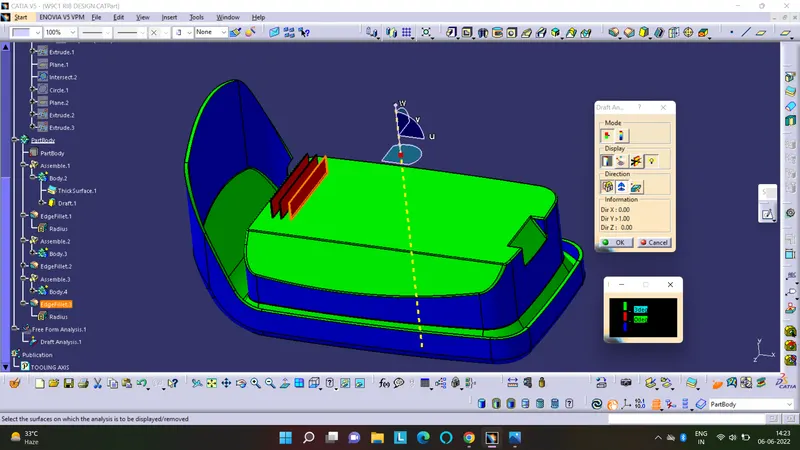

AFTER THIS ALL DO DRAFT ANALYSIS.
