Week 9 - Attachment Feature Creation - Challenge 1

Report

Aim:Create the rib for the Centre console coin holder considering the design rules.

Procedure:

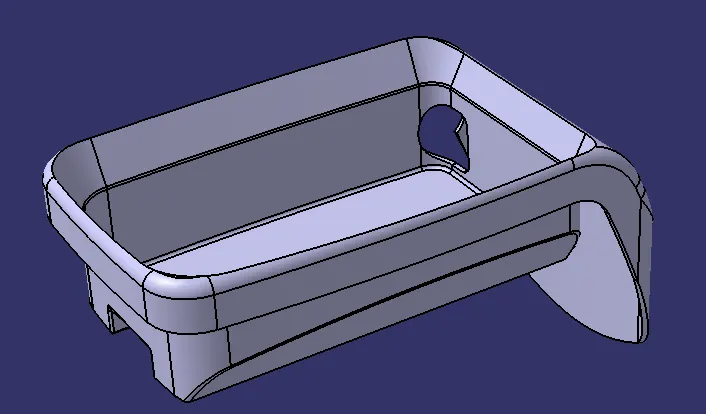

import geometry

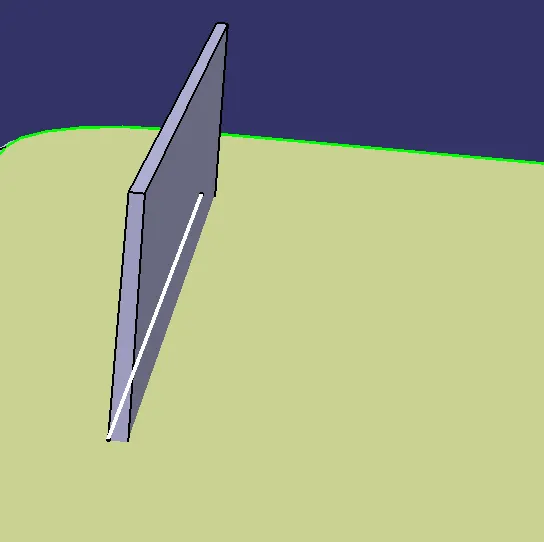

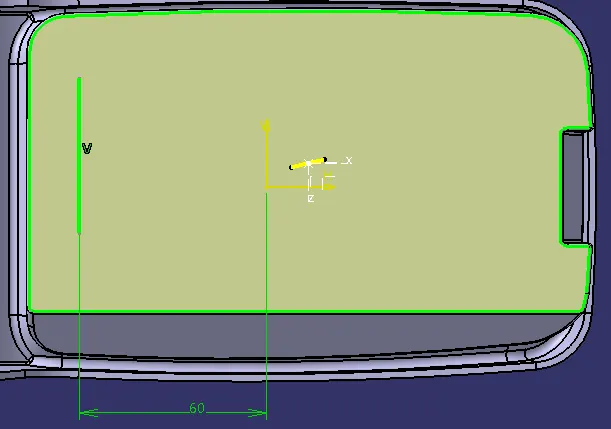

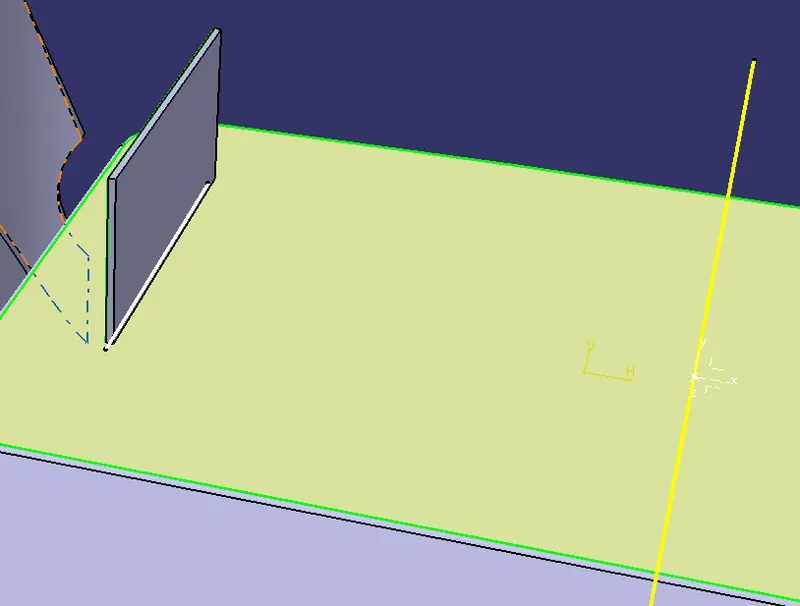

draw a sketch for the rib

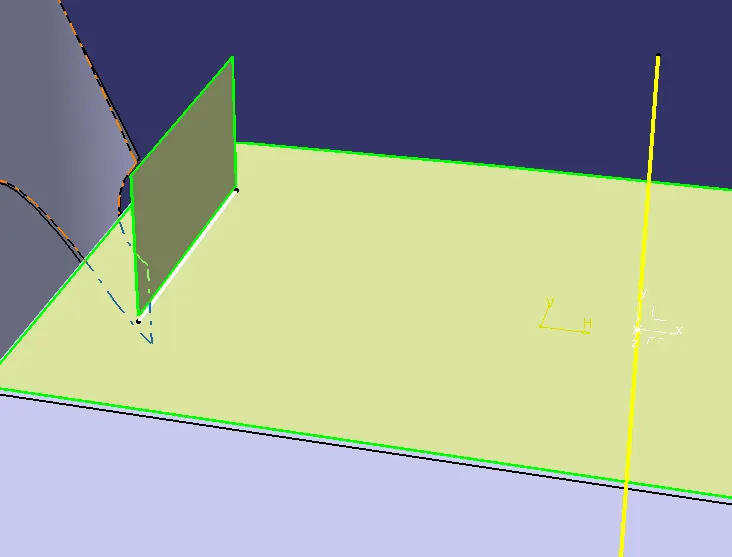

extrude along tooling axis, thickness of coin holder is 2.5mm

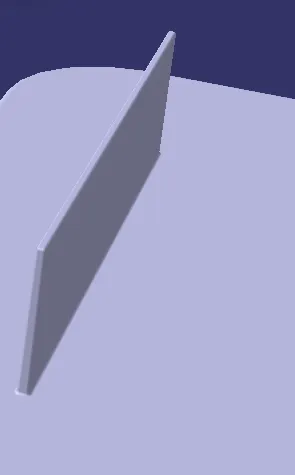

thicken the rib

0.4*2.5=1mm, that is the thickness of rib

change the height=2.5*5=12.5mm

draft 4 faces with 0.5 degree along tooling aixs

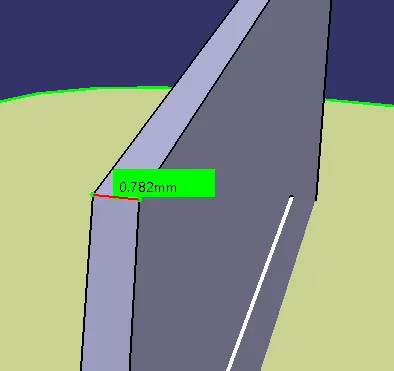

the width of top face is 0.782mm which is greater than 0.75mm

give 0.25mm fillet of all edges

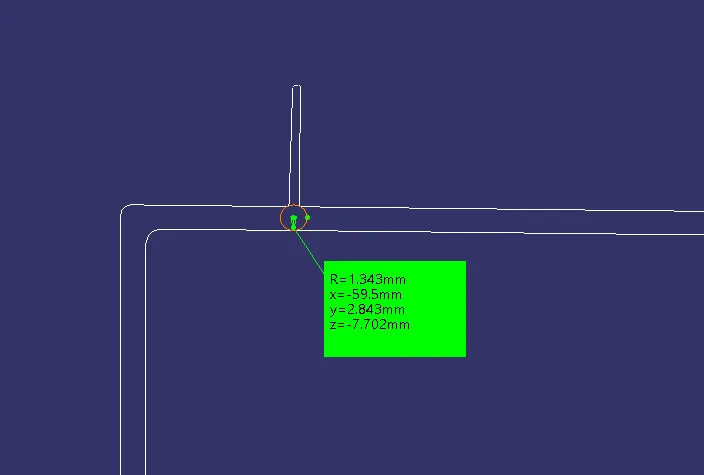

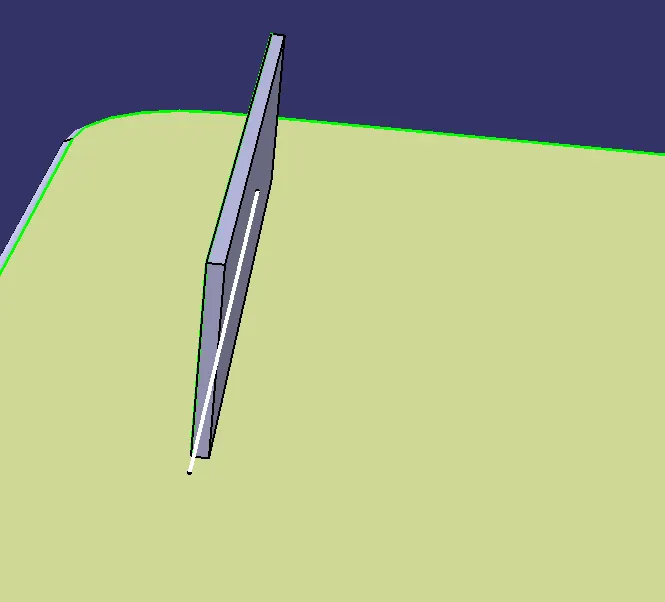

check rib root thckness, r=1.34mm, d=2.48mm

create 2nd rib and repeat the same operation

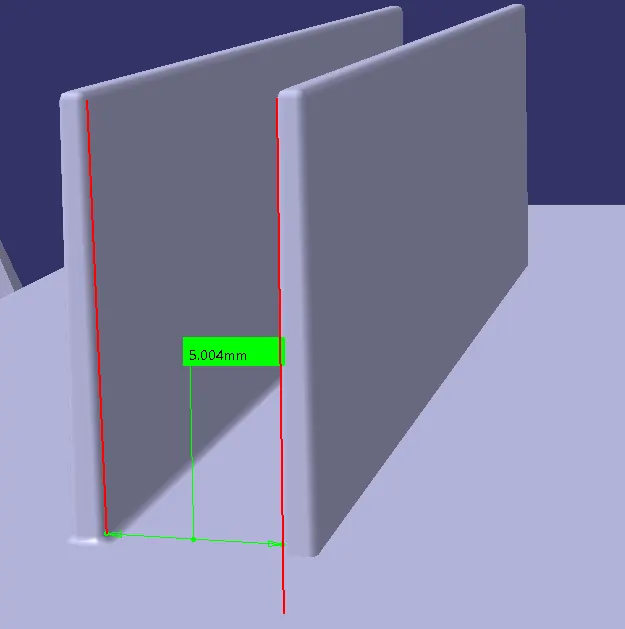

gap is 5mm

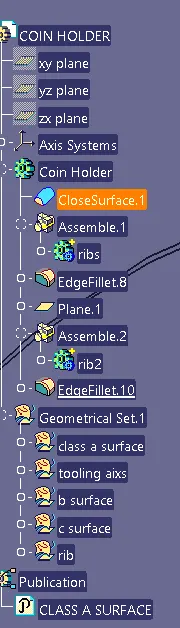

Tree Structure

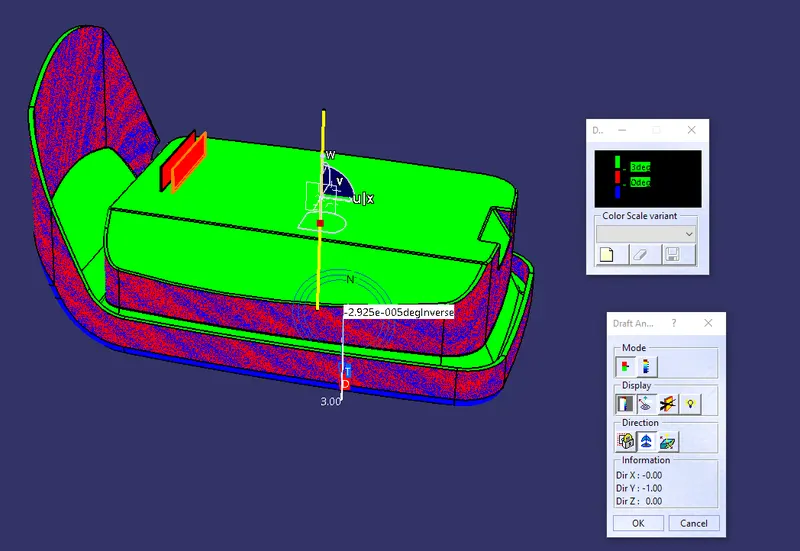

draft analysis

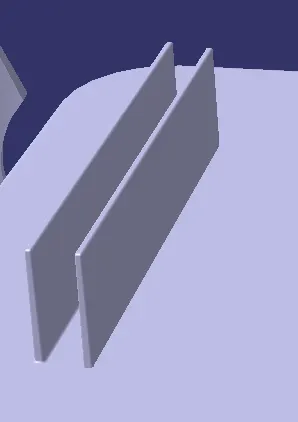

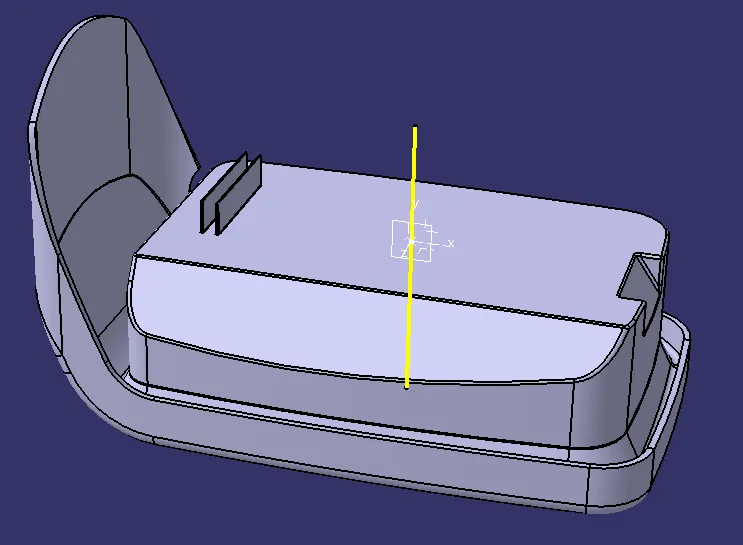

final views
