Week 9 - Attachment Feature Creation - Challenge 1

RIB DESIGN

Ribs are designed as B side features to provide a means to economical stiffness and in strength of the molded parts without increasing overall thickness.

The design rules to be followed to design ribs are:

• Rib height < 5X nominal wall thickness
• Draft degree should be 0.5 per side minimum.
• Thickness will be 40% of wall thickness.
• Spacing between two ribs is 3:1
• Minimum thickness at the tip is 0.75.
• The Radii of the rib boundaries is 0.25mm minimum.

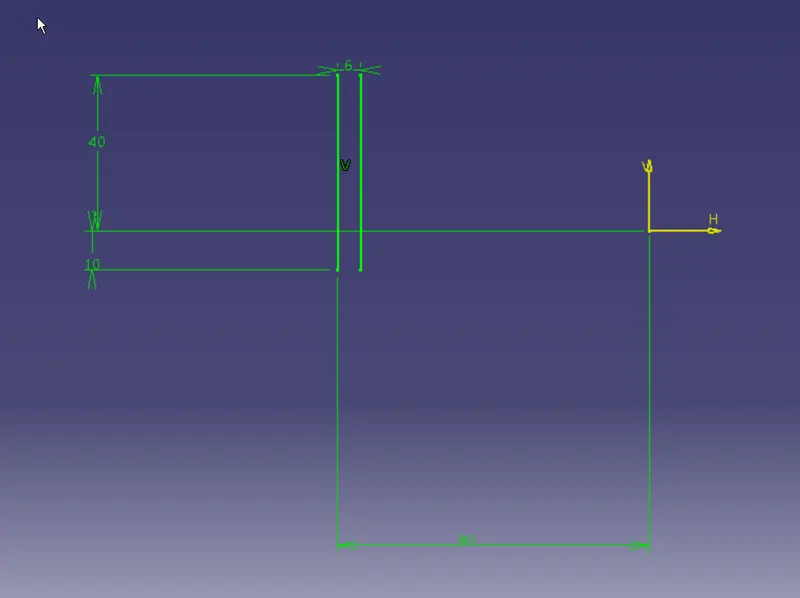

Fig: Sketch for rib

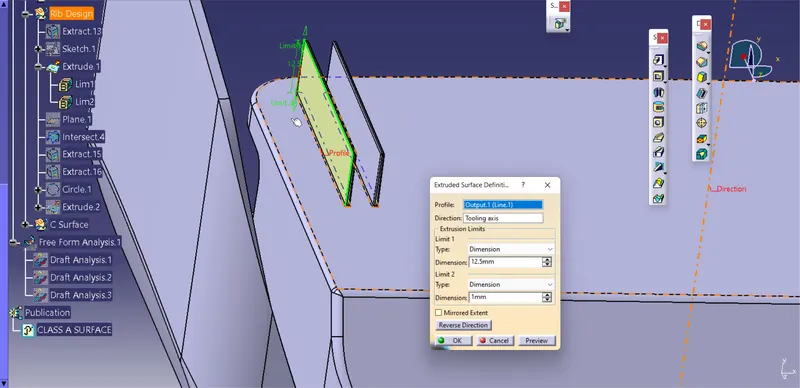

Fig: Surface Extrude

Fig: Thickness for rib

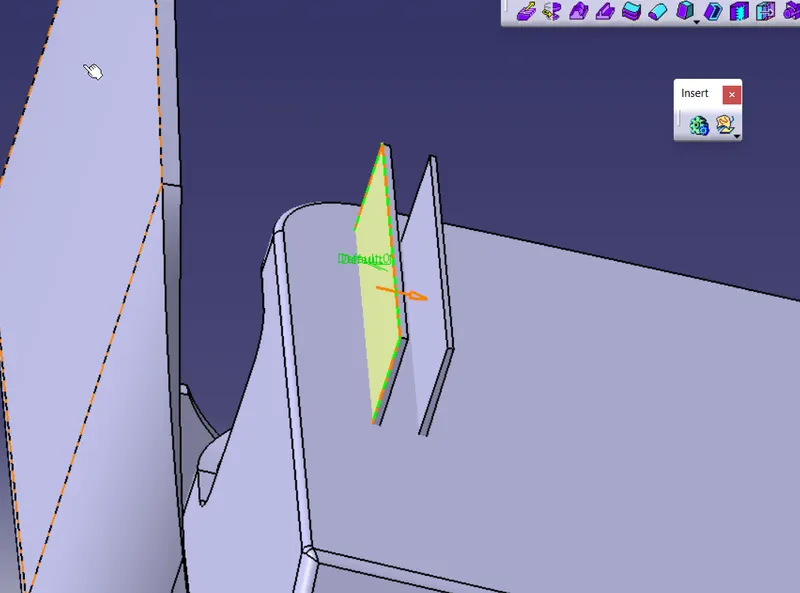

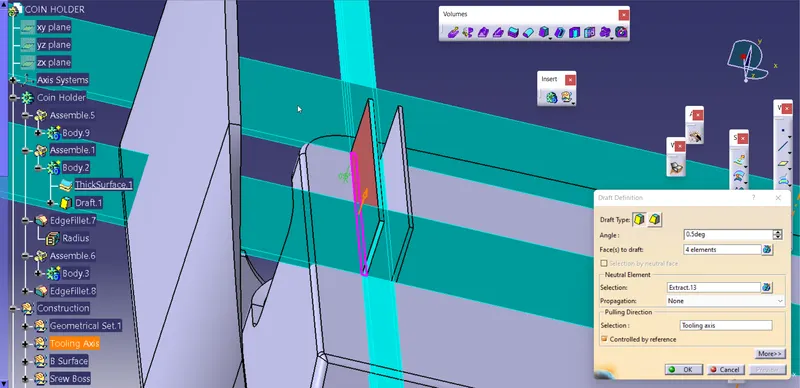

Fig: Draft for rib

Similarly we create multiple ribs at a distance of 5mm.

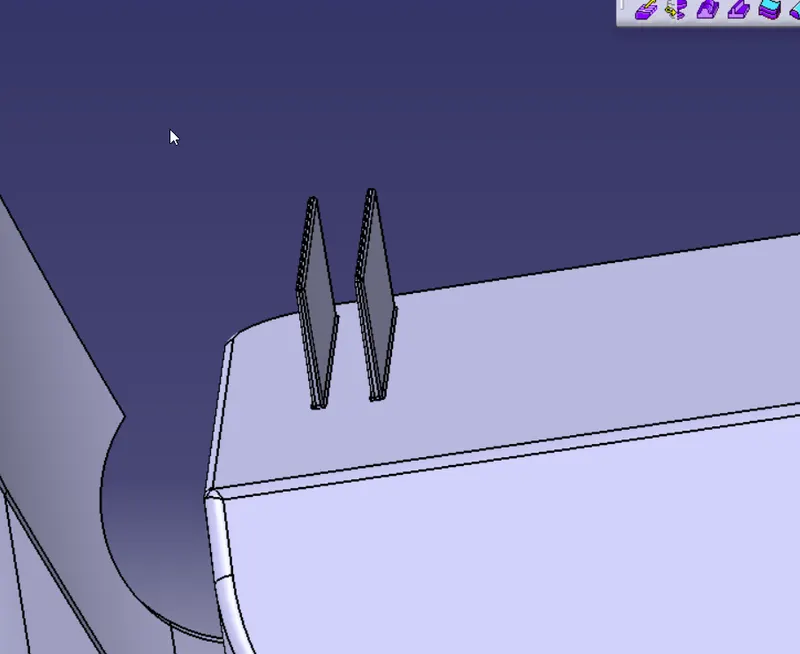

Fig: Ribs

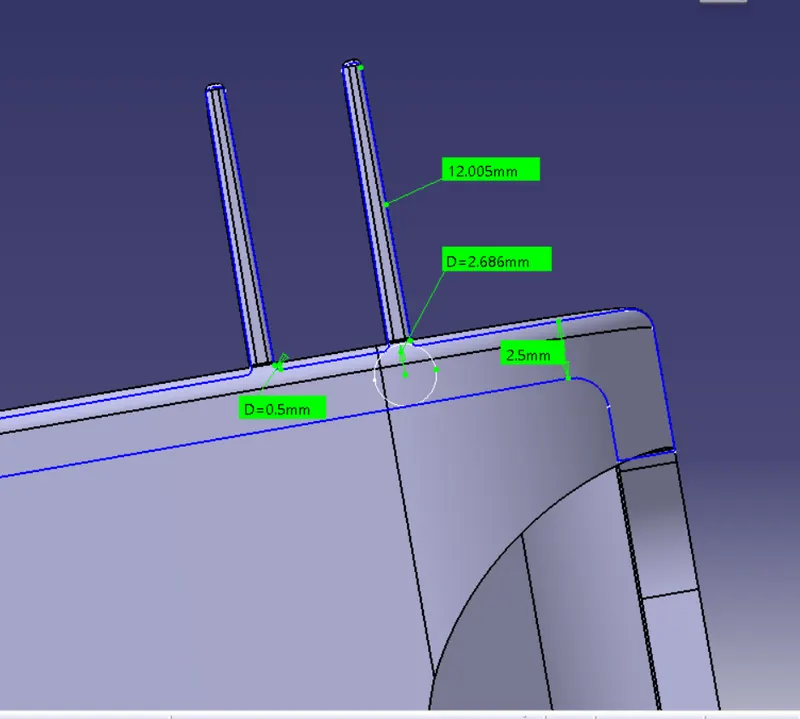

Fig: Report of the ribs

Views

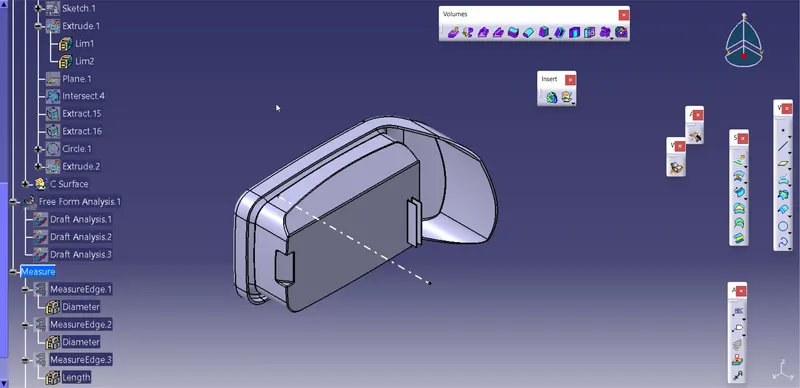

Fig: Isometric view

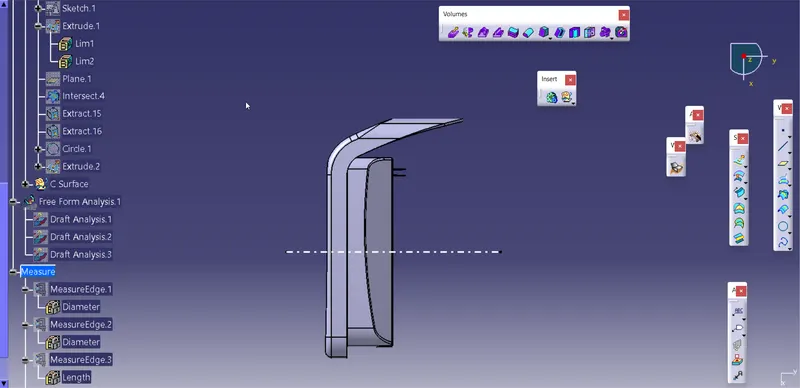

Fig: Front View

Fig: Side View

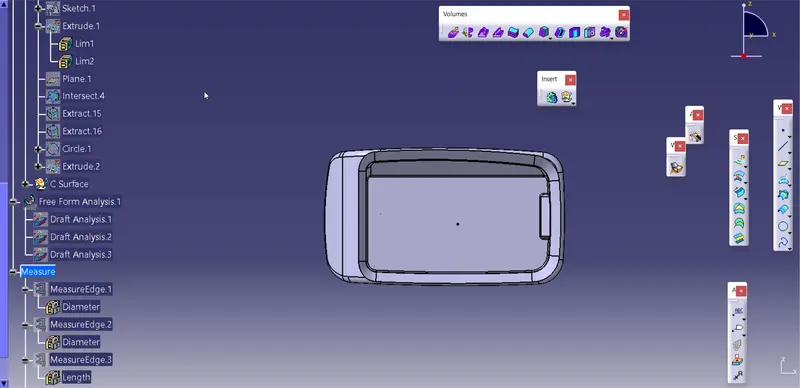

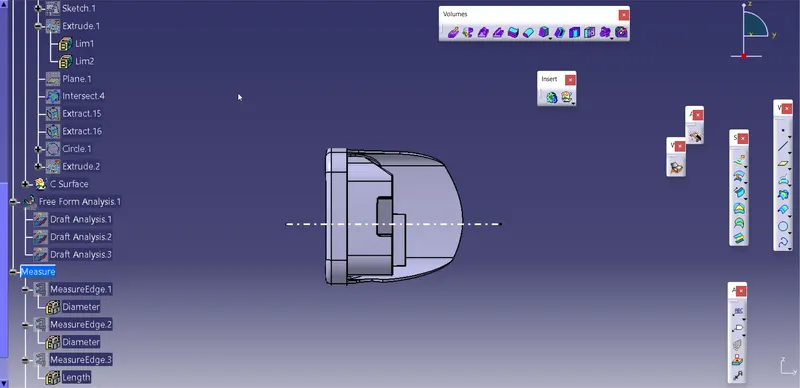

Fig: Top View

Draft Analysis

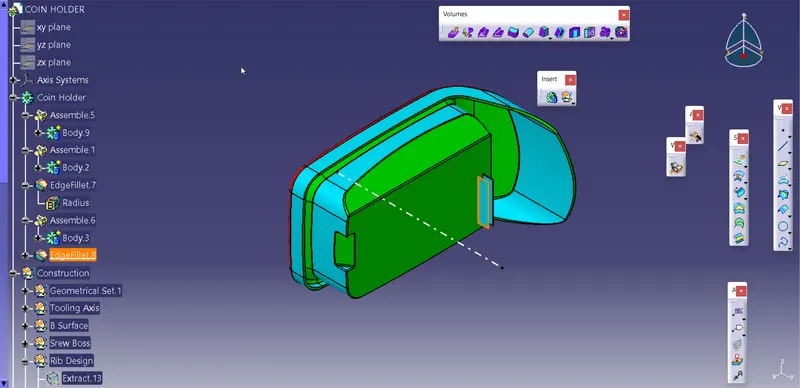

Fig: Draft Analysis Isometric view

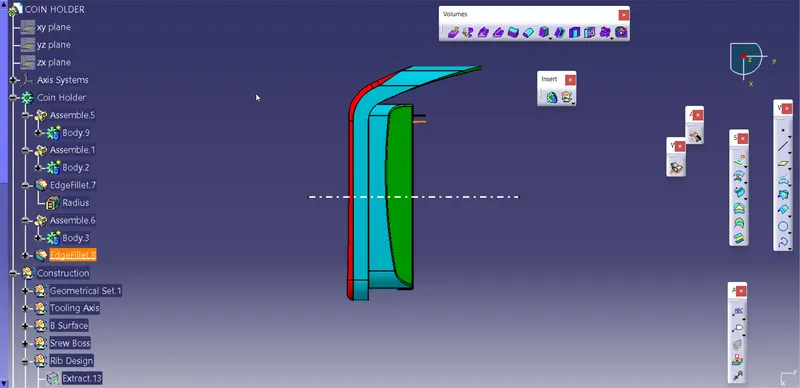

Fig: Draft Analysis Front view

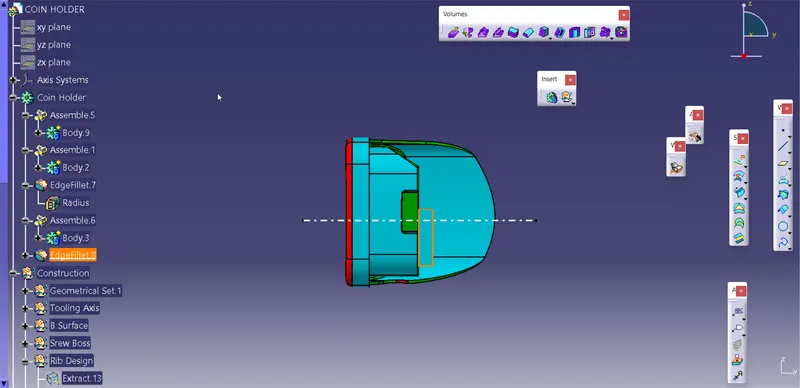

Fig: Draft Analysis Side view

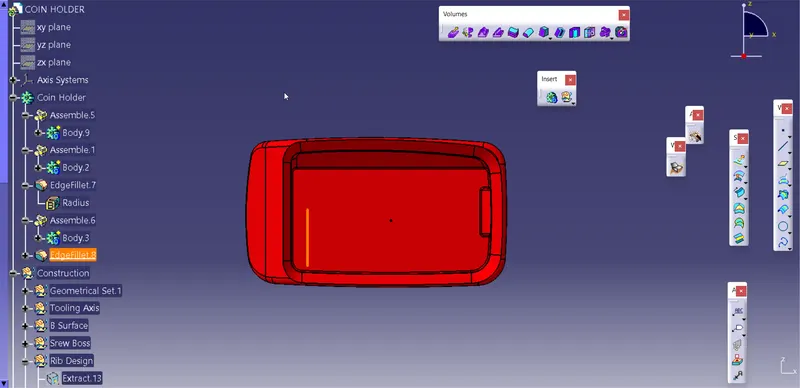

Fig: Draft Analysis Top view

Draft Analysis Report

• The green color represents the angle of the surface i.e, 3 or more than 3
• The blue color represent the angle of the surrface in b/w 0 to 2
• The red color represent the angle of the surface i.e, below 0 and need to be corrected. In this case the red color is at opposite of the tooling axis the reason why its showing below 0.
