Week 9 - Attachment Feature Creation - Challenge 1

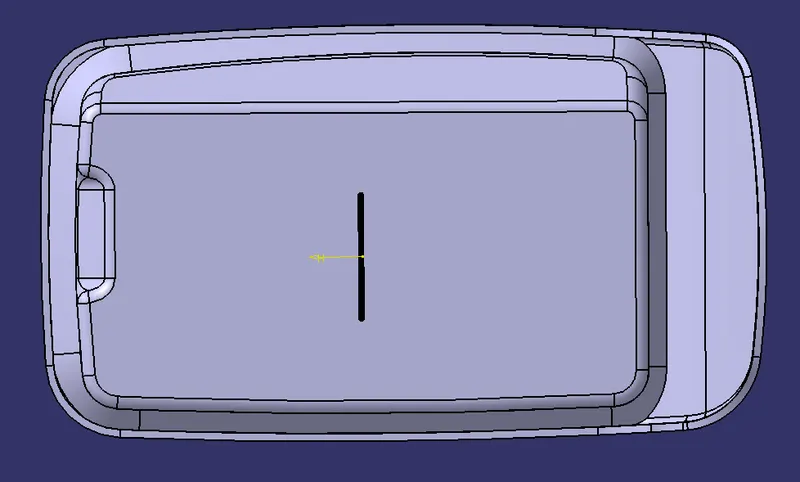

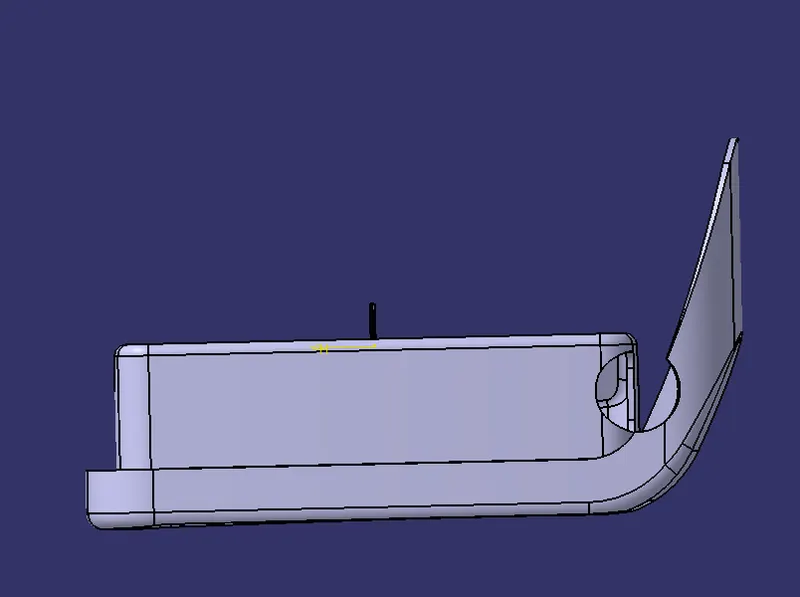

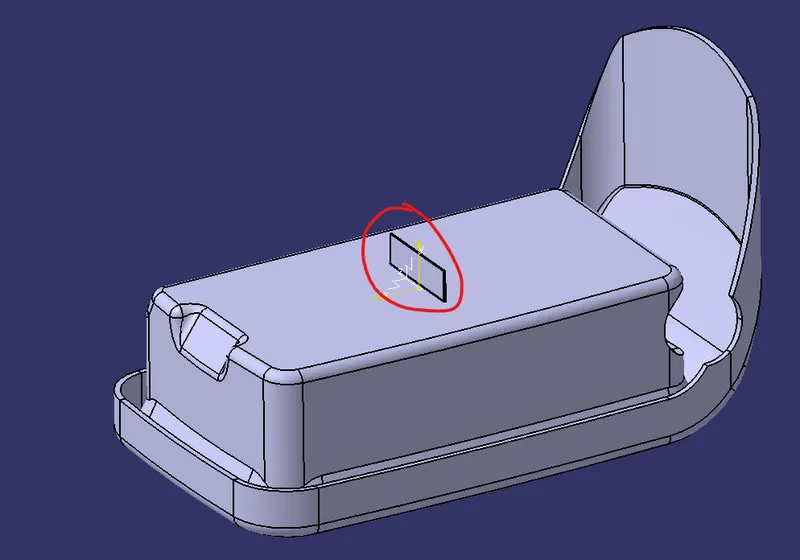

Rib design

Thick analysis

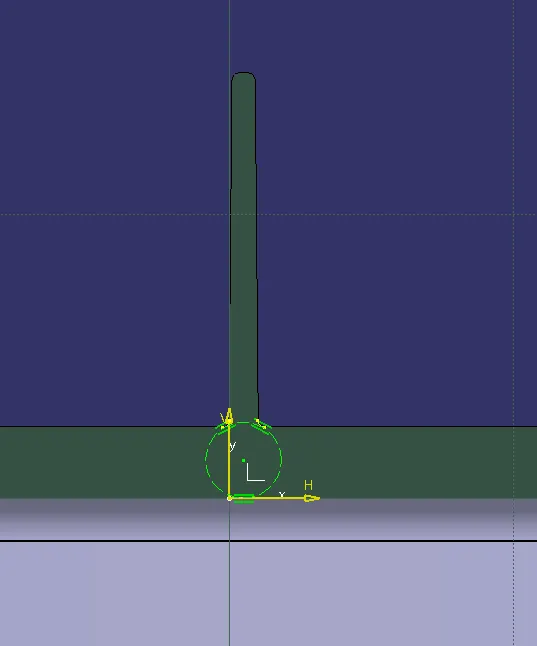

We can see in the above image of the thickness analysis where the Root thickness perfectly alligned.

Draft analysis of Rib

We can see in the above image of draft analysis of the rib where it is lesser than the three degree so iot shown in red.

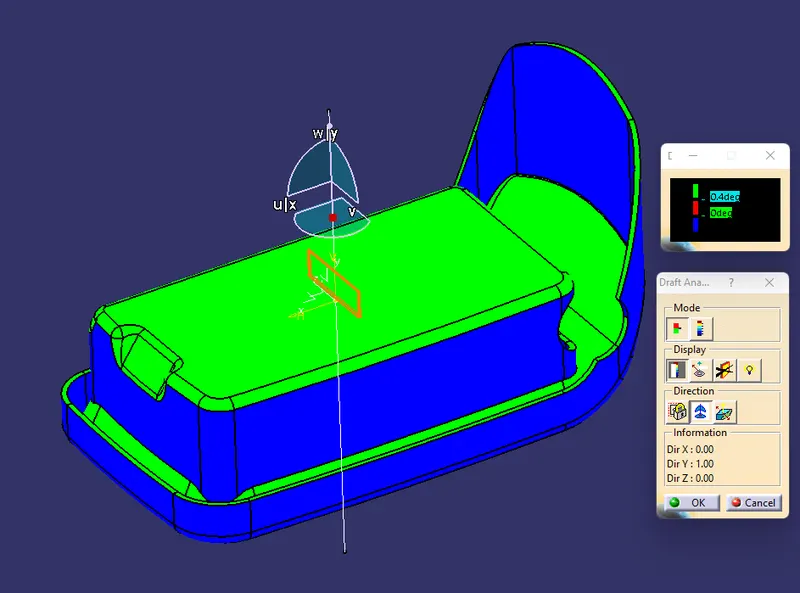

IN the image we can see the rib is in Green in colour because the minimum draft angle is 0.4Degree. WRT to tooling axis.
